| Parameter | Specification |
|---|---|
| Output Voltage Range | 1 – 12.5 kV (±5%) |
| Wavefront Time | 1.2 μs ±30% |
| Half-Peak Time | 50 μs ±20% |
| Output Impedance | 12 Ω ±10% or 500 Ω ±10% (selectable) |
| Output Polarity | Positive / Negative / Alternating |
| Trigger Mode | Manual / Automatic / Single Shot |
| Number of Impulses | 1 – 9999 |
| Impulse Interval | 3 – 999 seconds (3 s = min. recharge time) |

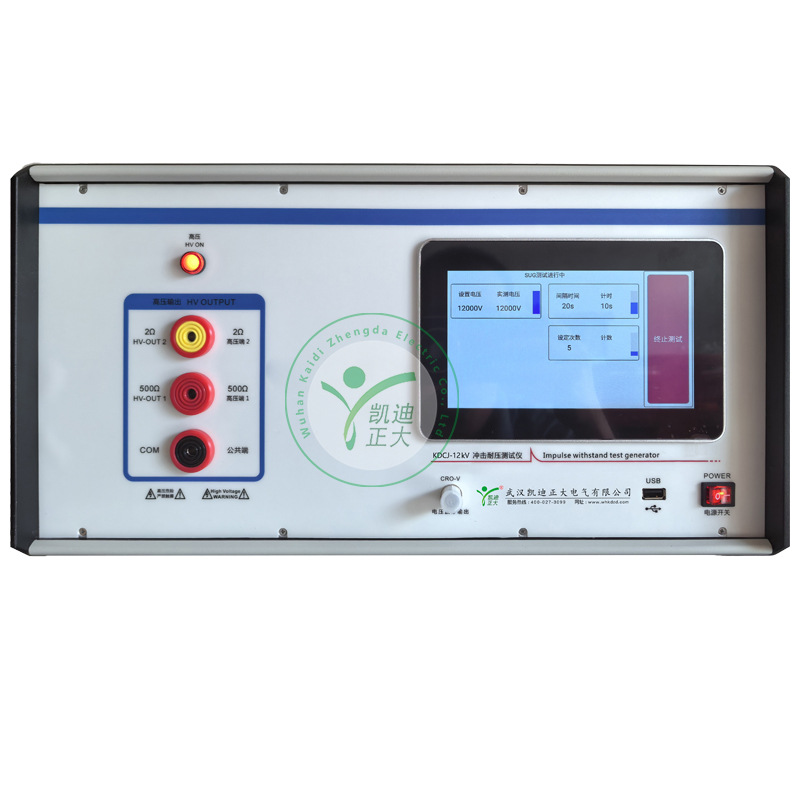

| Control Interface | 7" TFT touch LCD |
| Waveform Monitoring | Built-in 1000:1 BNC output for oscilloscope |
| Protection Functions | Overvoltage, overcurrent, short circuit, open circuit, no-output alarm |
| Power Supply | AC 220V ±10%, 50/60 Hz |
| Operating Environment | Temperature: 15°C – 35°C Humidity: 10% – 75% RH (non-condensing) |
| Dimensions (W×H×D) | 470 mm × 260 mm × 500 mm |
| Weight | Approx. 30 kg |
