Profile:

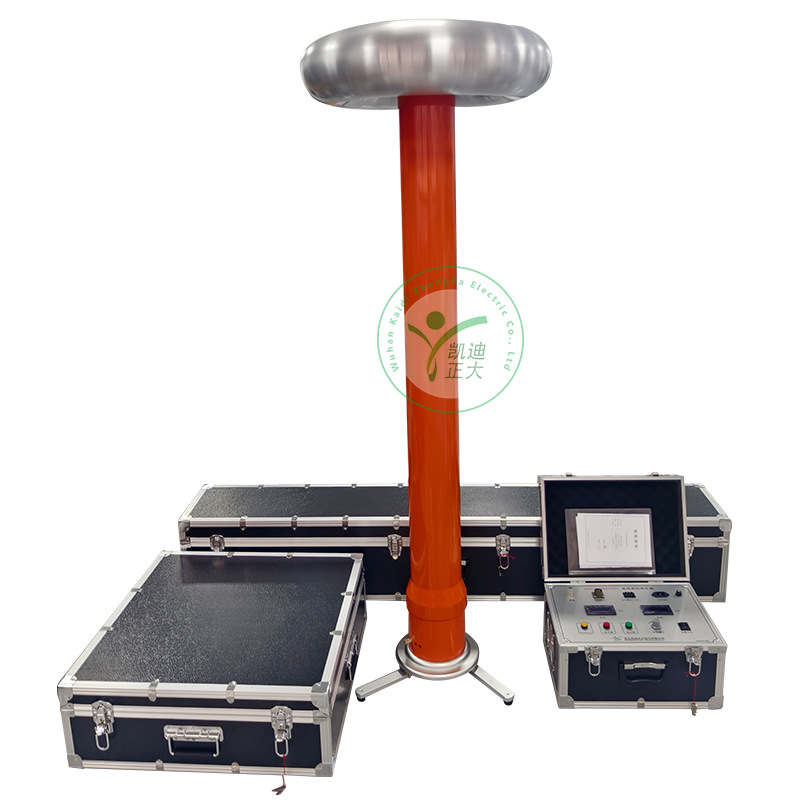

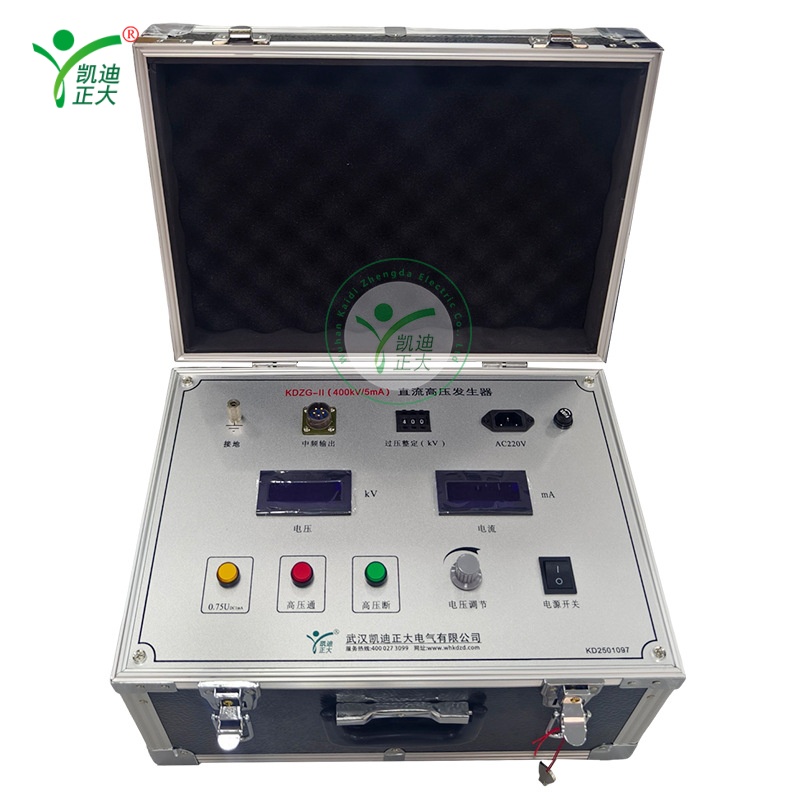

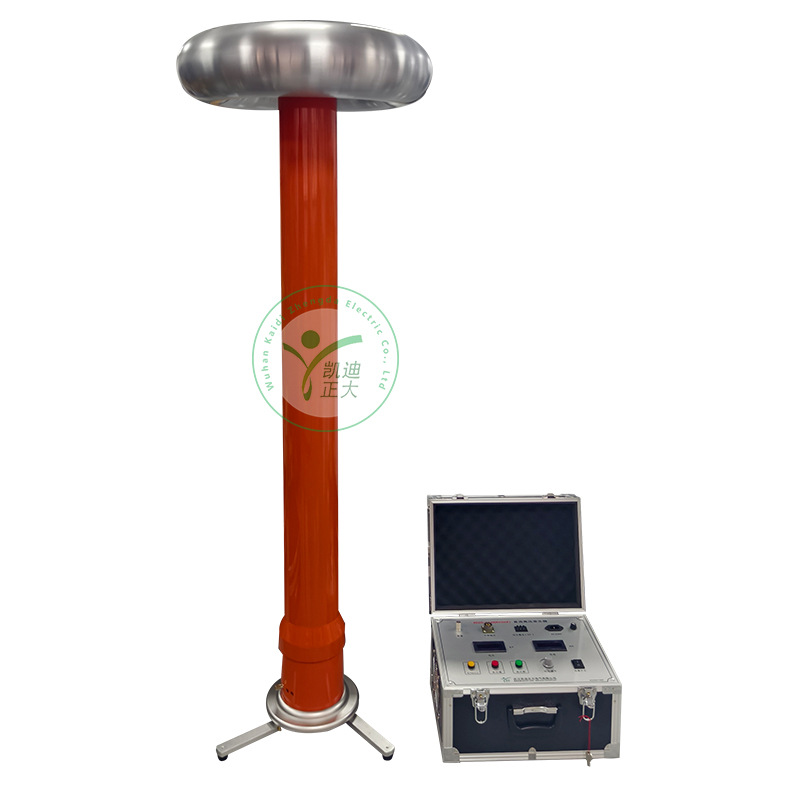

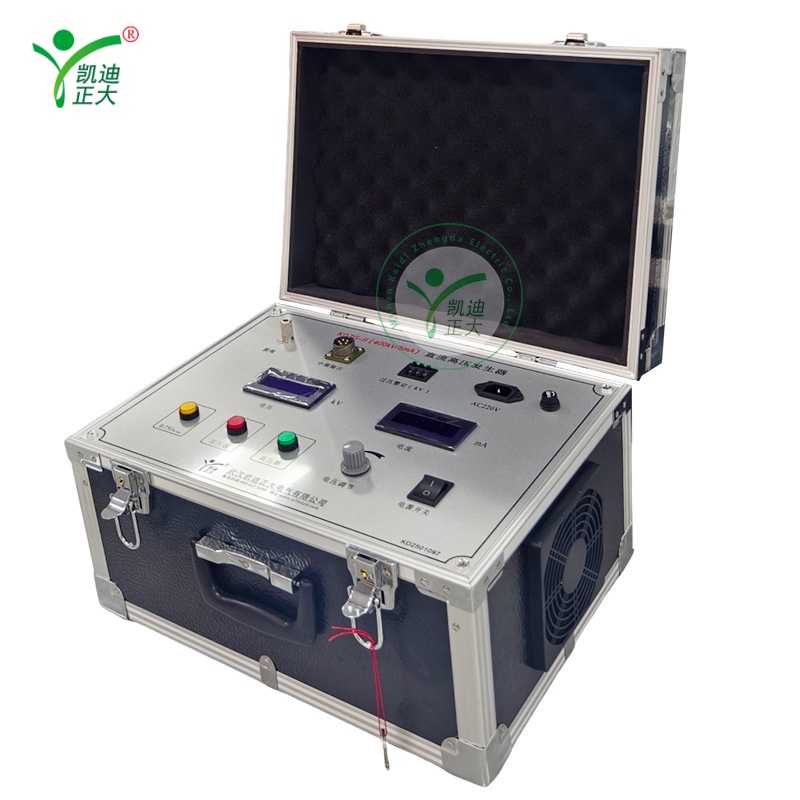

The KDZG-II is a portable DC high-voltage generator designed for high-voltage testing, built to meet ZGF24003-90 standards. It uses a medium-frequency voltage doubling circuit with PWM modulation and IGBT technology, delivering stable 0–400kV DC output with low ripple (≤0.5%). Housed in a compact epoxy glass insulation cylinder, it features a control box with digital displays, a built-in 0.75UDC-1mA button for ZnO arrester testing, and multiple safety protections. With imported components and a lightweight design, it is ideal for field and lab testing of power equipment.
