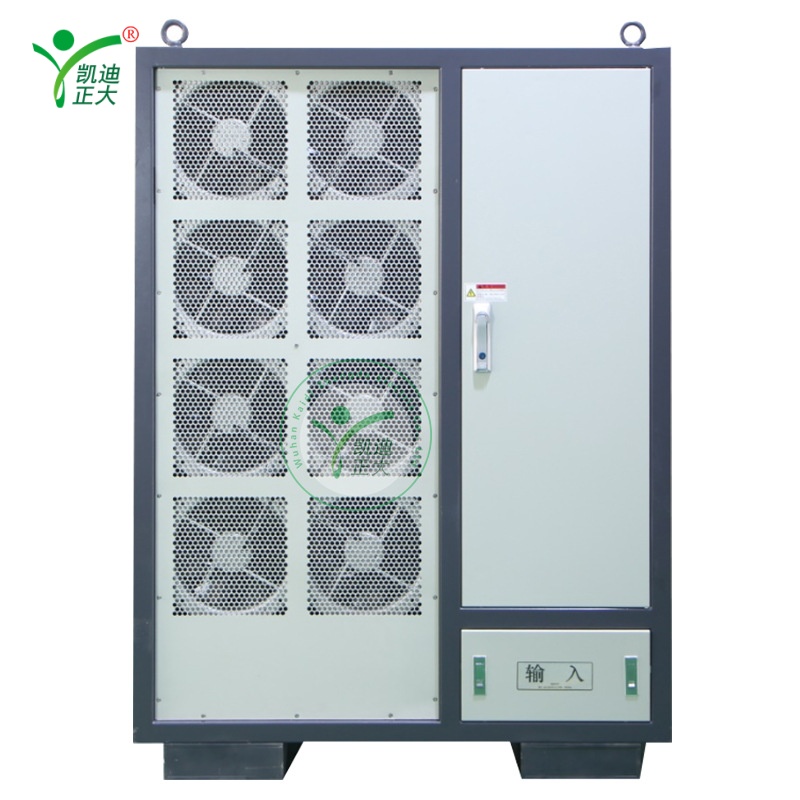

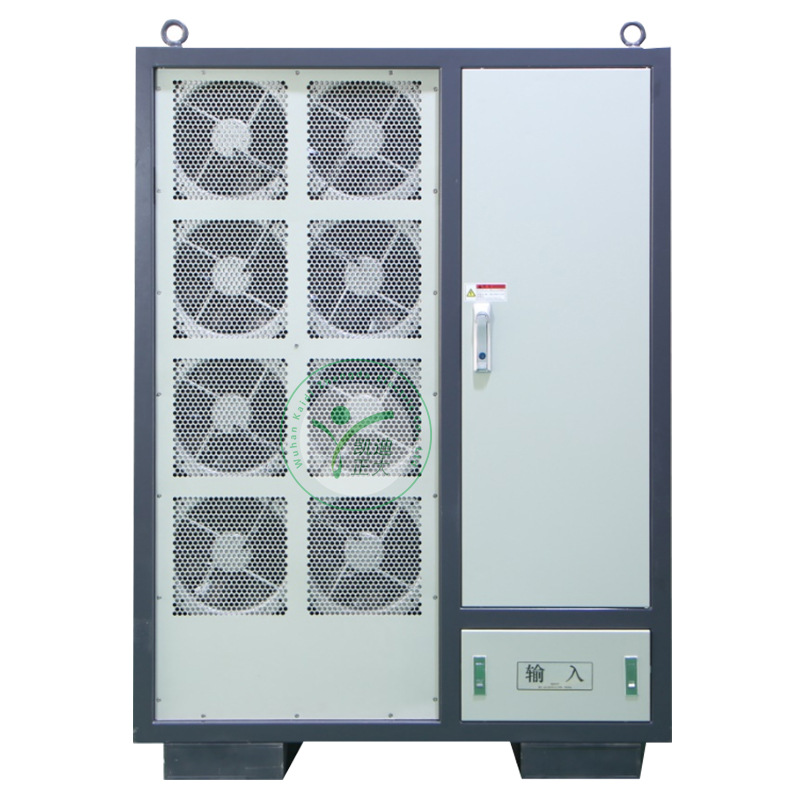

KDWJF-30kW Single-Phase Partial Discharge-Free Variable Frequency Test Power Supply
KDWJF-30kW Single-Phase Partial Discharge-Free Variable Frequency Test Power Supply

KDWJF-30kW Single-Phase Partial Discharge-Free Variable Frequency Test Power Supply

Applications:

  • Used for high-voltage electrical tests (e.g., transformer, cable, and insulator tests) requiring stable, low-noise power, suitable for power testing laboratories and equipment manufacturers to ensure accurate partial discharge and withstand voltage measurements.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDWJF-30kW is a high-performance variable frequency power supply designed for electrical testing. It delivers a standard sine wave output with low partial discharge (<5pC) and excellent stability, making it ideal for high-voltage insulation and partial discharge tests. With a wide frequency range (30~300Hz) and parallel operation capability, it provides reliable power for complex testing scenarios.

Features:

  • Low partial discharge: <5pC, ensuring accurate partial discharge test results
  • Standard sine wave output: THD <1%, voltage stability <1%
  • Wide parameter range: 0~350V adjustable voltage, 30~300Hz adjustable frequency
  • High power capacity: 30kW active power, 85.7A rated output current
  • Parallel operation: Can connect multiple units to increase output capacity
  • Strong anti-interference: High magnetic shielding, no space radiation, suitable for strong electric field environments
  • Comprehensive protection: Overload, short-circuit, and emergency stop protection
  • Low-temperature operation: Built-in heating device for normal operation down to -20°C
  • Intelligent cooling: Automatic fan speed and direction control
  • Auxiliary power supply: Isolated 220V/500W and 100V/100W outputs for test instruments

Parameter:

  • Model: KDWJF-30kW
  • Max Output Power: 30kW (active power)
  • Input Power: Three-phase AC380V±10% 50Hz
  • Output Voltage: Single-phase 0~350V (adjustable)
  • Output Frequency: 30~300Hz (adjustable, sensitivity ≤0.1Hz)
  • Output Current: 85.7A (rated)
  • Waveform Distortion: <1%
  • Voltage Stability: <1% (input voltage instability ≤2% in 5 minutes)
  • Partial Discharge Level: <5pC
  • Noise Level: ≤85dB
  • Insulation Level: ≥3kV/AC/1min (input/output to ground)
  • Cooling Method: Forced air cooling
  • Continuous Operation: 180min at rated load (allowable temperature rise ≤25K at outlet)
