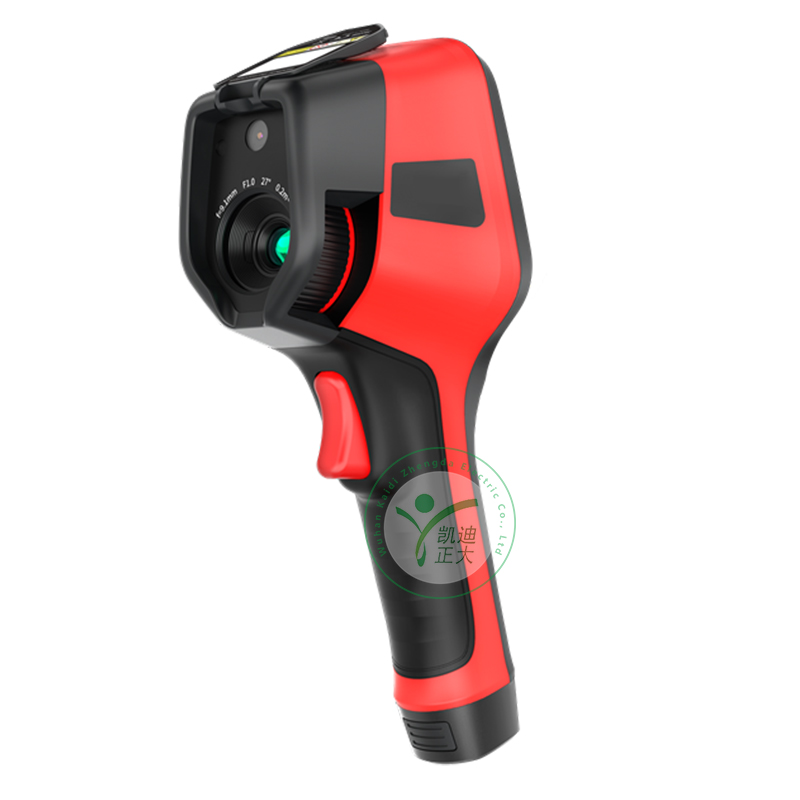

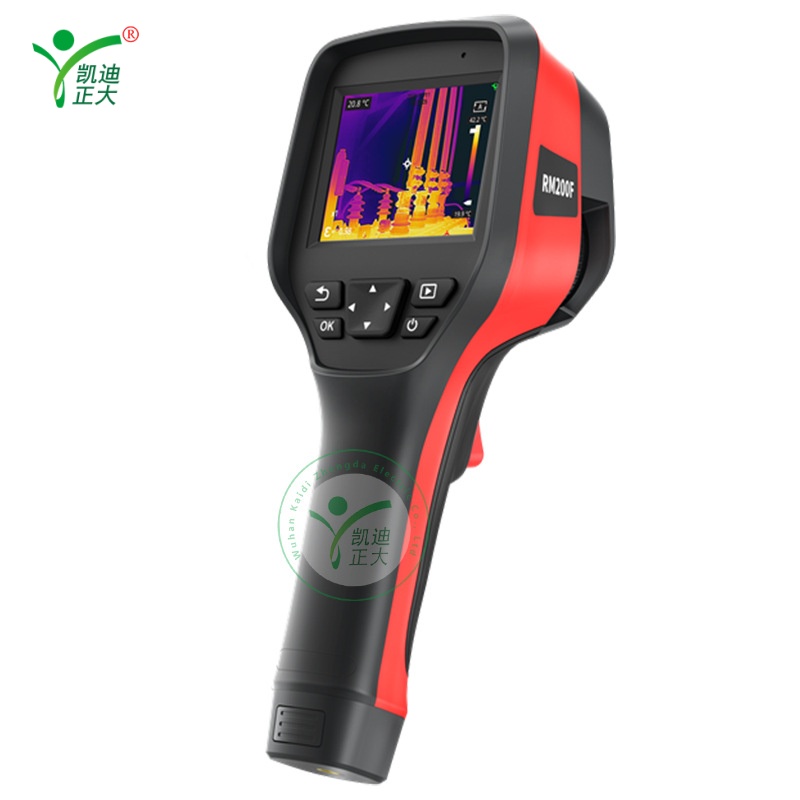

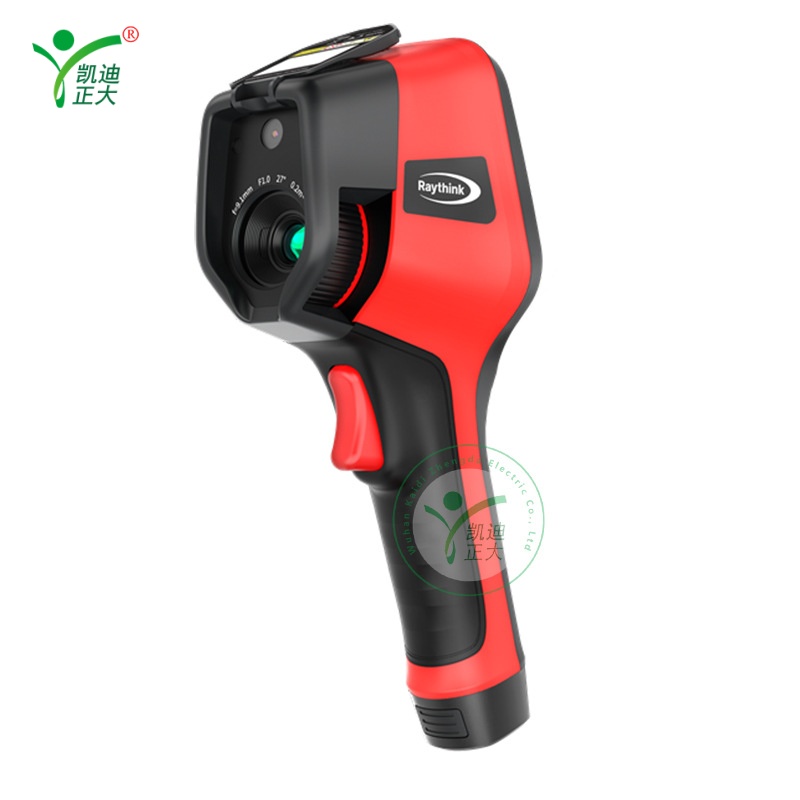

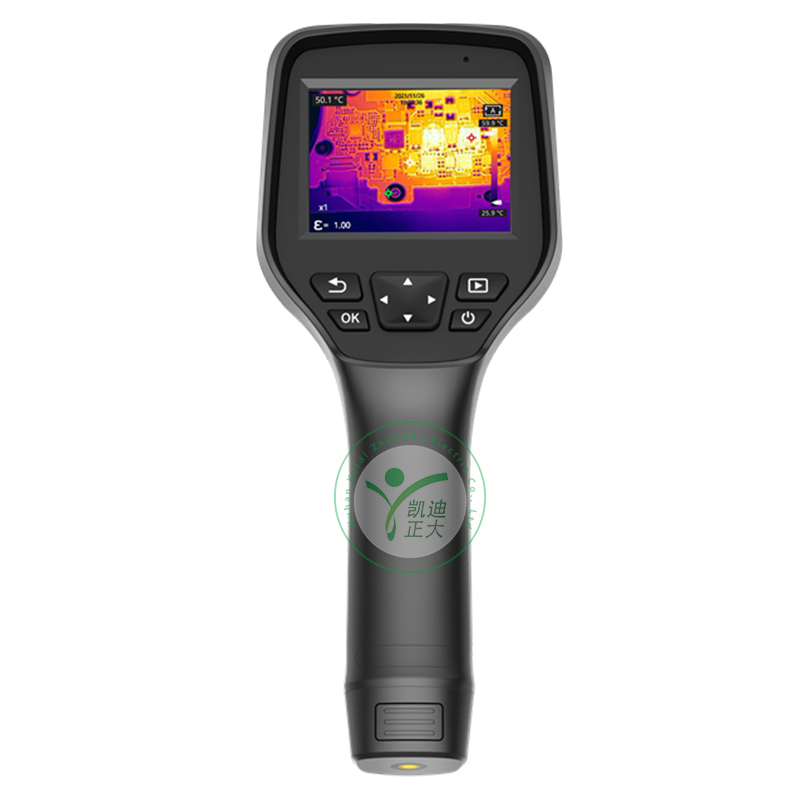

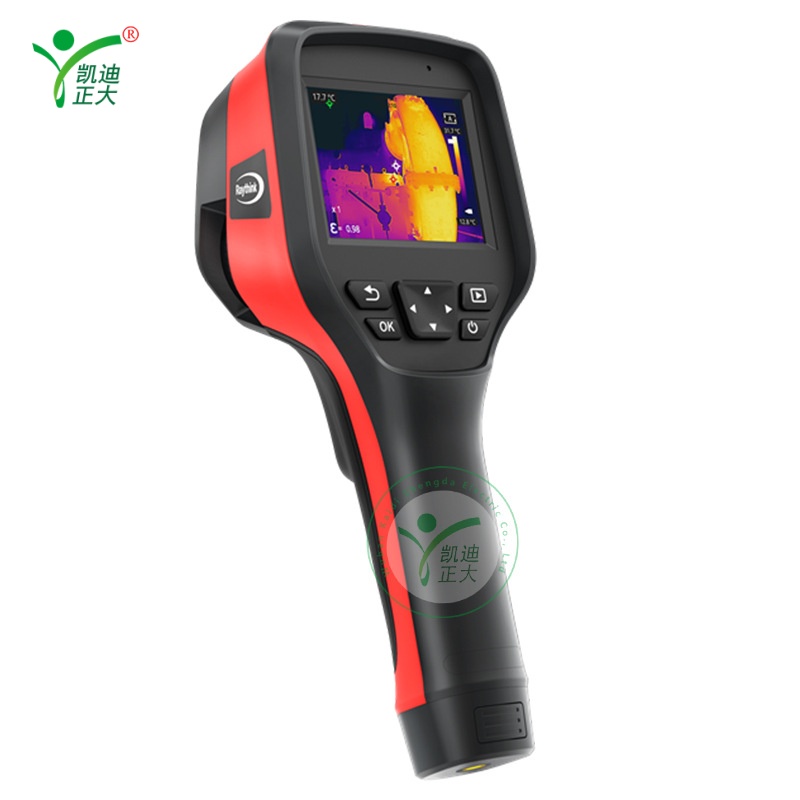

KDRM200F is a cost-effective entry-level infrared thermal imager designed for industrial field engineers, integrating high-performance imaging and intelligent analysis. Using a 12 μ m pixel, 256 × 192 resolution uncooled vanadium oxide infrared detector with a thermal sensitivity of up to 40mK, coupled with a 7mm manual focusing lens and 4x digital zoom, it clearly presents subtle temperature differences. The temperature measurement range covers -20 ℃ to 550 ℃, with an accuracy of ± 2 ℃, meeting the detection needs of multiple scenarios such as power, electrical, HVAC, building and equipment maintenance.

The device is equipped with a 2-megapixel visible light camera that supports infrared/visible light fusion, picture in picture, and 10 pseudo color modes; The 3.5-inch high-definition touch screen displays real-time temperature distribution of hotspots, cold spots, and areas, and has functions such as high and low temperature alarm, timed photography, voice annotation, and QR code naming. Images with full frame temperature data can be quickly transmitted to a PC or mobile device via USB or Wi Fi, and reports can be generated with just one click using professional analysis software.

The whole machine has passed IP54 protection certification, supports 2-meter drop resistance, is sturdy and reliable, and has a battery life of up to 4 hours. It is an ideal thermal imaging tool for your daily inspection, preventive maintenance, and fault diagnosis.

Summary of KDRM200F Product Features
High sensitivity imaging: 256 × 192 resolution infrared detector, 12 μ m pixel size, thermal sensitivity up to 40mK, accurately capturing subtle temperature differences.
Wide temperature and high-precision temperature measurement: temperature measurement range of -20 ℃~550 ℃, accuracy of ± 2 ℃ or ± 2%, meeting the testing needs of multiple industries.
Manual focus+4x digital zoom: paired with a 7mm high-definition lens, the image is clearer and the positioning is more accurate.
Dual light fusion display: Built in 2-megapixel visible light camera, supporting four image modes: infrared/visible light/picture in picture/fusion.
Intelligent temperature measurement analysis: supports point, line, and area temperature measurement, automatically tracks the highest/lowest/average temperature, and can set up up to 10 temperature measurement objects.
Efficient interactive experience: 3.5-inch high-definition touch screen, laser pointer, voice annotation, QR code naming, easy and efficient operation.
Powerful data interconnection: supports USB/Wi Fi transmission, cloud services (optional), PC/mobile professional analysis software, and one click report generation.
Durable and reliable design: IP54 protection level, 2-meter drop resistance, suitable for complex industrial site environments.
Long battery life and easy portability: The detachable lithium battery has a battery life of about 4 hours, and the whole machine weighs only about 660g, making it lightweight and portable

Thermal imaging parameters
Detector type: uncooled vanadium oxide
Detector resolution: 8-14 μ m
Infrared response band: 256x192
Pixel size: 12 μ m
Thermal sensitivity: 40mK
IFOV (spatial resolution): 1.71mrad
Frame rate: 25Hz
Focal length: 7mm
Field of view angle: 24.8 ° x18.7 °
Focusing mode: manual focusing
Temperature measurement range: -20 ℃~150 ℃, 100 ℃~550 ℃
Temperature measurement accuracy: ± 2% or ± 2 ℃



Complete machine function

Temperature measurement mode: center point/hot/cold spot tracking and temperature display
Custom temperature measurement analysis: movable point/line/area temperature measurement; Supports up to 10 points, 10 regions, and 10 lines
Temperature measurement units: Celsius, Fahrenheit, Kelvin
Emissivity setting: 0.01-1.00, step size 0.01
Environmental temperature setting: -10~50 ℃, step size 1 ℃
Distance setting: 1-20m, step size 1m
Electronic zoom: 1 ×, 2 ×, 4 ×
Image modes: infrared, dual light fusion, visible light, picture in picture
Color palette: 10 types
Temperature alarm: Yes
Alarm method: Image alarm
Temperature and width stretching: manual/automatic temperature range
Laser pointer: available
Visible light camera: 2MP
Video and photo storage: XX-IR.jpg (infrared image with temperature data) and XX-DC.jpg (pure visible light image); H.264 format video without temperature data
Video transmission: UVC, without temperature data
Voice annotation: Yes
Language: Simplified Chinese
Display screen size: 3.5-inch touch screen (480x640)
Image Naming: Automatic/Manual Input Naming, Scan QR Code Naming
Memory card: standard 32GB MicroSD card
Battery type: rechargeable lithium battery, detachable
Power interface: USB Type-C
Connection methods: USB, WiFi
Charging time: about 3 hours
Working hours: approximately 4 hours
Cloud service: capable of transmitting shooting data to cloud platforms for sharing and secondary analysis across multiple clients; Support automatic time synchronization. Optional
Power management: Automatic shutdown: 5 minutes, 10 minutes, 20 minutes, no automatic shutdown
