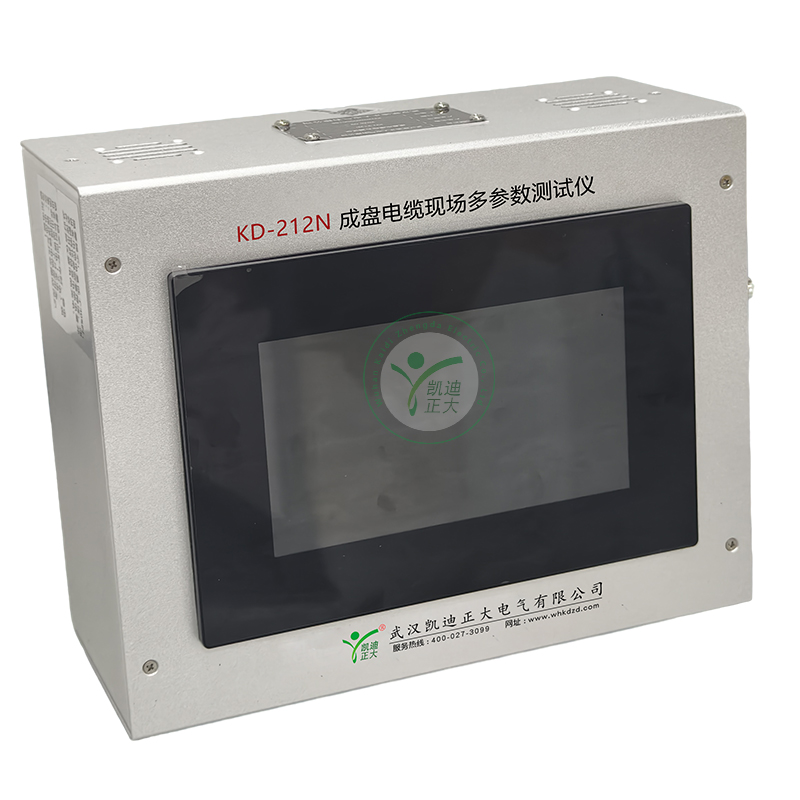

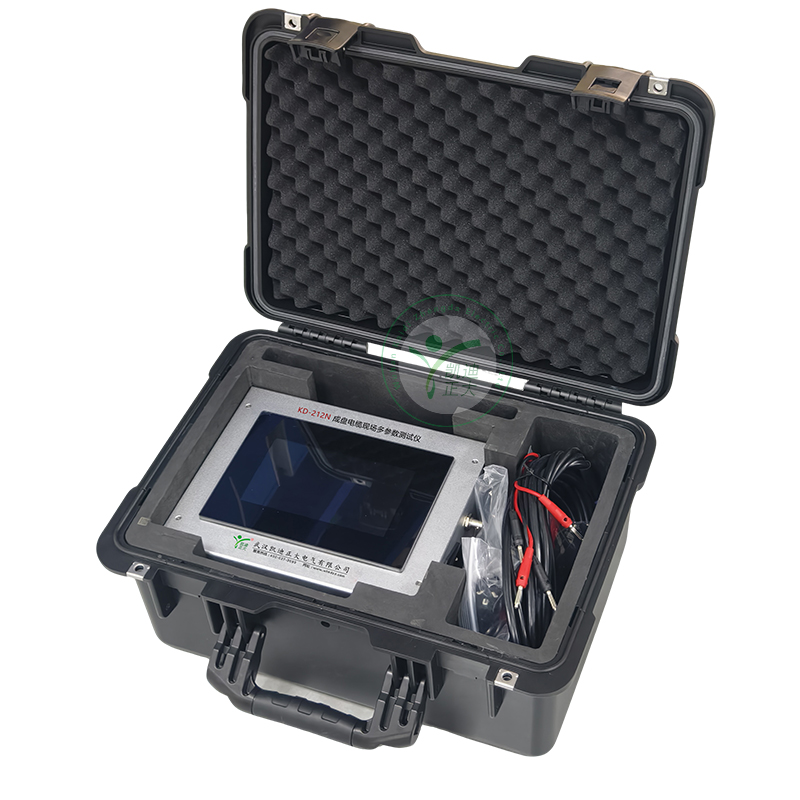

The KD-212N Cable Reel Multi-Parameter Tester is an innovative diagnostic instrument that integrates advanced image recognition technology with multi-electrical parameter measurement to deliver a comprehensive cable quality assessment solution. By combining imaging analysis, traveling wave testing, and electrical parameter diagnostics, this system provides highly accurate measurements of conductor effective cross-sectional area, long conductor length, DC resistance, unit length resistance, cable capacitance, and ambient temperature. The unique imaging method analyzes the cable end face to determine the effective cross-sectional area, offering significantly higher precision than traditional caliper-based diameter measurements for various cable types. The traveling wave measurement technique injects low-voltage pulse signals and uses high-speed counting of reflection time to accurately determine cable length through impedance mismatch analysis. The precision resistance measurement module features automatic temperature correction for consistent accuracy, while the optional capacitance measurement module provides an alternative method for length verification through capacitance comparison. The system comprises the main tester unit, a tablet computer for intuitive operation, length measurement leads, five-terminal measurement leads, and optional accessories including a dedicated imaging fixture, cable cutter, and cable standard gauge ruler. With its multi-method approach and advanced technology integration, the KD-212N sets a new standard for on-site cable quality verification and conductor inspection.

• Innovative Imaging Method: Uses advanced image recognition technology to analyze the cable end face and accurately measure the effective cross-sectional area, providing superior precision compared to traditional caliper-based diameter measurements.
• Traveling Wave Length Measurement: Injects low-voltage pulse signals and uses high-speed pulse reflection time counting to accurately determine cable length through impedance mismatch analysis.
• Multi-Parameter Comprehensive Diagnosis: Simultaneously measures conductor effective cross-sectional area, DC resistance, cable length, capacitance, and ambient temperature for complete cable quality assessment.
• Precision Resistance Measurement: Features a high-accuracy resistance measurement module with automatic temperature correction, ensuring consistent and reliable resistance readings under varying environmental conditions.
• Optional Capacitance Measurement: Equipped with a precision capacitance measurement module (optional) that calculates cable length through capacitance comparison between long and cut cable segments.
• Dual Length Verification Methods: Supports both traveling wave-based and resistance/capacitance-based length measurement methods, providing cross-verification for enhanced measurement reliability.
• Tablet-Based Operation: Controlled via a tablet computer for intuitive, user-friendly operation and clear data visualization in the field.
• Complete System Solution: Includes the main tester, tablet computer, measurement leads, five-terminal leads, and optional accessories (imaging fixture, cable cutter, gauge ruler) for a turnkey testing solution.

The technical specifications of the KD-212N are defined by its advanced imaging technology and high-precision measurement capabilities.

• Model Number: KD-212N
• Product Type: Cable Reel Multi-Parameter Field Tester
• Resistance Measurement Range: 0.1mΩ to 20kΩ
• Resistance Measurement Accuracy: 0.2% ± 2 digits
• Cross-Sectional Area Measurement Accuracy (Imaging Method): Better than 3%
• Length Measurement Accuracy (Resistance Method): Better than 1%
• Length Measurement Accuracy (Capacitance Method): Better than 1%
• Capacitance Measurement Accuracy (Optional): 0.1%
• Temperature Correction: Automatic
• Power Supply: AC 220V
• Power Current: 5A
• Battery Type: None (AC powered)
• Dimensions (L×W×H): 430mm × 350mm × 370mm
• Weight: Approx. 12kg

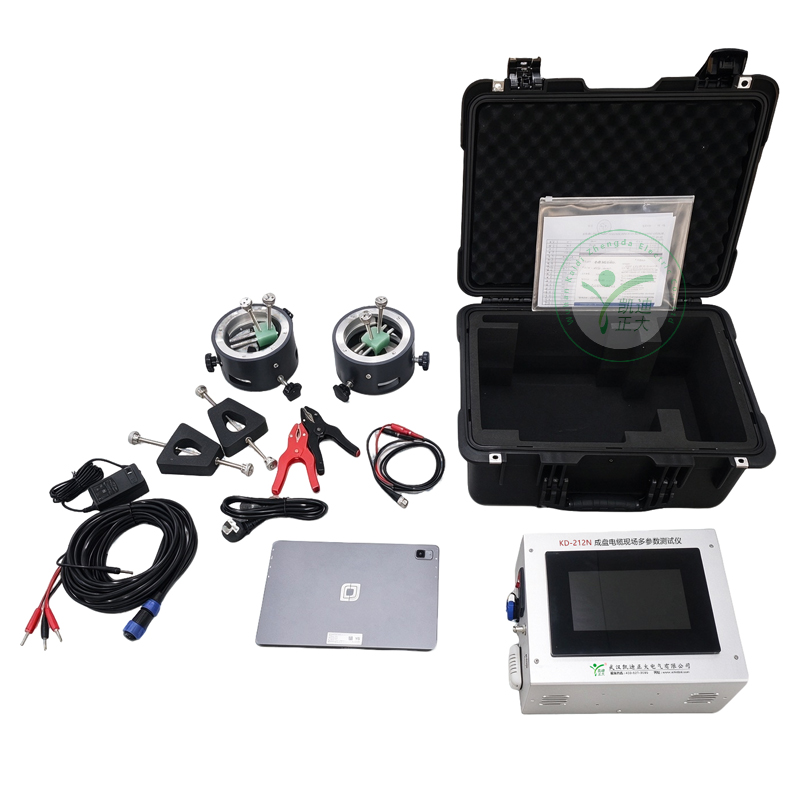

• System Composition: Main tester unit, tablet computer, length measurement leads, five-terminal measurement leads, optional imaging fixture, optional cable cutter, optional cable standard gauge ruler
