Profile:

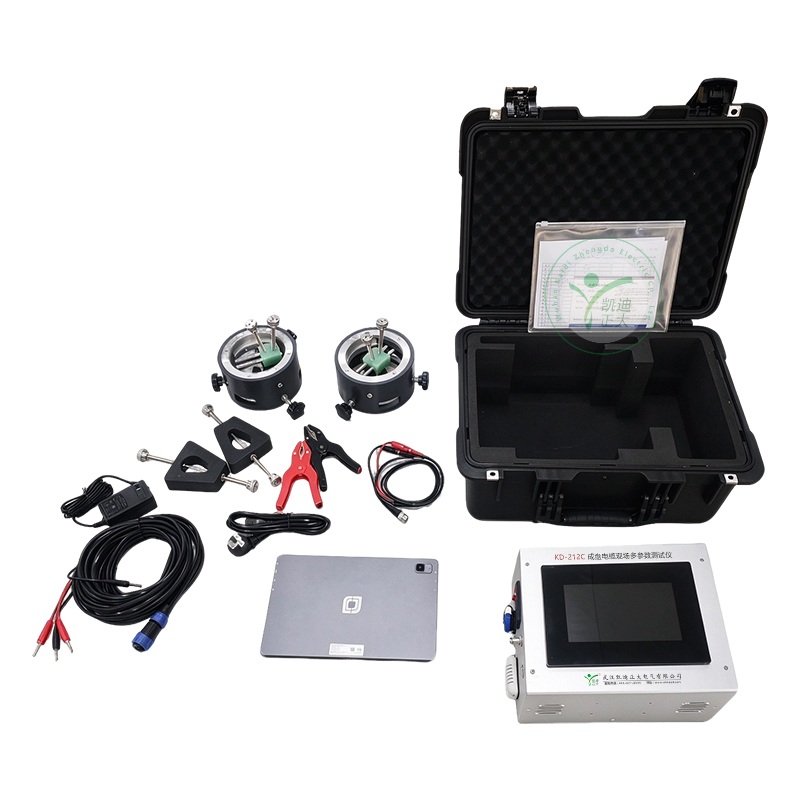

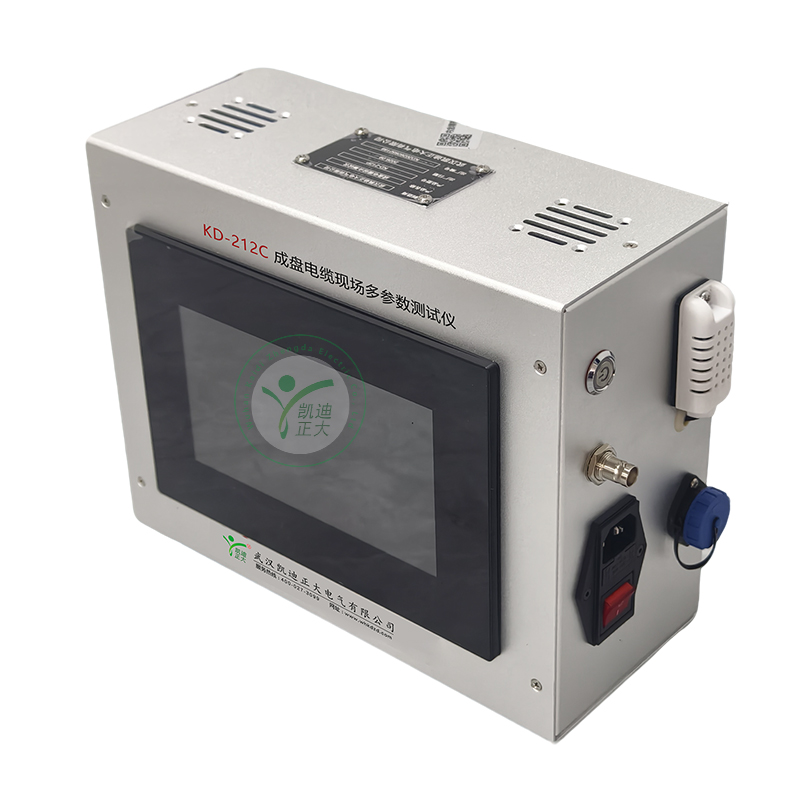

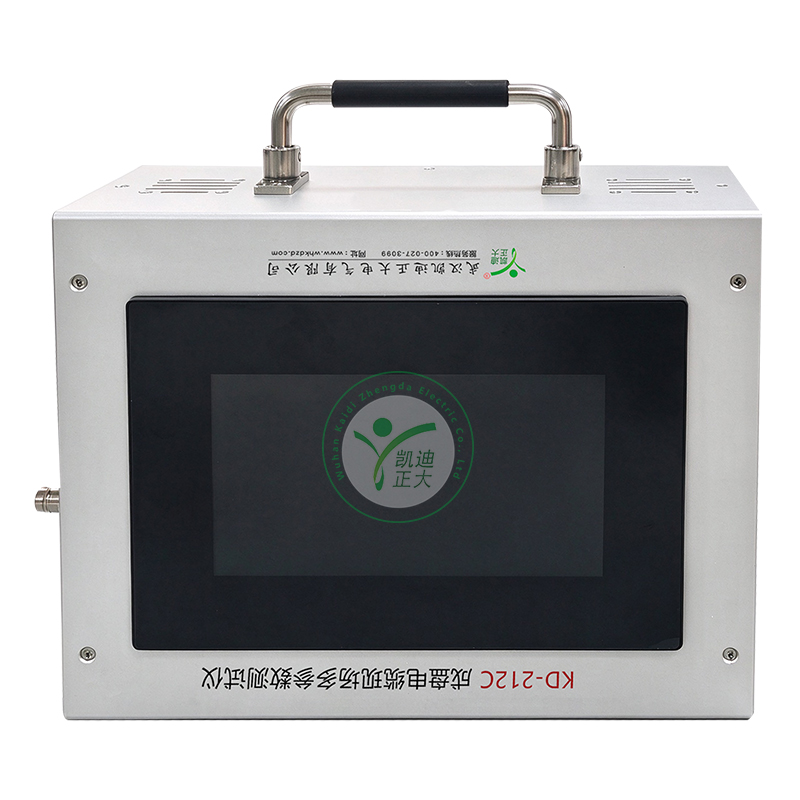

The KDZD-212C Cable Reel Multi-Parameter Field Tester is a professional diagnostic instrument engineered for rapid, on-site quality verification of power cables. Leveraging advanced traveling wave testing technology combined with multi-electrical parameter comprehensive diagnosis, this instrument delivers a complete cable assessment solution without requiring laboratory conditions. The device directly measures cable length, conductor DC resistance, and ambient temperature, then automatically calculates unit length conductor resistance and effective cross-sectional area. It offers two flexible measurement modes — local measurement and wireless remote measurement via a built-in Bluetooth module — enabling operators to adapt seamlessly to complex field environments. A comprehensive protection system featuring lithium battery charge/discharge management, over-voltage and over-current protection, and internal over-temperature protection ensures safe and dependable operation. With a precision DC resistance measurement module delivering ±0.2%+1μΩ accuracy and a high-precision pulse time counting module supporting length measurements from 30m to 50km, the KDZD-212C brings laboratory-grade results to field conditions. The integrated temperature and humidity sensor provides automatic environmental compensation for enhanced accuracy. Powered by a high-capacity 12.6V 15000mAh lithium battery, it provides over 20 hours of standby time and more than 8 hours of continuous measurement. Compliant with GB/T 3956-2008 and GB/T 6587-2012, the KDZD-212C is the ideal solution for cable manufacturers, electrical inspectors, and power utility companies.
Features:
Traveling Wave Length Measurement: Uses low-voltage pulse injection and high-speed time counting to accurately determine cable length from 30m to 50km through impedance mismatch reflection analysis.
Multi-Parameter Comprehensive Diagnosis: Simultaneously measures conductor DC resistance, cable length, and ambient temperature to calculate unit length resistance and effective conductor cross-sectional area for complete cable quality assessment.
Dual Measurement Modes: Supports both local measurement and wireless remote measurement via a built-in Bluetooth module with up to 30m effective range, flexibly adapting to complex field environments.
Automatic Temperature Compensation: Built-in precision temperature and humidity sensor automatically corrects resistance values for environmental conditions, ensuring consistent measurement accuracy.
Advanced Protection System: Integrated lithium battery charge/discharge management, over-voltage and over-current protection, and internal over-temperature protection ensure safe and reliable operation under all conditions.
High-Precision Resistance Measurement: Precision DC resistance measurement module with ±0.2%+1μΩ accuracy across a 0Ω to 100Ω range for highly accurate conductor resistance testing.
Long Battery Life: High-capacity 12.6V 15000mAh lithium battery provides over 20 hours of standby time and more than 8 hours of continuous measurement operation on a single charge.
Standard Compliance: Meets GB/T 3956-2008 (Conductors of Cables), GB/T 6587-2012 (Electronic Measuring Instruments), and other relevant industry standards for guaranteed quality and reliability.
