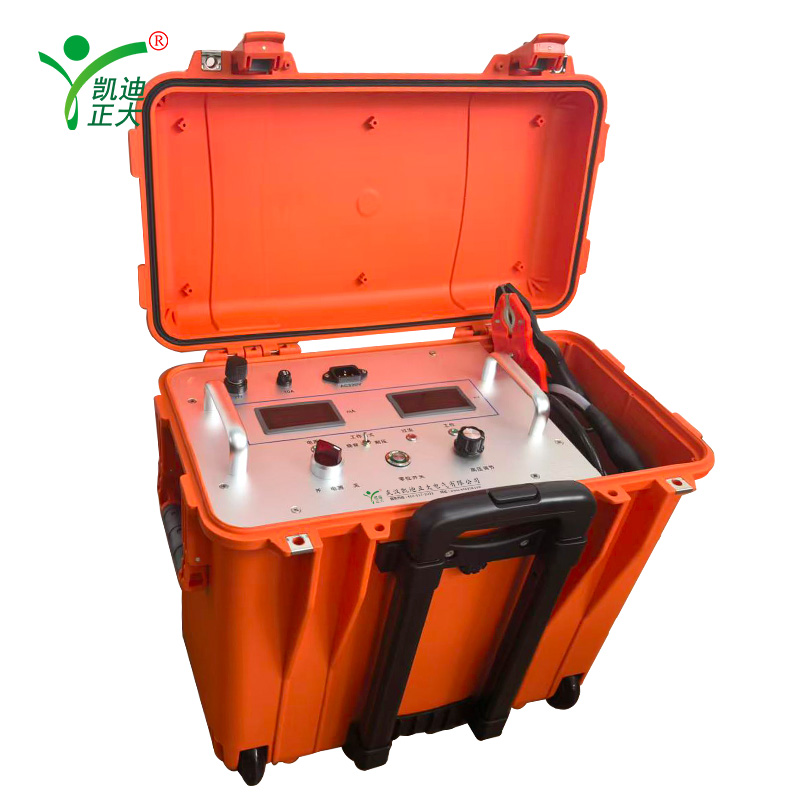

KD‑210SC DC withstand‑voltage burn‑through power source is professional test equipment for DC withstand‑voltage testing and cable burn‑through tasks. It adopts full‑digital high‑frequency conversion technology with combined PFM frequency modulation and PWM pulse‑width modulation, as well as dual‑loop feedback control of voltage closed‑loop and current closed‑loop, achieving high‑precision and stable output of voltage and current. It applies super‑audio full‑bridge inversion and voltage‑doubling rectification circuits. Both low‑voltage‑side four‑tube full‑bridge MOSFET inversion and high‑voltage‑side full‑bridge rectification effectively reduce output ripple and improve overall power‑supply efficiency. Digital tube display modules show real‑time voltage and current readings intuitively. Equipped with imported multi‑turn wire‑wound potentiometers, the device delivers high resolution for voltage and current setting. Housed inside a heavy‑duty trolley case with pull rod, the unit features high mechanical strength and convenient transportation for diverse field working scenarios.

• Adopts PFM and PWM dual‑modulation plus voltage‑current dual closed‑loop feedback for high‑precision, stable output control.
• Super‑audio full‑bridge inversion and voltage‑doubling rectification design, low ripple coefficient and low operating noise.
• Four‑tube full‑bridge MOSFET inversion on low‑voltage side and full‑bridge rectification on high‑voltage side to lower output ripple and boost power‑supply efficiency.
• Digital tube display modules for direct real‑time viewing of test voltage and current values.
• Imported multi‑turn wire‑wound potentiometer improves adjustment resolution of output voltage and current.
• Rugged pull‑rod trolley‑case enclosure, high structural strength and easy portability for outdoor on‑site operations.
• Supports continuous working mode to adapt long‑time test and burn‑through operation demands.

• Continuously adjustable output voltage: 0‑60 kV
• Maximum output current: 550 mA
• Burn‑through power rating: 1000 W
• Measurement accuracy of voltage and current: 0.5%
• Operating mode: supports continuous operation
• Operating power supply: industrial frequency AC 220 V ±15%
• Ambient operating temperature: ‑15℃ ~ 45℃
• Maximum relative humidity: ≤90%, non‑condensing
• Applicable altitude: ≤2000 m
• Total weight including accessories: 24.9 kg
• Overall dimension: 31 cm × 47 cm × 50 cm
