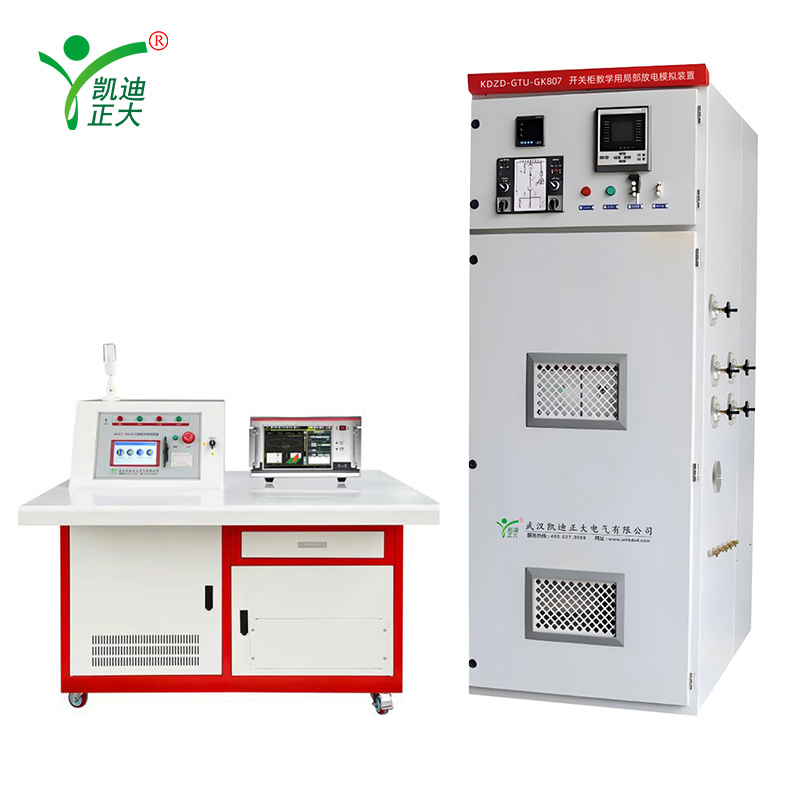

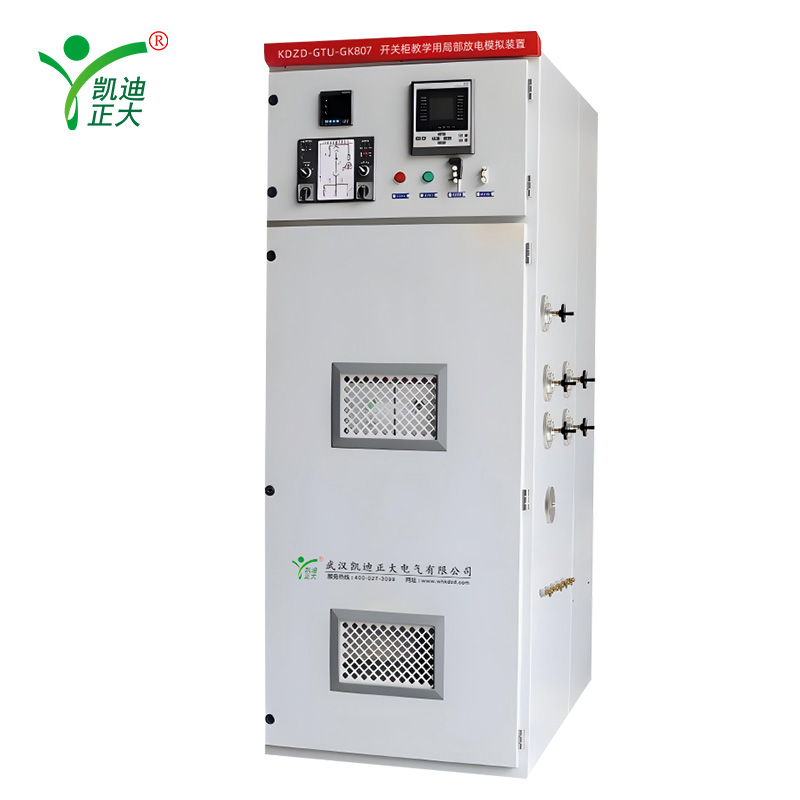

The KDZD‑GTU‑GK807 is an integrated cabinet‑type teaching‑oriented partial discharge simulation equipment developed for power‑specialty teaching and scientific research training. It can highly reproduce various typical partial‑discharge phenomena occurring in running high‑voltage switchgears and other high‑voltage electrical equipment. Multiple insulation‑defect discharge modes including air‑gap discharge, floating discharge, surface discharge and particle discharge can be reproduced on this platform. It delivers safe, intuitive and repeatable experimental conditions and complies with relevant national standards and industry guidelines. The whole machine adopts fully‑enclosed metal safety cabinet structure with built‑in partial‑discharge‑free high‑voltage source and coupling capacitor. Replaceable discharge model electrodes are controlled by external handles for convenient discharge‑type switching. Multiple sensor interfaces are reserved to realize synchronous comparison tests for different partial‑discharge detection technologies. Its compact layout enables flexible deployment in classrooms, laboratories and outdoor training sites, while closed high‑voltage isolation design eliminates high‑voltage exposure risks and protects teachers and students during repeated teaching operations.

• Simulates multiple typical partial‑discharge types: tip discharge, floating‑potential discharge, air‑gap internal discharge, particle discharge and surface creeping discharge. Discharge starting voltage, extinction voltage and discharge intensity can be independently adjusted.
• Supports multi‑detection‑technology training, compatible with pulse‑current method, UHF, ultrasonic AE and high‑frequency HF detection approaches, with abundant reserved sensor signal interfaces.
• Built‑in partial‑discharge‑free high‑voltage source, system partial discharge ≤3 pC under rated voltage, simulating real early‑stage insulation‑fault signal characteristics of field high‑voltage equipment.
• Full‑metal sealed safety cabinet isolates high‑voltage components completely to avoid electric‑shock hazards for operators.
• External handles allow quick switching of discharge models without opening the high‑voltage cabinet body.

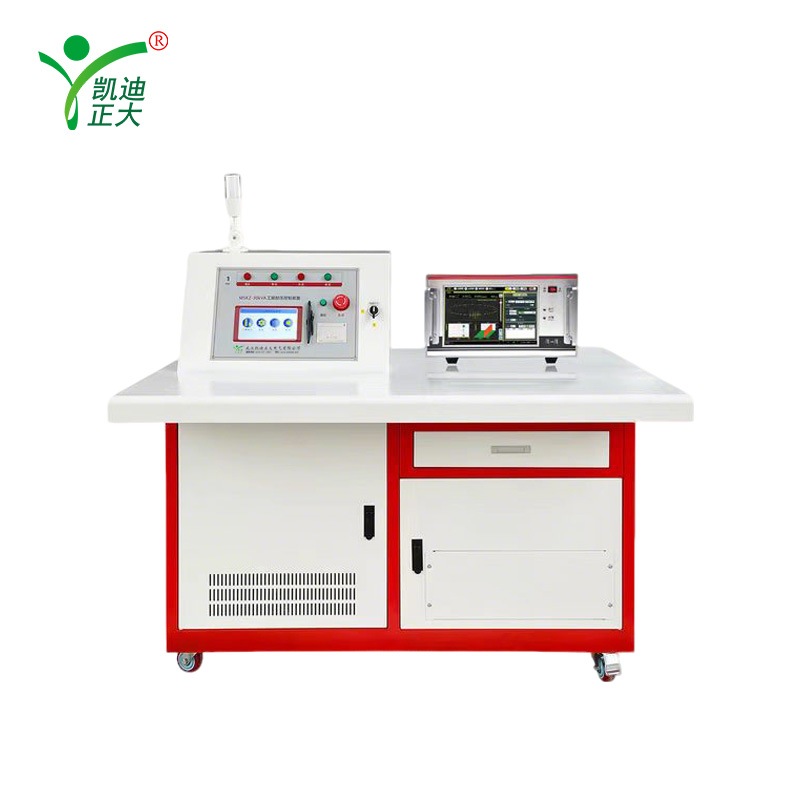

• Integrated intelligent control panel realizes voltage regulation, parameter setting and real‑time display of voltage and discharge magnitude.
• Strong environmental adaptability, applicable for indoor laboratory and outdoor training scenarios.

• Rated high‑voltage output: 30 kV
• System partial discharge magnitude: ≤ 3 pC under rated voltage
• Rated capacity: 5 kVA
• Input power supply: 220V ±10%, 50 Hz
• Simulatable discharge types: tip discharge, floating‑potential discharge, air‑gap discharge, particle discharge, surface discharge
• Supported detection methods: pulse‑current method, UHF method, ultrasonic AE method, high‑frequency HF method
• Operating ambient temperature: ‑10℃ ~ 50℃
• Maximum relative ambient humidity: ≤90%RH
• Applicable altitude: ≤5500 meters
• Input voltage adjustment range: 0‑250 V, corresponding to 0‑30 kV high‑voltage output
• Sensor interface types: BNC connector, N‑type connector, HFCT clamp port for signal access of different detection sensors
