KDZGS-80kV/300mA Water-Cooled DC Voltage Tester | 24kW High-Power DC Hipot Kit
KDZGS-80kV/300mA Water-Cooled DC Voltage Tester | 24kW High-Power DC Hipot Kit

KDZGS-80kV/300mA Water-Cooled DC Voltage Tester | 24kW High-Power DC Hipot Kit

Applications:

The KDZGS-80kV/300mA Water-Cooled DC Voltage Tester is a high-precision, high-power DC withstand voltage and leakage current testing device specifically designed for large water-cooled generators. Developed by Wuhan Kaidizhengda Electric Co., Ltd., this equipment is widely used in power plants, substations, maintenance depots, and electrical testing laboratories. It is ideal for conducting DC high-voltage tests and leakage current measurements on heavy-capacitance loads, meeting the stringent requirements of power industry high-voltage testing standards.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDZGS-80kV/300mA is an integrated DC Hipot testing system engineered for the unique challenges of water-cooled generator testing. Based on the "Low-Voltage Shielding Method" principle, this device utilizes advanced PWM pulse width modulation technology and high-power IGBT components within a medium-frequency doubler circuit. The system features a compact two-part design consisting of a control cabinet and a doubler column, ensuring simple wiring and clear layout. With a robust 24kW output capacity, it is capable of handling the demanding dielectric withstand testing requirements of large-scale electrical apparatus in complex electromagnetic environments.

Features:

  • High-Power 24kW Output: Delivers a rated output of 80kV/300mA, providing sufficient power reserve to meet the DC withstand voltage requirements of large-capacity water-cooled generators and high-capacitance loads.
  • Dual-Mode Operation: Offers both Manual Mode for fine-tuning and fault location, and Automatic Mode with 1-6 stage voltage step programming. The automatic mode handles the entire process including ramping, holding, timing, and ramping down without supervision.
  • Real-Time Color Touch Display: Features a color touch screen that displays voltage, current, leakage current, time, and system status simultaneously. Measurements are shown in real-time without the need for manual conversion.

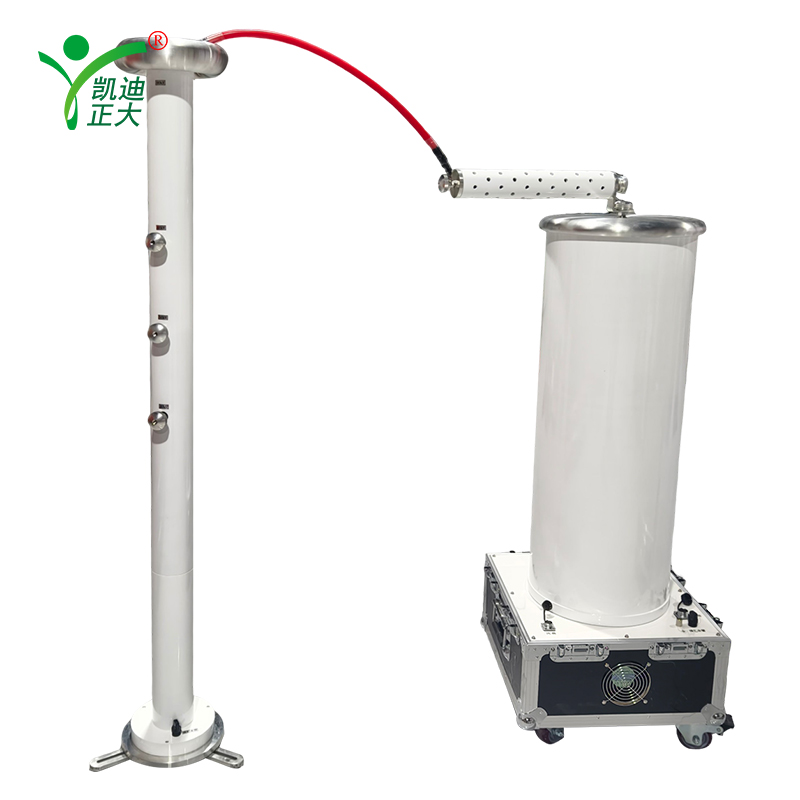

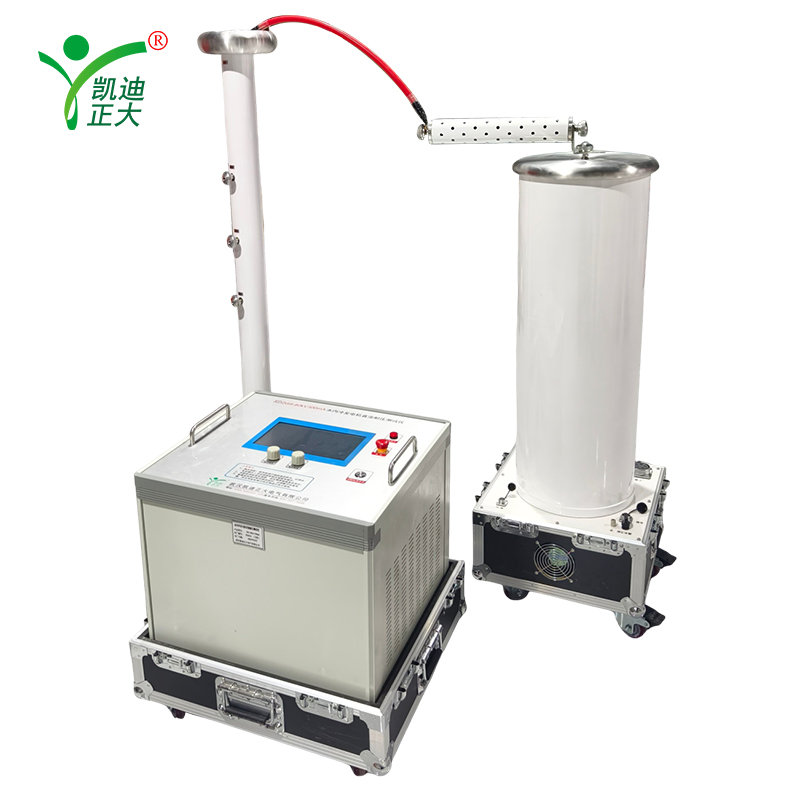

  • Simplified Two-Component Design: The kit consists only of a Power Supply Cabinet and a Voltage Doubler Column, minimizing on-site wiring complexity and reducing the risk of connection errors.
  • Robust Protection System: Equipped with comprehensive protection mechanisms including Over-Voltage Protection, Over-Current Protection, and Flashover Protection to ensure immediate shutdown and safety in case of anomalies.
  • Advanced EMI Suppression: Utilizes PWM technology, large-power IGBTs, specialized shielding, isolation techniques, and single-point grounding to ensure stable operation and high measurement accuracy in noisy industrial environments.

Parameter:

The technical specifications of the KDZGS-80kV/300mA are defined by its high-power output and precision measurement capabilities.
  • Input Power: 380V ±10% (Three Phase), 50Hz
  • Rated Output Voltage: 80kV
  • Rated Output Current: 300mA
  • Output Power: 24kW
  • Voltage Measurement Error: Less than or equal to 1.0% ±2 digits
  • Current Measurement Error: Less than or equal to 1.0% ±2 digits
  • Ripple Factor: Less than or equal to 3.0%
  • Duty Cycle: Maximum of 10 minutes per continuous operation under rated load
  • Operating Conditions: Temperature from -10°C to 40°C; Humidity up to 85% RH
  • Dimensions (Doubler Column): 430mm (Length) × 430mm (Width) × 1160mm (Height)
  • Dimensions (Power Supply): 530mm (Length) × 480mm (Width) × 600mm (Height)
