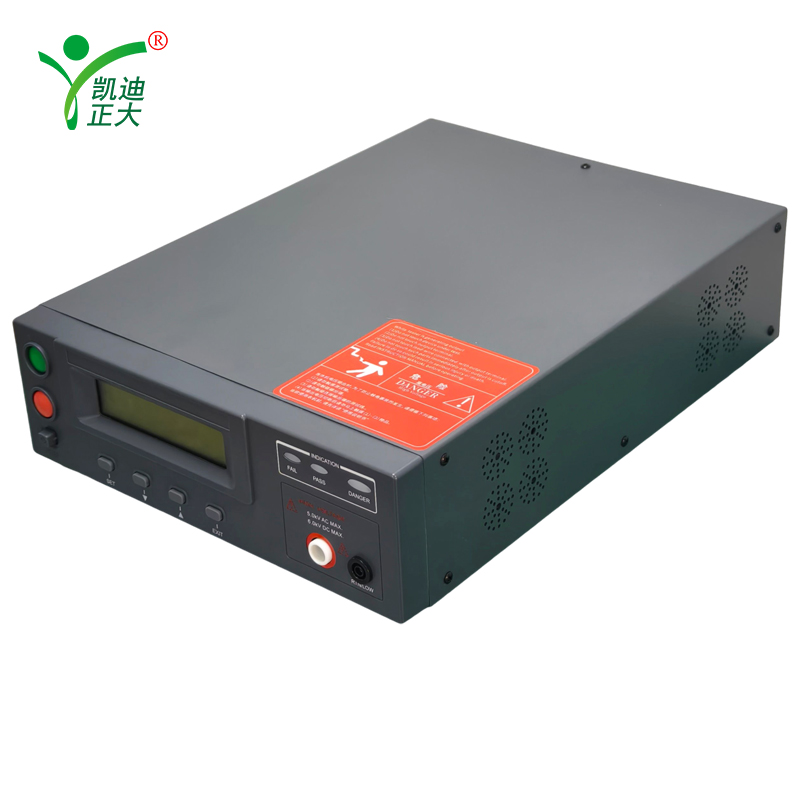

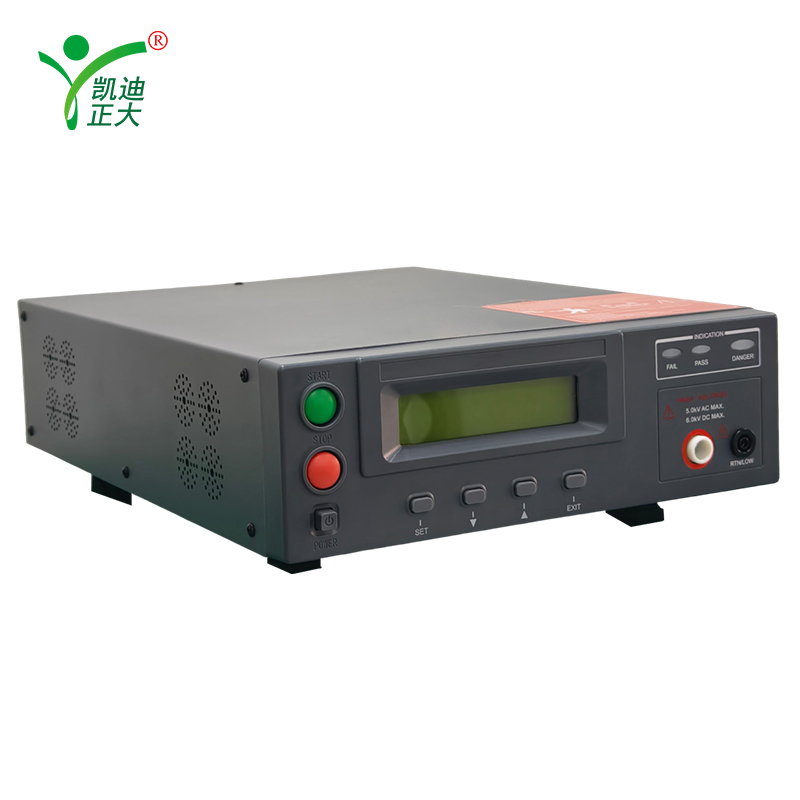

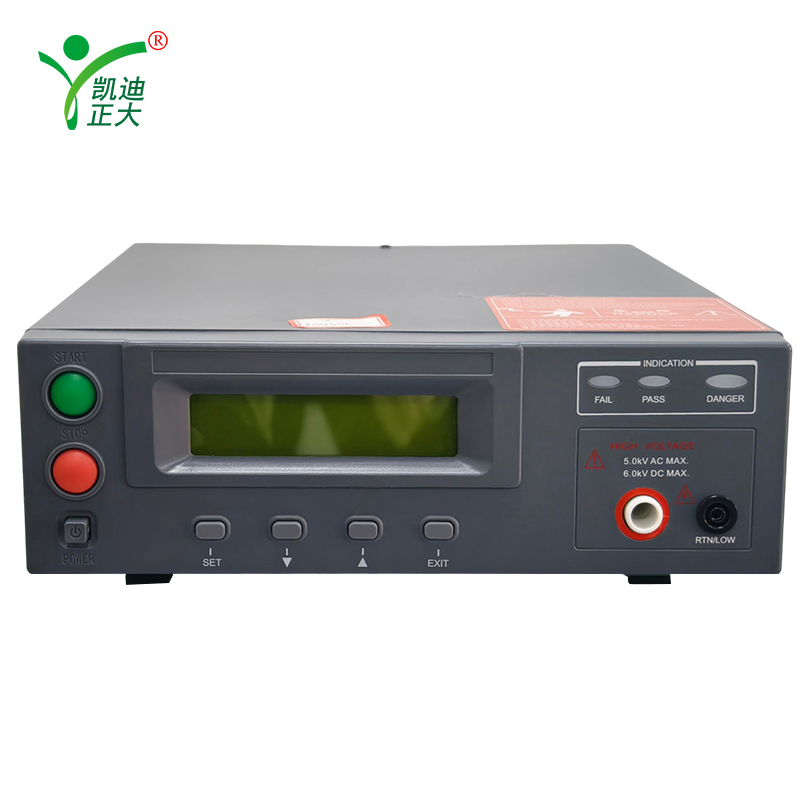

KD7122 Series Withstanding Voltage & Insulation Resistance Tester
KD7122 Series Withstanding Voltage & Insulation Resistance Tester

KD7122 Series Withstanding Voltage & Insulation Resistance Tester

Applications:

The KD7122 Series is used to test the withstand voltage and insulation performance of electronic components, dielectric materials, equipment, wires and cables.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KD7122 Series Withstanding Voltage & Insulation Resistance Tester is a measuring instrument controlled by a microprocessor. It features easy operation, complete functions, wide measuring range and high test speed. Output voltage, leakage current, insulation resistance and test time are displayed on a 1602 character LCD. The instrument has strong anti-interference and anti-shock capabilities for direct, convenient and reliable testing.

Features:

  • Developed based on advanced products and user requirements
  • ARM chip for high-speed sampling
  • Simultaneous display of test voltage, leakage current, insulation resistance and test time
  • Standard PLC interface and RS232 interface
  • Upper and lower limit alarm function
  • Arc detection function
  • Voltage slow rise and slow down function
  • Maximum voltage: 5KV (AC), 6KV (DC)
  • Maximum leakage current: 12mA (AC), 5mA (DC)
  • Maximum insulation resistance: 10GΩ

Parameter:

  • Measuring voltage range: 0.01–5.00KV (AC); 0.01–6.00KV (DC); 0.1–1.00KV (IR)
  • Voltage display accuracy: ±(2%+5V)
  • Measuring current range: 0.01–12.00mA (AC); 0.01–5.00mA (DC)
  • Current display accuracy: ±(2%+2Counts)
  • Insulation resistance: 1–1000MΩ (accuracy ±(5%+2Counts) at ≥500VDC; ±(10%+2Counts) at <500VDC); 1000–9999MΩ (accuracy ±(10%+2Counts) at ≥500VDC)
  • Test time range: 0–999.0S, 0=continuous test
  • Test time accuracy: ±(2%+0.05sec)
  • Arc detection: 0–9 levels, 0=off
  • Power supply: 110V/220V (1±10%)/50Hz
  • Operating temperature/humidity: 0–40℃, ≤80%RH
  • Dimensions: 280mm × 100mm × 370mm
  • Weight: approx. 9Kg
  •
