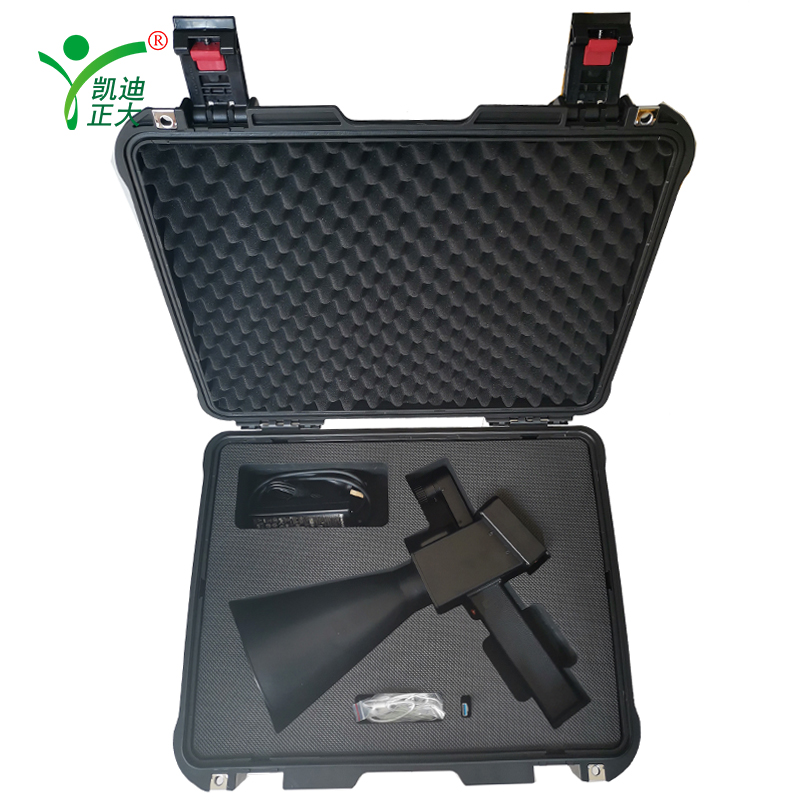

The KDZD3099C Ultrasonic Partial Discharge Inspection Instrument is a detection device that diagnoses power line fault hazards by collecting and analyzing abnormal ultrasonic signals from power lines. It operates under live conditions (without power interruption) to determine the location and type of faults. The device captures ultrasonic anomalies via a sensor, which are then transmitted to the host. The built-in software analyzes the signals, converting them into audible sound signals and waveforms for output. This visualization and audio feedback help inspection personnel accurately identify line faults, thereby improving power supply reliability, work efficiency, and reducing labor intensity.

• Portable & Lightweight: Compact design, easy to carry, and operable by a single person.
• Non-Contact & Visual: Handheld, non-contact detection with visual waveform display and audible output.
• High Precision: High sensitivity with directivity and pointing capability for accurate fault location.
• Long Range & Safety: Non-contact measurement with an effective detection range of up to 30 meters.
• Noise Immunity: Operates effectively in noisy environments without being affected by ambient sound.
• Mobile Detection: Strong focusing ability allows inspection while moving (suitable for vehicles traveling at 30km/h).
• Integrated Camera: Equipped with a 5-megapixel high-definition camera for focusing on fault points and taking photos of tower markings or faulty equipment.
• GPS Navigation: Built-in GPS receiver automatically stores coordinate data and provides navigation.
• Environmental Monitoring: Real-time detection of ambient temperature and humidity.
• Data Management: Data storage and playback functions; compatible with background software for data management and assessment.

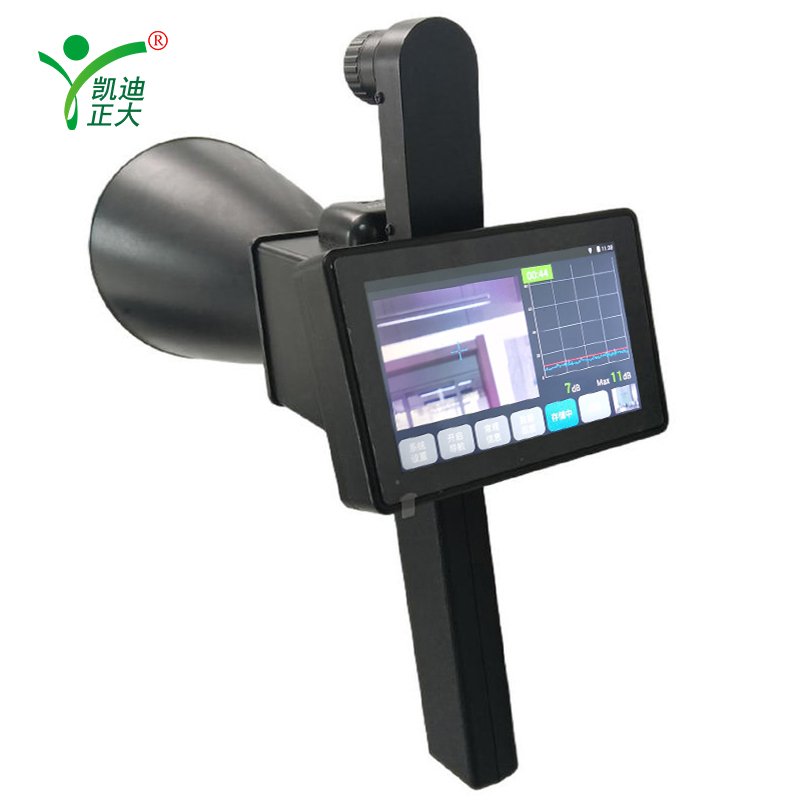

• User-Friendly: 5.0-inch color touch screen and an intensity-appropriate green laser for easy aiming, even in sunlight.

Hardware & System Specifications

• Circuit System: Utilizes anti-interference filtered analog and digital circuits.
• CPU: Operates on a 1GHz main frequency.
• Memory: Equipped with 2GB DDR3 RAM and 16GB Emmc storage.
• Display: Features a 5.0-inch TFT LCD color touch screen.
• Camera: Includes a 5-megapixel high-definition camera.

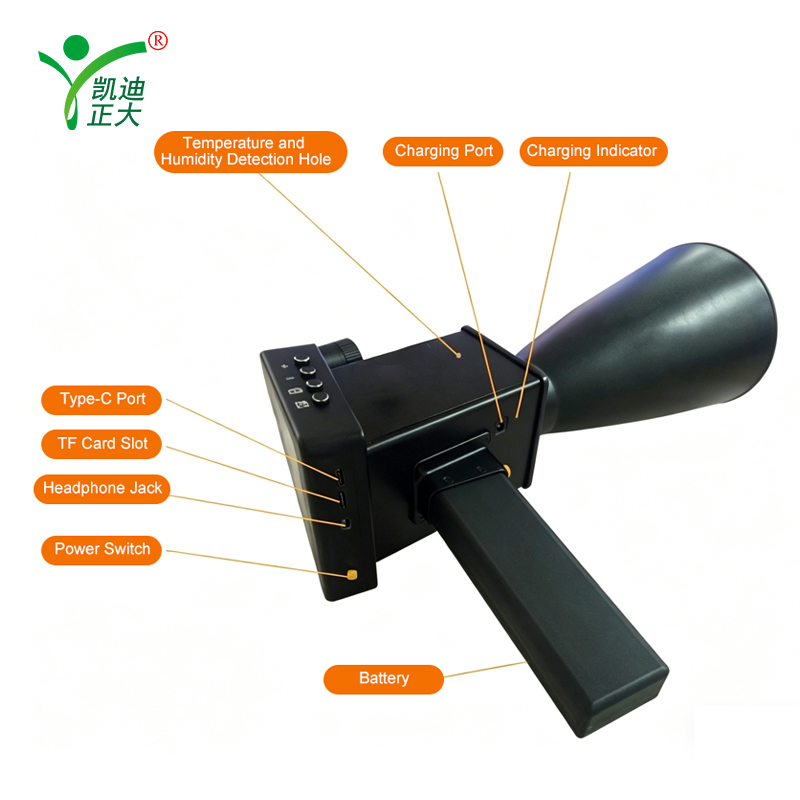

• Interfaces: Supports TF Card, USB (Type-C), and Headphone Jack.
• Storage: Requires an 8GB or larger TF Card.

Detection Specifications

• Measurement Range: -7dBμV to 68dBμV.
• Frequency Range: 20kHz to 150kHz.
• Resolution: 1dB.
• Error: ±1dB.
• Sensor Sensitivity: -65dB (where 0dB = 1volt/μbar rms SPL).
• Sensor Center Frequency: 40kHz.
• Sensor Diameter: 16mm.

Environmental & Power Specifications

• Operating Environment: Functions between -25℃ and 70℃.
• Relative Humidity: 0 to 95%.
• Power Source: Powered by a 14.8V / 2600mAH Lithium Battery.
• Operating Time: Provides over 8 hours of continuous operation.
• Charger Specs: Input: 100-240V, 50/60Hz; Output: 20V, 3.25A.
