| Parameter | Specification |
|---|---|

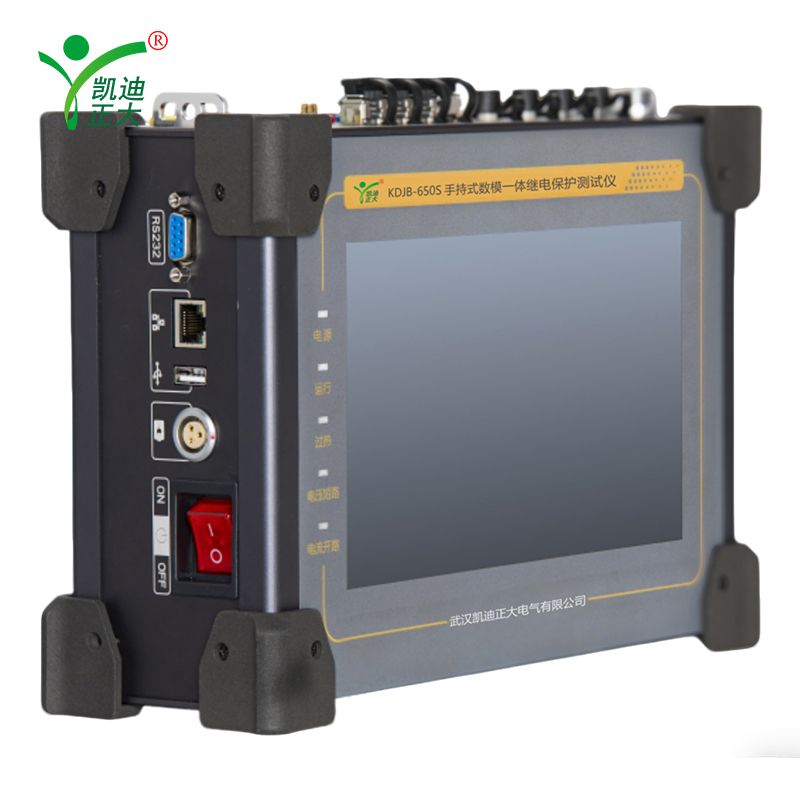

| Model | KDJB-650S |
| Analog Output | - Current: 6×0–20A or 3×0–40A - Voltage: 6×0–130V AC - DC Current: 6×0–10A - DC Voltage: 6×0–180V |
| Accuracy (AC) | - Current: ≤±0.05% (0.2–10A) - Voltage: ≤±0.05% (2–130V) |
| Harmonic Distortion | ≤0.1% (typical) |
| Frequency Range | 10 Hz – 1 kHz (resolution: 0.001 Hz) |
| Phase Accuracy | ±0.1° (typical), ±0.2° (guaranteed) |
| Synchronization Error | ≤10 µs |
| Digital I/O | - Fiber Ethernet: 4 pairs (LC), 1 GbE + 3×100M - Fiber Serial: 4 (ST, IEC60044-8, IRIG-B) - Electrical Ethernet: 2×RJ45 (MMS, TCP/IP) |
| Binary I/O | - Inputs: 8 isolated (20–250V DC or dry contact) - Outputs: 6 (4 normal + 2 fast, <100 µs) |
| Time Sync | GPS/Beidou, IRIG-B (optical), IEEE 1588 |
| Display | 9-inch capacitive touchscreen |
| Power Supply | AC 100–240V or internal Li-ion battery |
| Dimensions | 278 × 191 × 88 mm |
| Weight | <4.5 kg |
| Operating System | Embedded Linux |
