Introduction to the M305 Professional Handheld Infrared Thermal Imager in the Image**

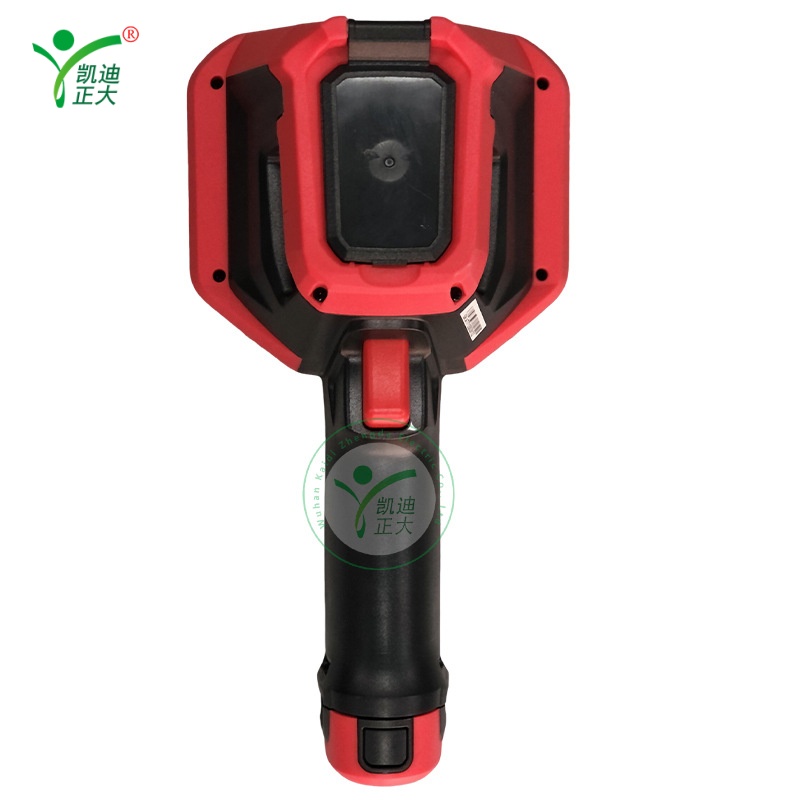

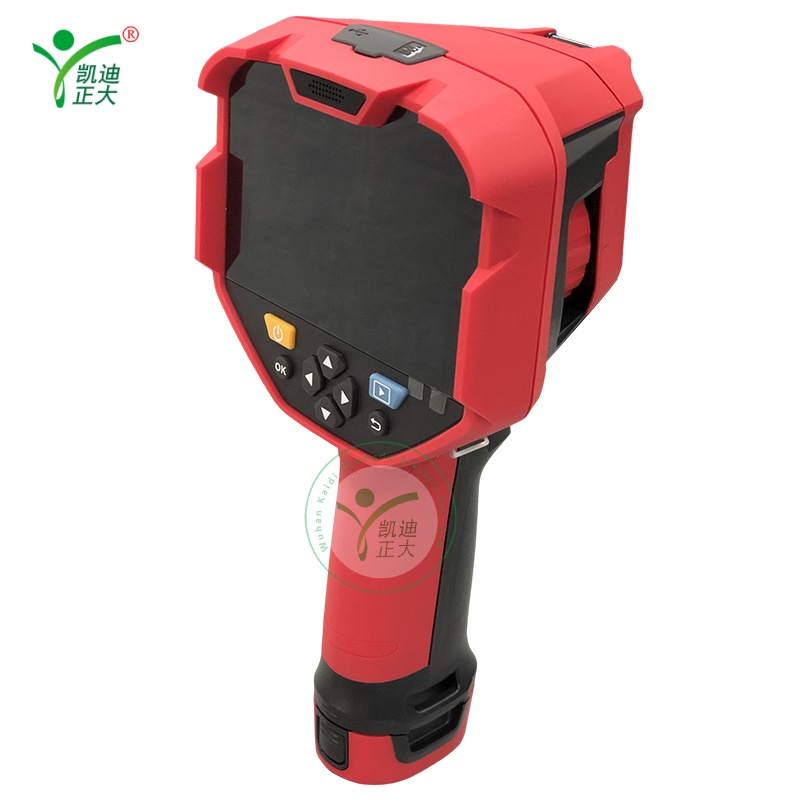

1. Product Appearance and Design**
- **Overall Design**: Compact ergonomic structure with a streamlined grip for comfortable, extended operation.
- **Color Scheme**: Dominant black (professional and robust) with red accents on the handle and screen edges (enhanced visibility).

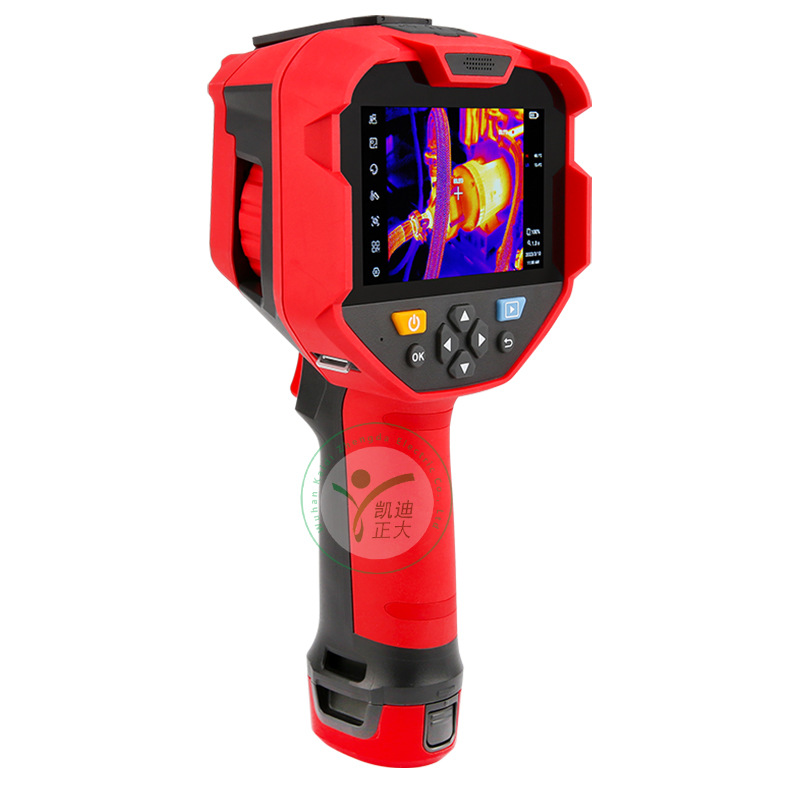

- **Display**: Front-facing pseudo-color thermal imaging screen, where yellow/orange indicates high-temperature zones, and blue/purple represents cooler areas.
2. Core Features and Functions**
- **Hardware Specifications**:
  - **5MP Visible Light Camera**: Captures high-resolution visible light images.
  - **Infrared Detector**: 12μm uncooled microbolometer with 384×288 resolution.
  - **Thermal Sensitivity**: 35mK (high-precision temperature detection).
  - **Manual Focus**: Adjustable focus for sharp thermal imaging.
- **Key Functions**:
  - **Non-Contact Temperature Measurement**: Range from -20°C to +1500°C (varies by model).
  - **Thermal Imaging Visualization**: Real-time temperature distribution display for identifying hotspots or cold spots.
  - **Data Recording**: Supports image/video storage for post-analysis.
3. Working Principle**
1. **Infrared Detection**: Captures surface radiation in the 8–14μm wavelength range via the infrared detector.
2. **Signal Processing**: Converts infrared signals into electrical signals, generating a temperature distribution map through algorithms.
3. **Image Display**: Visualizes thermal data in pseudo-color (e.g., red/yellow for heat, blue/purple for cold).

4. Product Dimensions and Packaging**
- **Size and Weight**: 670 grams net weight, dimensions: 256.4mm (L) × 105.3mm (W) × 105.1mm (H).

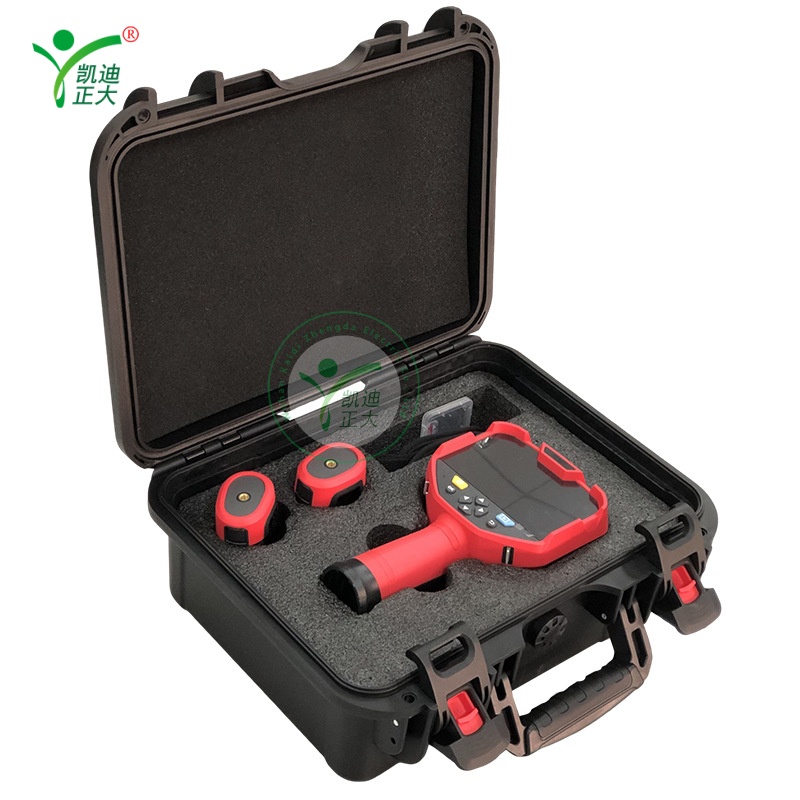

- **Packaging Contents**:
  - Main unit (thermal imager)
  - Accessory box (battery, charger, data cable, etc.)
  - User manual, warranty card, and factory inspection report (all in English).

5. Design Style and Atmosphere**
- **Tech-Savvy and Professional**: Blue-white theme evokes a calm, rational vibe, with clear layouts and organized information hierarchy.
- **Visual Presentation**: Soft lighting and minimalist background highlight product details, combining text and visuals for quick comprehension.

This thermal imager is ideal for power grid inspections, building diagnostics, emergency rescue operations, and more. Its portability and precision make it a reliable tool for non-contact temperature measurement across diverse scenarios.

Main features of the product
Infrared resolution: 640x512
Temperature measurement range: -30 ℃ to 650 ℃
Frame rate: 50Hz
4.3 "LCD touch screen
Adjustable focus lens
Photography and video recording
PC analysis software+mobile app
Type C Direct Charging/Removable Battery (UT-M17)
Visible light pixels: 5 million
High/low temperature alarm function
Equipped with 7 color palettes for switching
Equipped with 1.0-6.0 electronic zoom function
Image analysis: temperature measurement point+digital magnification+temperature measurement area+isotherm

TECHNICAL INDEX
Detector type: Uncooled infrared detector
Detector pixel: 640x512
Wavelength range: 8-14 μ m
Pixel spacing: 12 μ m
Frame rate: 50Hz
Thermal sensitivity (NETD): ≤ 60mk
Focusing mode: manual
Thermal imaging lens focal length: 13.0mm
Field of View (FOV): 32.9 ° x26.6 °
Temperature measurement range: -30 ℃ to 650 ℃
Temperature measurement accuracy: ± 2 ℃ or ± 2% (whichever is higher)
Temperature measurement resolution: 0.1 ℃
Emissivity setting: Yes
Image modes: infrared, visible light fusion, visible light, picture in picture
Color palette: 7 pieces
AI function: AI human recognition - automatic tracking task, generating temperature measurement box
Isothermal line: Yes
Visible light resolution: 5 million pixels
Photo: Yes
Video recording: Yes
Image format: JPG
Video format: MP4
Digital zoom: 1x~6x (supports continuous scrolling adjustment)
Temperature analysis: points, lines, circles, rectangles (up to 10 shapes)
Temperature measurement display: 3 temperature measurement points (center point, highest temperature, lowest temperature)
High/low temperature alarm: screen alarm, sound alarm
Display screen: 4.3 "LCD touch screen
Display resolution: 800x480
Voice annotation/text annotation: Yes
QR code scanning: Yes (intelligent file classification)
Temperature measurement unit: ℃/℉/K
Language: Chinese/English
Automatic shutdown: 5 minutes, 10 minutes, 15 minutes, 20 minutes
Time and date settings: Yes
Screen brightness adjustment: available
Factory reset: Yes
WiFi connection: Yes
USB interface: USB Type-C
Mobile APP: Yes (real-time image, photo download and analysis)
PC analysis software: available (real-time image and photo download and analysis)
Battery type: 5200mAh (removable battery UT-M17)
Battery working time: more than 5 hours (more than 2.5 hours on wifi)
Charging system: Provides - Type C direct charging
Charging time:<4 hours
Charging method: 5V2A
External storage: standard 32GB, supports hot swapping
Working temperature: -10 to 50 ℃
Storage temperature: -20 to 60 ℃
Relative humidity: 10<95% RH (non condensing)
Protection level: IP54
Fall protection: 2m
Certification: CE, FCC, ROHS, UKCA
