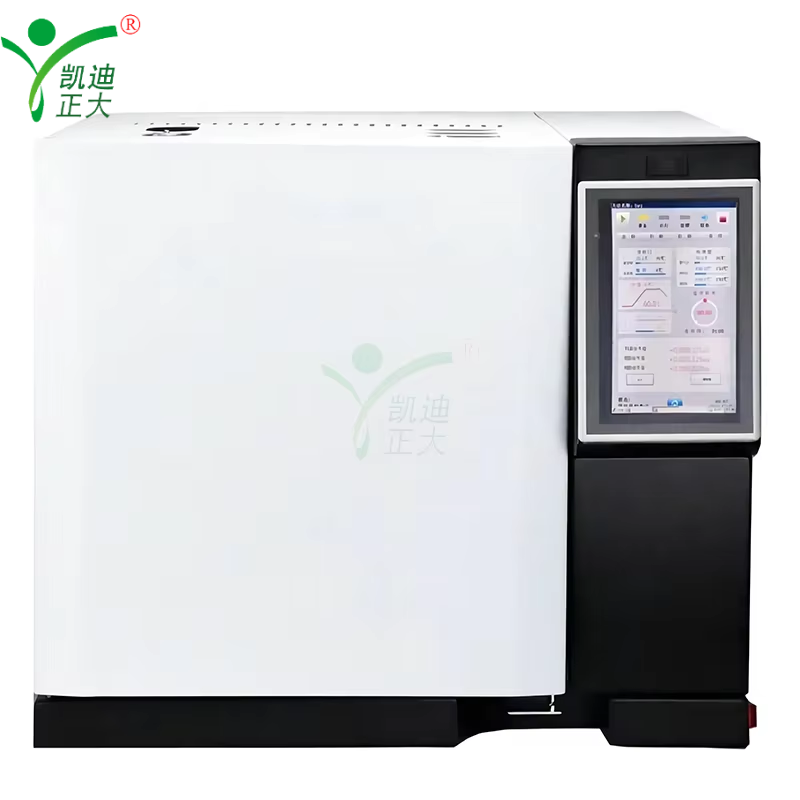

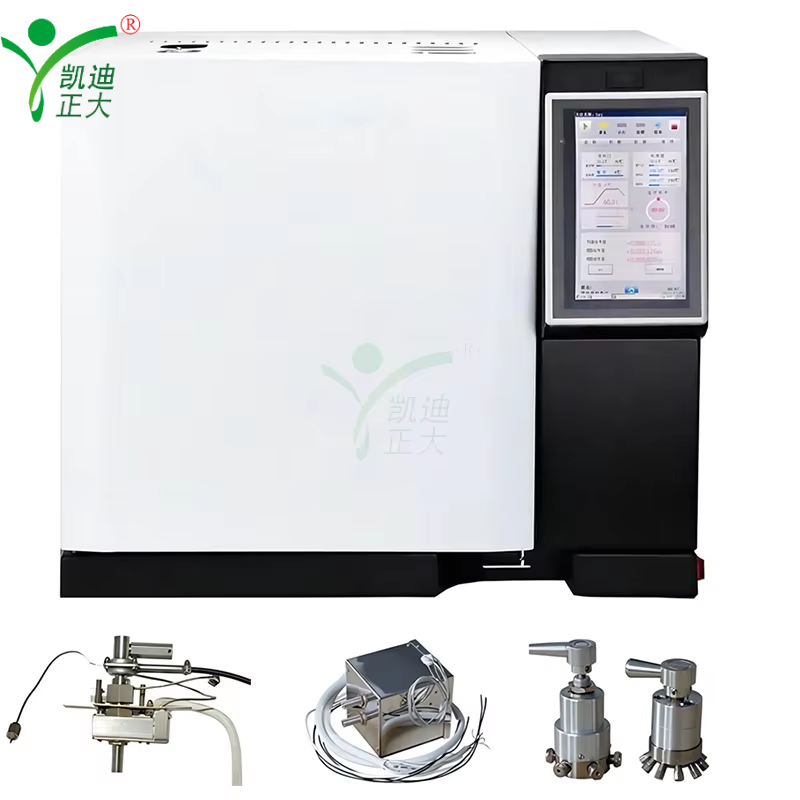

KDZD2030 Bundle Tube Special Gas Chromatograph
KDZD2030 Bundle Tube Special Gas Chromatograph

KDZD2030 Bundle Tube Special Gas Chromatograph

Applications:

Used in coal mines for on-line bundle tube gas monitoring, analyzes O2, N2, CO, CO2, CH4, C2H2, C2H4, C2H6, C3H8 for spontaneous combustion prediction and explosion risk alarm, suitable for mine safety monitoring and laboratory analysis.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDZD2030 adopts modular design, TCD + dual FID detectors, automatic multi-valve injection, 30-stage temperature programming. Supports 12/16-channel auto-sampling, high-precision trace gas detection, with networking and remote control functions.

Features:

  • Supports 12–16 channel automatic cyclic sampling
  • One injection completes full component analysis in 4–10 minutes
  • Repetition error ≤ 2%, better than national standard
  • Six independent temperature control with 0.1℃ precision
  • Built-in IoT for remote data upload and diagnosis
  • Auto/manual switchable for on-line and lab use

Parameter:

  • Detection components: O2, N2, CO, CO2, CH4, C2H2, C2H4, C2H6, C3H8
  • Min. detection: CO≤0.5ppm, C2H4≤0.1ppm, C2H2≤0.5ppm, CH4≤0.1ppm
  • System error: ≤1.0%
  • Oven temp: 4℃ above ambient ~ 450℃, -80℃~400℃ (liquid nitrogen)
  • Temp control: 6-channel, 30-stage program, 0.1℃ precision
  • Detectors: TCD (S≥12000mV·mL/mg), dual FID (≤5×10-12g/s)
  • Injection: auto 6-port & 10-port valves, 12–16 channel sampler
  • Software: Tetchrom with explosion triangle alarm
  • Communication: TCP/IP network remote control
  • Warranty: 1 year, 8h service response
