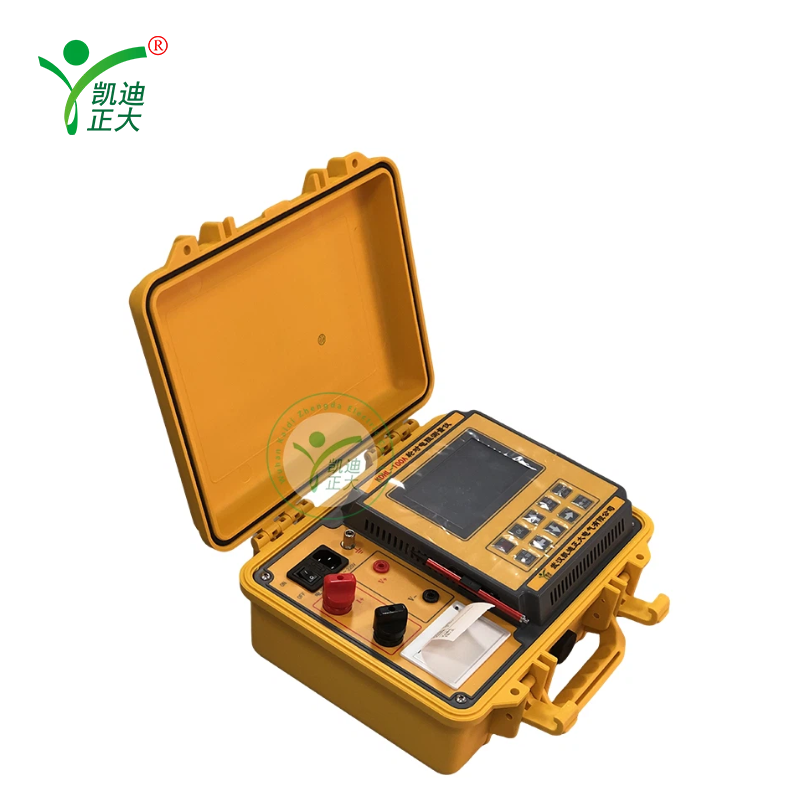

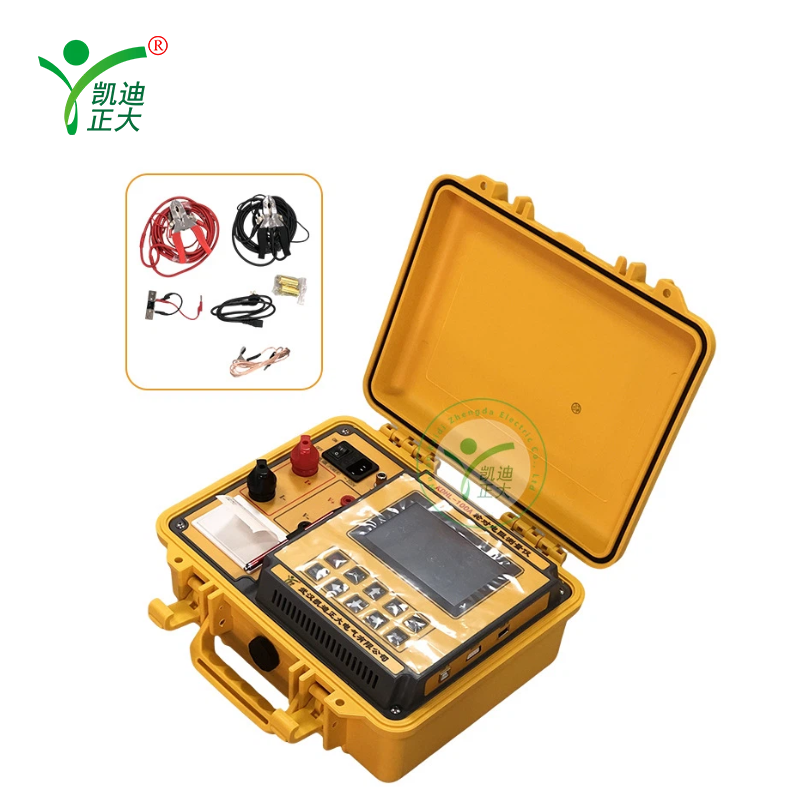

KDHL-100A Wheelset Resistance Tester
KDHL-100A Wheelset Resistance Tester

KDHL-100A Wheelset Resistance Tester

Applications:

Designed for measuring micro-ohm level contact resistance, widely used in testing contact resistance of switches, electrical appliances, circuit resistance, cable wires and weld joints, complying with IEC standards and national regulations.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

A high-precision digital resistance tester controlled by a high-speed MCU, featuring a 480*270 true-color touch screen, USB/RS232 interfaces, and a built-in printer, ensuring stable and accurate measurement results.

Features:

  1. Controlled by high-speed MCU with high automation and simple operation.
  2. 480*270 true-color LCD touch screen with clear display in strong light, supporting both touch and key operation.
  3. RS232 (reserved) and USB interfaces for computer communication and U disk storage.
  4. Four-terminal wiring method effectively eliminates the impact of test line resistance on results.
  5. Fast response speed, stable measurement data, automatic data refresh during testing.
  6. Intelligent power management technology reduces internal heating and saves energy.
  7. Perfect protection functions for more reliable performance.
  8. Equipped with a mini printer for on-site printing of test data.
  9. Non-volatile clock and memory for long-term data storage.



Parameter:

  1. Current ranges (including line): 50A (0～160mΩ); 100A (0～80mΩ)
  2. Minimum resolution: 0.0001μΩ
  3. Accuracy: ±(0.5%±2 digits)
  4. Data storage: 1600 records
  5. Operating temperature: -10～40℃
  6. Operating humidity: <80%RH, no condensation
  7. Working power supply: AC220V 50Hz

Contact Us

Kaidi Zhengda Electric
Kaidi Zhengda

Oversea Sales Manager

Send Inquiry

Related Products

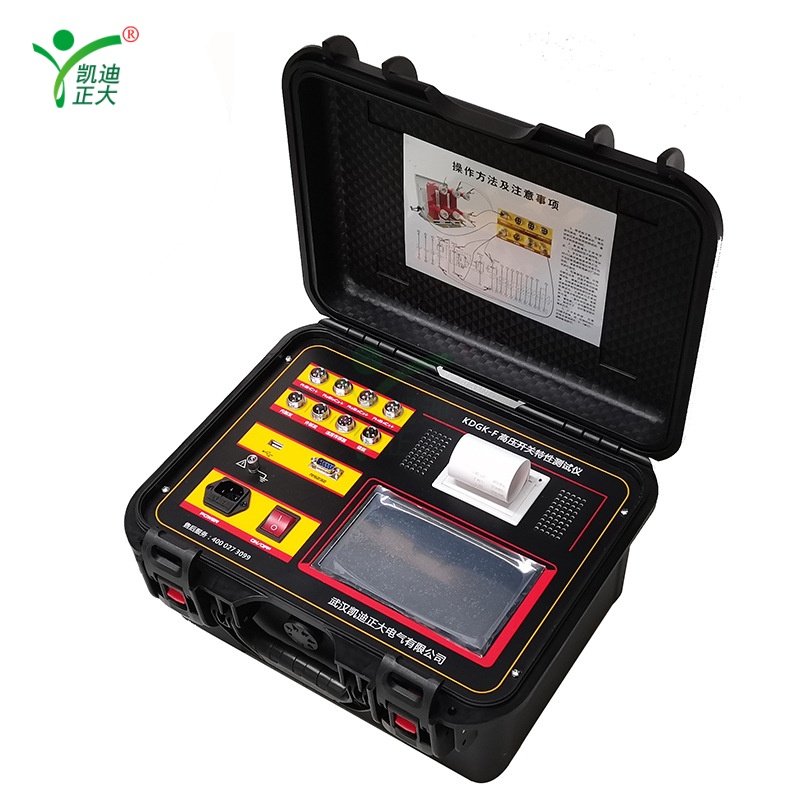

KDGK-F High Voltage Switch Dynamic Characteristic Tester
