KDJS-YD35 Electroscope Test Stand

Applications:

The KDJS-YD35 Electroscope Test Stand is designed for testing the starting voltage of capacitive voltage testers complying with DL740, applied in power inspection, maintenance and testing institutions for 10~110kV voltage tester performance detection.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

The KDJS-YD35 Electroscope Test Stand is designed per DL740 power industry standard, the KDJS-YD35 builds a uniform electric field for accurate measurement of voltage tester starting voltage, a professional test auxiliary device for capacitive voltage testers with reliable structural design.

Features:

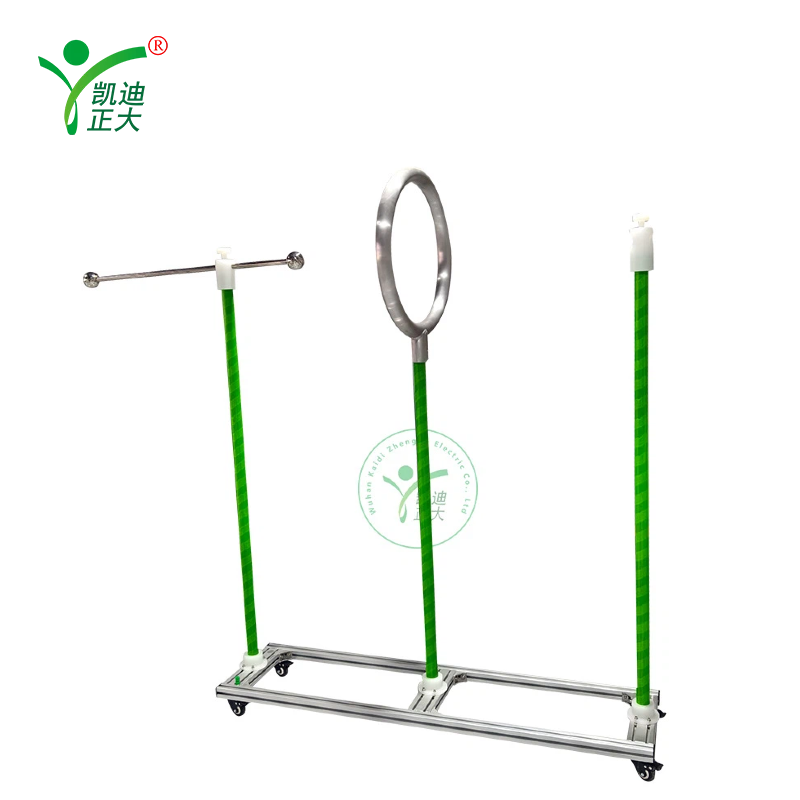

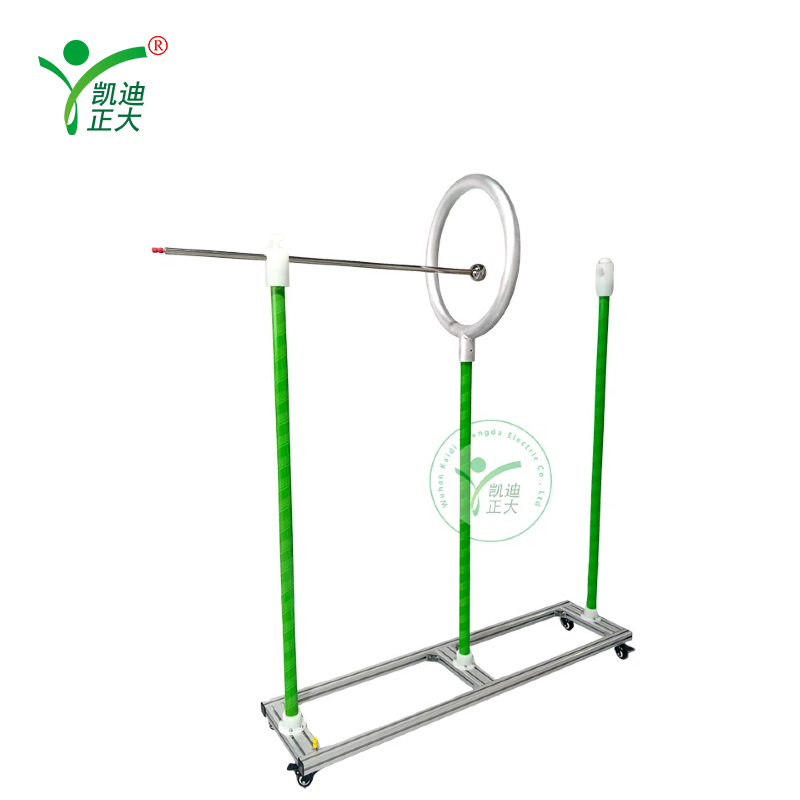

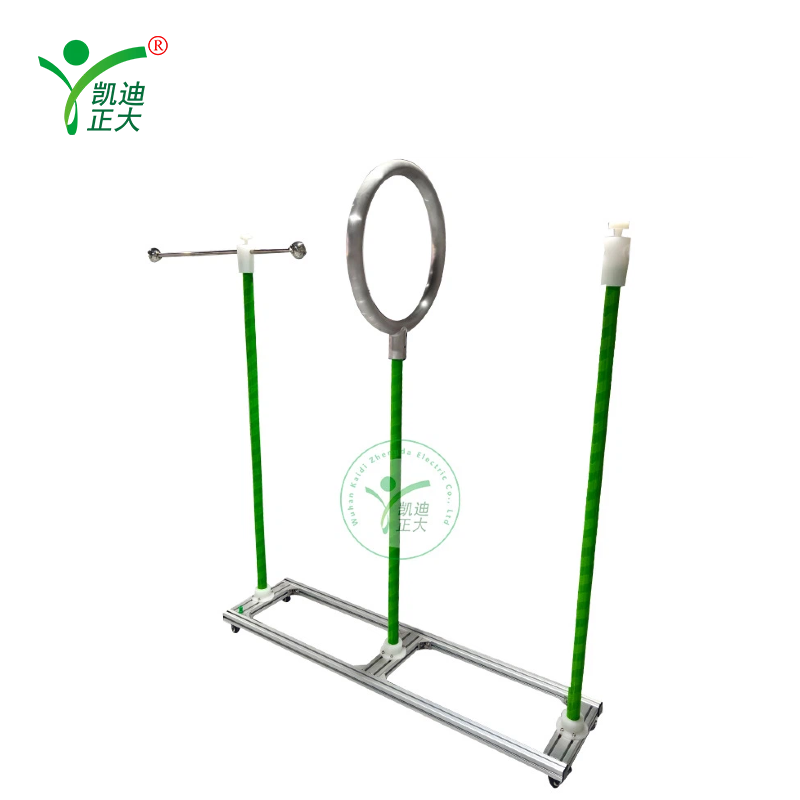

Spherical high-voltage electrode and annular grounding electrode for uniform electric field construction
Full-insulation voltage tester fixture to avoid electric field distortion and ensure test accuracy
Manual control of test distance for flexible adjustment according to different test requirements

Parameter:

Model: KDJS-YD35
Test distance control: Manual control
Applicable voltage tester range: 10~110kV and below
Test quantity: 1 piece
Annular electrode diameter: 1050mm
Spherical electrode diameter: 100mm
Dimension: 1500×400×3000mm
Weight: 18kg

Kaidi Zhengda Electric

Products

KDJS-YD35 Electroscope Test Stand

Profile:

Features:

Parameter:

Contact Us

Kaidi Zhengda

Contact Us

About Us

Compnay Info

Quick Contact

+86-027-83551828

Kaidi Zhengda Electric

Products

KDJS-YD35 Electroscope Test Stand

Profile:

Features:

Parameter:

Contact Us

Kaidi Zhengda

Related Products

KDJS-YD35 Electroscope Test Stand

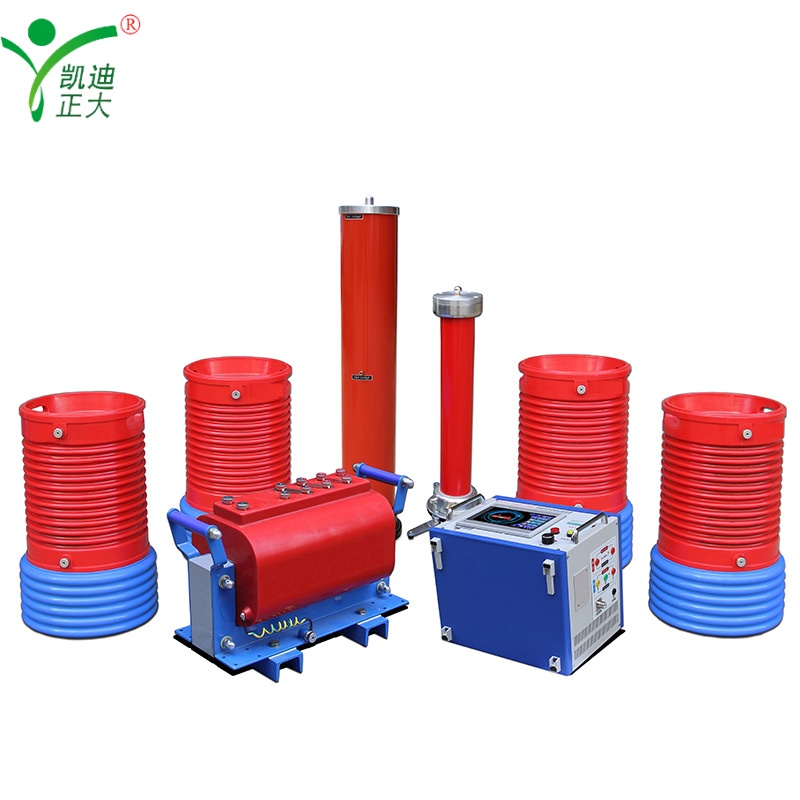

KDXZ-22/22 216kVA/108kV frequency conversion series resonance test device

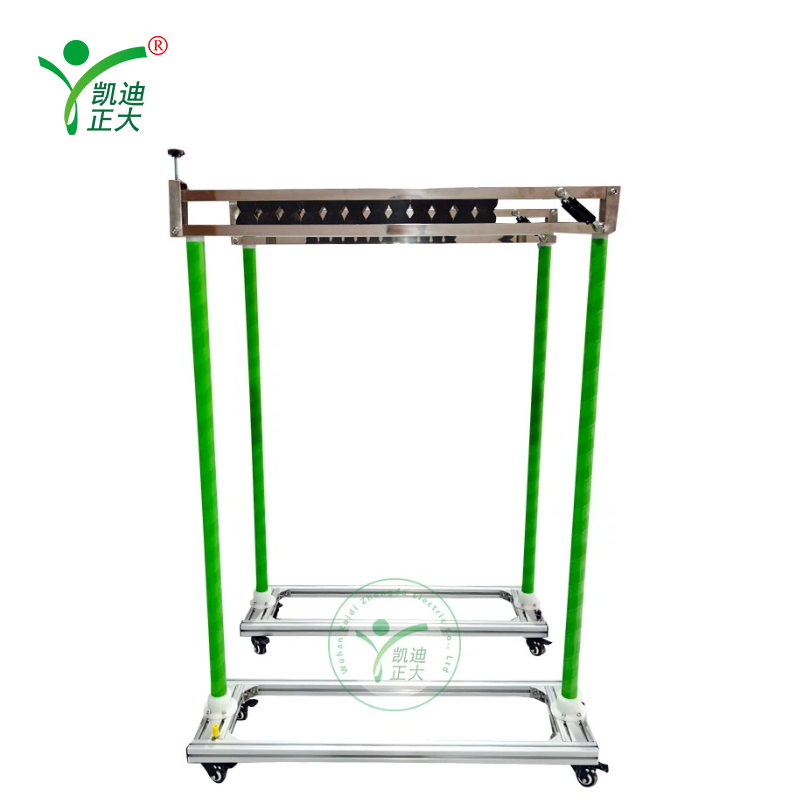

KDZD Insulation Rod Stand

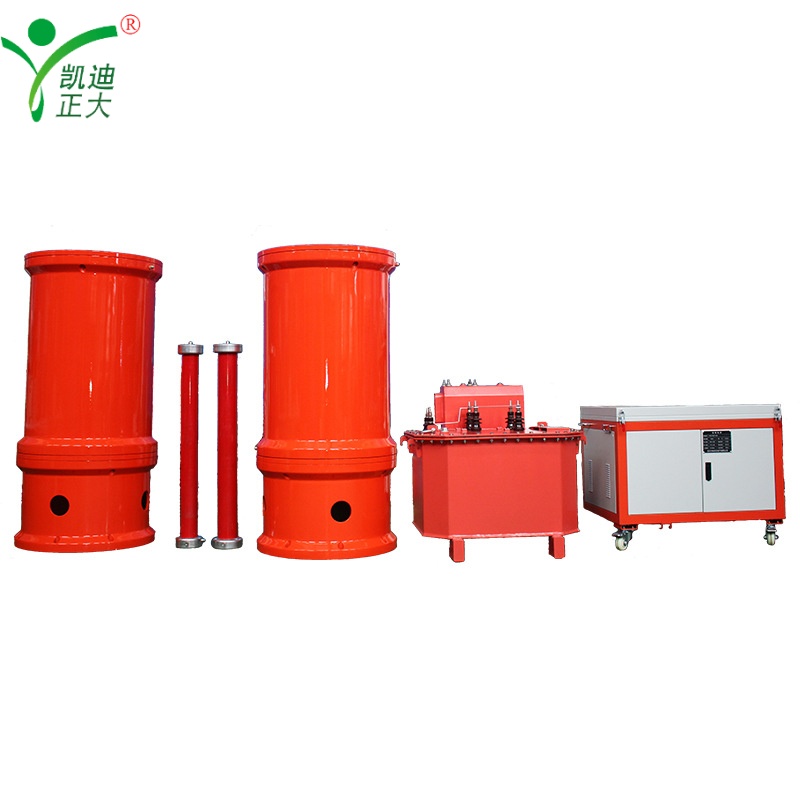

KDXZ-22/22 110kV 220kV transformer AC voltage test device
