| Parameter | Specification |
|---|---|

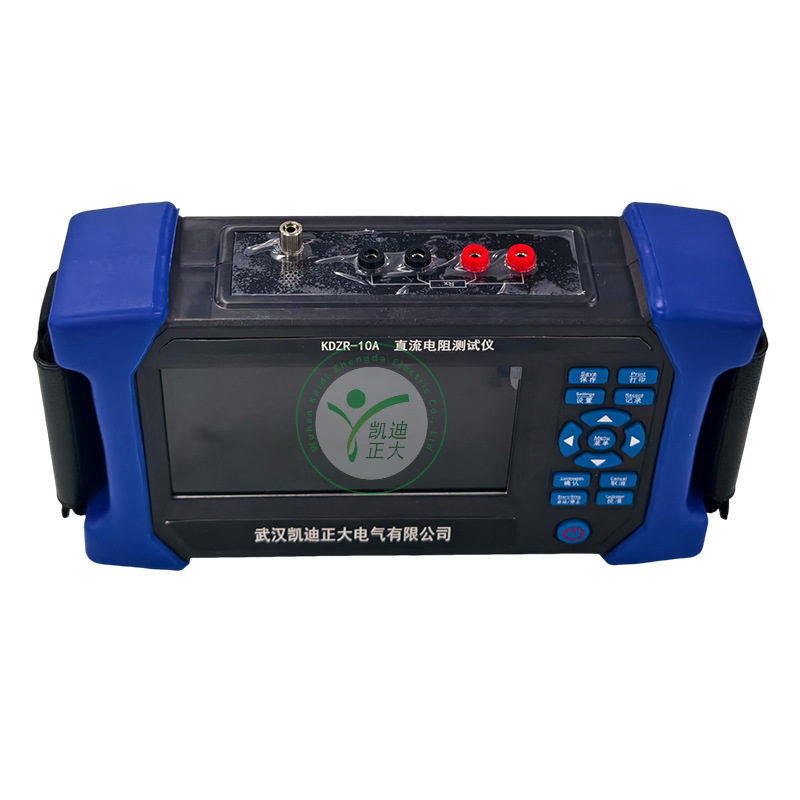

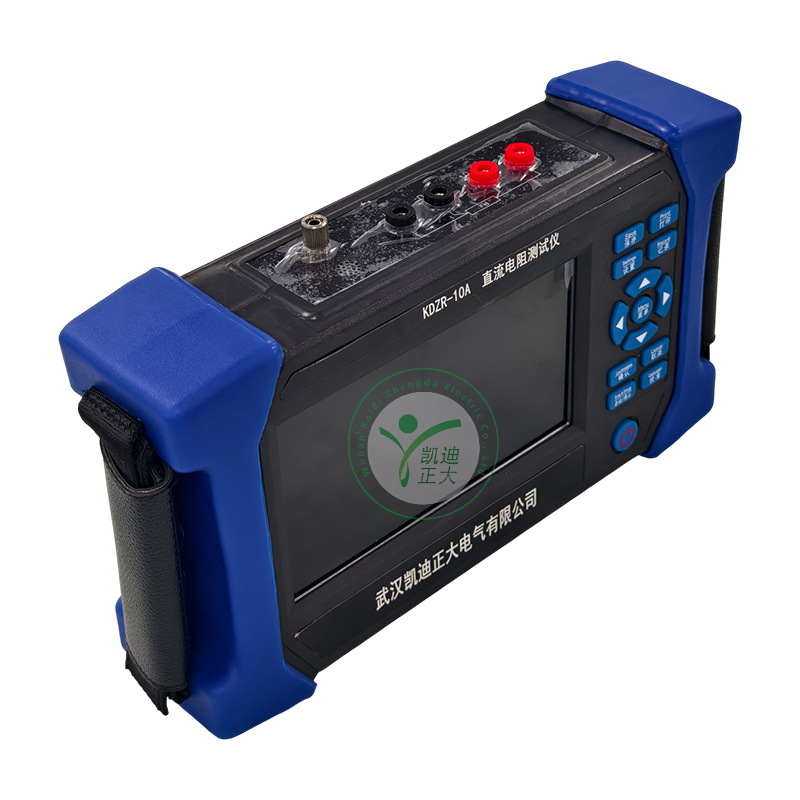

| Model | KDZR-10A |
| Output Current | 10A, 5A, 2A, 1A, 500mA, 200mA, 50mA, 20mA, <5mA |
| Measurement Ranges | - 10A: 1 mΩ – 200 mΩ - 5A: 2 mΩ – 500 mΩ - 2A: 5 mΩ – 2 Ω - 1A: 10 mΩ – 4 Ω - 500mA: 100 mΩ – 10 Ω - 200mA: 200 mΩ – 20 Ω - 50mA: 1 Ω – 100 Ω - 20mA: 2 Ω – 400 Ω - <5mA: 10 Ω – 20 kΩ |
| Resolution | 1 µΩ |
| Accuracy | ±(0.2% rdg + 5 digits) for ≥20 mA ±(0.5% rdg + 5 digits) for <5 mA |
| Display | 7-inch full-transmissive color LCD |
| Power Supply | Built-in rechargeable lithium battery (AC adapter optional) |
| Battery Life | >3 hours continuous operation; hot-swappable |
| Interfaces | RS232, USB, thermal printer |
| Data Storage | Internal memory + U-disk support |
| Clock | Non-volatile real-time clock with date/time |
| Dimensions | 300 × 175 × 80 mm |
| Operating Environment | Temperature: –10°C to +50°C Humidity: ≤85% RH (non-condensing) |
