KDZD-100kV: Intelligent AC Withstand Voltage Test System with Touchscreen Control & Auto-Protection
KDZD-100kV: Intelligent AC Withstand Voltage Test System with Touchscreen Control & Auto-Protection

KDZD-100kV: Intelligent AC Withstand Voltage Test System with Touchscreen Control & Auto-Protection

Applications:

The KDZD-100kV AC Withstand Voltage Test Device is used in power systems, electrical equipment manufacturing, and laboratories to perform AC voltage withstand tests on transformers, switchgears, cables, and insulators, ensuring insulation reliability and compliance with safety standards.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

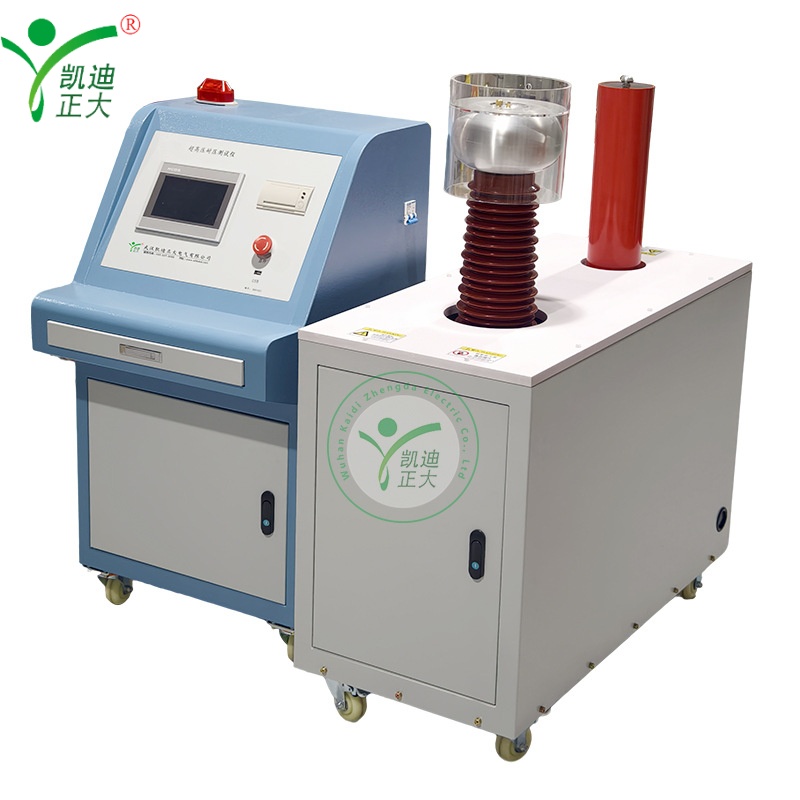

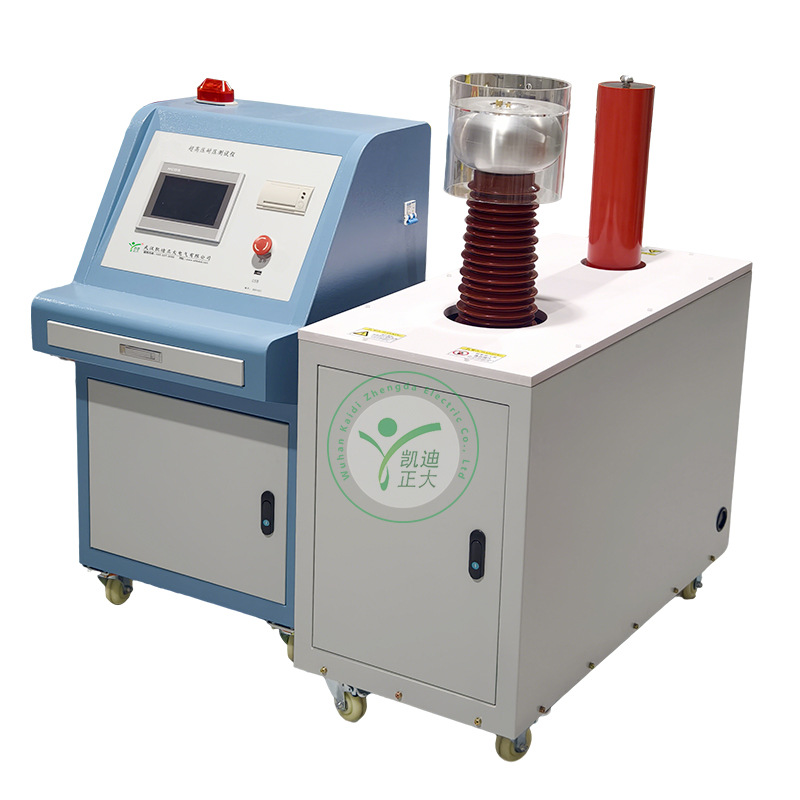

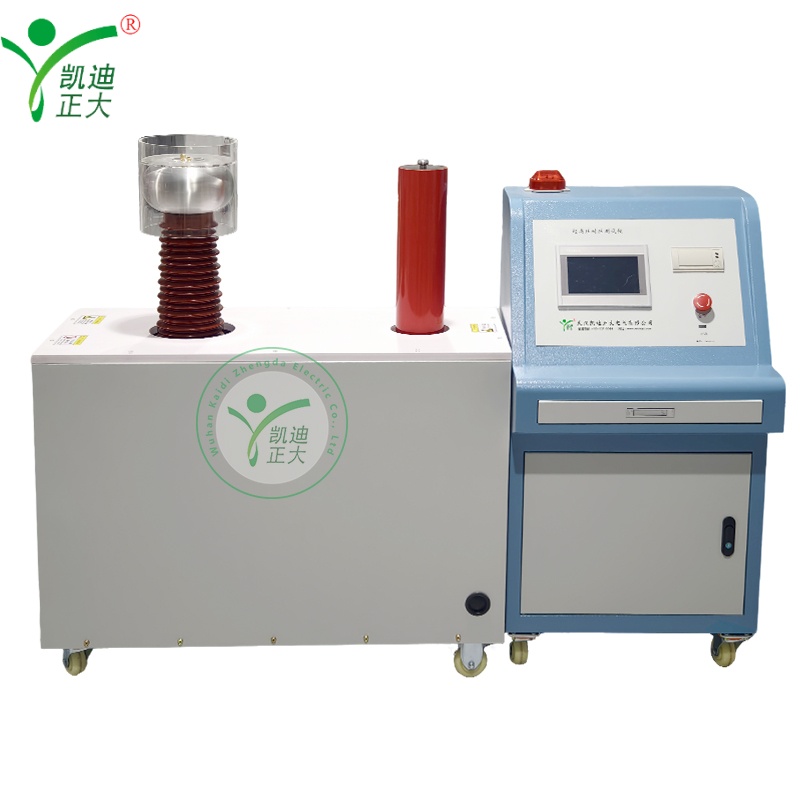

KDZD-100kV is a portable AC withstand voltage test system with a 100kV output, designed for on-site and laboratory insulation testing of high-voltage electrical equipment, featuring stable performance and easy operation.

Features:

  • 100kV AC output for high-voltage insulation testing
  • Compact and portable design for on-site use
  • Stable output voltage with low ripple
  • Overvoltage, overcurrent, and discharge protection
  • Touchscreen control for intuitive operation

Parameter:

  • Rated output voltage: 100kV (AC)
  • Rated capacity: Customizable (e.g., 10kVA)
  • Output frequency: 50/60Hz
  • Input voltage: 220V/380V, 50/60Hz
  • Voltage regulation: Stepless, 0–100%
  • Protection functions: Overvoltage, overcurrent, discharge, and short-circuit protection
  • Dimensions: Main unit ~1200×800×1100mm; Control unit ~600×800×1200mm
  • Weight: Approx. 250kg (main unit) + 80kg (control unit)
