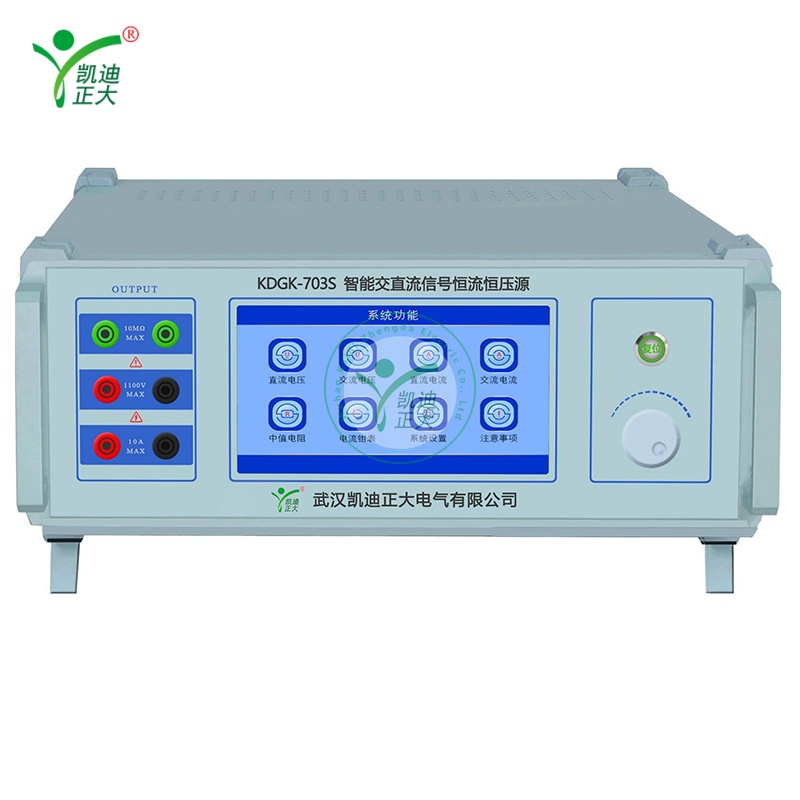

KDGK-703S Intelligent AC/DC Signal Constant Voltage & Current Source (Multimeter Calibrator)
KDGK-703S Intelligent AC/DC Signal Constant Voltage & Current Source (Multimeter Calibrator)

KDGK-703S Intelligent AC/DC Signal Constant Voltage & Current Source (Multimeter Calibrator)

Applications:

  • Used for calibration and verification of 4½-digit multimeters, 0.2-level ammeters/voltmeters, and precision electrical instruments, suitable for power, metrology, railway, mining, and research laboratories as a stable standard test power source.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDGK-703S is a high-precision calibrator that integrates AC/DC voltage, current, and resistance output functions. It uses a 7-inch TFT touchscreen and digital closed-loop control to deliver stable, accurate signals for instrument calibration. With a compact design and intuitive operation, it is an essential tool for metrology and quality control.

Features:

  • 7-inch touchscreen interface: 800×480 resolution for clear parameter display and easy operation
  • Multi-function output: AC/DC voltage, current, and resistance in one instrument
  • Precise adjustment: Step adjustment (N=2,3,4,5,6,8,10,15) and cursor fine-tuning for accurate setting
  • Clamp meter calibration: Supports 0~1000A clamp meter testing with 1000A clamp-on calibration coil
  • High stability:
    • DC: ≤±0.05% accuracy, temperature coefficient ≤0.002%/°C
    • AC: ≤±0.1% accuracy, frequency ≤0.1% (50/60/400Hz)
  • Safety design: Plug-in compensation terminals and overload protection
  • Wide compatibility: Calibrates 0.1-level ammeters/voltmeters and precision multimeters

Parameter:

  • Model: KDGK-703S
  • Voltage Output:
    • Range: 0~200mV / 0~2V / 0~20V / 0~200V / 0~1000V
    • Max current: 30mA / 200mA / 60mA / 20mA / 10mA
    • Accuracy: DC ±0.05%, AC ±0.1%
  • Current Output:
    • Range: 0~200μA~20mA (3V), 0~200mA (12V), 0~2A~10A (2V)
    • Accuracy: DC ±0.05%, AC ±0.1%
  • Resistance Output:
    • Range: 10Ω ~ 10MΩ
    • Power: 0.25W
    • Accuracy: ±0.2% + 20mΩ
  • Power Supply: AC220V±10%, 50Hz±1Hz, 250VA
  • Dimensions: 370mm × 135mm × 395mm
  • Weight: ~10kg
  • Operating Environment: 5°C~35°C, humidity ≤80%
