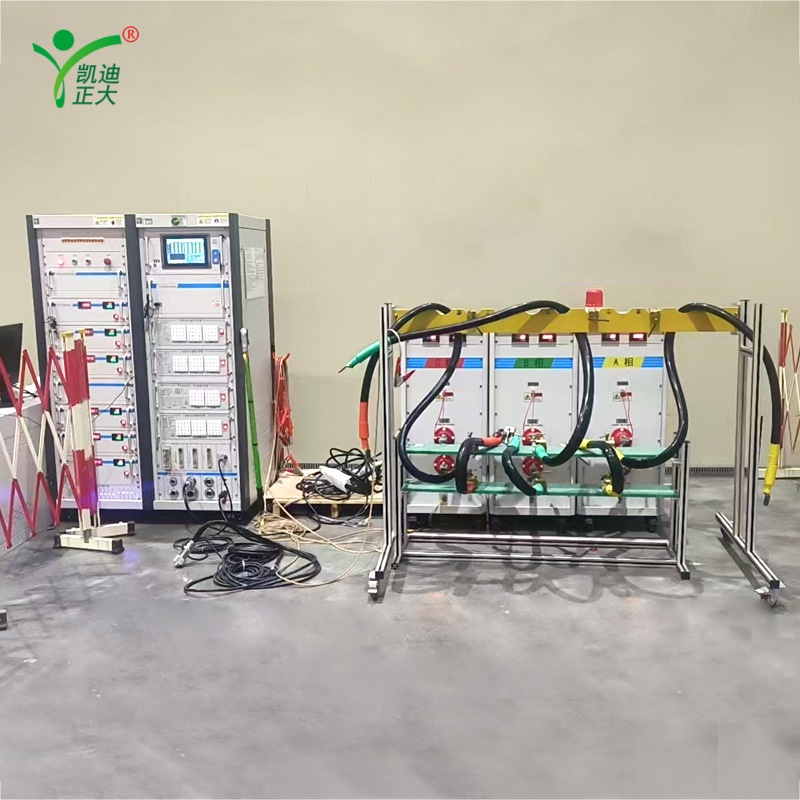

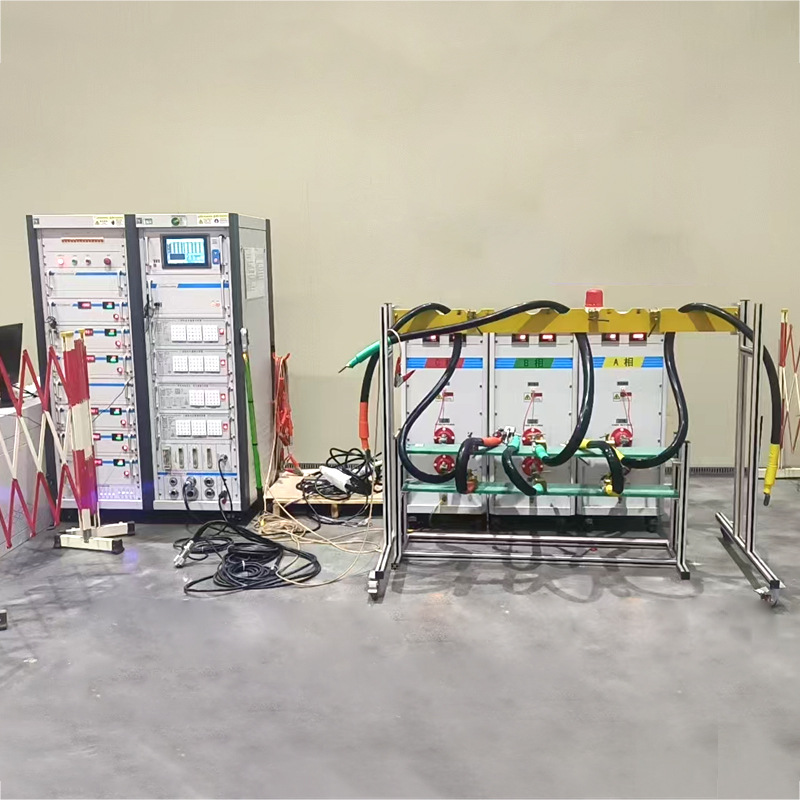

KDZD1256 10kV Primary-Secondary Integrated Equipment Verification System (Gantry Split Type)
KDZD1256 10kV Primary-Secondary Integrated Equipment Verification System (Gantry Split Type)

KDZD1256 10kV Primary-Secondary Integrated Equipment Verification System (Gantry Split Type)

Applications:

  • Used for comprehensive testing and verification of 10kV primary-secondary integrated pole-mounted switches and ring network cabinets, suitable for power grid companies, equipment manufacturers, and testing laboratories to ensure compliance with national and industry standards.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDZD1256 Verification System is a specialized platform for evaluating 10kV primary-secondary integrated distribution equipment. It supports error calibration, metrology verification, remote control testing, communication detection, and fault simulation for pole-mounted switches and ring network cabinets. With high-precision measurement and flexible configuration, it provides reliable data for product quality control and grid access certification.

Features:

  • Comprehensive test coverage: Error calibration, metrology verification, remote control, communication, and fault simulation
  • High measurement accuracy: High-voltage energy metering accuracy ±0.05%, standard transformer accuracy up to ±0.02%
  • Flexible parameter adjustment: Voltage/current/phase/frequency with stepless regulation
  • Compliant with standards: Meets JJG, GB/T, and State Grid technical specifications
  • Automatic report generation: Generates test reports after completion
  • Dual operation modes: Manual or fully automatic testing via software
  • Gantry split design: Easy installation and flexible layout for on-site testing
  • Wide operating temperature range: -10°C ~ +40°C for diverse environments

Parameter:

  • Model: KDZD1256
  • Accuracy:
    • High-voltage active/reactive energy: ±0.05%
    • High-voltage standard voltage transformer: ±0.02%
    • High-voltage standard current transformer: ±0.01% (50mA~1000A)
  • Output Voltage:
    • Rated: 3×5.77kV (phase-neutral) / 3×11.54kV (phase-phase)
    • Capacity: 3×6000VA
    • Adjustment: 0%~120% (stepless)
  • Output Current:
    • Range: 3×(10mA~1000A)
    • Capacity options: 3×1000VA ~ 3×5000VA
    • Adjustment: 0%~120% (stepless)
  • Output Phase: 0°~360° (stepless)
  • Output Frequency: 45Hz~65Hz (stepless)
  • Insulation: 45kV power frequency voltage for 1 minute (between high and low voltage)
  • Power Supply: 3×220V/380V±10%, 50/60Hz±2Hz
  • Operating Environment: -10°C~+40°C, humidity 35%~85%
