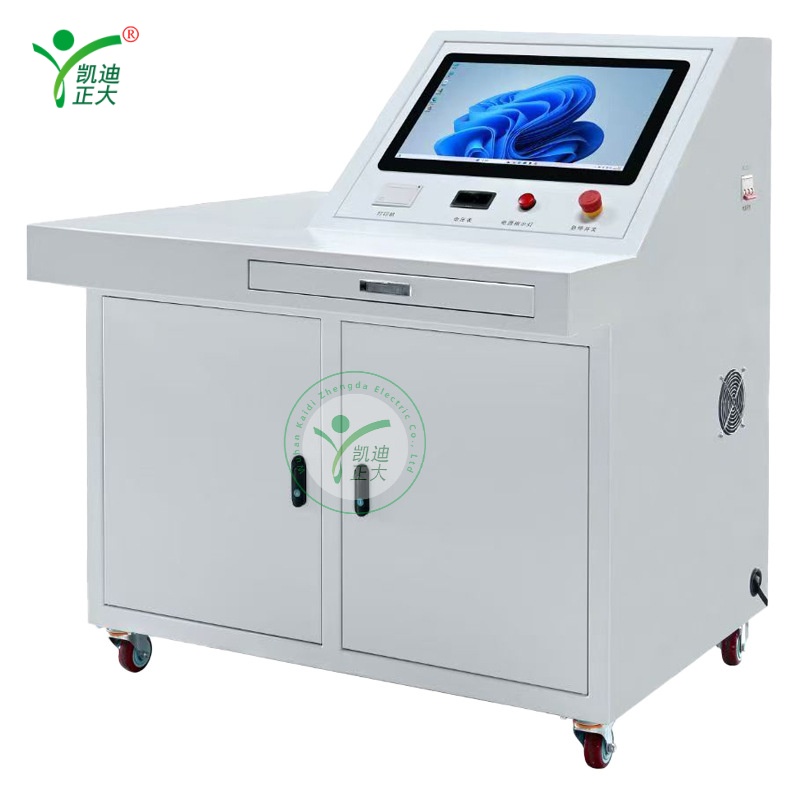

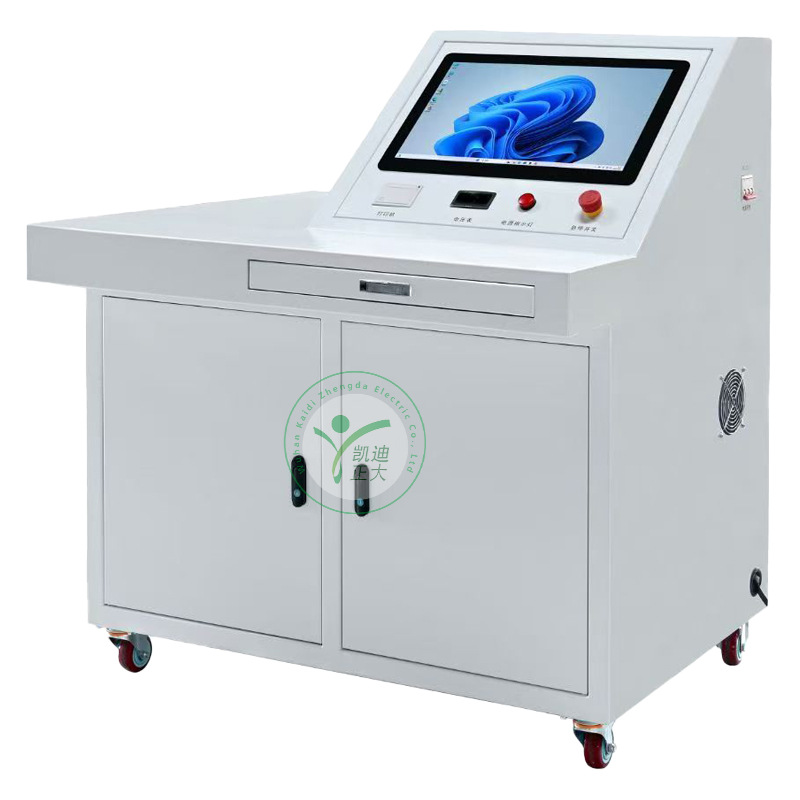

KDZD1255 Series 12kV Primary-Secondary Integrated Equipment Testing System
KDZD1255 Series 12kV Primary-Secondary Integrated Equipment Testing System

KDZD1255 Series 12kV Primary-Secondary Integrated Equipment Testing System

Applications:

  • Used for comprehensive testing of 12kV primary-secondary integrated distribution equipment (box-type substations), suitable for power grid companies, equipment manufacturers, and testing laboratories to verify performance and ensure quality.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDZD1255 Testing System is a specialized platform for evaluating primary-secondary integrated distribution equipment. It integrates 5 core modules: structure inspection, power frequency voltage detection, accuracy testing, anti-icing accuracy testing, and function testing, covering 17 electrical performance tests. With a 19.5-inch touchscreen interface and Microsoft Access database, it supports MES/ERP/EIP integration for data upload and analysis, enabling refined quality evaluation of qualified equipment.

Features:

  • Comprehensive test coverage: 5 modules, 17 electrical performance tests for box-type substation integration
  • High automation: Flexible test configuration and efficient workflow
  • Data integration: Microsoft Access database, supports MES/ERP/EIP platform data upload
  • Intuitive operation: 19.5-inch LED touchscreen for easy parameter setting and result viewing
  • Stable design: Low center of gravity for anti-tilt and anti-vibration performance
  • Standardized interface: Aviation plugs ensure reliable signal exchange between primary and secondary equipment
  • Safety protection: Equipped with emergency stop button and power supply protection functions
  • Mobile cabinet: Caster design for easy movement in testing laboratories

Parameter:

  • Model: KDZD1255
  • Dimensions: ~600mm × 800mm × 1800mm (excluding tower height)
  • Weight: ~260kg (low center of gravity for anti-tilt design)
  • Display: 19.5-inch LED touchscreen
  • Test Object: Box-type substation (12kV primary-secondary integrated equipment)
  • Test Items:
    1. Box-type substation routine test (low voltage cabinet as main test)
    2. Secondary circuit 5000V withstand voltage test & insulation resistance test
    3. Live indicator function test
    4. Low voltage power-on test
    5. Switch operation & interlock test
    6. Metering cabinet & meter operation test
    7. Phase sequence test
    8. Various protection action function tests
    9. Three-phase loop resistance test
    10. 90-500A AC power output
  • Power Supply: Three-phase five-wire 25A socket ×2, 220V socket ×1
  • Database: Microsoft Access (supports MES/ERP/EIP)
