KDZD3088 Ultrasonic Partial Discharge Detector for Power Line Inspection
Applications:
Complies with Q/GDW 11061 and GB/T 7354, used for partial discharge detection of 110kV and below power equipment (switches, transformers, cables). Applied in power grids, railways and factories for on-site and vehicle-mounted inspection to identify insulation defects.

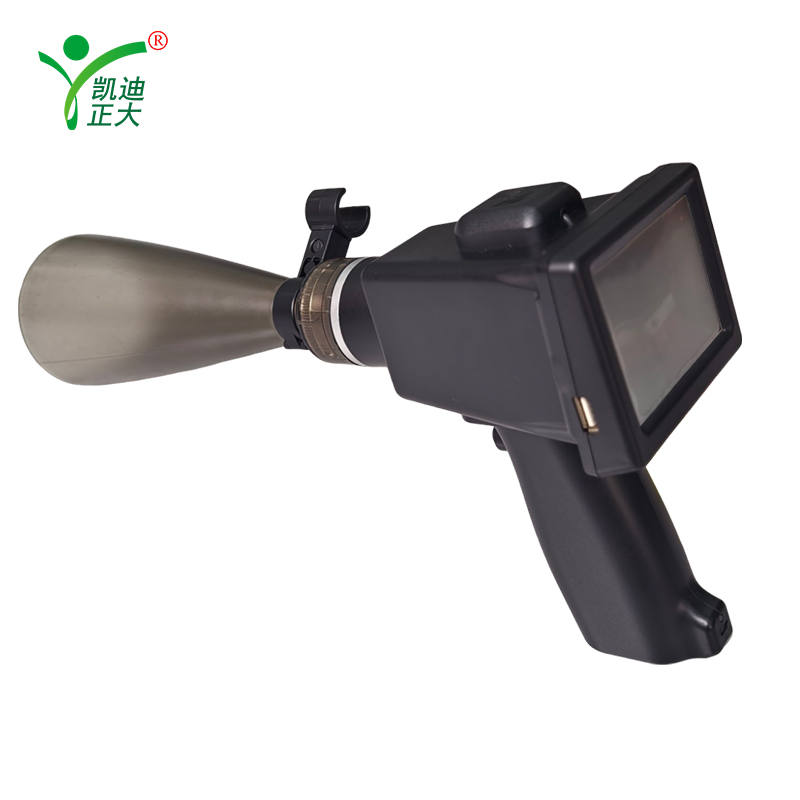

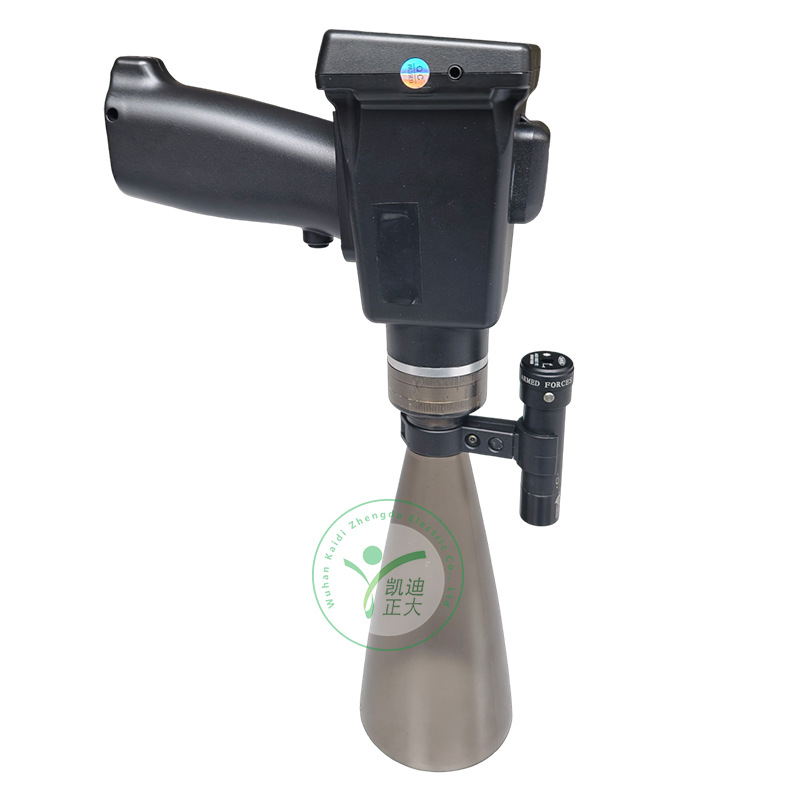

KDZD3088 is a portable ultrasonic partial discharge detector with high-sensitivity 40kHz sensor. It integrates GPS positioning, cloud data synchronization and audio recording, enabling accurate fault location and real-time data analysis.
Audio output: 3.5mm jack with noise-canceling headphones (16Ω)
Storage: 16GB USB drive; Formats: DAT (data), WAV (audio, 48kHz sampling rate)
Positioning & Data
GPS: Passive ceramic antenna, cold start ≤27s; Expandable active antenna for vehicle use
Recording time: Adjustable (default 10s); Data storage capacity: ≥160k groups
Power & Environment
Power supply: 3.7V lithium battery (8000mAh); Working time: 8h (full load)~20h (low power)
Charger: Input AC100~240V, Output DC5V/1500mA
Working temperature: -10℃~50℃; Relative humidity: ≤90%RH
Physical & Accessories
Dimensions: 353×190×90mm; Weight: 0.75kg

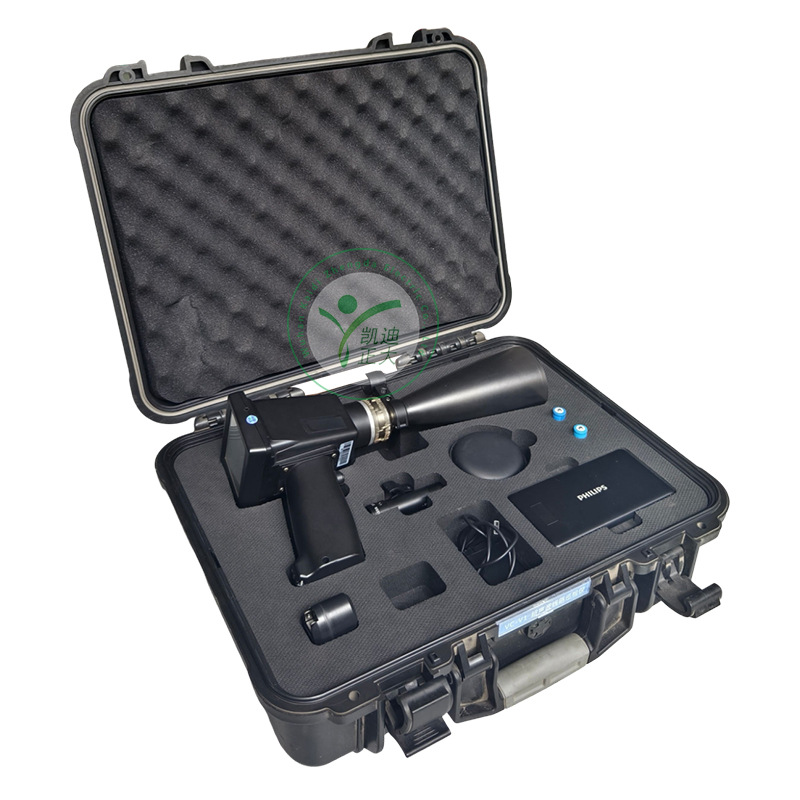

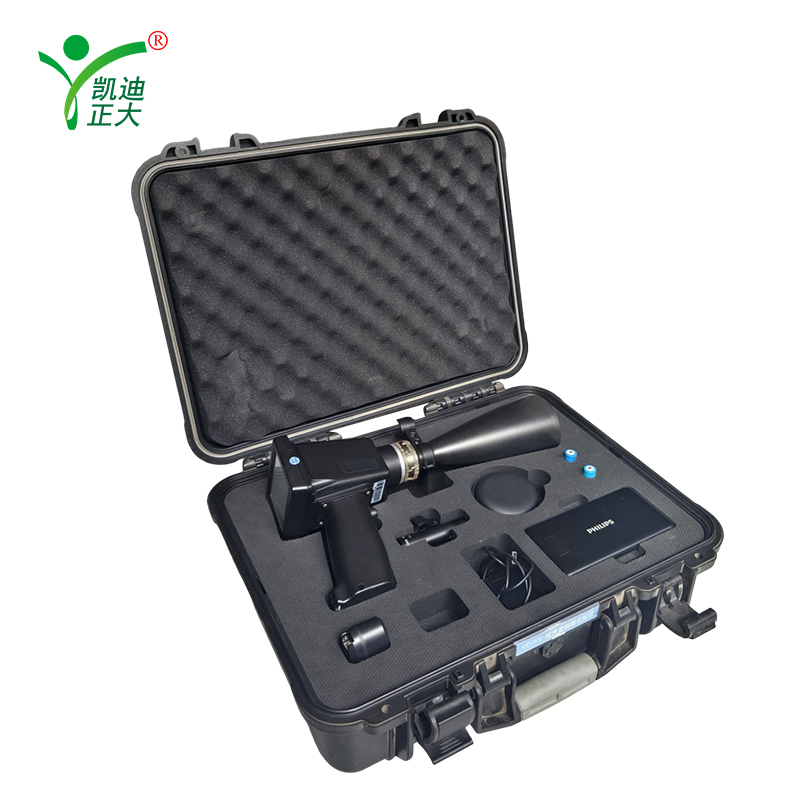

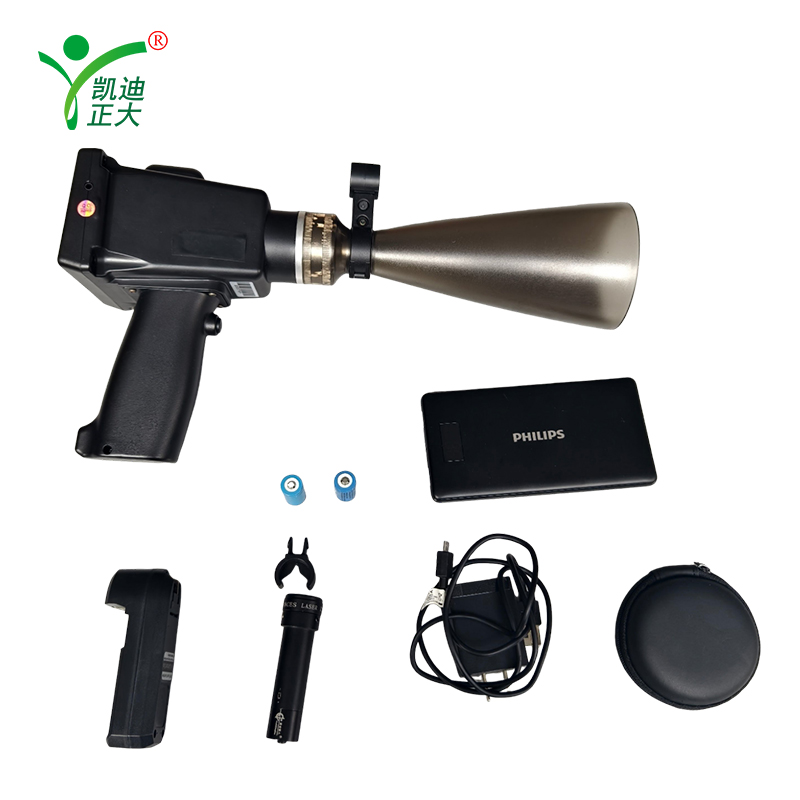

Standard accessories: Laser aimer, 16GB USB drive, noise-canceling headphones, charger, power bank, user manual, warranty card, calibration certificate
