✅ High-Voltage Pulse Technology: Simulates overvoltage conditions up to 35kV with adjustable settings.
✅ Integrated Oscilloscope: Real-time waveform comparison for immediate fault detection.
✅ Rapid Testing: Capable of performing tests at a rate of 3.25 times per second.
✅ Precision Control: Wavefront time control from 0.1 to 0.5 µs with ±0.3/-0.1 µs tolerance.

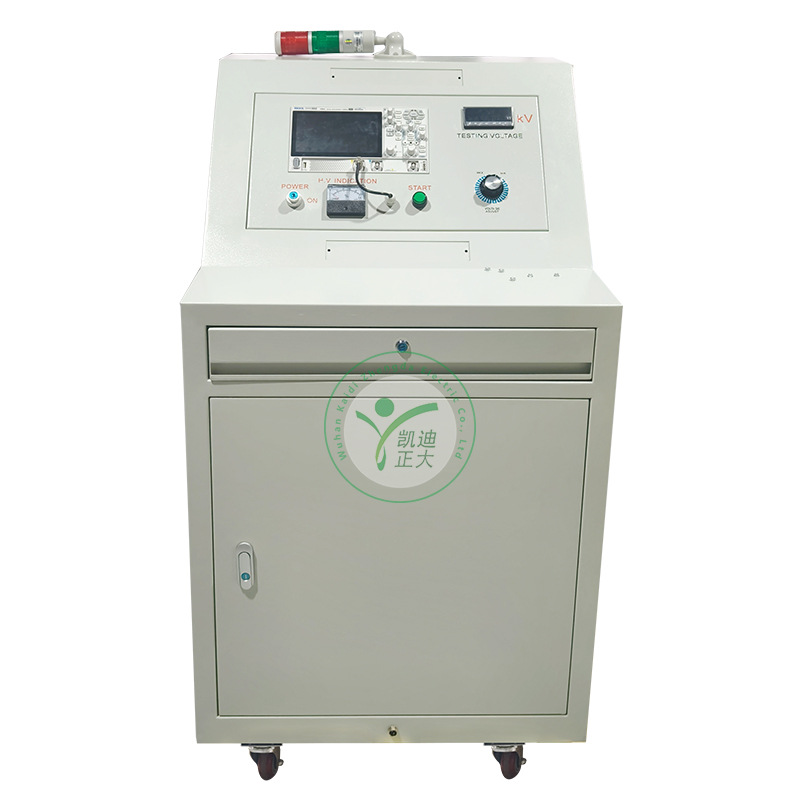

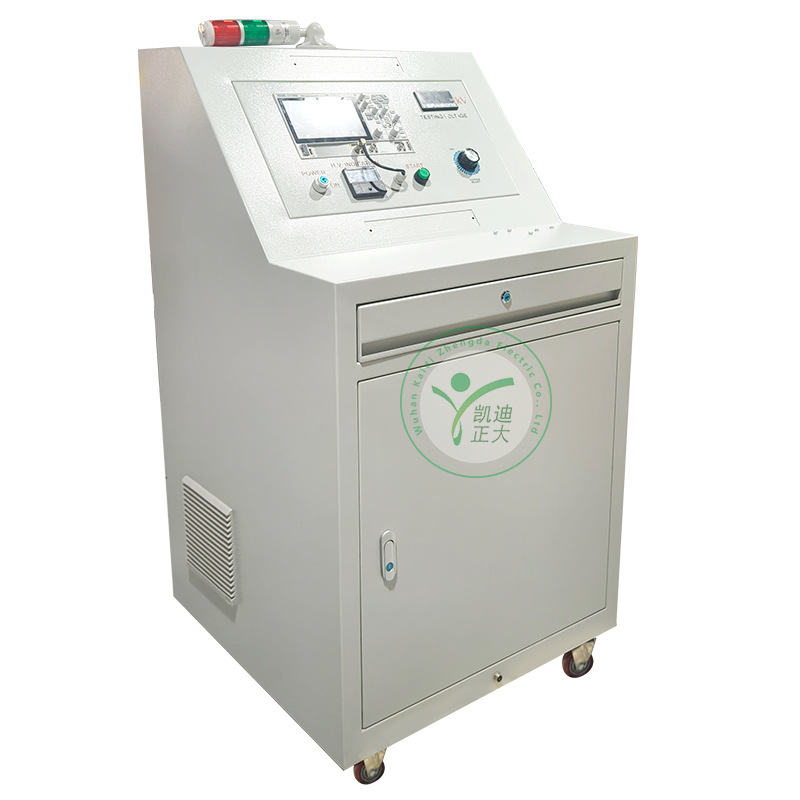

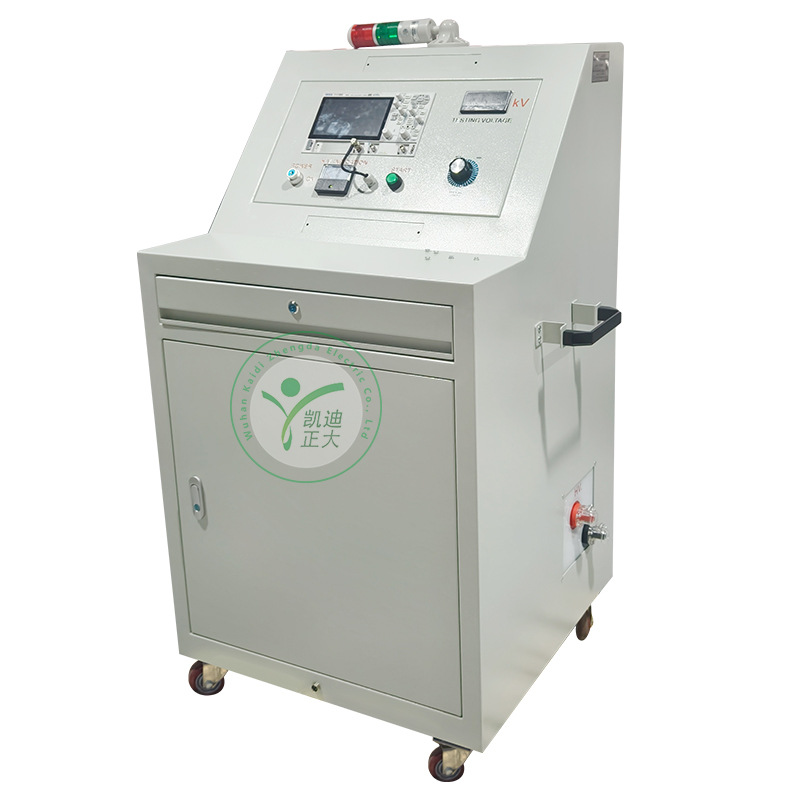

✅ Portable Design: Equipped with casters for easy movement, weighing 100 kg.
✅ Robust Construction: High dielectric strength and insulation resistance ensure reliable operation under challenging conditions.
✅ Versatile Use: Suitable for both motor and transformer winding inspections.
| Parameter | Specification |
|---|---|
| Model | KDYD |
| Input Voltage | 220V±5%, 50Hz/60Hz±2% |
| Test Range | 0～35kV, continuously adjustable, ±5% accuracy |
| Trigger Rate | 3.25 times/sec |
| Wavefront Time | 0.1 - 0.5 µs (standard), (+0.3)/(-0.1) µs tolerance |
| Polarity | Negative |
| Pulse Capacitance | 0.05 μF |
| Maximum Output Energy | 30J |
| Power Consumption | 1000VA |
| Insulation Resistance | ≥20MΩ between power input and chassis |
| Dielectric Strength | Withstands 1500V/50Hz for 1 min without breakdown |
| Operating Temperature | 0°C to 40°C |
| Relative Humidity | ≤80% at 40°C |
| Dimensions | 700×700×1600 mm (with casters) |
| Weight | 100 kg |
| Form Factor | Cabinet style with wheels |
