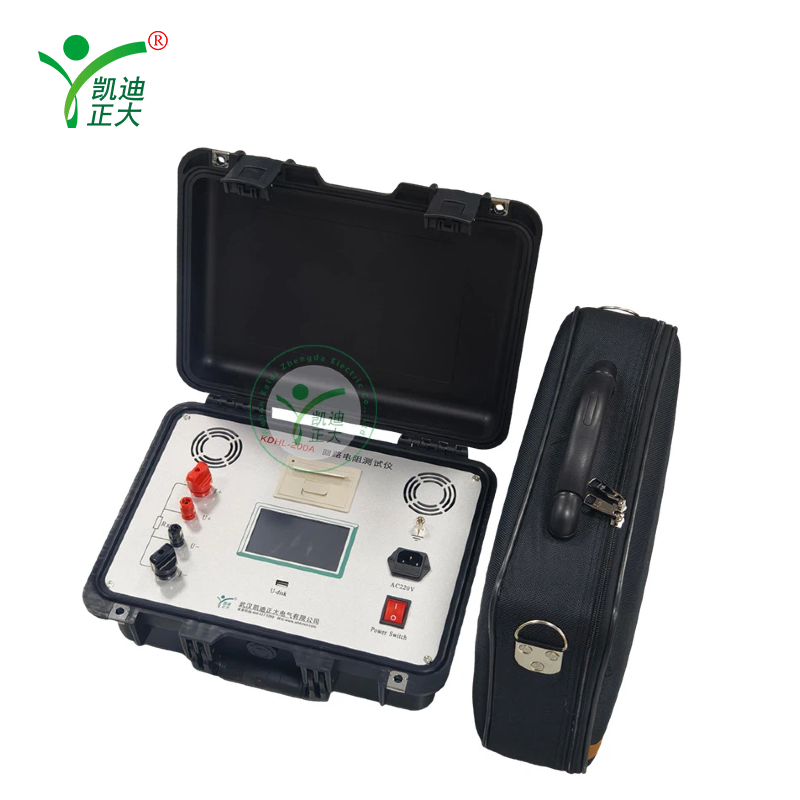

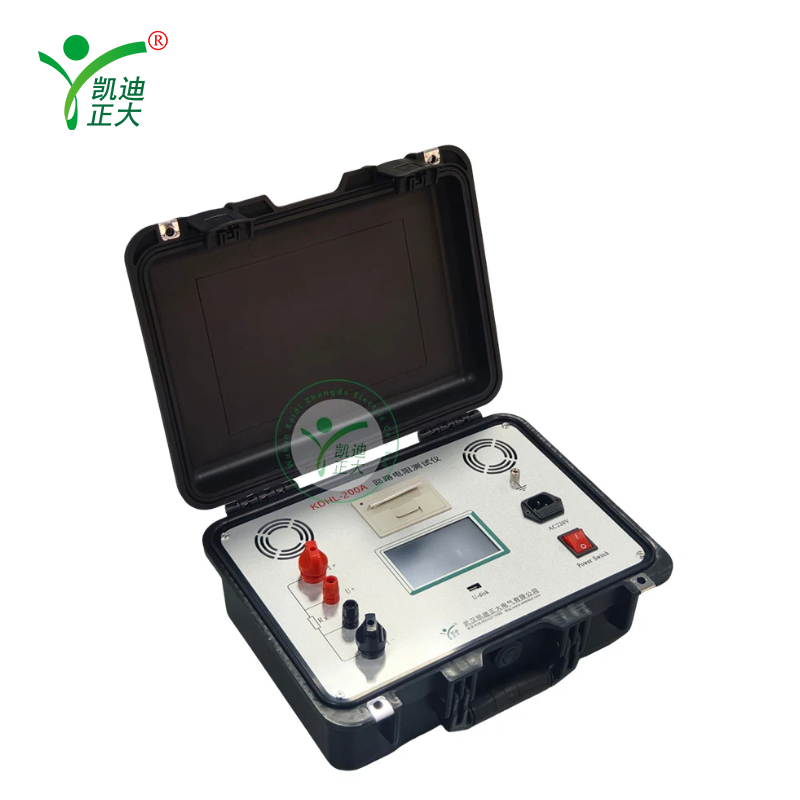

KDHL-200A High-Precision Loop Resistance Tester
KDHL-200A High-Precision Loop Resistance Tester

KDHL-200A High-Precision Loop Resistance Tester

Applications:

The KDHL-200A High-Precision Loop Resistance Tester Complies with DL/T845.4—2004, JJG1052—2009 and other standards. Ideal for high-precision measurement of contact/loop resistance of high/low voltage switches and DC resistance of cables, suitable for large-current and micro-resistance testing scenarios.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

A human-centric tester with high-frequency switching power supply and digital circuit tech. It offers 4 fixed DC current outputs (50A/100A/150A/200A), 0.01μΩ stable resolution, touchscreen control, data storage, printing and U-disk transfer.

Features:

  1. Large continuous current output effectively breaks through contact oxide films, avoiding drawbacks of pulsed power.
  2. High stability: Last digit stabilizes within ±1 word under severe interference, ensuring repeatable readings.
  3. Ultra-high precision: Dual 16-bit Σ-Δ AD sampling and advanced digital signal processing, achieving 0.01μΩ resolution.
  4. Intelligent: Imported high-performance CPU with auto-range switching and over-temperature protection for safety.
  5. Premium quality: Imported key components, temperature compensation circuit, and military-grade connectors for vibration resistance.
  6. Powerful functions: 4 selectable current gears and 4 test time options (fast/10s/30s/60s), outperforming similar instruments.
  7. User-friendly touchscreen control: Easy date/time setting, real-time data storage and instant printing.
  8. U-disk data transfer: Export data via USB for further analysis with upper computer software.
  9. Portable: Compact size and lightweight design for convenient on-site carrying and use.

Parameter:

  1. Measurement range: 0～2999.9μΩ
  2. Resolution: 0~99.99μΩ (0.01μΩ); 100.0~2999.9μΩ (0.1μΩ)
  3. Test current: DC 50A, 100A, 150A, 200A (4 fixed output gears)
  4. Measurement accuracy: ±(0.5% rd + 2d)
  5. Optional working time: Fast, 10s, 30s, 60s
  6. Display: 4-inch touchscreen
  7. Communication method: U-disk data transfer
  8. Power supply: AC 220V±10%, 50Hz
  9. Total power: 600W
  10. Maximum storage records: 200 entries
  11. Operating conditions: Temperature -10℃~40℃; Humidity ≤80%RH
  12. Dimensions (L×W×H): 390mm×300mm×150mm
  13. Weight: 6kg (excluding accessories)
