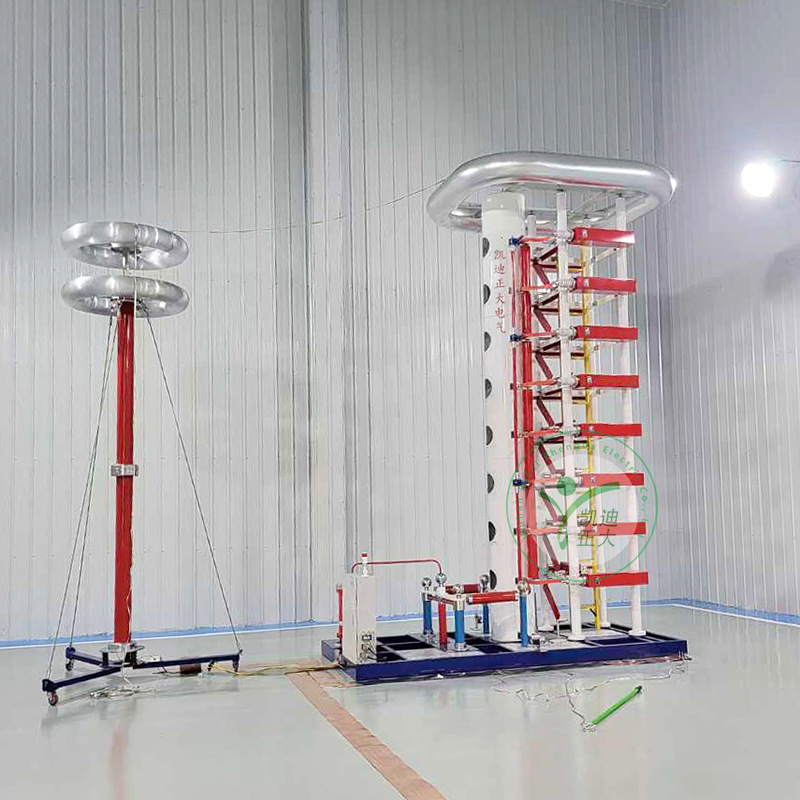

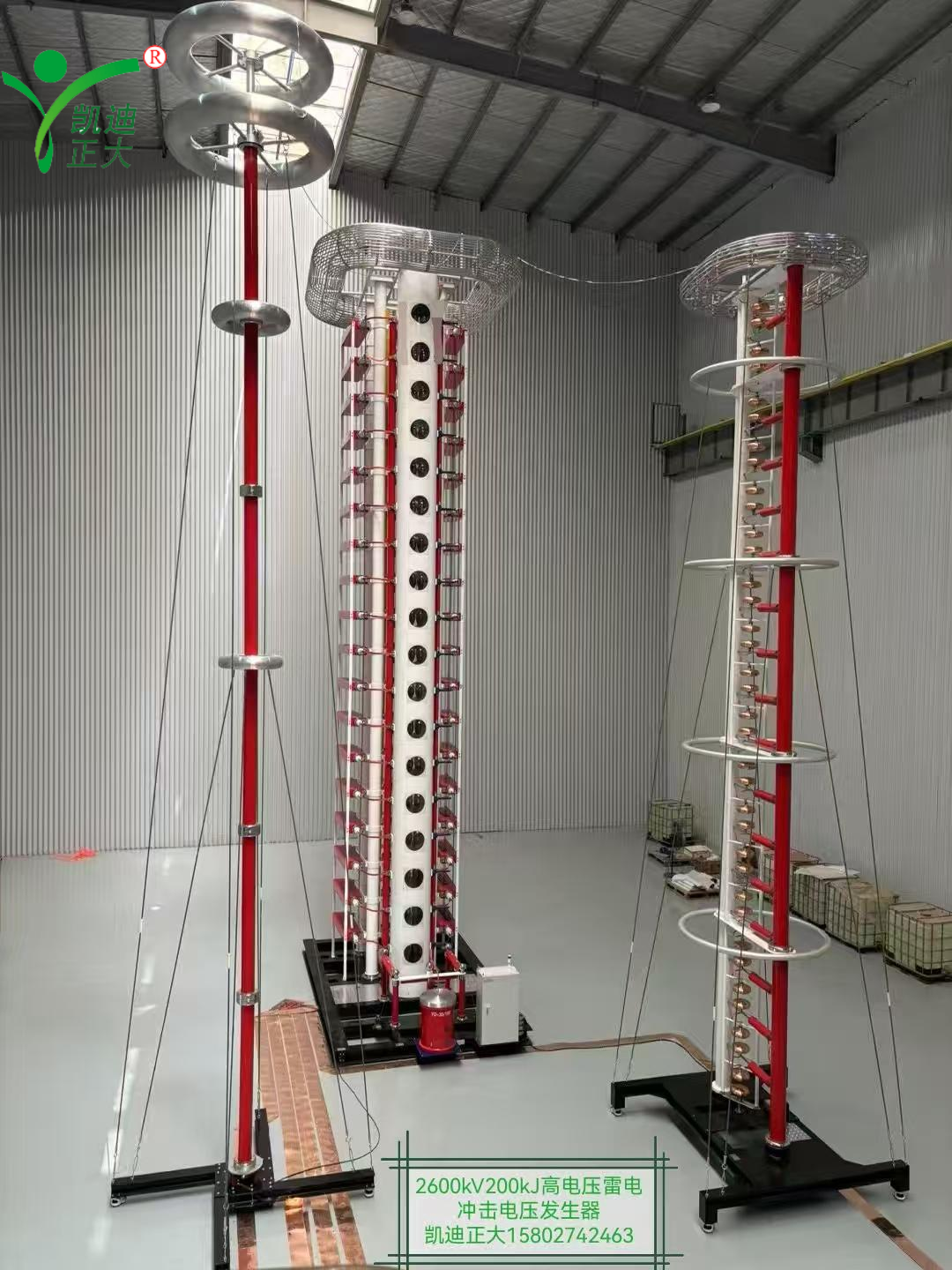

KDCJ-1800kV/180kJ Impulse Voltage Generator | Lightning Impulse Generator
KDCJ-1800kV/180kJ Impulse Voltage Generator | Lightning Impulse Generator

KDCJ-1800kV/180kJ Impulse Voltage Generator | Lightning Impulse Generator

Applications:

  • Designed for standard lightning impulse full-wave and switching impulse voltage tests on insulators, bushings, and instrument transformers in high-voltage laboratories.
  • Operates in indoor environments at altitudes ≤1000m, with temperatures from -15°C to +50°C and relative humidity ≤90%.
  • Suitable for R&D, quality inspection, and type testing of high-voltage electrical equipment in power systems and manufacturing industries.
  • Compliant with national and international standards for insulation performance verification.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDCJ-1800kV/180kJ is a 9-stage impulse generator (180kJ total energy) for standard lightning (1.2/50μs) and switching (250/2500μs) impulse tests on insulators, bushings, and transformers. It delivers >85% efficiency for lightning impulses, precise control (15%-100%Un ignition range), and continuous operation below 70% rated voltage. Compliant with GB/IEC standards, it ensures reliable, repeatable results for high-voltage insulation verification.

Features:

  • High Voltage & Energy Capacity: Nominal voltage of 1800kV and total energy of 180kJ, suitable for large-scale high-voltage equipment testing.
  • Compliant Waveforms: Generates standard lightning impulse full-wave (1.2/50μs) and switching impulse (250/2500μs) waveforms, with parameters and deviations meeting GB311 and GB16927 standards.
  • High Efficiency: Achieves >85% efficiency for lightning impulses (load) and >70% for switching impulses (load), optimizing energy usage.
  • Precise Control: Ignition range of 15%-100%Un and synchronization step discharge control rate <2% for accurate and repeatable tests.
  • Continuous Operation: Can run continuously below 70% rated voltage, and after 120s charge-discharge cycles above 70% rated voltage.
  • Reliable Construction: 9-stage design with 18 single-stage pulse capacitors (2F/100kV), ensuring stable and durable performance.
  • Standard Compliance: Meets GB/T 3111.1, GB/T 16927.1, GB/T 16927.2, GB/T 16896.1, GB/T 7449, JB/T 7616, DL/T 557, and ZBF 24001 standards.

Parameter:

  • Nominal Voltage: 1800kV
  • Rated Stage Voltage: 200kV
  • Rated Charging Voltage: 200kV
  • Nominal Energy: 180kJ
  • Impulse Capacitance: 0.111F (18 single-stage pulse capacitors, 2F/100kV each)
  • Number of Stages: 9
  • Stage Capacitance: 1.0F
  • Stage Energy: 20.0kJ
  • Impulse Voltage Waveforms: Standard lightning impulse full-wave 1.2/50μs (amplitude 3%, peak oscillation ≤5% of amplitude); standard switching impulse 250/2500μs; both waveforms and deviations meet GB311 and GB16927 standards
  • Minimum Output Voltage: >10%Un
  • Synchronization Range: ≥15%
  • Synchronization Step Discharge Control Rate: <2%
  • Ignition Range: 15%-100%Un
  • Generator Efficiency: Lightning impulse (load) >85%; switching impulse (load) >70%
  • Operating Duration: Continuous operation below 70% rated voltage; continuous operation after 120s charge-discharge cycle above 70% rated voltage
  • General Operating Conditions: Altitude ≤1000m; ambient temperature -15°C~+50°C; relative humidity 90%; maximum daily temperature difference 25°C; indoor environment; no conductive dust; no fire or explosion hazards; seismic resistance; no corrosive gases; power supply waveform is nearly sinusoidal with distortion <5%
  • Dimensions: 280cm (L) × 220cm (W) × 200cm (H), Volume: 1,232,000cm³, Weight: 500,000g
