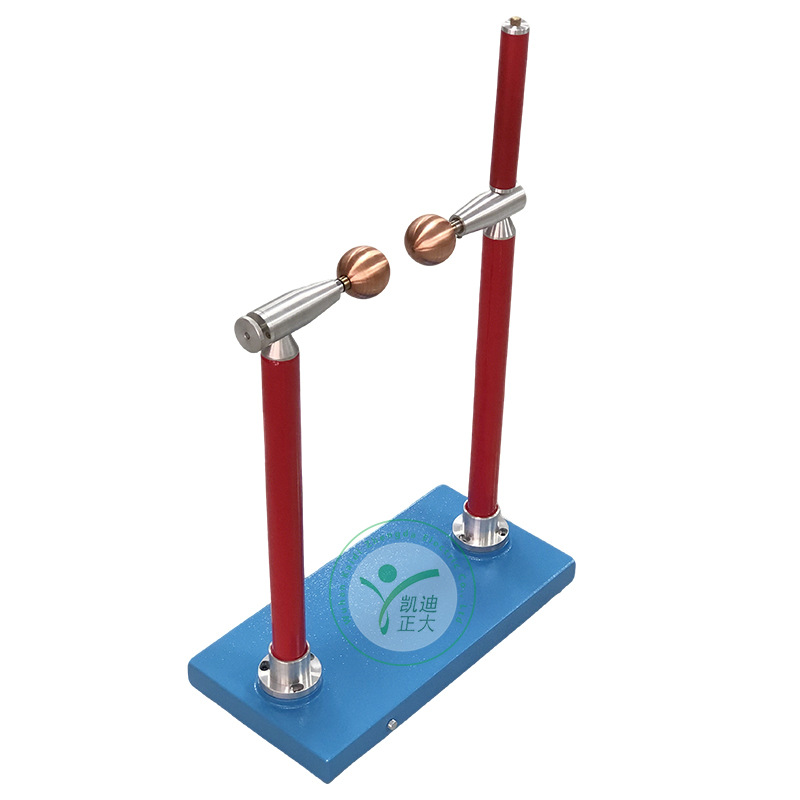

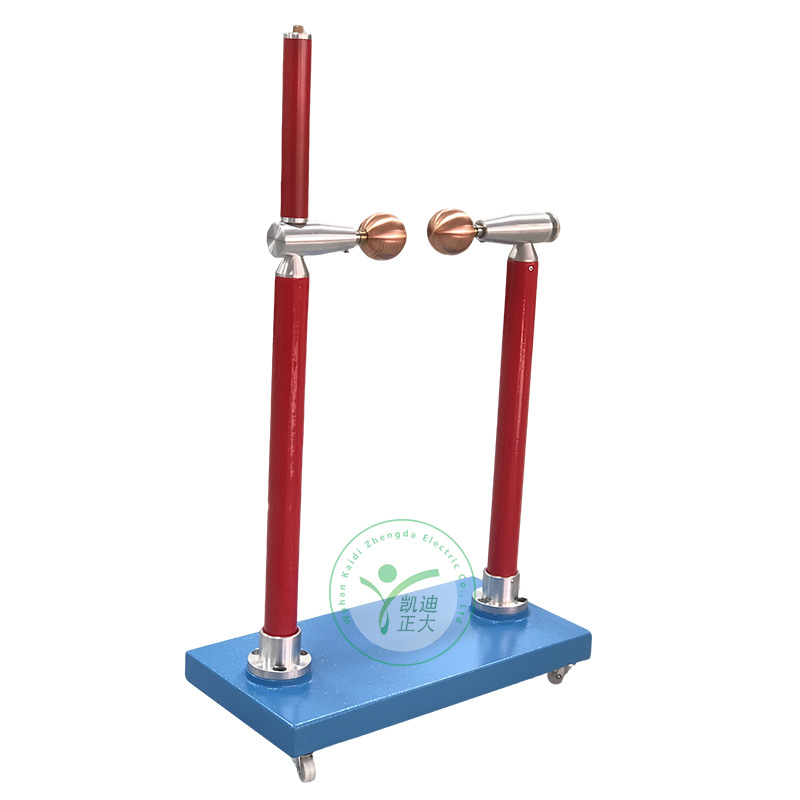

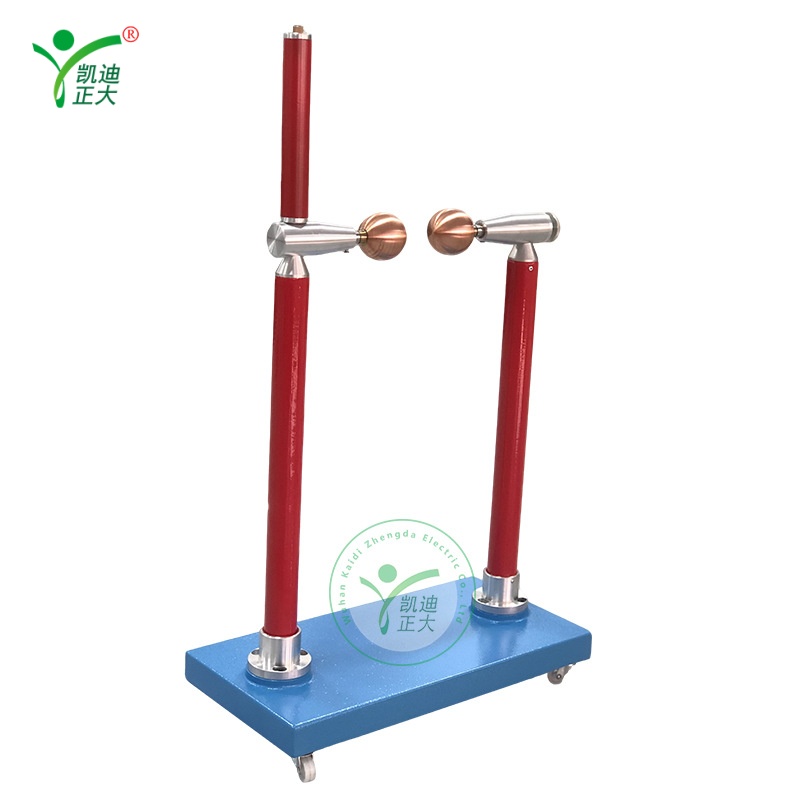

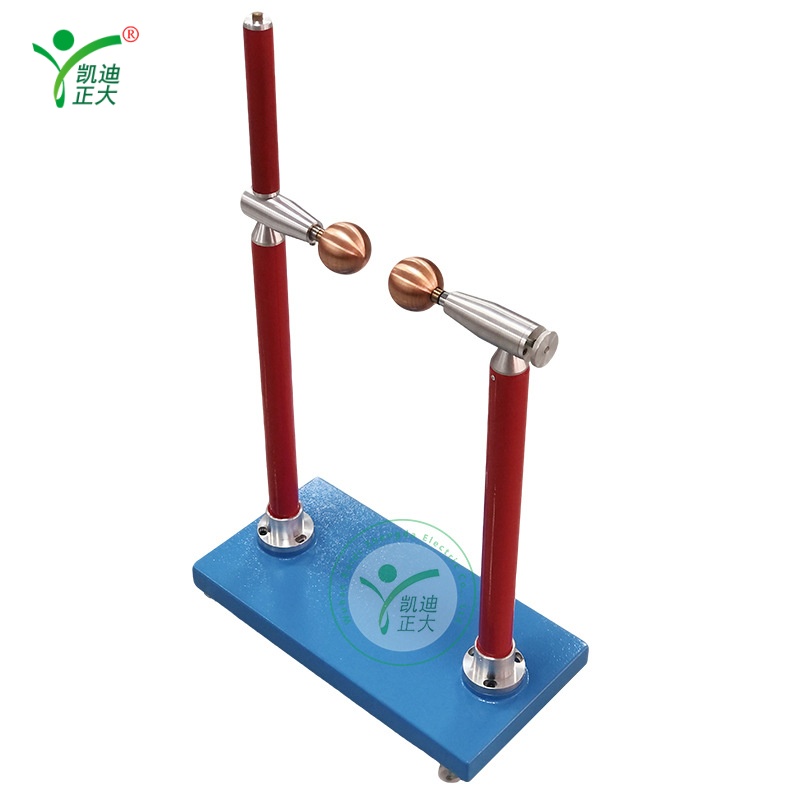

The KDZD is a horizontal-type sphere gap discharger, a core device for high-voltage electrical tests. It consists of a movable base, insulating support tubes, copper spheres, an adjusting scale, and a water resistor. With a built-in 1Ω per volt protection resistor, it is connected in parallel with test samples to measure spark discharge voltages and provide overvoltage protection. It supports voltage correction for atmospheric conditions (temperature and pressure) using the formula V'2 = S×V2, ensuring accurate results across diverse environments. Available in multiple voltage ratings (50kV to 1500kV), it is a portable, reliable tool for high-voltage labs and power system testing.

• Simple structure with movable base, insulating tubes, and copper spheres for easy setup.
• Built-in 1Ω per volt protection resistor ensures safe and reliable operation.
• Supports atmospheric condition correction (temperature/pressure) for accurate voltage measurements.
• Compact and lightweight design for easy portability to field test sites.
• Multiple sphere diameters (φ50 to φ650) and voltage ratings (50kV to 1500kV) available.
• Complies with GB311.6-83 high-voltage test safety standards for secure operation.

• Withstand Test Voltage Range: 0~1500kV
• Voltage Ratings: 50kV, 100kV, 150kV, 200kV, 300kV, 400kV, 500kV, 600kV, 750kV, 1000kV, 1500kV
• Sphere Diameter Options: φ50, φ100, φ200, φ250, φ300, φ350, φ500, φ650
• Structure Components: Movable base, insulating support tubes, copper spheres, adjusting scale, fine-tuning knob, water resistor
• Atmospheric Correction Formula: V'2 = S×V2, where S = 0.3869P/(273-t) (P: pressure in mmHg, t: temperature in °C)
• Dimensions: 450mm × 450mm × 1200mm (L×W×H)
• Net Weight: 12kg
• Gross Weight: 12000g (with packaging)
• Compliance Standard: GB311.6-83 (China High-Voltage Test Technology Standard)
