Overview

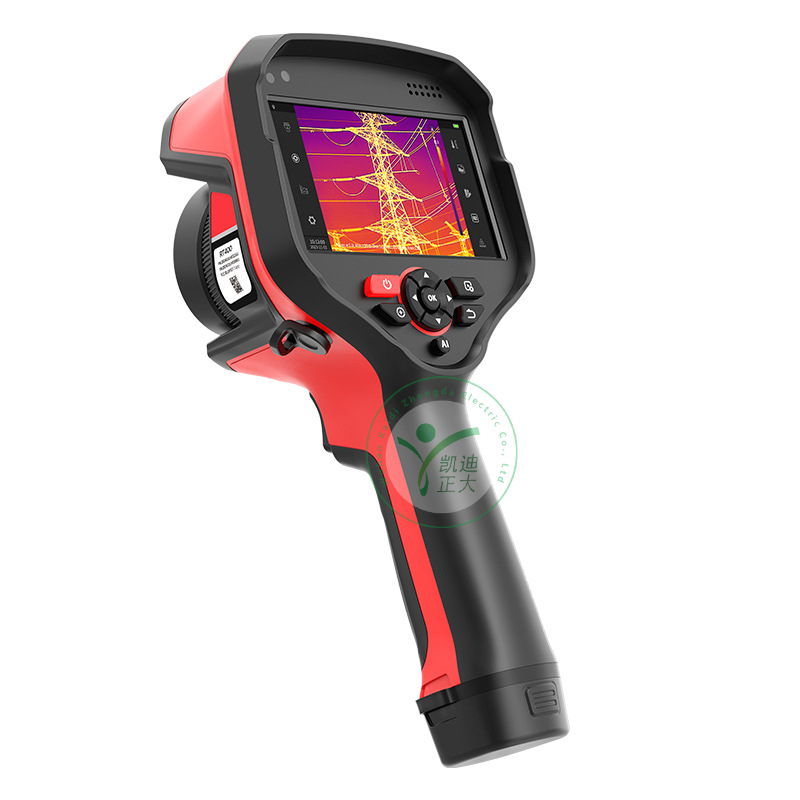

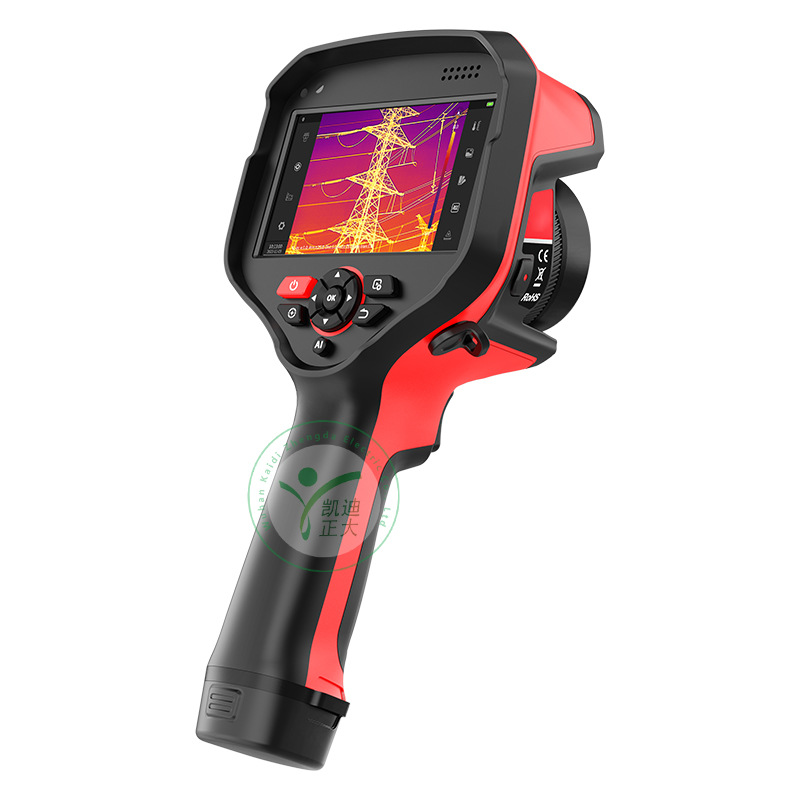

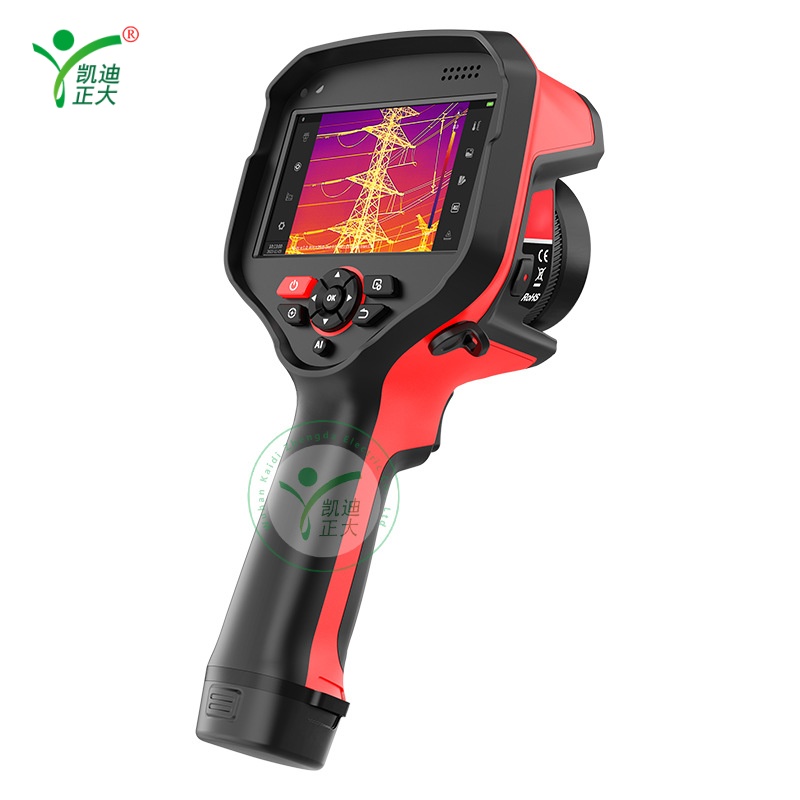

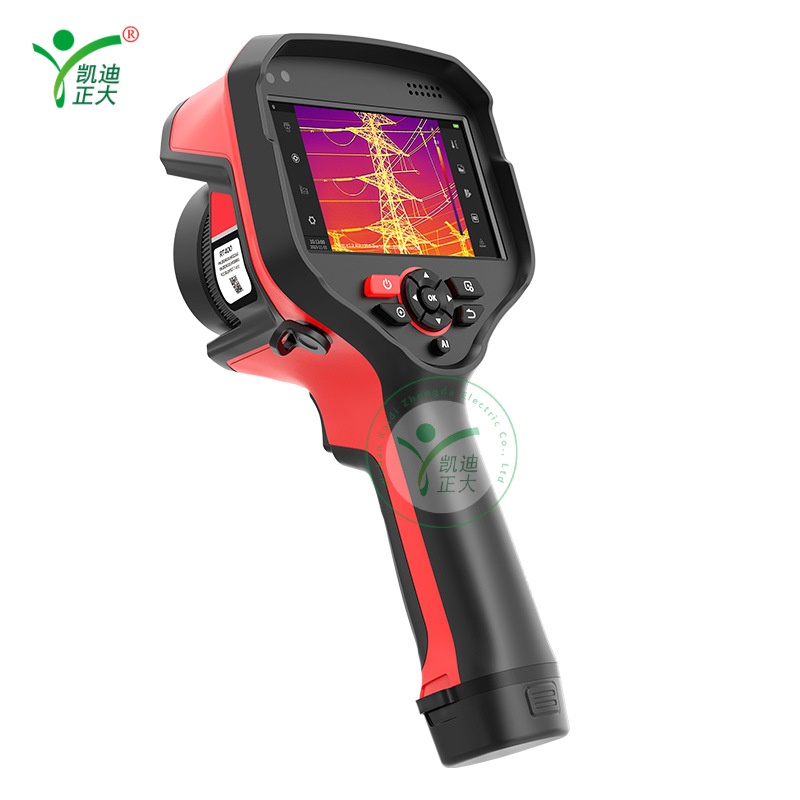

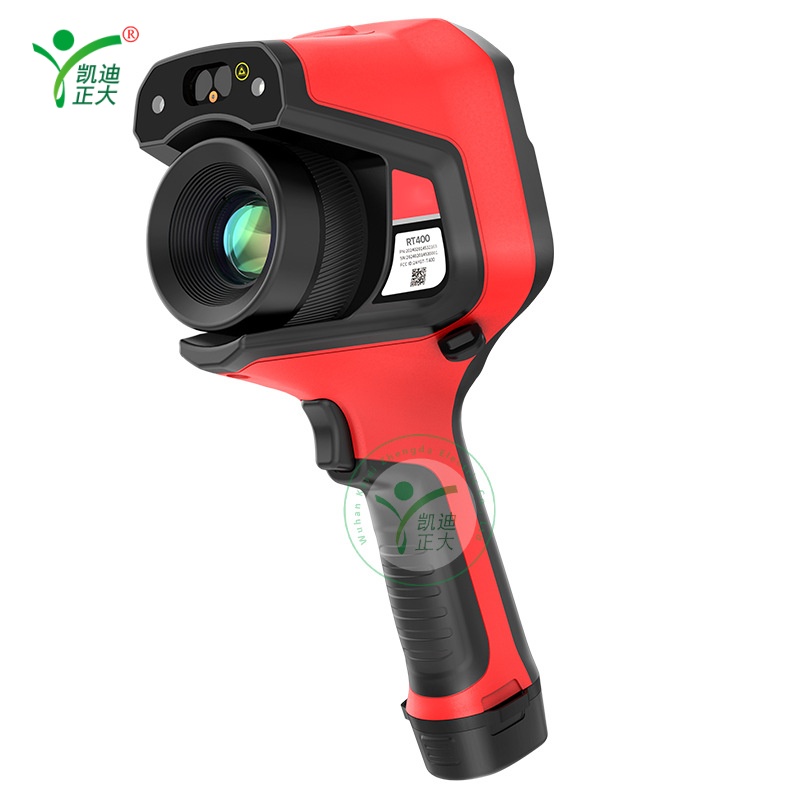

The KDRT418E handheld infrared thermal imager is a high-resolution, multi focus thermal imaging thermometer. Built in high-performance 12 μ m 480 × 360 infrared thermal imaging core, paired with a 1300W visible light camera,<35mK thermal sensitivity, precise multiple focusing methods, easily presenting high-definition infrared thermal images. Combined with rich analysis and data interconnection, it is a good assistant for high demand engineers in fields such as power, automation, building inspection, pipeline HVAC, etc.

High performance thermal imaging core
Perform well in critical tasks, with at most one machine
High resolution, high frame rate, high precision, wide range
12 μ m high-performance 480 × 360 infrared thermal imaging core, combined with high-definition multiple lens combinations and up to 15x digital zoom, suitable for various complex scenarios.

Native 170000 stunning infrared heatmap+1300W visible light
Able to distinguish a temperature difference of 0.035, coupled with a high frame rate of 25Hz, it can still obtain delicate and smooth image and video in a mobile working environment, without missing any details; Soil 2 temperature measurement accuracy provides a wider temperature measurement range while ensuring the accuracy of temperature data.

USB plug and play analysis, supporting real-time transmission and analysis of full frame temperature information
Support cloud service function, in machine support for scheduled photography, PC software support for real-time and offline analysis, images and videos captured can be uploaded to the cloud, and can be downloaded, opened, and analyzed on multiple clients; One click output report, further assisting professional scientific research and equipment monitoring, temperature measurement and evaluation applications.



Thermal imaging parameters
Detector type: uncooled vanadium oxide
Detector resolution: 480 * 360
Super resolution: 960 × 720
Infrared response band: 7.5-14 μ m
Pixel size: 12 μ m
Thermal sensitivity: ＜ 35mK
IFOV (spatial resolution): standard lens: 0.92mrad; Ultra long focal length lens: 0.27mrad; Telephoto lens: 0.52mrad; Wide angle lens: 1.71mrad; Macro lens: one pixel corresponds to 60 μ m; Ultra macro lens: one pixel corresponds to 30 μ m
Frame rate: 25Hz
Focal length: Standard lens: 17.7mm; optional lens (ultra long focus lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm; macro lens (0.2 ×): 13mm; ultra macro lens (0.4 ×): 14.8mm)
Field of view: Standard lens: 25 °× 20 °; Optional lenses (telephoto lens: 7 °× 5.6 °; telephoto lens: 14 °× 11.2 °; wide-angle lens: 45 °× 36 °)
Focusing modes: manual focusing, electric fine-tuning, one key center focusing, automatic center focusing, one touch automatic focusing, laser assisted focusing
Temperature measurement range: -20 ℃~+150 ℃, 100 ℃~650 ℃; Optional: 400 ℃~1500 ℃
Temperature measurement accuracy: ± 2 ℃ or ± 2%



Complete machine function
Temperature measurement mode: center point/hot/cold spot tracking and temperature display
Custom temperature measurement analysis: supports up to 15 movable points, lines, boxes, circles, and polygons; Supports up to 5 preset modes
Temperature measurement units: Celsius, Fahrenheit, Kelvin
Emissivity setting: 0.01-1.00, step size 0.01
Environmental temperature setting: -10~50 ℃, step size 1 ℃
Electronic zoom: 1 x, 2 x, 4 x, 8 x, 10 x, 15 x
Image modes: infrared, dual light fusion, visible light, picture in picture
Color palette: 19 types
Temperature alarm: Yes
Alarm method: Image alarm
Temperature and width stretching: manual/automatic temperature range
Laser pointer: available
Visible light camera: 13 million pixels
Radiation infrared video recording: supports compressed full radiation video recording (. irv), with a maximum support for 25Hz recording
Non radiative infrared or visible light video recording: standard MP4 video recording
Radiation infrared video stream transmission: Connect to PC software via Type-C/WLAN to transmit real-time radiation infrared video stream
Non radiative infrared video streaming: RTSP H.264
Video transmission: UVC, without temperature data
Voice control: voice assistant, fast command recognition
Language: Simplified Chinese
Display screen size: 5-inch touch screen (1280x720)
Image Naming: Automatic/Manual Input Naming, Scan QR Code Naming
Storage medium: Standard 64GB Micro SD, supports SD, SDHC, and SDMC, with a maximum support of 2TB
Battery: 10000mAh lithium battery, can be replaced on site, supports fast charging
Power interface: USB Type-C
Connection methods: WIFI, Bluetooth Type-C、4G*、5G*
Charging time: 1.5 hours to charge up to 90% of battery capacity; Can be filled in 2 hours
Working hours: Continuous working time ≥ 6 hours (actual usage time depends on the current situation)
Environment and usage conditions
Cloud service: capable of transmitting shooting data to cloud platforms for sharing and secondary analysis across multiple clients; Support automatic time synchronization.
Voice control: voice assistant, fast command recognition
