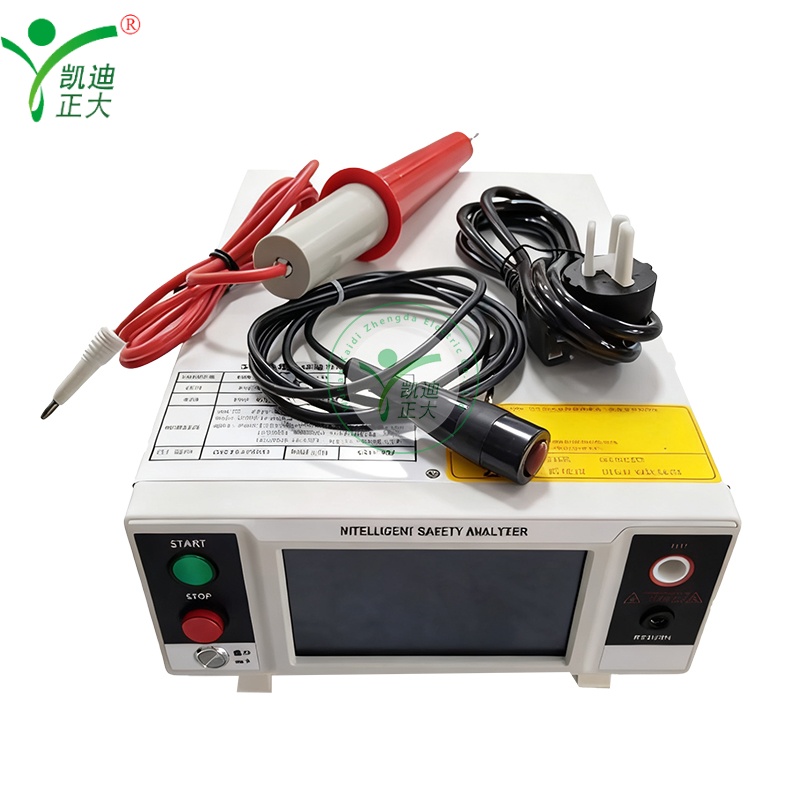

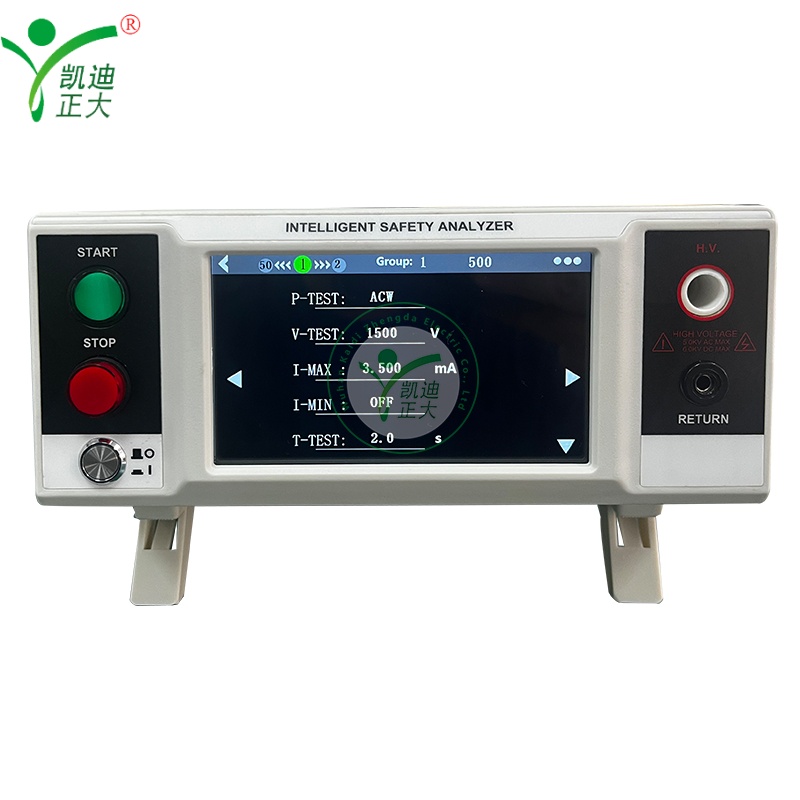

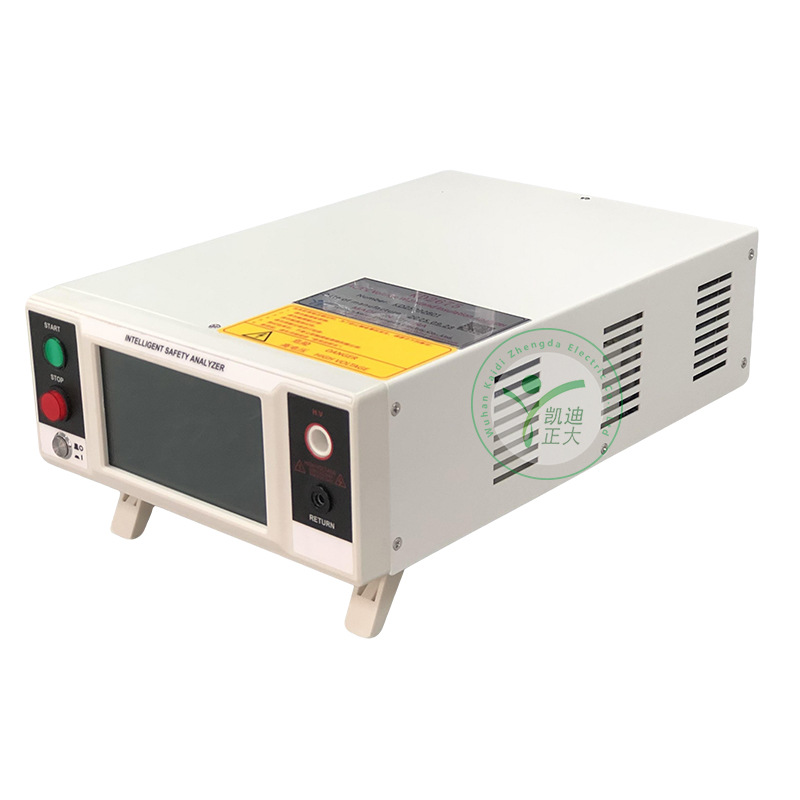

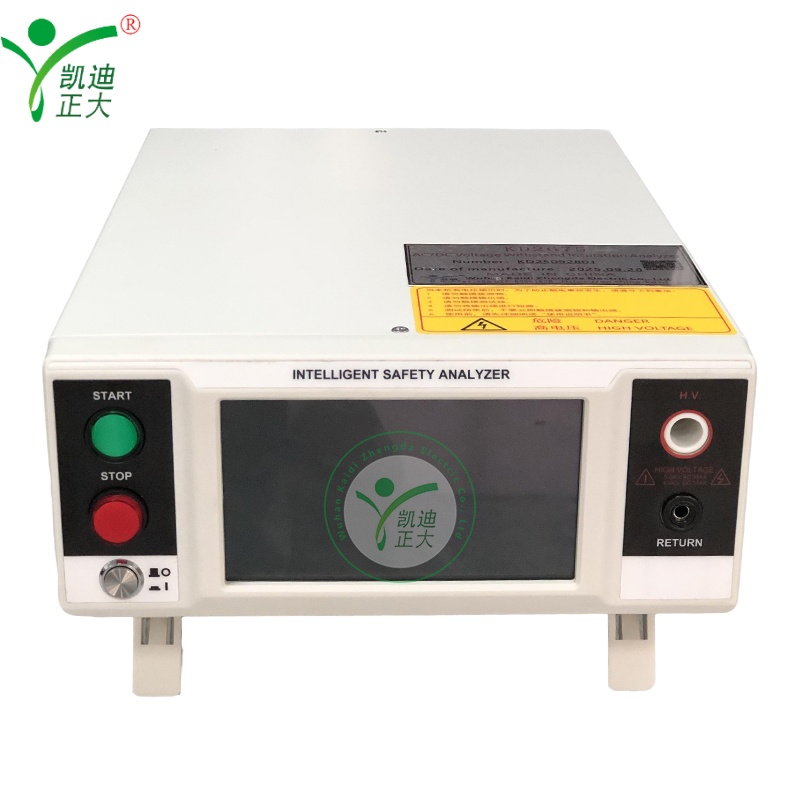

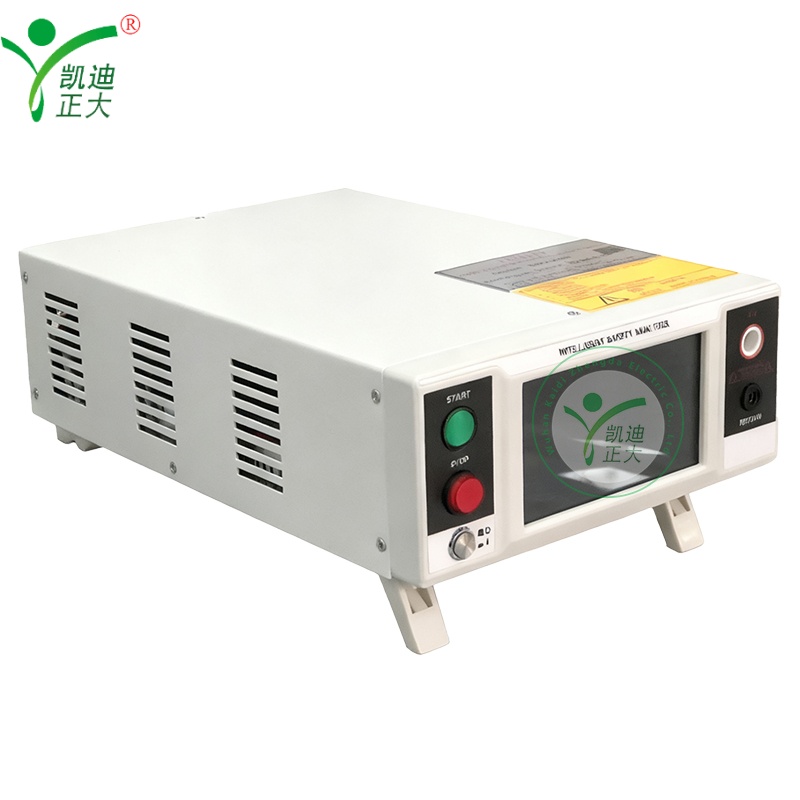

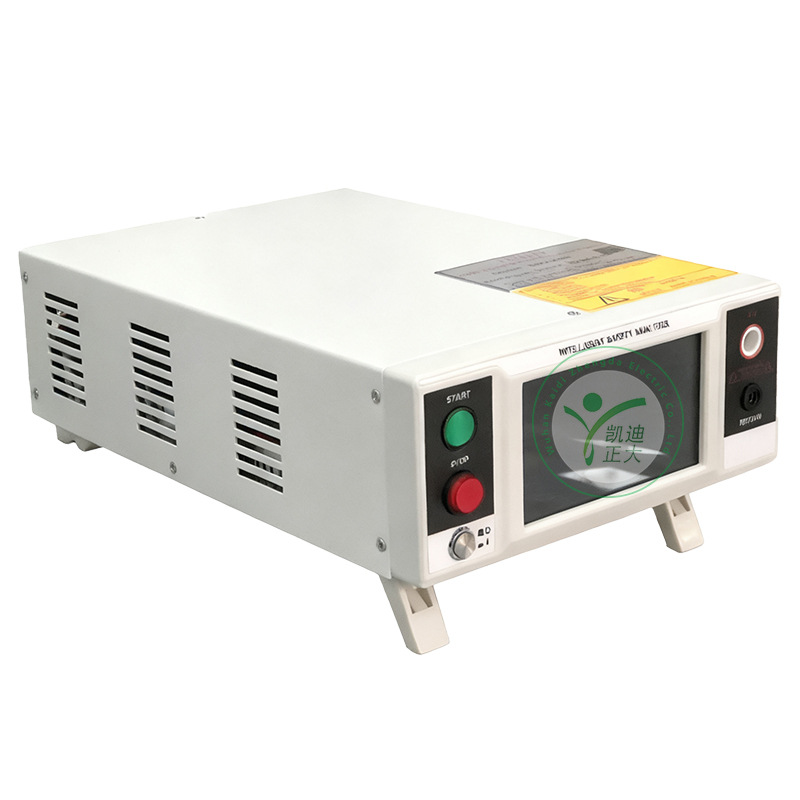

KD2675 AC/DC Withstand Voltage Insulation Tester, multi-functional safety analyzer
KD2675 AC/DC Withstand Voltage Insulation Tester, multi-functional safety analyzer

KD2675 AC/DC Withstand Voltage Insulation Tester, multi-functional safety analyzer

Applications:

Applied in electrical product R&D, production, quality assurance and maintenance, for AC/DC withstand voltage and insulation resistance tests of electrical equipment, complying with IEC60601/GB9706.1, used in factories, labs and test stations with no flammable/corrosive media.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KD2675-series is a compact intelligent AC/DC withstand voltage insulation tester with 2U/half-width size, integrating arc/open circuit detection. It supports 100 test groups, multiple interfaces, and is light (5.3kg) for indoor high-voltage safety testing of electrical products.

Features:

  • High-frequency power topology for stable output and lightweight design
  • 50GΩ ultra-wide insulation resistance measurement range
  • Built-in fast/slow rise test function meeting international standards
  • World-unique waveform recognition arc detection with strong anti-interference
  • μS-level electric shock protection with built-in leakage protection
  • Ultra-fast test with step delay less than 50mS
  • Multi-level user permission with built-in password function
  • Standard RS232/PLC/HANDLER interfaces for easy connection




Parameter:

  • AC Withstand Voltage
    • Output range: 50~5000V AC, resolution 1V, error ±(2%×set+5V)
    • Max output capacity: 60VA/100VA (by model), frequency 50/60Hz±0.1Hz
    • Max current measurement: 12mA/20mA (by model), sine wave distortion <2%
  • DC Withstand Voltage
    • Output range: 50~6000V DC, resolution 1V, error ±(2%×set+5V)
    • Max current measurement: 5mA/7.5mA/10mA (by model), output ripple <5%
    • Automatic discharge function for post-test safety
  • Insulation Resistance
    • Test range: 0.100MΩ~50GΩ, test voltage 50~6000V DC
    • Multi-range resolution: 0.001MΩ~0.01GΩ, graded measurement accuracy
  • Test Control
    • 100 built-in test groups, 50 steps per group
    • Slow rise/fall time: 0~999.9s, test duration: 0.5~999.9s
    • Arc detection level: 0~9 (0 off, 9 most sensitive)
  • System Specifications
    • Input power: AC 220V±10%, 50Hz±5%, 10A
    • Power consumption: <20W (idle), <80W (full load)
    • Dimensions: 215(W)×88(H)×315(D) mm, weight: approx. 5.3kg
    • Working environment: 0~40℃, 20~75%RH; storage: -10~50℃, 0~90%RH
    • Interfaces: RS232/RS485, PLC/HANDLER, remote control I/O
    • Protection: Overcurrent, short circuit, electric shock, ground fault protection
