**KDYDJ-6kVA/100kV Series Resonant Power Frequency Withstand Voltage Test Set: A Comprehensive Introduction**

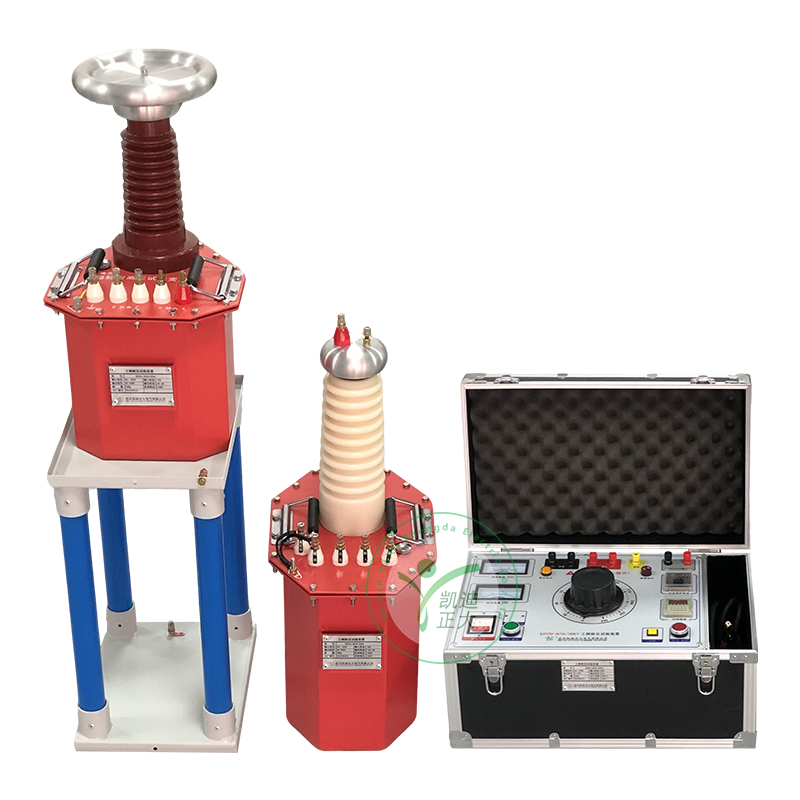

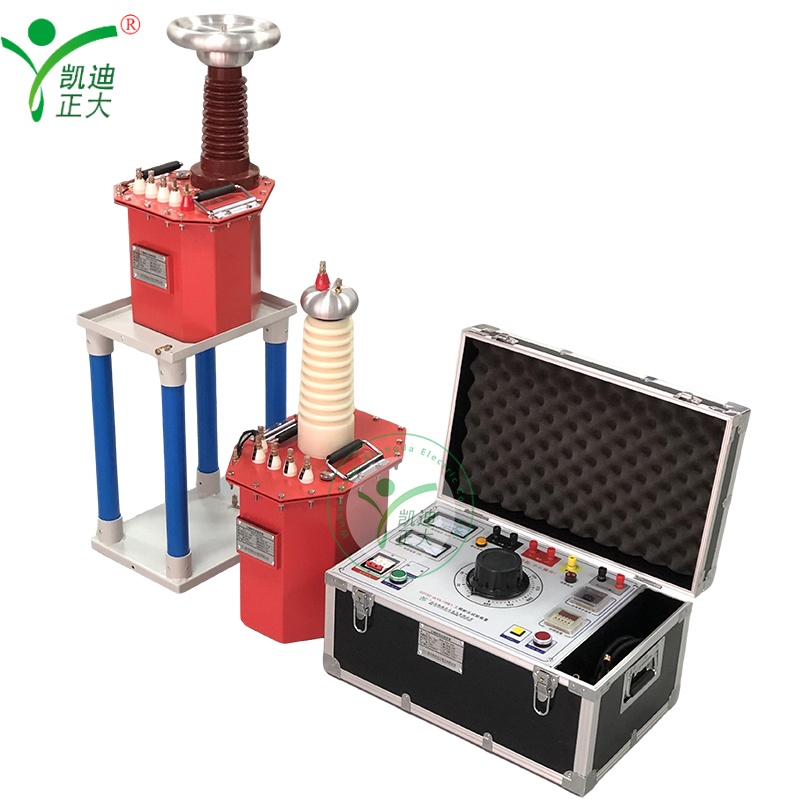

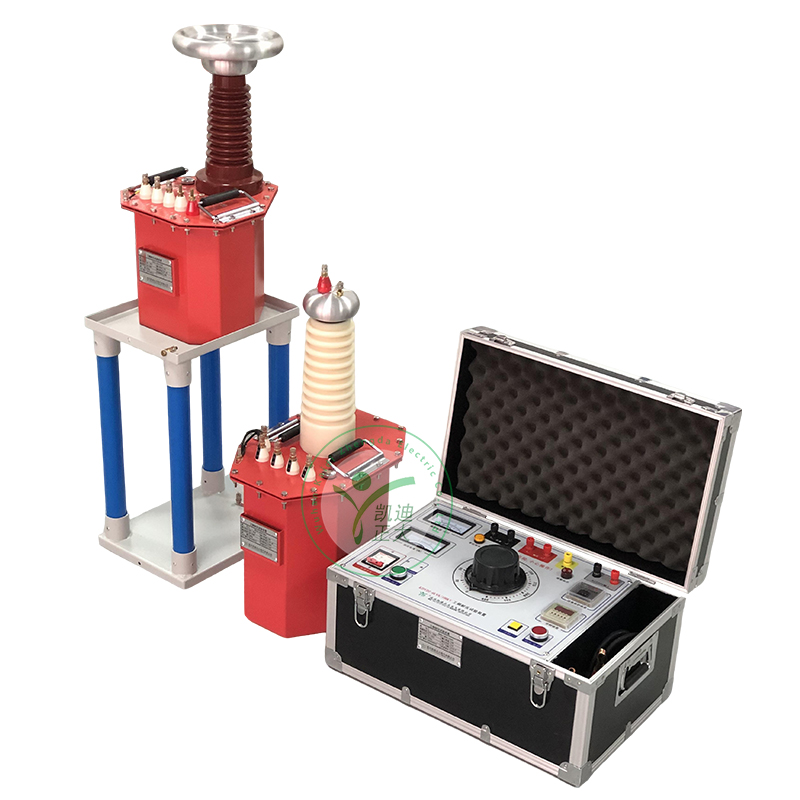

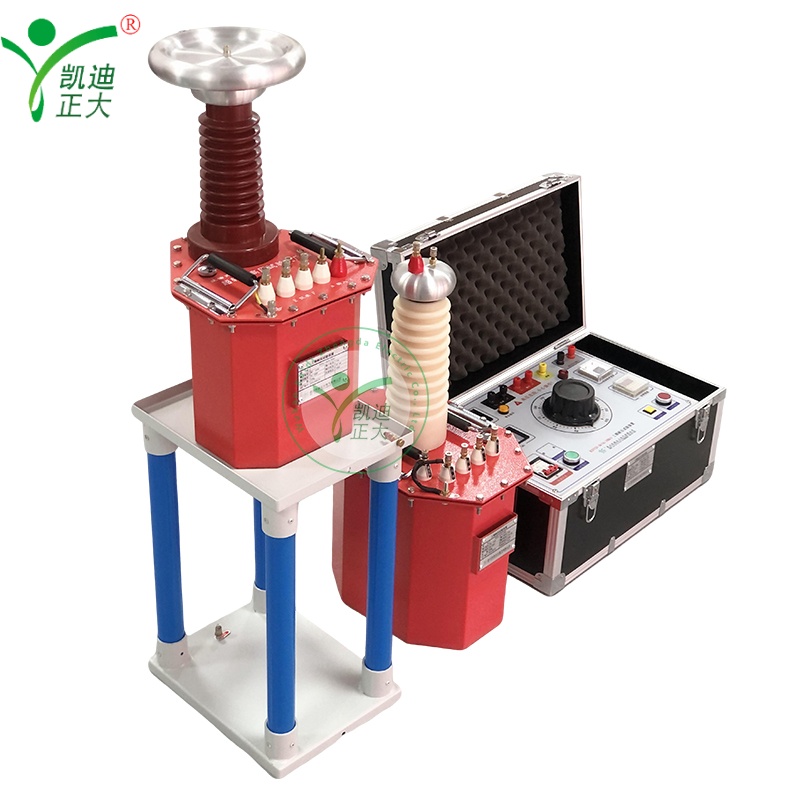

The **KDYDJ-6kVA/100kV Series Resonant Power Frequency Withstand Voltage Test Set** is a complete, integrated high-voltage testing solution specifically designed for the dielectric strength evaluation of various electrical components and insulation materials. This lightweight and portable system consists of a dedicated control box and an oil-immersed test transformer, making it an ideal choice for both laboratory testing and demanding on-site applications in power generation stations, power distribution systems, and research institutions.
**System Overview and Key Features**
This test set stands out for its excellent performance, multifunctionality, compact size, light weight, reliable operation, attractive design, and convenient operation and maintenance.
* **Compact & User-Friendly Control Box:** The control box (weighing 18 kg) serves as the command center. With a capacity of 6 kVA, it accepts standard 220V input power and precisely regulates the output to 0–250V at 20A, providing smooth and stable voltage control for the test transformer. Its intuitive interface ensures easy setup and safe operation.

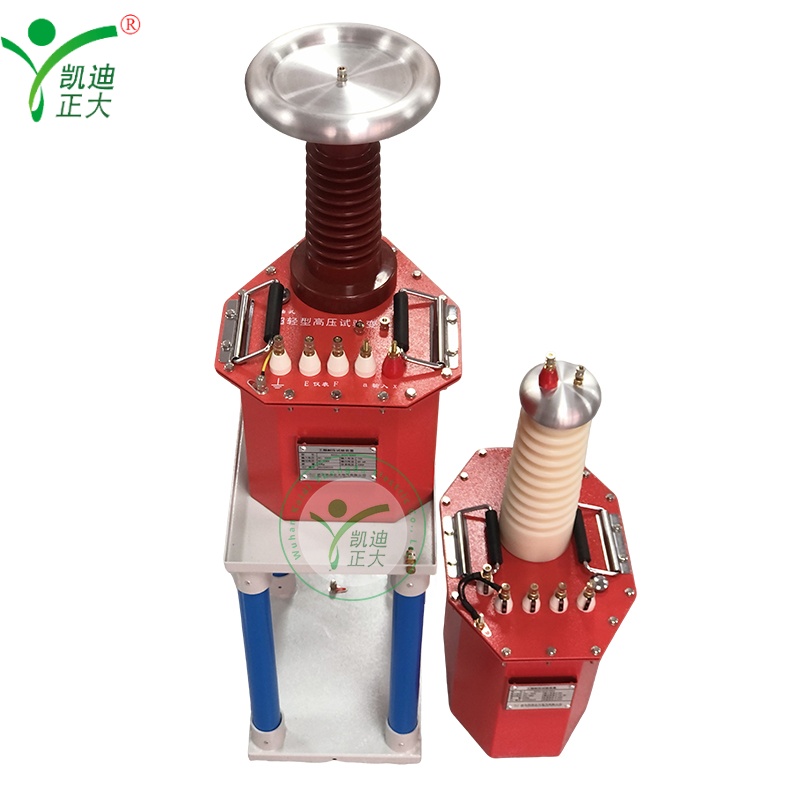

* **High-Performance Oil-Immersed Test Transformer:** The core component, also rated at 6 kVA, features a single-phase core-type design constructed from premium cold-rolled grain-oriented silicon steel sheets, ensuring high magnetic efficiency and low losses. The robust structure uses steel clamps for secure fixation.
* **Advanced Winding Design:** The high-voltage winding employs a cylindrical multi-layer "pagoda" structure made with high-dielectric-strength polyester enameled wire and superior insulation materials, delivering exceptional voltage endurance. The low-voltage winding is positioned externally for better heat dissipation and safety. An independent 100V metering winding facilitates accurate high-voltage measurement.
* **Optimized for Field Use:** Housed in an octagonal shell, the transformer weighs only 52 kg. Units above 10 kVA are equipped with movable iron wheels, but even this model's light weight and compact form factor ensure exceptional portability and ease of movement on job sites.
**Technical Specifications**
* **Transformer Capacity:** 6 kVA
* **Low-Voltage Side:** 200 V, 25 A
* **High-Voltage (AC Output) Side:** 50 kV, 100 mA
* **Turns Ratio (Measurement):** 500
* **60-Minute Temperature Rise:** 50°C
* **Impedance Voltage:** 10%
* **No-Load Current:** <4%
**Primary Applications**
This versatile test set is a fundamental instrument for conducting insulation strength tests under specified voltages. It is used to evaluate the insulation level of a wide range of products—including electrical appliances, components, and insulating materials—identify insulation defects, and assess their ability to withstand overvoltage conditions. Typical applications include testing high-voltage switchgear, power cables, insulators, bushings, and transformers in power systems.
In summary, the KDYDJ-6kVA/100kV test set combines robust engineering with user-centric design, offering a reliable, efficient, and highly portable solution for critical high-voltage withstand testing across the power industry.
Features:
* **Integrated System:** Complete test set comprising a control box and oil-immersed transformer for immediate use.
* **Compact & Lightweight:** Designed for high portability with a small footprint and low weight (Control Box: 18kg, Transformer: 52kg).
* **Easy to Move:** Features a portable design; larger models include movable iron wheels (implying ease of handling for this model as well).
* **User-Friendly Operation:** Simple and convenient to use, with straightforward setup and control.
* **Easy Maintenance:** Designed for simple servicing and upkeep.
* **Reliable Performance:** Built with high-quality materials (cold-rolled grain-oriented silicon steel, premium insulation) for stable and dependable operation.
* **Attractive Design:** Features an octagonal shell with a clean, professional appearance.
* **High-Quality Core & Windings:** Utilizes a single-phase core-type design with superior silicon steel and a robust, multi-layer "pagoda" high-voltage winding structure for excellent voltage endurance.
* **Precise Control:** The control box provides accurate 0-250V output regulation for smooth voltage ramping.
* **Durable Construction:** Secured with steel clamps for a robust and long-lasting assembly.
