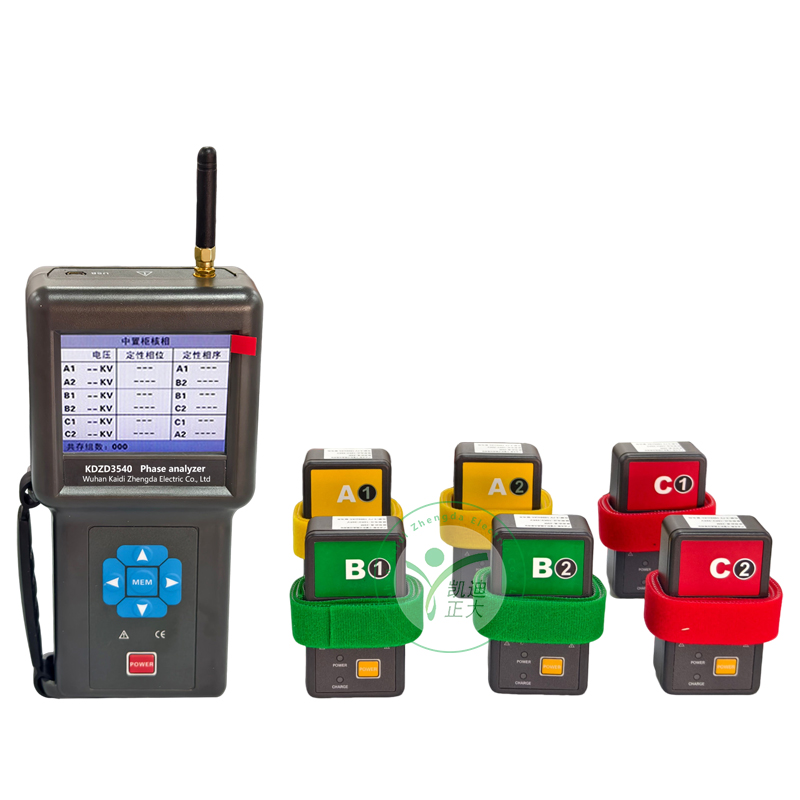

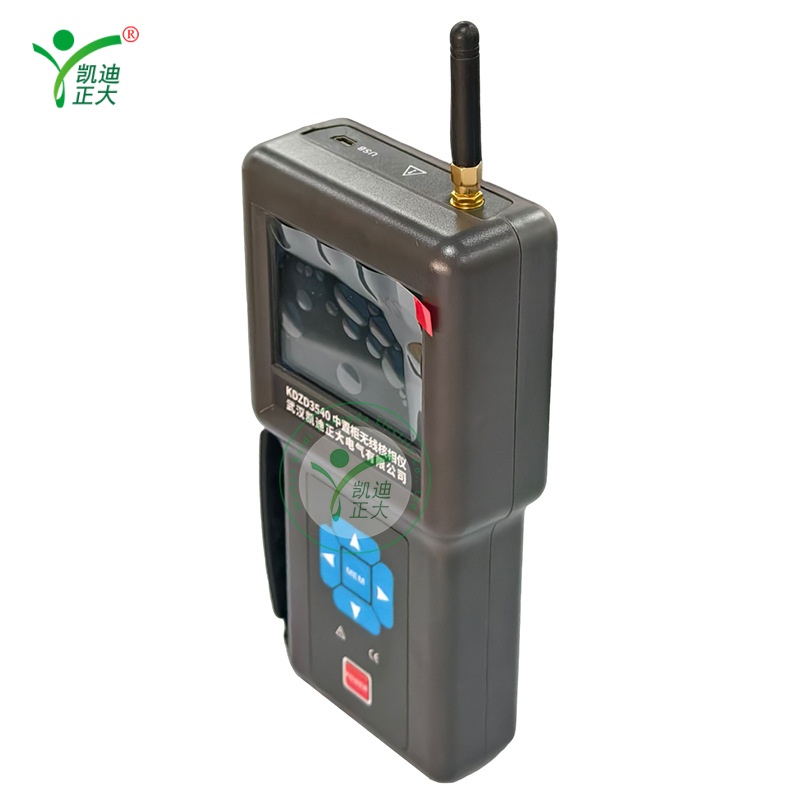

The KDZD3540 mid cabinet wireless high voltage phase analyzer is specially designed and manufactured for phase detection in handcart type high voltage switchgear (mid cabinet). This instrument adopts non-contact nuclear phase technology to receive nuclear phase data outside the central cabinet, which can simultaneously complete phase judgment and phase sequence testing of A, B, and C three-phase lines, avoiding the risk of direct contact between operators and high-voltage electricity inside the cabinet.

Product features: KDZD3540 mid cabinet wireless phase analyzer
Non contact nuclear phase, safe and efficient

Specially designed for central cabinets, it can complete phase determination of A, B, and C phases on the outside without opening the cabinet door or directly contacting high-voltage charged bodies, effectively avoiding exposure of operators to high-voltage environments and significantly improving operational safety.
Three phase simultaneous nuclear phase, easy to operate

Supporting synchronous phase detection of three-phase lines, obtaining all phase information at once, significantly reducing detection time and improving work efficiency, especially suitable for complex on-site operations in power distribution systems.
Colorful large screen display with intuitive information

Equipped with a 3.5-inch color LCD display screen, it can simultaneously display key parameters such as phase angle, phase sequence, voltage level, and nuclear phase results of the three phases. The interface is clear, the readings are intuitive, and it is easy to make quick judgments.
Voice prompt function, intelligent reminder

Built in voice broadcasting system, real-time prompts for "X signal normal", "Y signal normal", "in-phase", "out of phase" and other statuses, enabling hands-free operation, reducing misjudgments, and improving on-site communication efficiency.
Wireless long-distance transmission, flexible and reliable

Adopting 433MHz/315MHz wireless communication technology, the nuclear phase distance can reach 20-30 meters, with stable signals and strong anti-interference ability, suitable for remote nuclear phase operations in various complex electromagnetic environments.
Data storage and upload function

Up to 200 sets of nuclear phase data can be stored, and data can be exported to a computer through a USB interface for easy report generation, archiving, and printing, meeting the traceability requirements of the power system for job records.
Low power design, long-lasting battery life

The host uses 6 No. 5 alkaline batteries, and the detector uses button batteries (LR44) with low power consumption; Equipped with automatic shutdown function (automatically shuts down after 10 minutes without signal), extending battery life.
Intelligent battery level reminder

When the host battery voltage is below 6V or the detector is low on power, the instrument will automatically prompt to replace the battery to ensure a stable and reliable measurement process and avoid data loss due to power failure.
High precision and high reliability

Phase accuracy ± 10 °, frequency accuracy ± 2Hz, in compliance with national and international standards (such as DL/T 971-2017, IEC61481-A2, IEC61243-1, etc.), ensuring accurate and reliable measurement results.

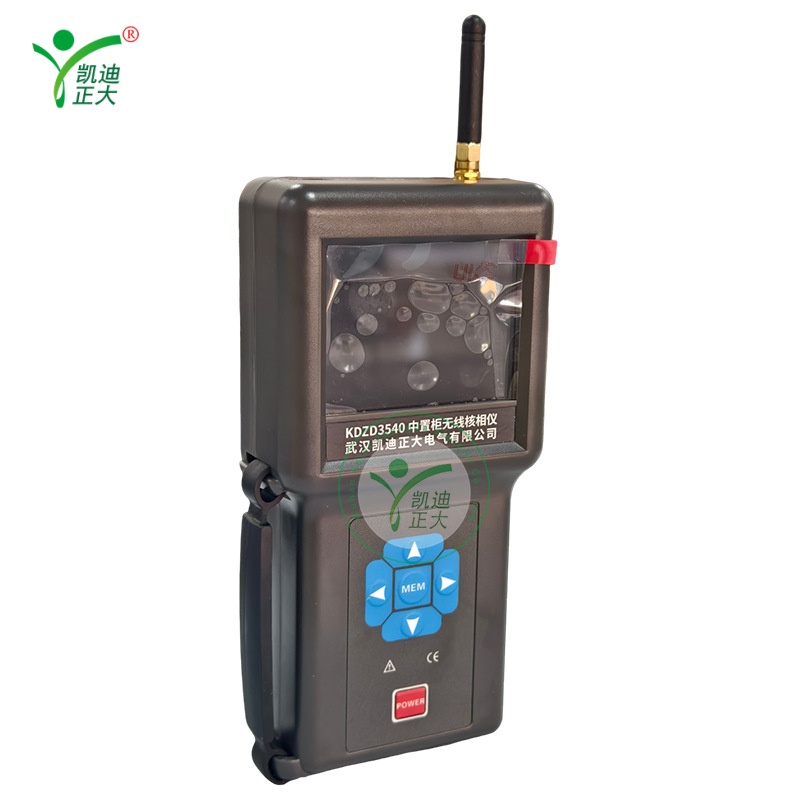

Durable and sturdy, with excellent ergonomic design

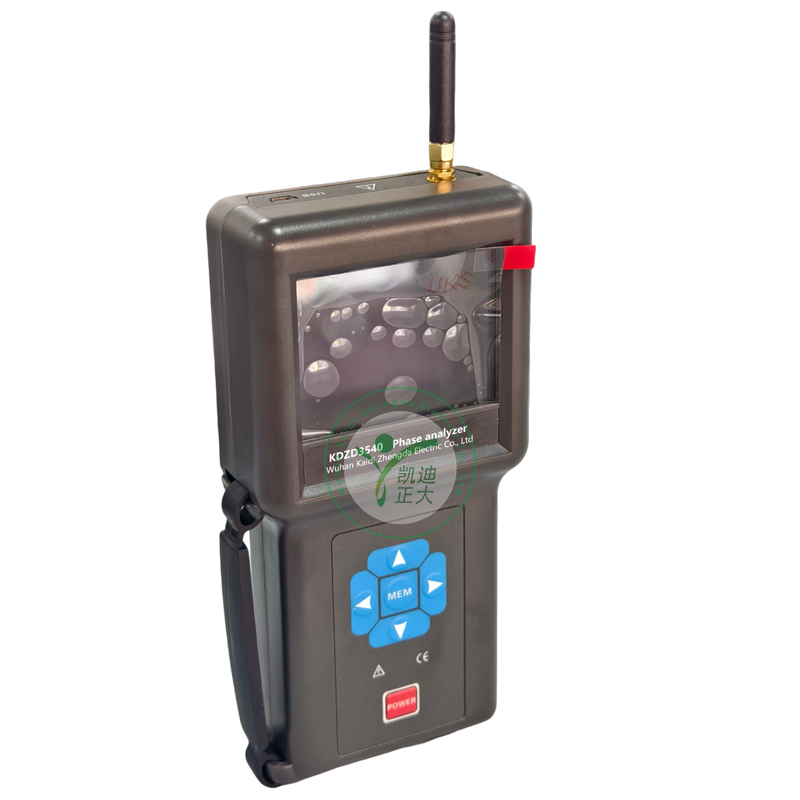

Adopting frosted shell, resistant to dirt and wear; Equipped with anti slip strap design, easy to hold or hang; The whole machine is lightweight (about 950g), easy to carry and operate on site.
broad applications

Suitable for high-voltage equipment such as central cabinets and handcart style switchgear with voltage levels ranging from 10kV to 35kV, it is an ideal tool for power system inspection, fault diagnosis, new line operation, and grid connection operations.

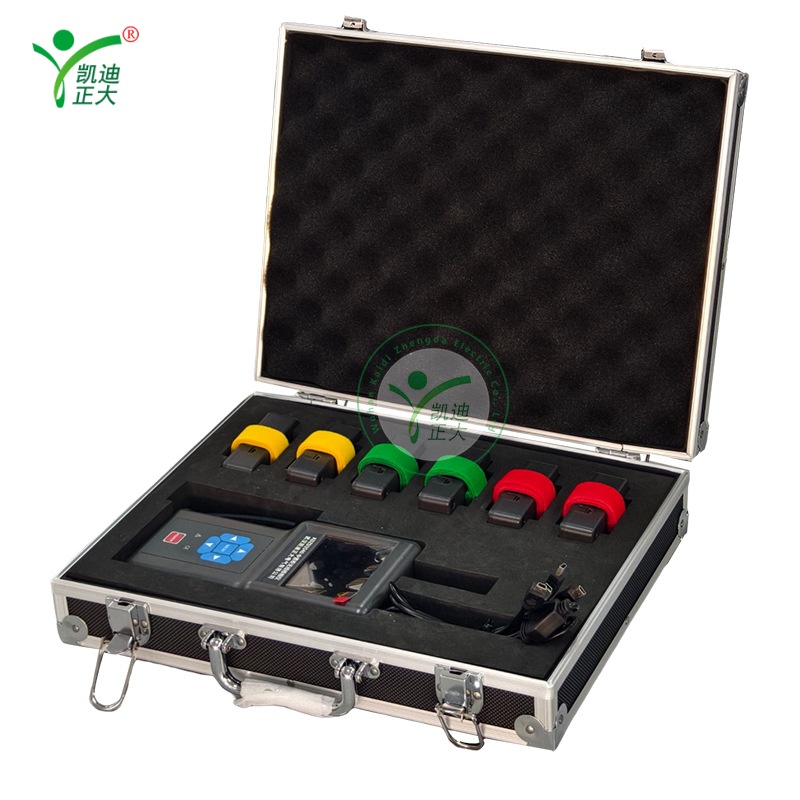

Specifications
Function: Central cabinet phase, phase, and phase sequence testing
Power supply: Host: DC9V, 6 LR6 5th alkaline batteries; Detector: DC6V, 4-cell button battery LR44
Nuclear phase method: non-contact nuclear phase
Nuclear phase voltage: 10KV-35KV
Nuclear phase distance: 20 meters
Phase differentiation: in-phase: -20 ° to 20 °; Heterophase: 100 °~140 ° and 220 °~260 °
Range: Test phase: 0 °~360 °
Accuracy: Phase: ≤± 10 °; Frequency: ≤± 2Hz
Resolution: Phase: 1 °
Transmission frequency: 433MHz, 315MHz
LCD size: 3.5-inch color screen; Display area: 71mm × 53mm
Phase indication: simultaneous display of numbers
Voltage display: Display voltage level
Display rate: 2 times/second
Data storage: 200 sets (data will not be lost in case of power failure or battery replacement)
Automatic shutdown: The instrument panel will automatically shut down after about 10 minutes of startup
Battery voltage: When the low symbol of the host battery voltage is displayed, it reminds to replace the battery in a timely manner, and the measured data is also accurate at this time. The "POWER" indicator light of the detector flashes slowly, indicating that its battery is low. Please replace the detector battery.
Rated current: detector: 30mA max; Host: 150mA max
Instrument quality: Instrument: 950g (including battery)
Instrument size: mainframe 195mm × 100mm × 45mm; detector 80mm × 46mm × 26mm
Insulation test: Host, detector: AC3700V/rms (between exposed metal and plastic casing)
External interference: no particularly strong electromagnetic field; No co frequency interference at 433MHz and 315MHz
Working temperature and humidity: -10 ℃ to 40 ℃; Below 80% RH
Storage temperature and humidity: -10 ℃ to 60 ℃; Below 70% RH
Suitable for safety regulations: GB13398-92, GB311.1-311.6-8, 3DL408-91 standards and the newly issued national power industry standard "General Technical Conditions for 1kV-35kV Portable Nuclear Phasers for Live Working DL/T 971-2017" requirements
Compliant with IEC61481-A2; 2004； IEC 61243-1 ed.2:2003 standard
