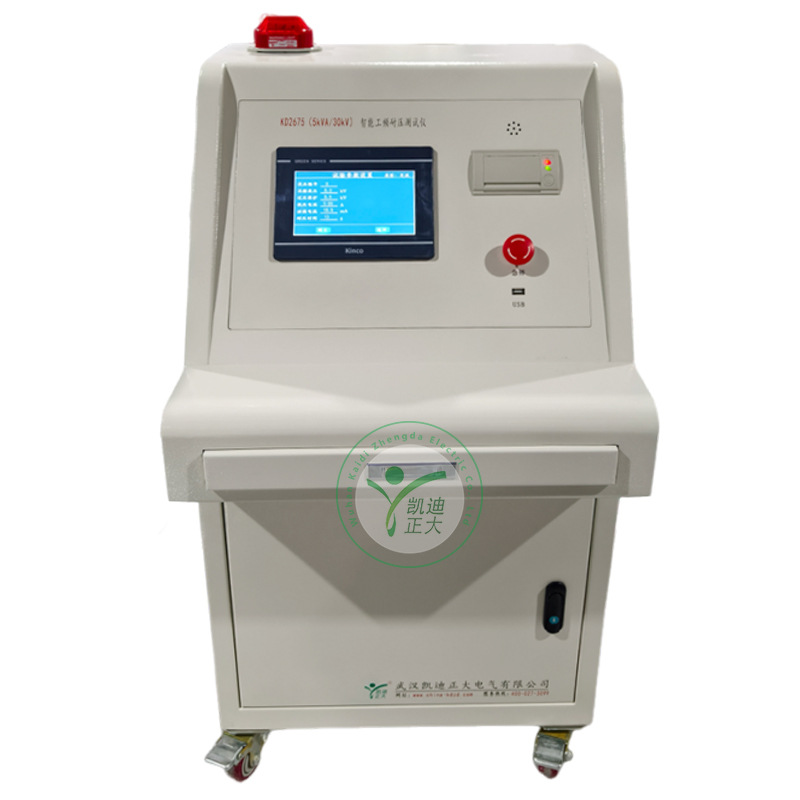

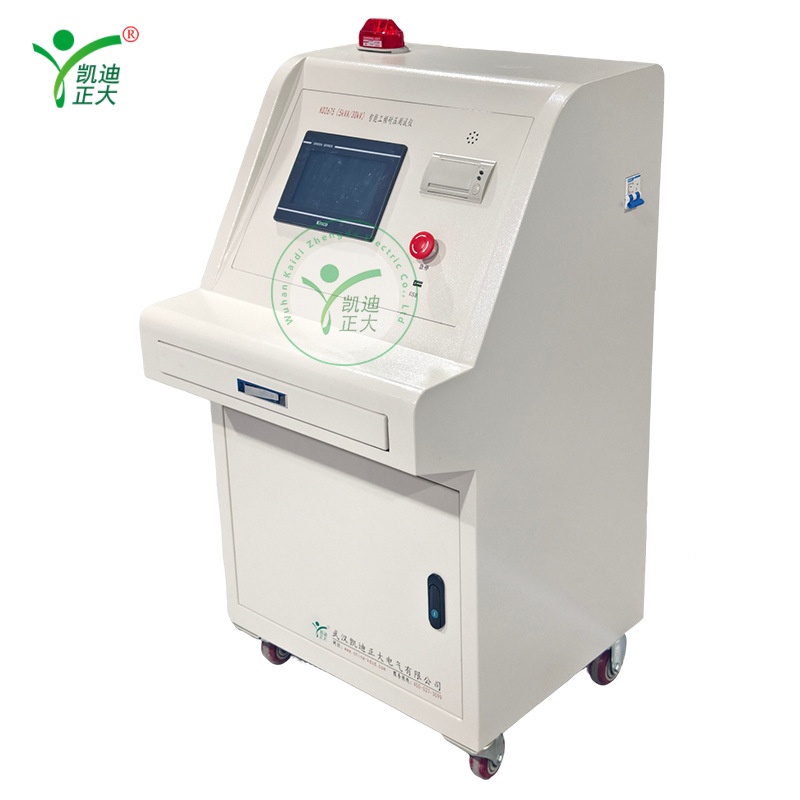

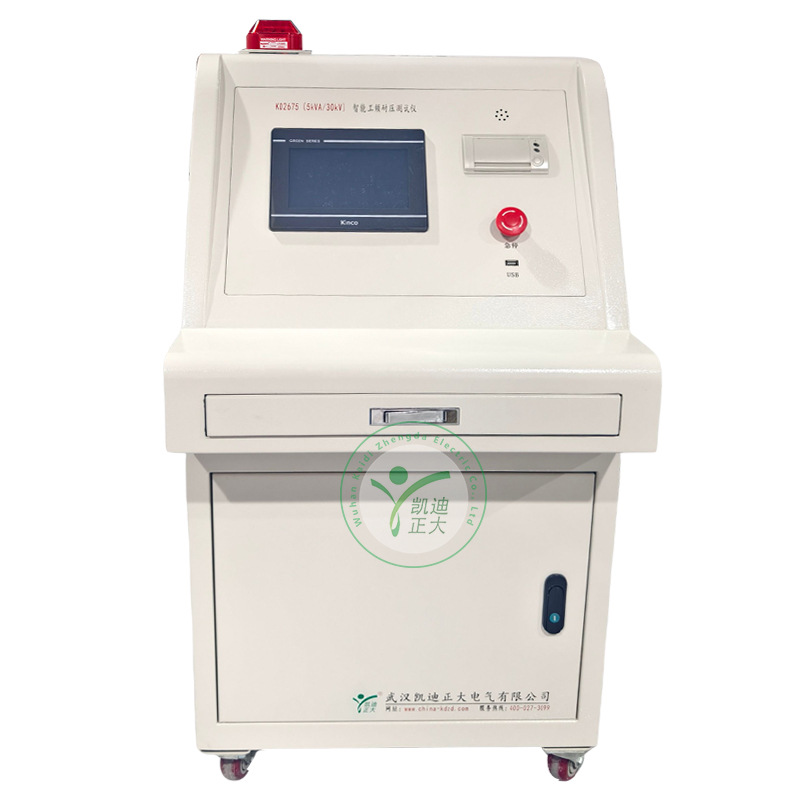

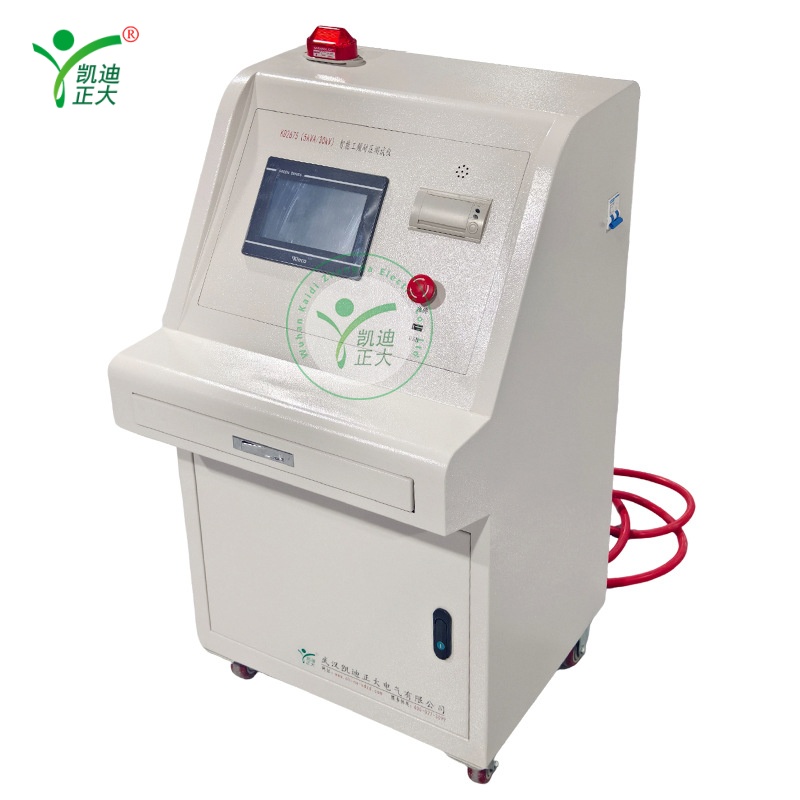

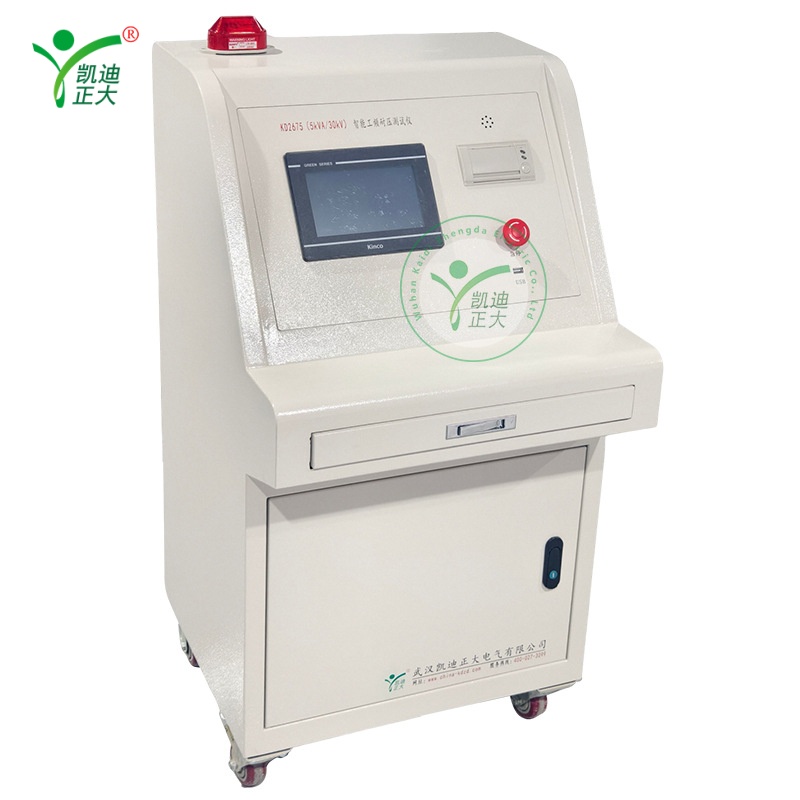

KD2675: Intelligent AC Hipot Test Set (5kVA/30kV)
KD2675: Intelligent AC Hipot Test Set (5kVA/30kV)

KD2675: Intelligent AC Hipot Test Set (5kVA/30kV)

Applications:

The KD2675 is an intelligent AC hipot test set for electrical insulation testing. It verifies the insulation strength of electrical products, components, and materials under specified voltages, ideal for power utilities, manufacturers, and labs to detect insulation defects.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

  • Dual operation modes: Automatic (with APP control) and manual modes for flexible testing.
  • 7-inch touchscreen display: Clear visualization of voltage, current, time, and status data (optional 10-inch).
  • Full Chinese interface: Intuitive operation with status reminders for safe use.
  • Digital calibration: Replaces traditional potentiometer adjustment for precise control (password-protected).
  • Intelligent voltage control: Gradually reduces ramp speed as voltage approaches target (80% → 90% → 100%).
  • Automatic timing & result judgment: Triggers audible alarms for pass/fail outcomes.
  • Pause function: Allows mid-test voltage hold for sample observation (auto mode only).
  • Anti-interference design: Combines hardware and software filtering for stable performance.
  • Safety alerts: Flashing high-voltage indicator and audible warnings during testing.
  • Compliance: Meets IEC 60270, IEC 60464, GB/T 16927, and ASTM D149 standards.

Features:

  • Dual operation modes: Automatic (with APP control) and manual modes for flexible testing.
  • 7-inch touchscreen display: Clear visualization of voltage, current, time, and status data (optional 10-inch).
  • Full Chinese interface: Intuitive operation with status reminders for safe use.
  • Digital calibration: Replaces traditional potentiometer adjustment for precise control (password-protected).
  • Intelligent voltage control: Gradually reduces ramp speed as voltage approaches target (80% → 90% → 100%).
  • Automatic timing & result judgment: Triggers audible alarms for pass/fail outcomes.
  • Pause function: Allows mid-test voltage hold for sample observation (auto mode only).
  • Anti-interference design: Combines hardware and software filtering for stable performance.
  • Safety alerts: Flashing high-voltage indicator and audible warnings during testing.
  • Compliance: Meets IEC 60270, IEC 60464, GB/T 16927, and ASTM D149 standards.

Parameter:

Main technical parameters
Rated capacity: 5kVA
Low voltage rated current: 25A
Low voltage rated voltage: 20V
High voltage rated current: 160mA
High voltage voltage: 30kV
Instrument voltage: 100V
Voltage sensor accuracy: 0.2% FS
Low voltage current sensor measurement accuracy: 0.2% FS
Timing length: 0 ~ 9999 S ( mode can be used for long-term operation)
Power source: AC220, 50Hz ± 2 Hz
Operating environment: Ambient temperature  ~ 50 ℃ Relative humidity ≤ 85% RH
Note: For capacities of 5kVA and below, the structure is box-type; 5kVA and below 30kVA, the structure is desktop; above 30kVA and below 50kVA, the structure is cabinet-;
