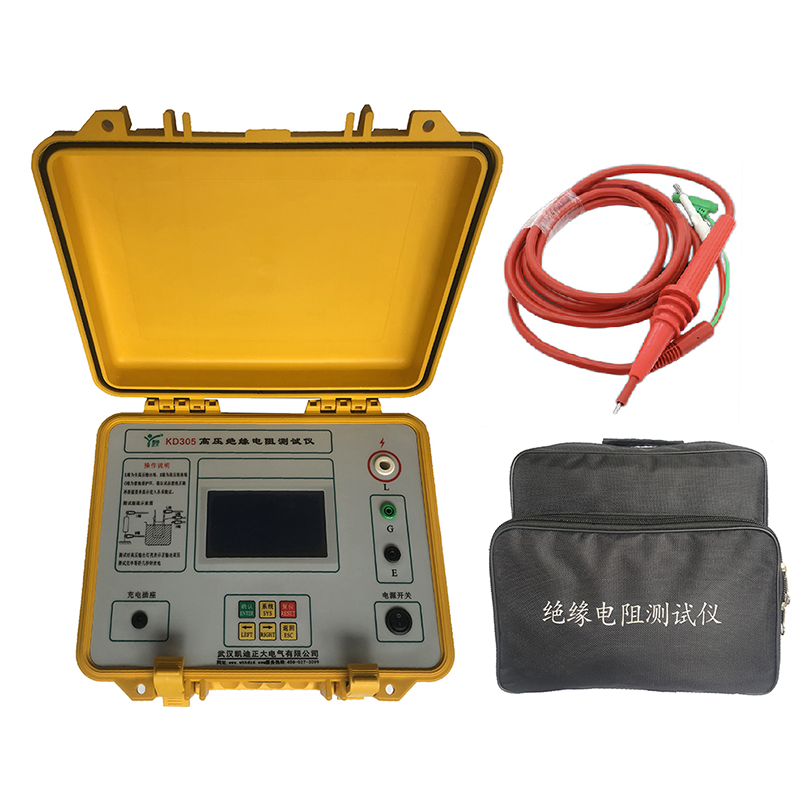

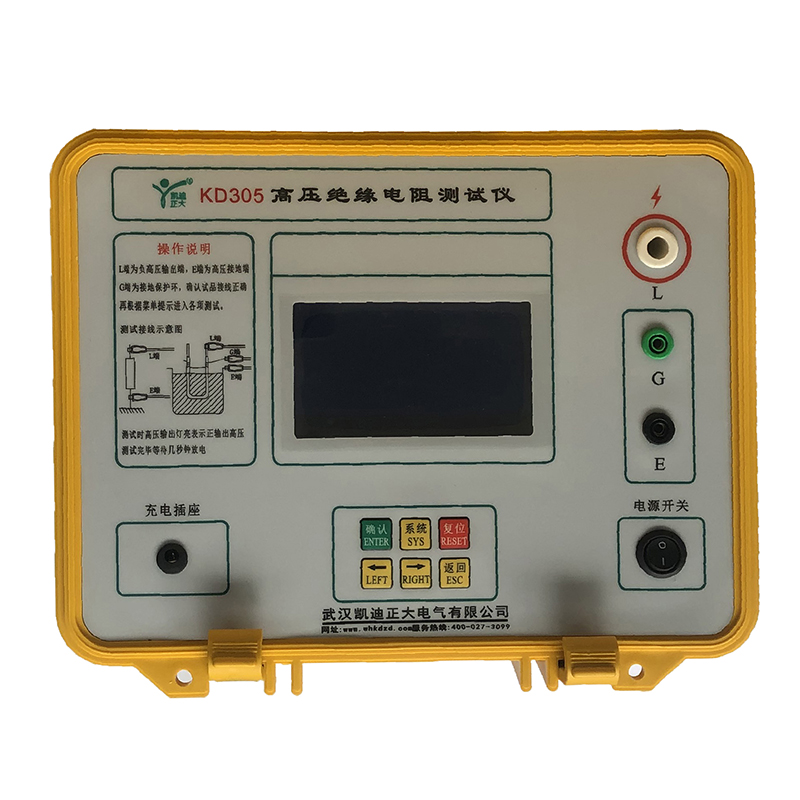

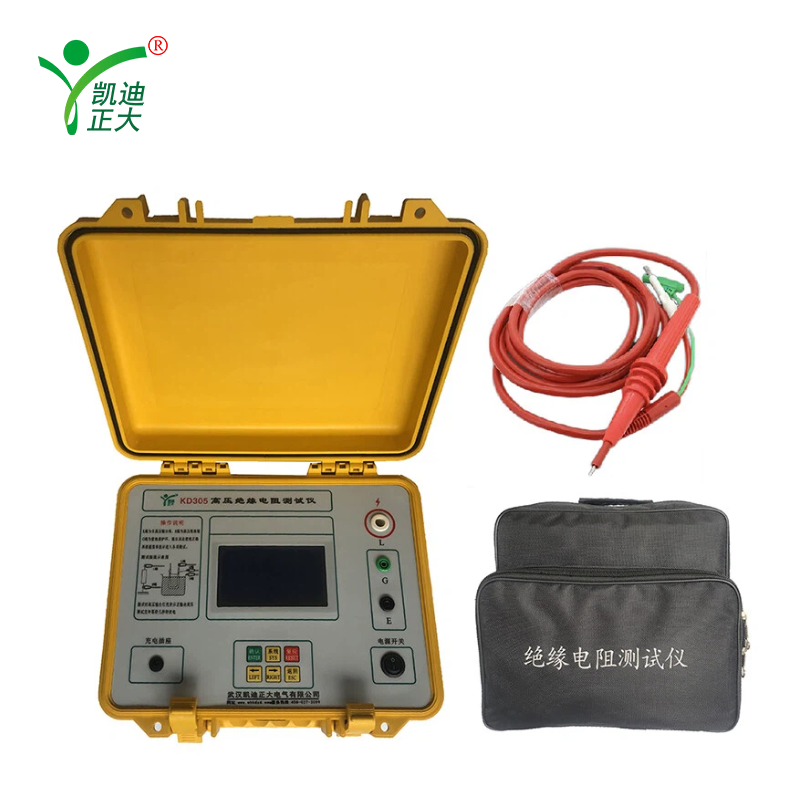

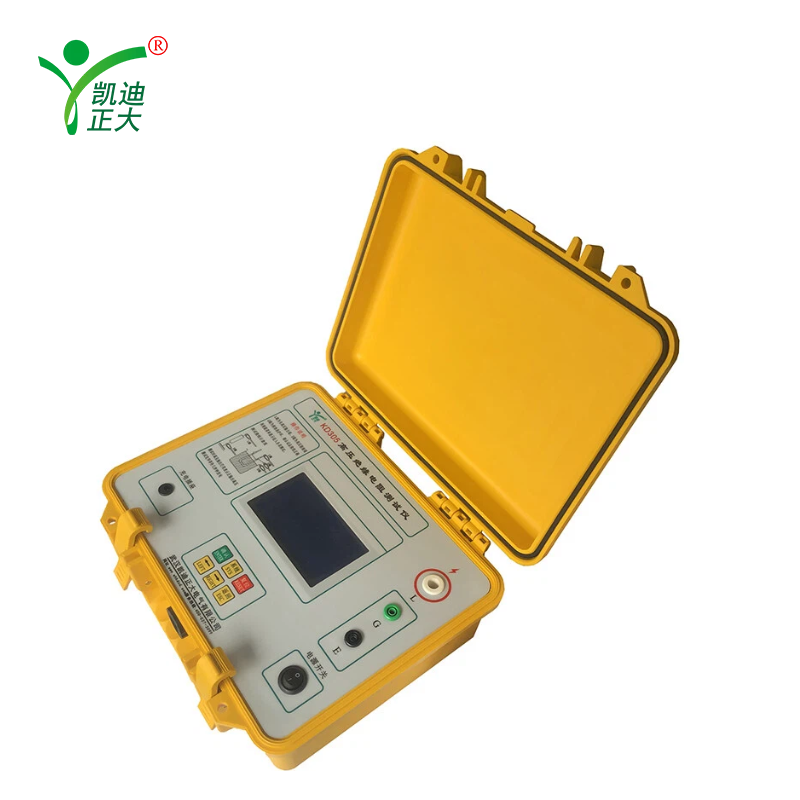

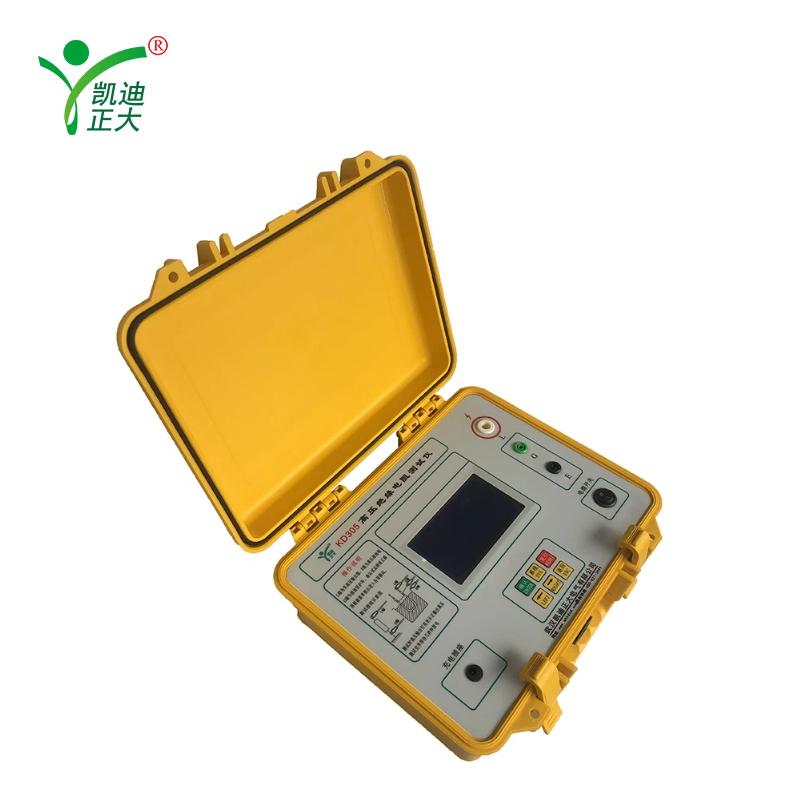

KD305Y 5000V/10000V Insulation Resistance
KD305Y 5000V/10000V Insulation Resistance

KD305Y 5000V/10000V Insulation Resistance

Applications:

The KD305Y insulation resistance tester is required to conduct a series of insulation performance tests on numerous power equipment such as cables, motors, generators, transformers, transformers, high-voltage switches, lightning arresters, etc. The first step is to conduct insulation resistance tests. In recent years, with the rapid development of the power industry, the use of large capacity equipment has been increasing, and its insulation performance cannot be detected by ordinary megohmmeters.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

When testing the insulation resistance of large capacity power equipment, the insulation resistance value is related to the duration of pressurization. The longer the pressurization time, the higher the insulation resistance value. This phenomenon is called insulation absorption. To understand the insulation performance of the test sample, it is necessary to first conduct absorption ratio and polarization index tests to provide safety guarantees for the next insulation performance tests such as leakage, dielectric loss, partial discharge, etc. Our company has specially launched the KD305 insulation resistance tester in accordance with the power standardization regulations, to conduct insulation, absorption ratio, polarization index withstand voltage leakage tests on power equipment, providing accurate preliminary judgments for a series of insulation tests.


Due to the direct impact of charging current on the insulation value testing of high-capacity capacitive samples, a large charging current is required. The stronger the charging ability, the closer the absorption ratio test value is to the true value. The short-circuit current of KD305Y is greater than 5mA, overcoming the drawbacks of small short-circuit current, inaccurate testing, and susceptibility to interference of ordinary megohmmeters. KD305 adopts timely voltage and current sampling for division operation, so even if the voltage changes during testing, the resistance value calculated by Ohm's theorem is accurate.

Features:

The KD305Y insulation resistance tester adopts a microcontroller control process, human-machine interface dialogue, easy to carry, and simple to operate; Equipped with high-performance and high-capacity rechargeable batteries, it can be used for both AC and DC, and is equipped with undervoltage protection and battery overcharge protection. When testing large capacitive loads with instruments, the automatic discharge speed is fast after the test is completed, and the discharge process is monitored in real time. This instrument can automatically display the current time, save historical test data and time, providing convenience for testing personnel.

Parameter:

#Main technical indicators

1. Output voltage
- DC500V、DC1000V、DC2500V、DC5000V、DC10000V
-Error: ± 5% FS (full scale)
-Meet the fast charging needs of capacitive loads
-Short circuit current: 5mA, with automatic rapid discharge function and residual voltage display
2. Function Parameter
-Automatic range conversion, convenient reading
-Resistance measurement range: 0 Ω~35T Ω
- 500V/1000V:0~10GΩ
- 2500V:0~500GΩ
- 5000V:0~10TΩ
- 10000V:0~35TΩ
-Simulation progress bar display: 0-10T Ω
-Capacitor discharge: from 5000V to 50V
-Protection level: IP65 (lid closed), IP40 (lid open)
-Safety standards: IEC61010-1, CAT IV 600V
 3. Resistance testing accuracy
- 1M~10MΩ:±5%FS
- 10M~10GΩ:±3%FS
- 10G~100GΩ:±5%FS
- 100G~500GΩ:±20%FS
 4. Voltage testing and discharge function
-Automatically detect residual voltage and discharge after testing is completed
-DC voltage test: 600V
-AC voltage test: 600V
 5. Other functions
-Automatic timing (maximum 600 seconds), beep prompt (short beep per second, 15 second long beep)
-Automatically calculate and display R15S, R60S, R600S, absorption ratio, polarization index
-The system menu supports viewing records, time settings, short-circuit current adjustment, and filtering settings
-Strong anti-interference ability, stable and reliable data
-Multiple security protection design
 6. Conditions of Use
-Temperature: 0 ℃~40 ℃
-Humidity: ≤ 70% RH
7. power supply
-Input: AC 220V ± 10%, built-in large capacity lithium battery, AC/DC dual-use
-Low battery automatic shutdown
 8. Volume and weight
-Size: 280mm × 210mm × 100mm
-Weight:<5kg

---
Packing List (Simplified Version)
-Host x 1
-Test line x 3
-Certificate of conformity x 1
-Inspection report x 1
-Instruction manual x 1
-Lithium battery charger x 1
-High voltage hook x 1 (if equipped with a high voltage test rod)
-High voltage clamp x 1 (if equipped with a high voltage test rod)
