Profile:
Overview

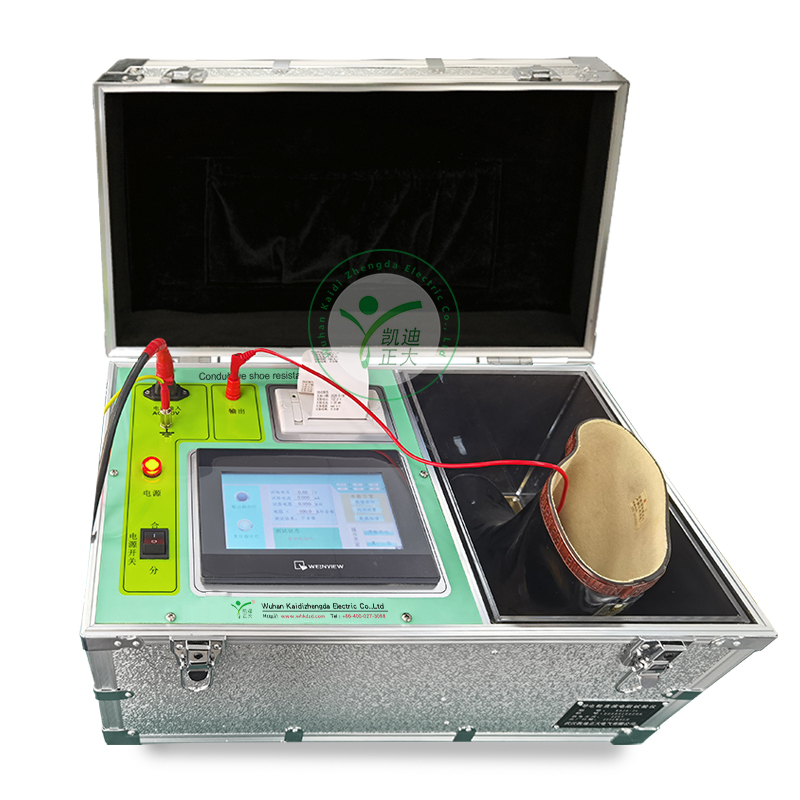

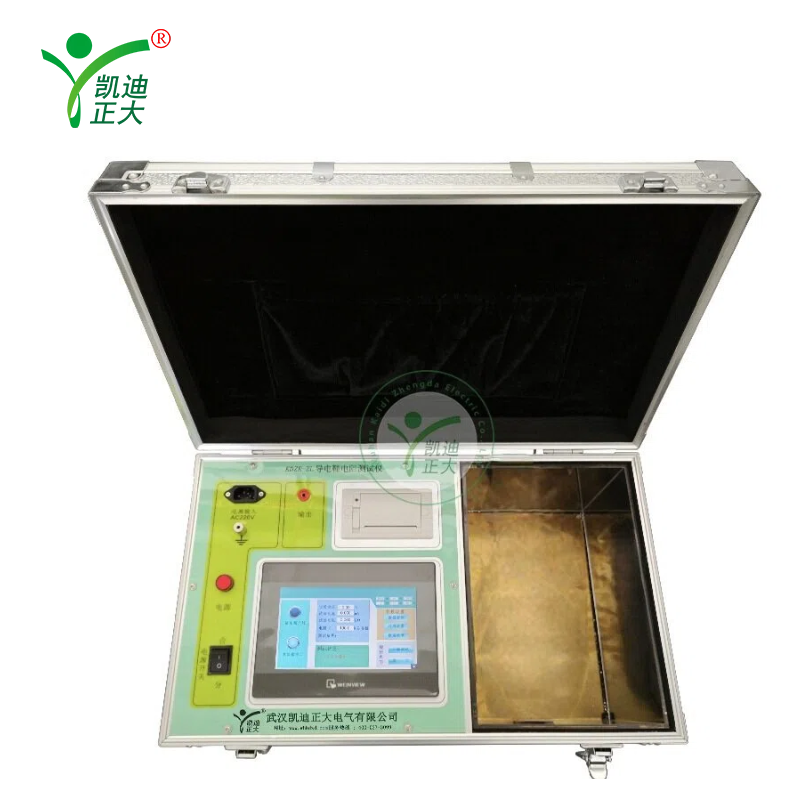

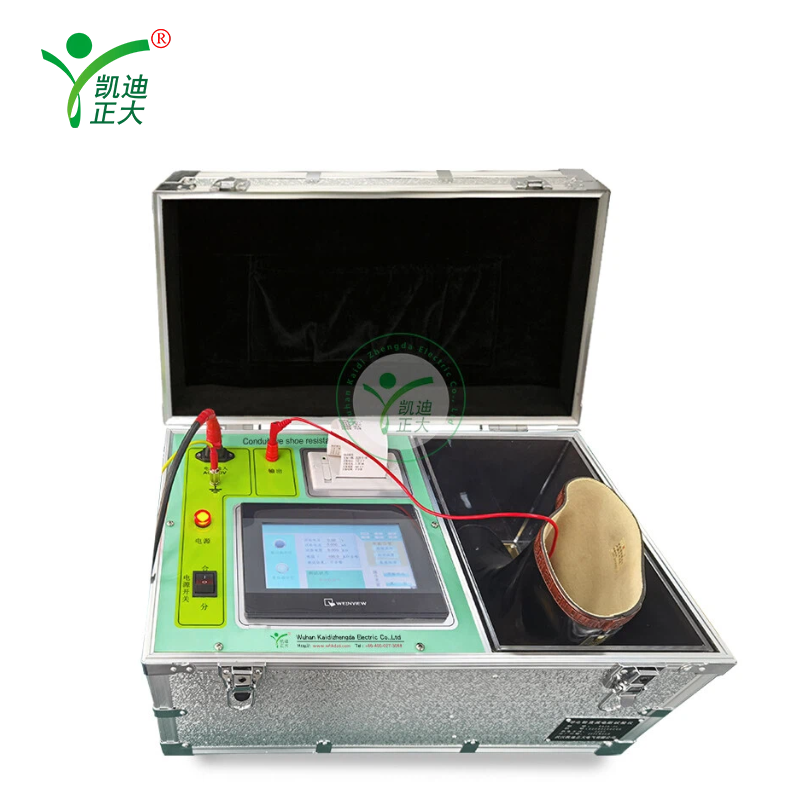

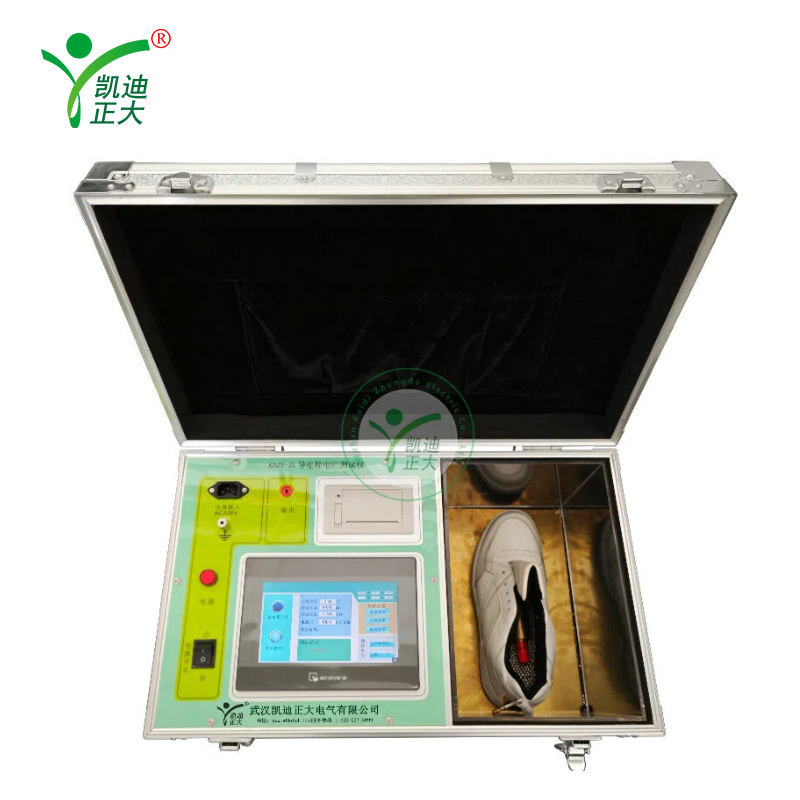

The KDZR-ZL conductive shoe DC resistance tester is used to measure the resistance of conductive shoes for power safety tools. Preventive tests mainly carried out to detect potential hazards of conductive shoes. In accordance with the requirements of "GBT 6568-2008 Shielding Clothing for Live Working" and "DLT 976-2017 Preventive Test Procedures for Live Working Tools, Devices and Equipment", the resistance of conductive shoes shall not be greater than 500Ω. Not only must the manufacturing plant be inspected in accordance with this standard before leaving the factory, but it can only be released after passing the inspection. In actual use, it must also be inspected regularly in accordance with this regulation. Only after passing the inspection can it be put into use.
This instrument is a device specifically developed for measuring the resistance of conductive shoes in accordance with national regulations. It features a small size, light weight and high accuracy. The instrument adopts an integrated touch screen design, which is easy to operate. It can be tested with one click and is equipped with a mini printer, allowing for real-time or query printing.
Features:
Functional features:
1.The high-precision single-chip microcomputer system synchronously collects voltage and current, ensuring high accuracy of test data.
2.Wide resistance measurement range from 2.20Ω to 999.9kΩ;
3. The resistance, current and test voltage are displayed simultaneously to determine whether the test sample is qualified or not.
4. It has short-circuit protection function and short-circuit prompt warning.
5. Small in size and light in weight;
Parameter:
Main technical parameters:
1.Measurement range: 20Ω to 999.9kΩ
2. Test voltage: 100V
3. Test power: within 20W;
4. Measuring range:
0.02KΩ to 1KΩ Accuracy: 2.0%RD+0.2%FS Resolution: 0.001KΩ
1KΩ to 20.0KΩ Accuracy: 1.0%RD+0.2%FS Resolution: 0.1KΩ
20KΩ to 999.9KΩ Accuracy: 2%RD+0.2%FS Resolution: 0.1KΩ
5. Resolution: Current: 0.1 mA Voltage: 0.01V
6. Working environment: Temperature: 0-50 ° C; Humidity: <85%
7. Power supply mode: AC 220V, 50HZ;
8. Weight: Less than 4.0kg;
9. Dimensions: 320mm*280mm*150mm
