Profile:

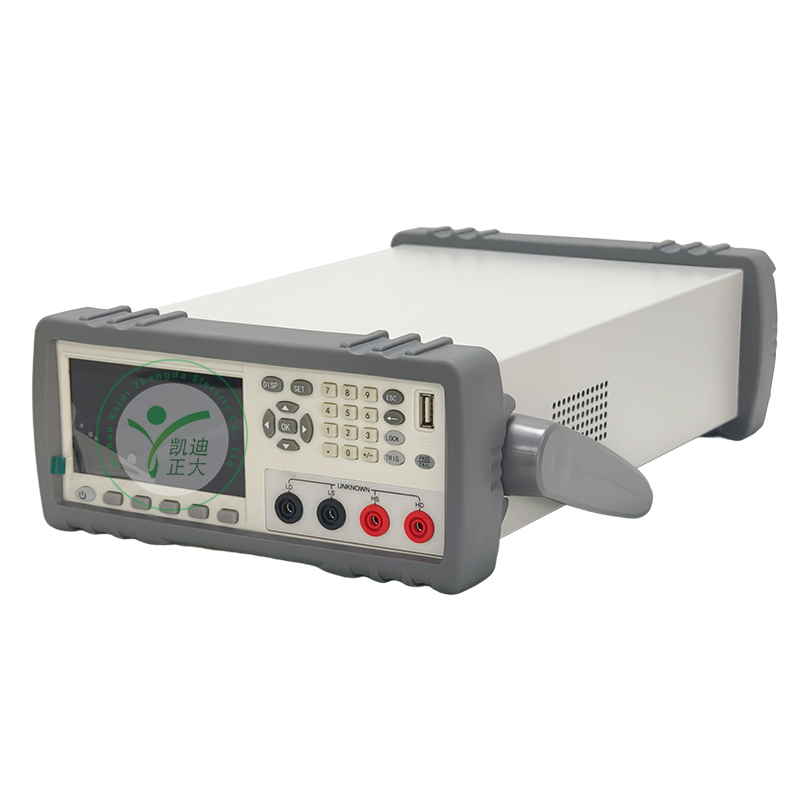

The KDZD Wire and Cable Conductor Resistivity Tester is a high-precision tester specially designed and developed for ultra-low DC resistance testing. It features a clean interface and convenient operation.
The measurement range is: 0.1uΩ to 10MΩ;
The displayed number of digits is five and a half.
Automatic bidirectional current testing. Meanwhile, the pulse testing method avoids the heat generated by the test loop from affecting the test accuracy. When testing the resistivity of the cable, there is no need to conduct multiple current tests.
The maximum test speed can reach up to 30 times per second.
The maximum test accuracy is 0.02%.
Temperature compensation can eliminate the influence of ambient temperature on the testing work.
It provides multiple interface functions, enabling convenient data communication and remote control with a PC.
The instrument is equipped with professional sorting functions and diverse sorting sound Settings, and can be applied to automatic sorting systems to complete fully automatic assembly line tests. It can also be equipped with RS232 interface and USB interface for remote control and data collection and analysis.
Product Description:
Test range: 0.1uΩ-10MΩ
Maximum test current: 1A
The optional meter fixture can measure the resistivity of the cable
Features:
Performance characteristics
Maximum resistance accuracy: 0.02% Minimum resistance resolution: 0.1uΩ
Temperature compensation function (TC) Basic temperature accuracy: 0.1 ℃
Maximum test range :0.1uΩ to 10MΩ
Zero base design, no need to reset to zero for weak resistance tests
Maximum test speed :30 times per second
Three-level comparison function: qualified/above upper limit/above lower limit
Multiple triggering methods: internal, external, contact and manual triggering.
Remote control is achieved through the HANDLER/USB/RS232C/RS485 interfaces
Test data is recorded on a USB flash drive and the instrument software can be remotely upgraded
By selecting the appropriate meter clamp, the resistance, resistivity and conductivity of wire and bar materials with diameters ranging from φ0.02mm to φ42mm can be measured
Parameter:
Detailed parameters:
Display
Monitor: 24-bit color, true-color IPS LCD screen with a resolution of 480*272
Number of reading digits: 5½ digits
Resistance measurement
Measurement range: 0.1uΩ to 10MΩ
Resistance accuracy: Basic accuracy 0.02%(For details, please refer to the user manual)
Maximum test current: 1A
Measurement function:
Resistance measurement time: Fast :30 times per second, medium speed :15 times per second, slow speed :3 times per second
Thermoelectric potential elimination: Yes
Measurement parameters: resistance, resistivity, electrical conductivity
Measurement parameter saving: 10 groups
Temperature measurement
Measurement parameters: Basic accuracy 0.1℃
Display range: -10℃ to 99.9℃
Comparator:
Signal output: HI/PASS/LO/FAIL
Xun Xiang: Qualified/Unqualified/Closed
Limit setting method: 3 levels; Upper/lower limit of absolute value Percentage upper/lower limit + nominal value
Other parameters:

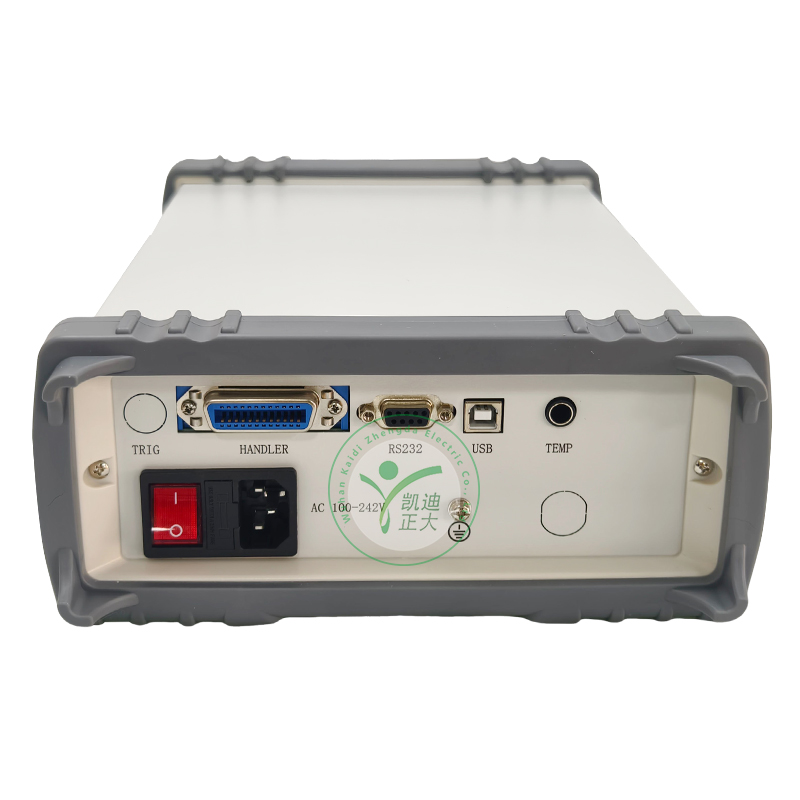

Interface: USB HOST/USB DEVICE/RS232/HANDLER/RS5
Dimensions and weight: Length x Width x height 361mmx107mmx264mm;
Net weight approximately :4KG
Standard accessories:
CXT55011 four-terminal Kelvin test clip
CXT30010 three-phase power cord
CXTWX5 temperature and humidity sensor
USB/2 communication cable
Optional accessories:
Data acquisition software
CXT55010B four-terminal Kelvin thick cable test clip
Cxt0/0/0/meter fixture
