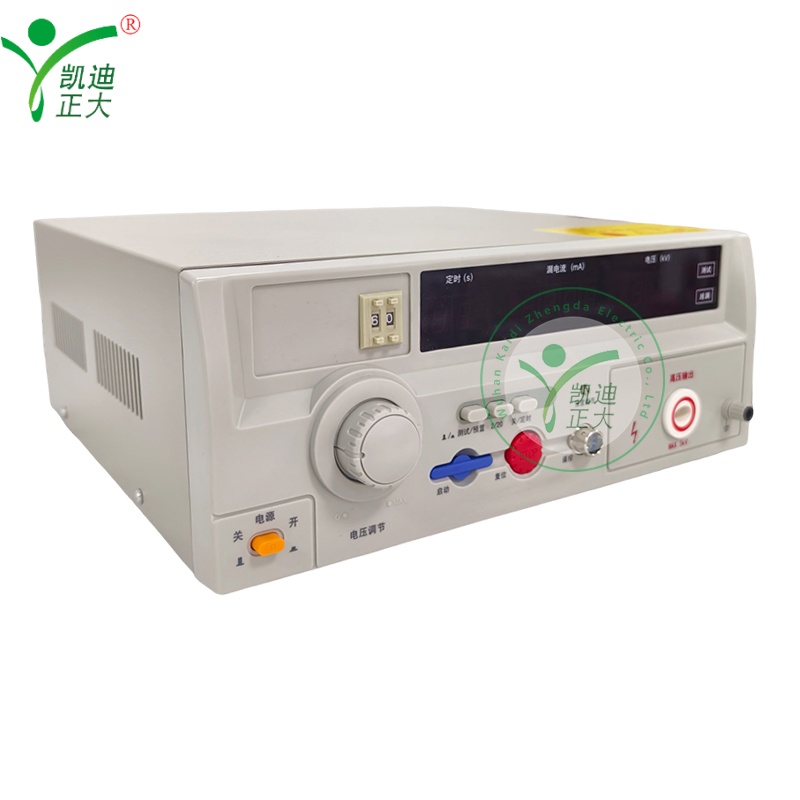

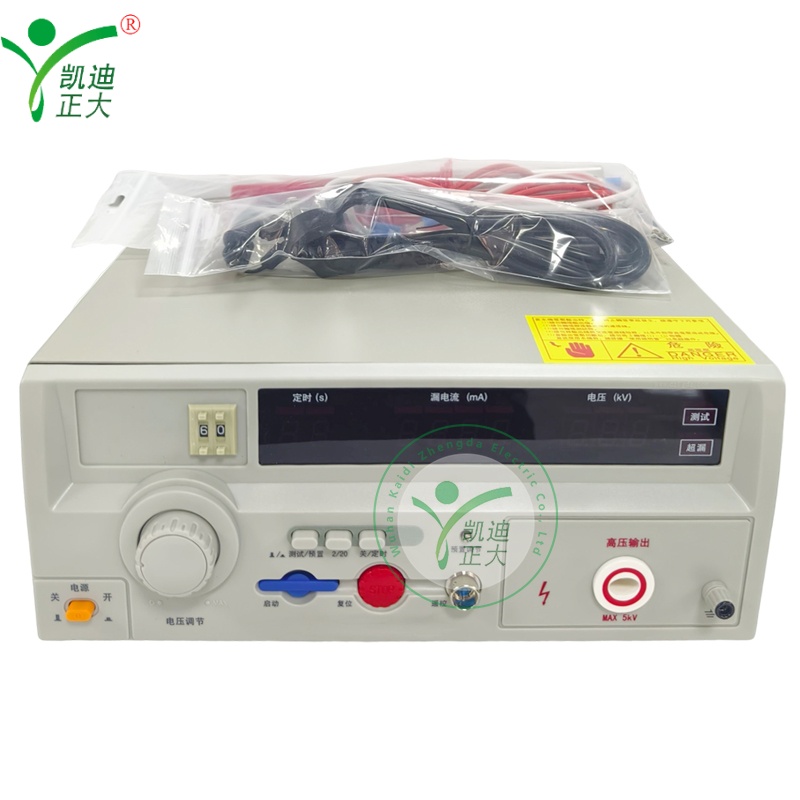

KD2670 Digital AC Withstand Voltage Tester for Insulation Performance Test
KD2670 Digital AC Withstand Voltage Tester for Insulation Performance Test

KD2670 Digital AC Withstand Voltage Tester for Insulation Performance Test

Applications:

Applied in testing AC withstand voltage and leakage current of household appliances, wires, transformers, motors and medical instruments, complying with IEC/CSA/UL/JIS standards. It is also essential for research labs and technical supervision departments for high-voltage safety detection.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KD2670 is a professional digital AC withstand voltage tester with simultaneous voltage and leakage current display, customizable high-voltage output, multiple protection functions and remote control, leading in domestic technical performance and reliability for electrical safety testing.

Features:

  • Simultaneous display of test voltage and real-time leakage current for intuitive detection
  • Customizable AC output voltage 1kV~50kV to meet diverse test demands
  • Multi-range leakage current measurement with preset alarm value for accurate judgment
  • Support manual/timed/remote control test modes for flexible operation
  • Automatic power-off and buzzer alarm when leakage current exceeds the limit
  • Can be used as a high-voltage source to test components and complete machine performance

Parameter:

  • Voltage Test
    • Range: 0～5kV AC (customizable 1kV~50kV)
    • Accuracy: ±5% of full scale
    • Output waveform: Sine wave
    • Transformer capacity: 1000VA
  • Leakage Current Test
    • Measurement range: 0～2mA / 2~20mA / 20～200mA AC
    • Accuracy: ±5%
    • Alarm value preset range: 0.3～2mA / 2~20mA / 20～200mA AC
  • Time Setting
    • Range: 1～99s, support continuous setting/manual/timed mode
    • Timed display: 1～99s
  • Power Supply
    • Input voltage: 198～242V AC
    • Input frequency: 47.5～52.5Hz
  • Working Environment
    • Temperature: 0～40℃
    • Relative humidity: ≤90% RH
  • Physical Specifications
    • Dimensions: 330(L)×200(H)×300(W) mm
    • Weight: Approx. 25kg

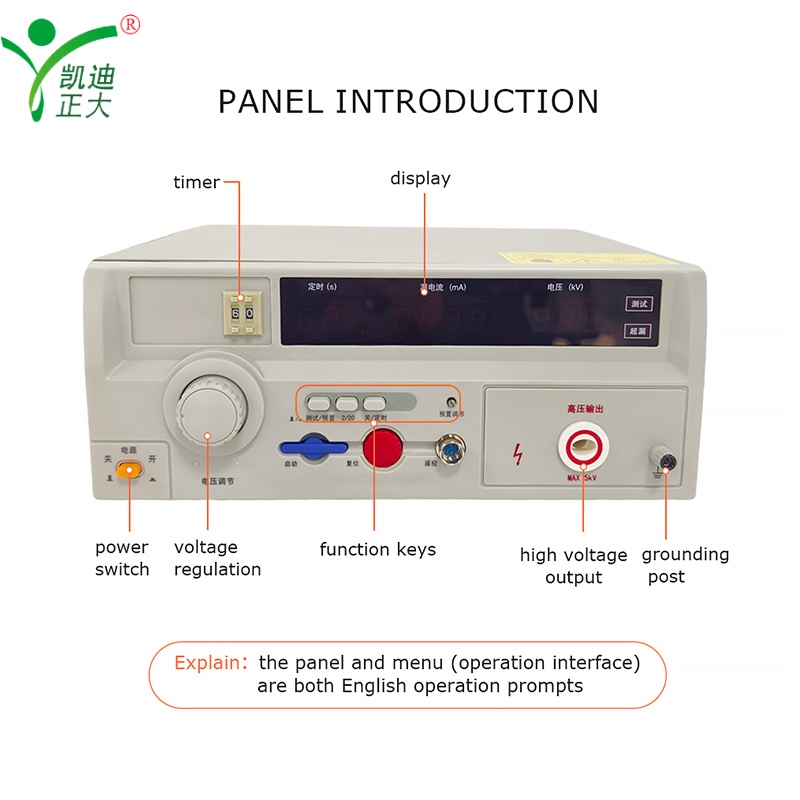

  • Functional Interfaces & Buttons
    • Interfaces: High-voltage output terminal, remote control socket, grounding post
    • Key functions: Voltage adjustment, leakage current range selection, preset/test switch, start/reset, timing switch
