Profile:
KDB-II is an innovative transformer turns ratio tester that overcomes the limitations of traditional bridge circuits. It features a high-resolution LCD screen and lithium battery power, making it suitable for field use. It offers a wide measurement range (0.9-10000) and high accuracy. It supports testing of transformers, Z-type transformers, voltage transformers (PTs), and current transformers (CTs), and adds a current transformer (CT) polarity testing function. With its blind testing capability, comprehensive protection, and portable design, it provides professional diagnostic capabilities in various environments.

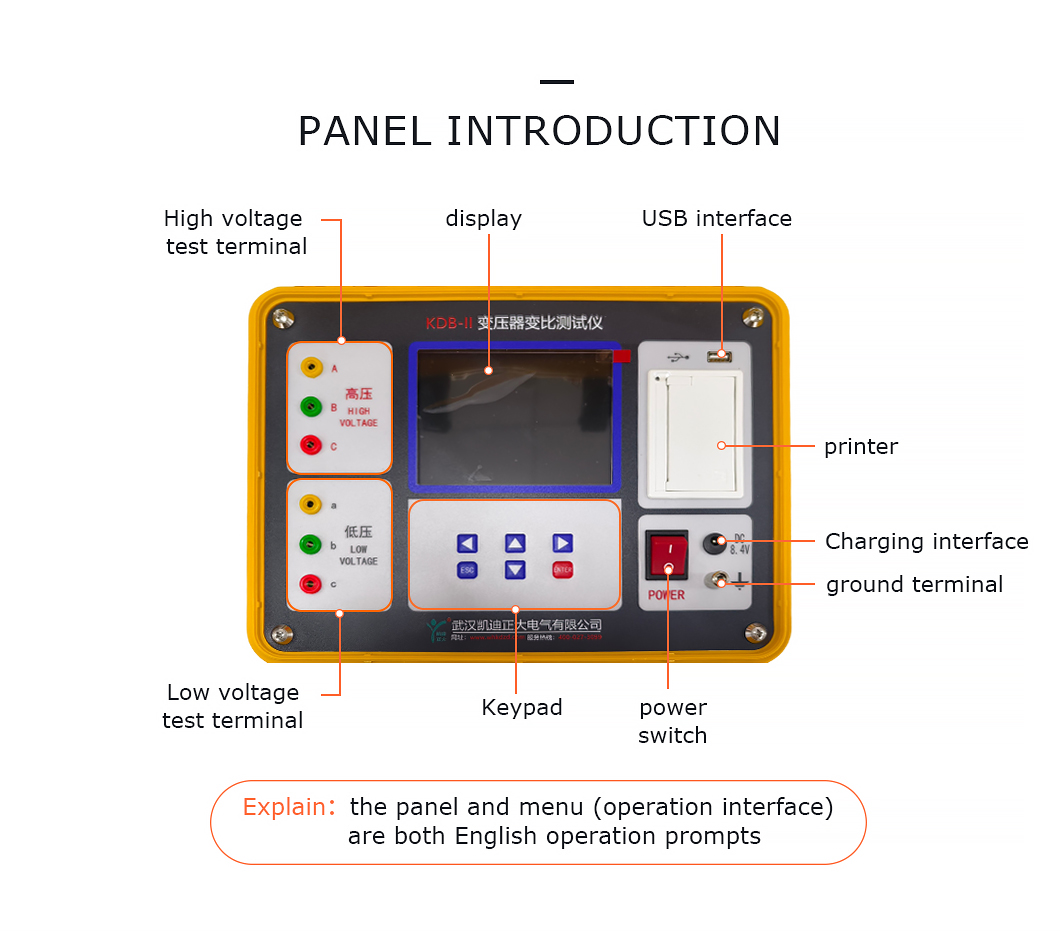

Features:
1. Adaptive Power Supply: Built-in lithium battery (over 8 hours of runtime) or AC220V power supply, supporting over 100 transformer tests per charge;
2. Blind Testing Function: Test turns ratio and grouping without needing to understand high/low voltage connections;
3. Extended Applications: Tests conventional transformers, Z-type transformers, voltage transformers (PTs), and adds current transformer (CT) turns ratio and polarity testing functions;
4. Wide Measuring Range and High Accuracy: Measuring range 0.9-10000, with a maximum accuracy of 0.3%;
5. Comprehensive Protection: Features reverse connection protection and output short circuit protection;
6. 5.6-inch industrial-grade high-brightness color LCD display, clearly visible even in strong light;
7. Built-in thermal printer for convenient data printing;
8. Dual Storage: Built-in memory and USB drive for data storage.
Parameter:
Turns Ratio Test
Measuring range: 0.9 ~ 10000
Technical index
Accuracy:
± (reading x 0.1%+2 words) (500 or less)
± (reading x 0.2%+2 words) (greater than 500 less than or equal to 3000)
± (reading x 0.3%+2 words) (> 3000)
Resolution:
0.9 ~ 9.9999 (0.0001)
10 ~ 99.999 (0.001)
100 ~ 999.99 (0.01)
1000 ~ 9999.9 (0.1)
10000 and above (1)
Working power supply: built-in lithium battery or external charger, charger output AC220±10% power frequency: 50/60Hz
Charging voltage: 8.4V
Charging current: ≤2A
Charging time: about 3 hours
Usage time: more than 8 hours
Weight: 3.8kg(excluding test cable)
Host size: 325mm(L)×225mm(W)×125mm(H)
Operating temperature: -10℃ ~ 50℃
Relative humidity: ≤90%, no condensation
