KDGK-II High/Low Voltage Switchgear Power-on Test Bench

KDGK-II High/Low Voltage Switchgear Power-on Test Bench

Applications:

Used for factory pre-delivery testing of high/low voltage switchgear, providing AC/DC power supplies to verify equipment operation and ensure compliance with safety standards.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

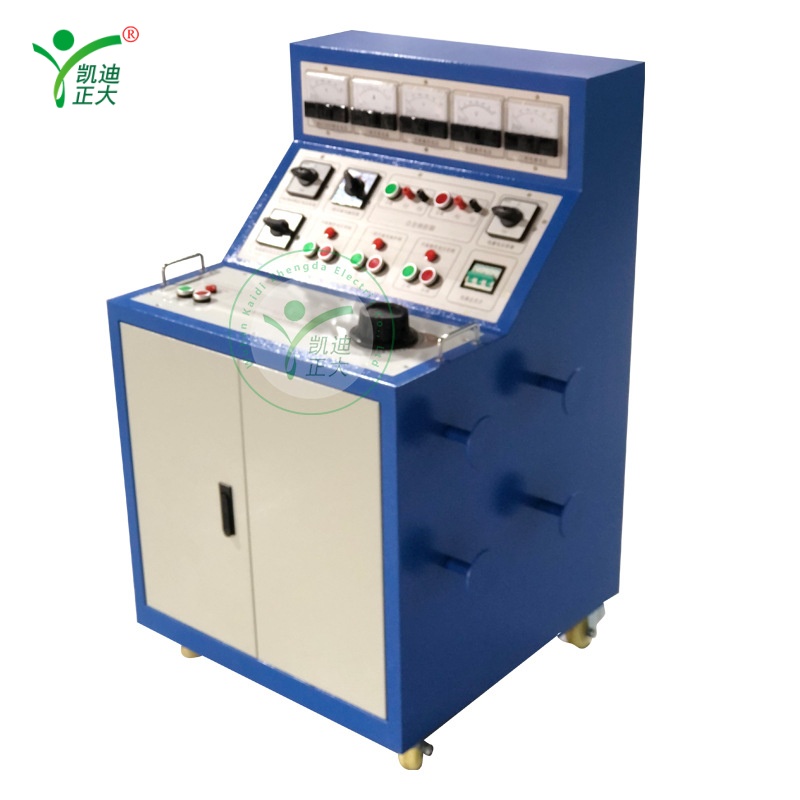

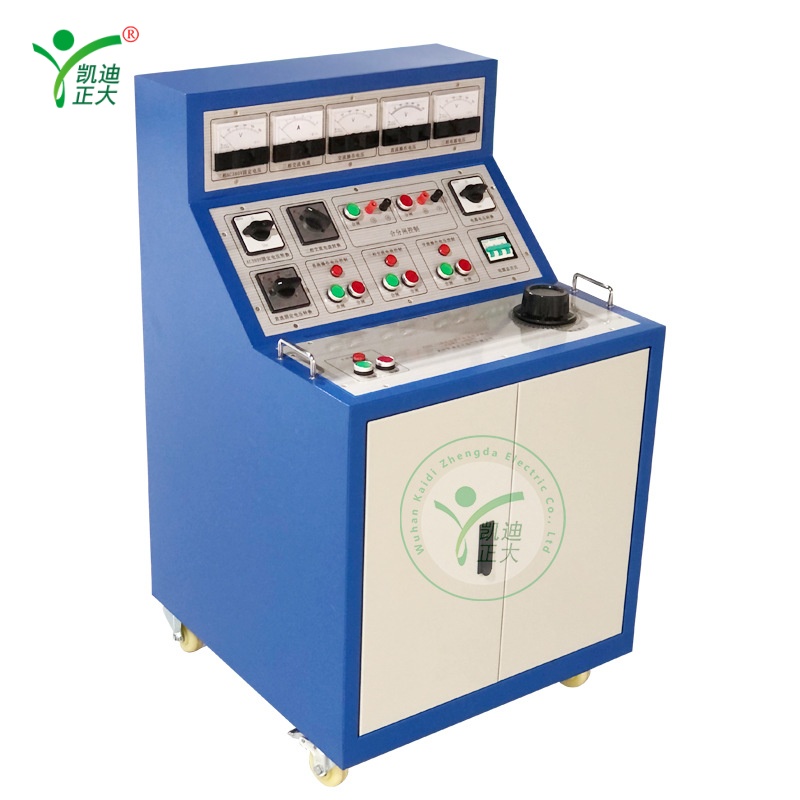

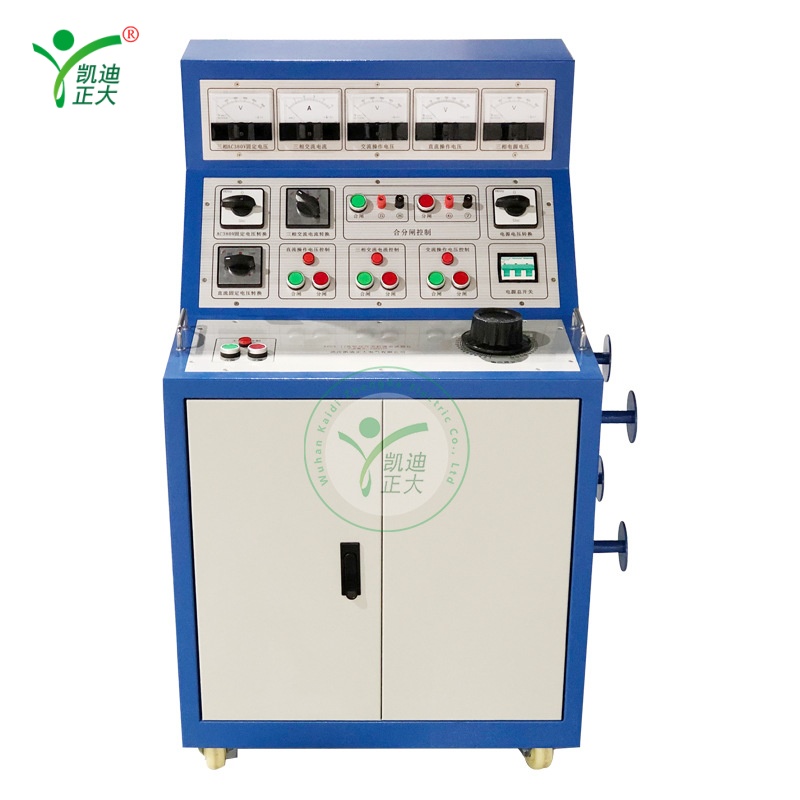

The KDGK-II High/Low Voltage Switchgear Power-on Test Bench is a professional calibration device designed for switchgear manufacturers to conduct comprehensive pre-delivery tests. It integrates voltage regulators, boosters, high-precision meters, and contactors to deliver multiple fixed and adjustable AC/DC power outputs. Compliant with GB14048 standards, it supports safe testing of switchgear action characteristics, enabling quality control and performance analysis for production and inspection departments.

Features:

Multiple fixed and adjustable AC/DC power outputs to meet diverse testing needs
Compliant with GB14048 standards for low-voltage switchgear and control equipment
High-precision digital ammeters and voltmeters for accurate parameter monitoring
Modular design with intuitive control buttons and indicators for easy operation
Built-in safety protection mechanisms to ensure reliable testing operations
Robust cabinet structure with casters for convenient movement in workshops
Supports comprehensive measurement and analysis of switchgear action characteristics

Parameter:

Model: KDGK-II
Input Power: Three-phase four-wire AC 380V
Outputs:
- 3-phase AC 100V (fixed): 2 groups
- 3-phase AC 0~10A (100V, adjustable): 1 group
- AC operating voltage: AC 0~400V (≤10A at 220V)
- DC operating voltage: DC 0~300V: 1 group
- Single-phase AC 220V (fixed, socket): 2 groups
- 3-phase AC 380V (fixed, terminal): 1 group
- Single-phase DC 12V/24V/36V/110V/200V (fixed): 1 group
Dimensions: 560mm × 580mm × 920mm
Weight: 75kg
Application: Factory pre-delivery testing of high/low voltage switchgear
