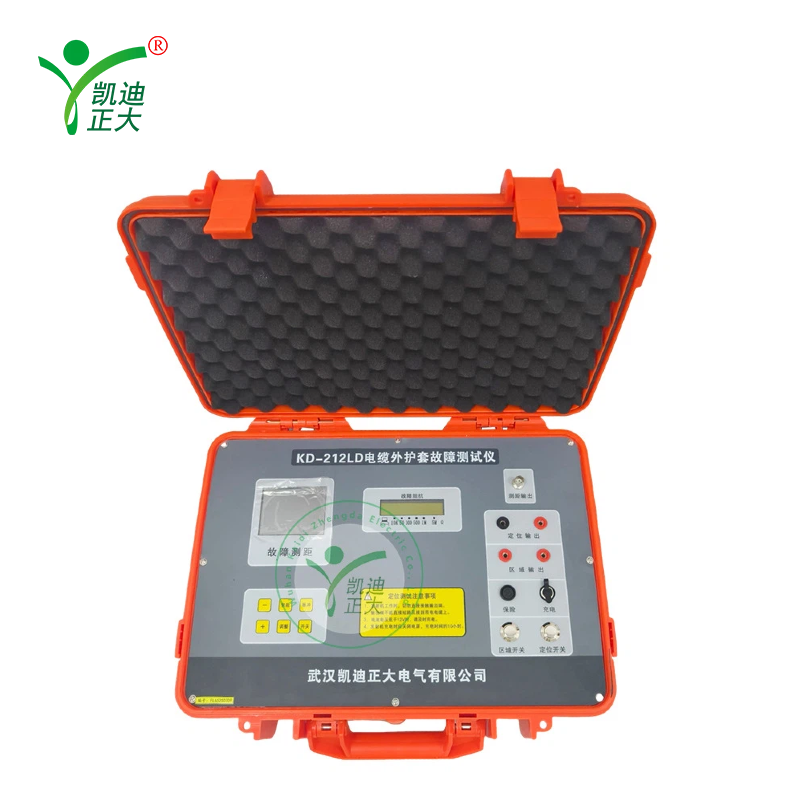

KD-212LD Cable Outer Sheath Fault Tester
KD-212LD Cable Outer Sheath Fault Tester

KD-212LD Cable Outer Sheath Fault Tester

Applications:

KD-212LD Cable Outer Sheath Fault Tester is a specialized instrument for testing damage to medium and low voltage cable sheaths and locating grounding faults. It is widely used in power utilities, cable maintenance, and engineering sites for efficient and accurate fault detection.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KD-212LD is a user-friendly cable sheath fault tester with one-key operation and integrated design. It features high accuracy, strong anti-interference, and long battery life, making it easy to use without specialized training.

Features:

  1. Specialized for testing damage to medium and low voltage cable sheaths and grounding faults.
  2. One-key operation for simple and efficient use without training.
  3. High receiving sensitivity, low drift, strong anti-interference and stable performance.
  4. Adopts large-capacity battery for long working time.
  5. Integrated A-frame and circuit board design to avoid wiring trouble.
  6. Low repair rate due to durable and robust structure.

Parameter:

  1. Detection distance: < 5Km
  2. Detection depth: ≤ 2m
  3. Route error: < 20cm
  4. Location error: < 10cm
  5. Induced fault distance: ≤ 10m
  6. Location range: ≤ 5MΩ
