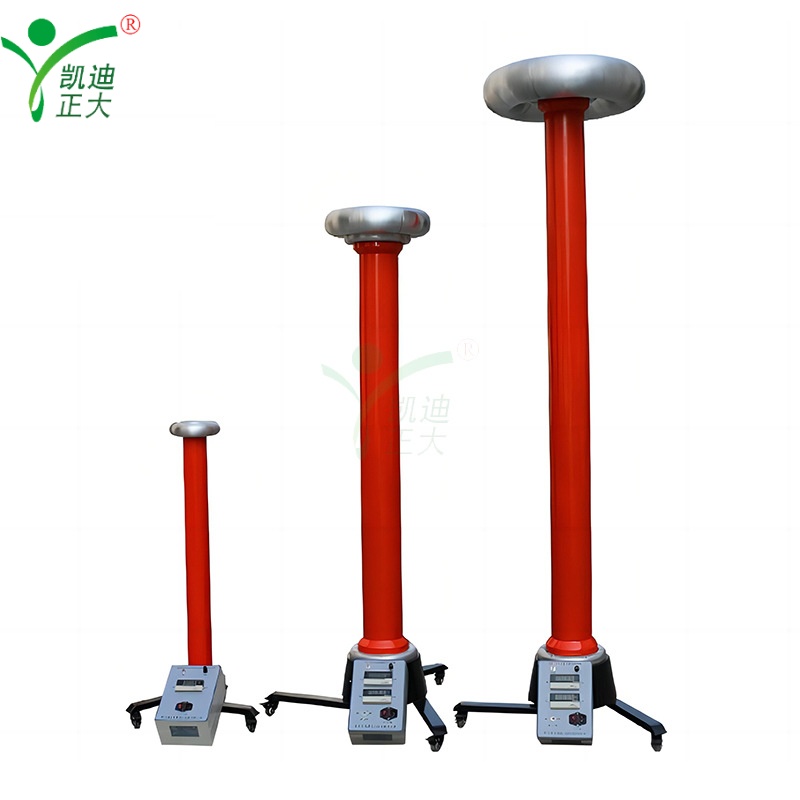

KDFY Series AC/DC High-Voltage Divider
KDFY Series AC/DC High-Voltage Divider

KDFY Series AC/DC High-Voltage Divider

Applications:

Used for measuring average value of DC high voltage and effective/true effective value of AC high voltage on-site. Suitable for power systems, electrical testing labs and maintenance sites to accurately measure high voltage of electrical equipment.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDFY is a dedicated on-site high-voltage measuring instrument, composed of a balanced equipotential shield divider and a digital meter. It features high accuracy, good linearity and stable performance, with easy operation and intuitive display.

Features:

  • Balanced equipotential shielding structure ensures accurate measurement and strong anti-interference
  • Measures both AC (effective/true effective value) and DC (average value) high voltage
  • High-quality precision electronic components for stable performance and good linearity
  • Compact and lightweight design with high-strength insulation tube, easy to carry and transport
  • Simple operation with dedicated connection cable, no complex wiring required
  • Intuitive digital display for clear and quick data reading

Parameter:

  • Voltage Measurement Range & Ratio
    • AC-DC50KV: Measurement range up to 50kV, voltage division ratio 1000:1
    • AC-DC100KV: Measurement range up to 100kV, voltage division ratio 1000:1
    • AC-DC150KV: Measurement range up to 150kV, voltage division ratio 1000:1
    • AC-DC200KV: Measurement range up to 200kV, voltage division ratio 10000:1
  • Accuracy
    • DC average value: Class 1.0
    • AC effective value: Class 1.5
  • Impedance
    • AC-DC50KV: 400MΩ; AC-DC100KV: 800MΩ
    • AC-DC150KV: 1200MΩ; AC-DC200KV: 1400MΩ
  • Working Environment
    • Temperature: 0~40℃; Relative humidity: ≤85%RH
  • Physical Specifications
    • AC-DC50KV: 180×180×580mm, approx. 4.5kg
    • AC-DC100KV: 180×180×750mm, approx. 7.5kg
    • AC-DC150KV: 180×180×950mm, approx. 9.5kg
    • AC-DC200KV: 220×220×1300mm, approx. 14.5kg
  • Structure & Accessories
    • Structure: High-voltage input terminal, grading ball, high-voltage insulation cylinder, measurement interface, grounding terminal, base
    • Standard accessories: Connection cable, 12.6V lithium battery charger, certificate of conformity, user manual
