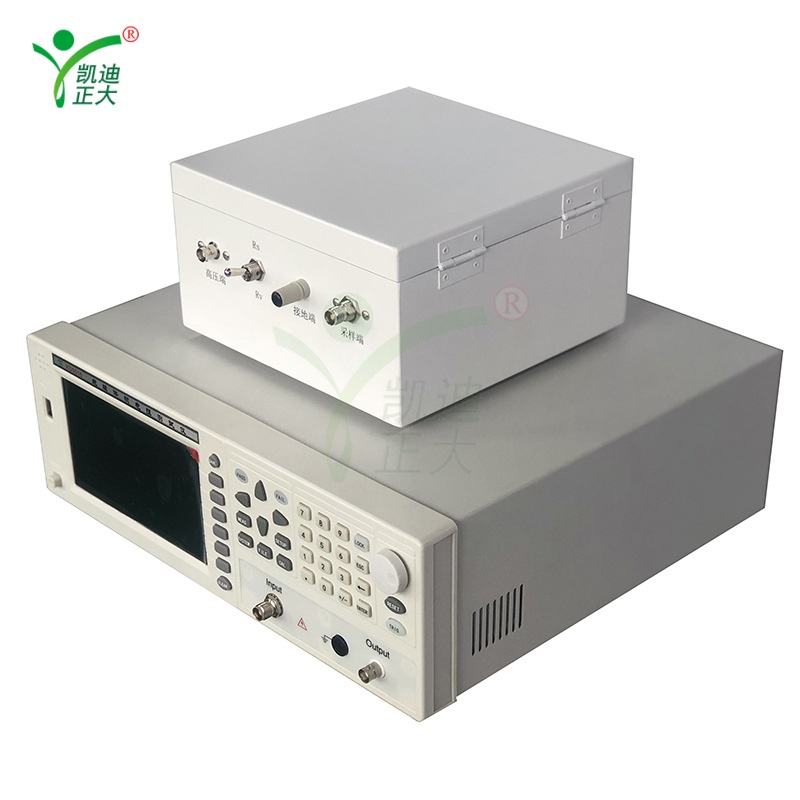

KD5015 Surface & Volume Resistivity Tester for Insulation Materials

KD5015 Surface & Volume Resistivity Tester for Insulation Materials

Applications:

Measures insulation resistance and micro-current of insulators, rubbers, plastics, and electronic components. Ideal for material R&D, quality control, and electrostatic protection testing in electronics and manufacturing industries.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

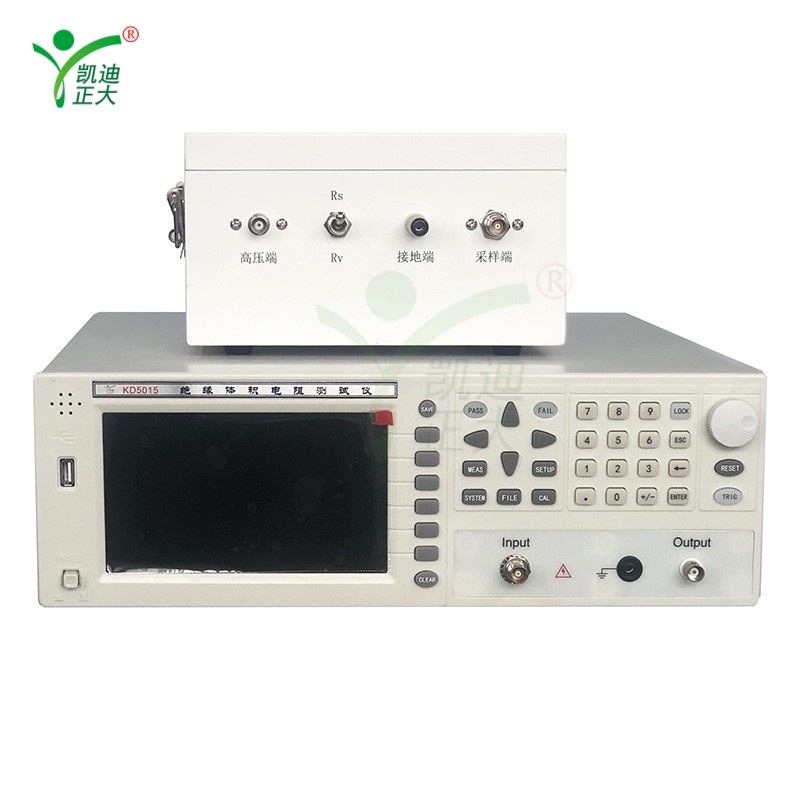

The KD5015 is a high-precision tester for surface/volume resistivity and micro-current measurement, integrating an ohmmeter, picoammeter, and high-voltage source. It offers a wide resistance range (10KΩ~1PΩ) and voltage output (0.5V~1000V), with a 4.3-inch color LCD for clear data display. Featuring fast testing (12 times/sec), sorting functions, and multiple interfaces (USB, RS232, Handler), it’s designed for automated production lines and lab testing of insulation materials.

Features:

Integrated insulation resistance, micro-current, and high-voltage source in one instrument
Wide resistance range: 10KΩ~1PΩ (KD5015), 10KΩ~100PΩ (KD5017)
Voltage output: 0.5V~1000V with high accuracy
4.3-inch color LCD for intuitive parameter display
Fast testing speed: up to 12 readings/sec
Pass/fail sorting function with Handler/RS232 output
Multiple trigger modes: internal, external, foot switch, interface trigger
Programmable sequence testing for automated workflows

Parameter:

Model Options: KD5015 (10KΩ~1PΩ), KD5017 (10KΩ~100PΩ)
Current Range: 1mA~0.001pA
Voltage Range: 0.5V~1000V
Current Accuracy: >10nA: ±2%; ≤2nA: ±5%; ≤20pA: ±15%
Voltage Accuracy: ≥10V: ±0.25%+0.5V; <10V: ±1%+0.5V
Display: 4.3-inch color LCD (800×480)

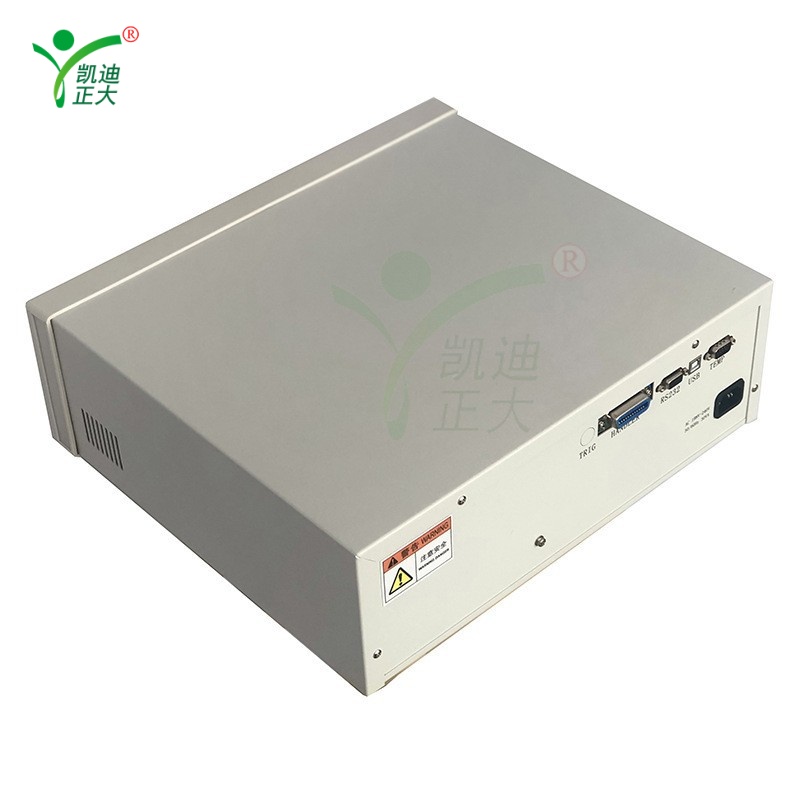

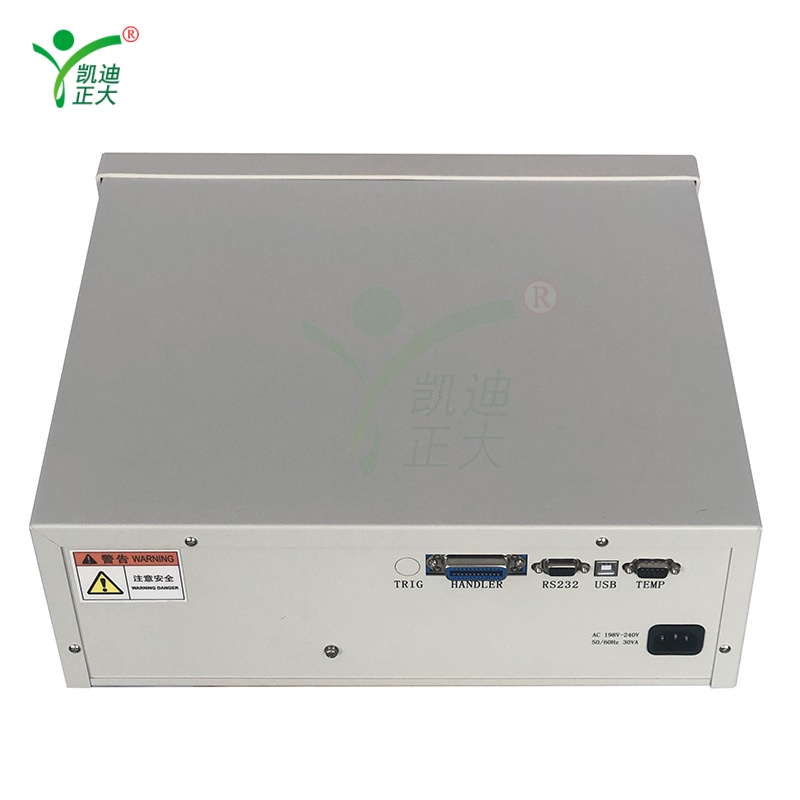

Interfaces: USB, RS232, Handler, USB HOST/DEVICE
Power Supply: AC 220V±10%, 50/60Hz
Dimensions: 400×356×110mm
Weight: ~4.5kg

Kaidi Zhengda Electric

Products

KD5015 Surface & Volume Resistivity Tester for Insulation Materials

Profile:

Features:

Parameter:

Contact Us

Kaidi Zhengda

Contact Us

About Us

Compnay Info

Quick Contact

+86-027-83551828

Kaidi Zhengda Electric

Products

KD5015 Surface & Volume Resistivity Tester for Insulation Materials

Profile:

Features:

Parameter:

Contact Us

Kaidi Zhengda

Related Products

KD5015 Surface & Volume Resistivity Tester for Insulation Materials

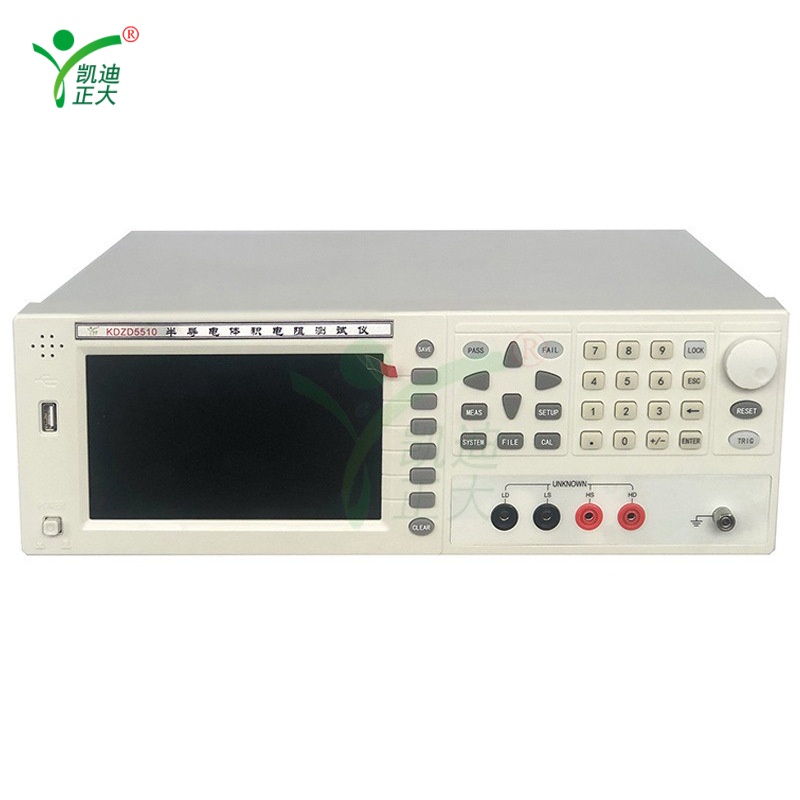

KDZD5510 Digital DC Resistance & Resistivity Tester for Semiconductors & Conductors

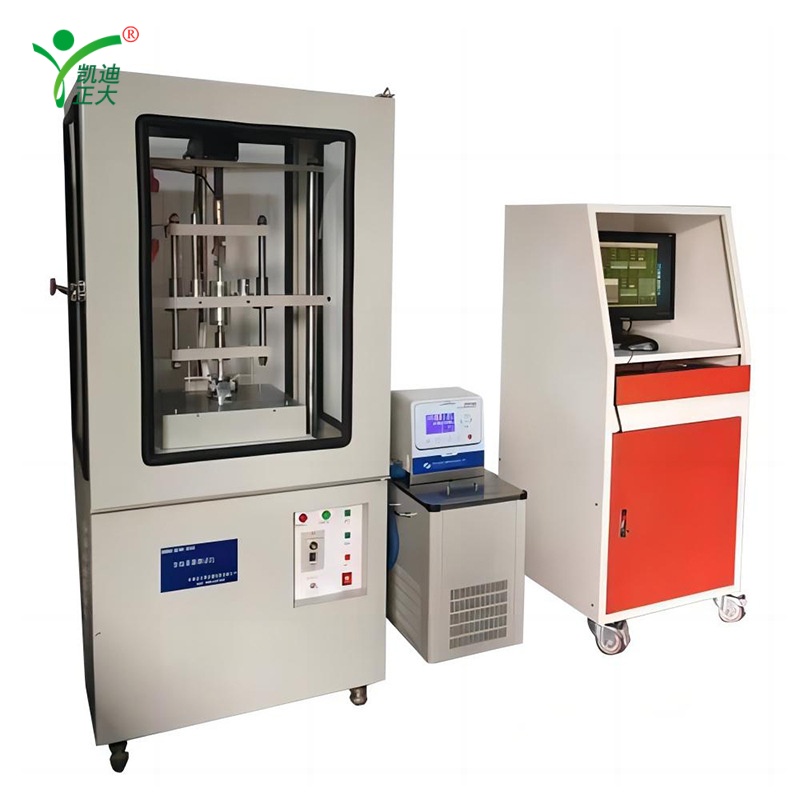

KDYD-DR Guarded Hot Plate Thermal Conductivity Tester

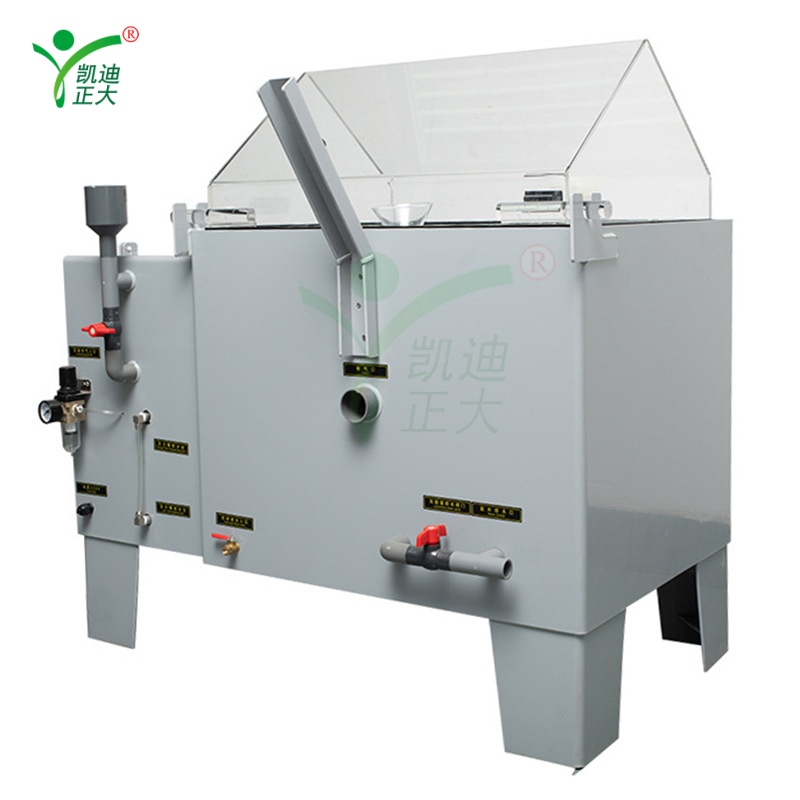

KDYD-YW Salt Spray Tester for Corrosion Resistance Testing
