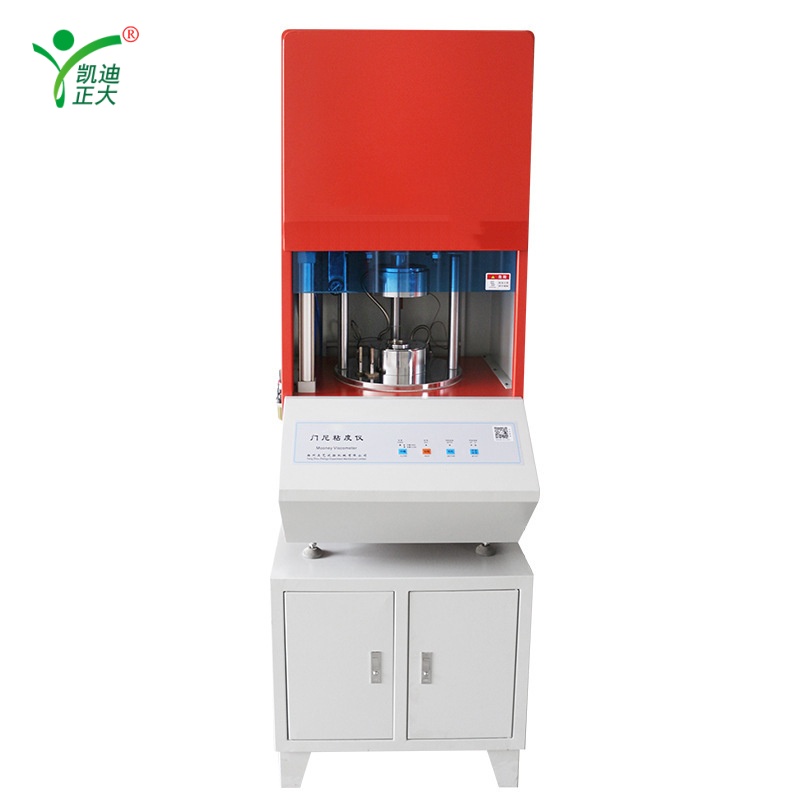

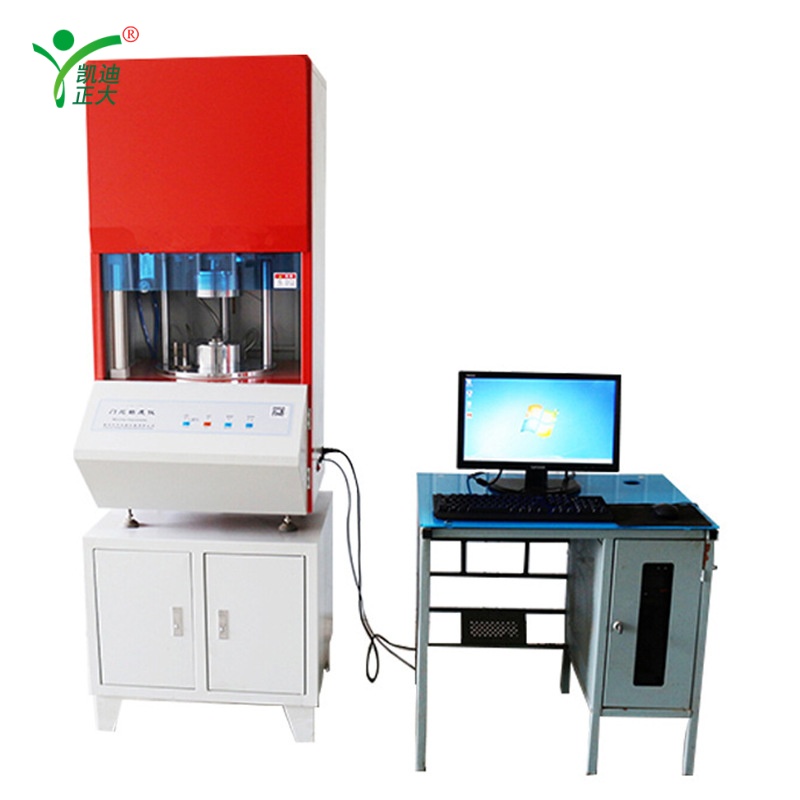

KDZD5289 Computerless Rheometer for Rubber Vulcanization Curve Testing
KDZD5289 Computerless Rheometer for Rubber Vulcanization Curve Testing

KDZD5289 Computerless Rheometer for Rubber Vulcanization Curve Testing

Applications:

Designed for rubber industry quality control and R&D to test vulcanization characteristics, including curing time, index, and torque. Ideal for rubber product manufacturing, material formulation development, and quality inspection labs.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDZD5289 is a computer-controlled non-rotary rheometer that accurately measures rubber vulcanization parameters. It features precise temperature control (ambient~200°C) and high-resolution torque measurement (0~20N·m, 0.001N·m precision). The software automatically records vulcanization curves, ML, MH, ts1, t90, and other key data, storing results in a database for real-time analysis and historical tracking. It complies with GB/T16584 and ISO-6502 standards, making it essential for rubber material testing and production control.

Features:

  • Computer-controlled temperature regulation (ambient~200°C) with 0.01°C resolution
  • High-precision torque measurement (0~20N·m, 0.001N·m precision)
  • Automatic recording of vulcanization curves, ML, MH, ts1, t90, and Vc1/Vc2
  • Intuitive operation with computer interface and keypad backup
  • Supports single/multi-curve testing and comparison with data storage/printing
  • Compliant with GB/T16584, ISO-6502, ASTM, and HG/T3709 standards

Parameter:

  • Standards: GB/T16584, ISO-6502, ASTM D5289-95, ISO6502:1991, HG/T3709-2003
  • Mold Structure: Fully closed
  • Temperature Range: Ambient~200°C
  • Temperature Fluctuation: ≤±0.2°C
  • Temperature Resolution: 0.01°C
  • Torque Range: 0~20N·m (auto: 0~5N·m, 0~10N·m, 0~20N·m)
  • Torque Precision: 0.001N·m
  • Power Supply: 50Hz, ~220V±10%
  • Air Pressure: ≥0.40Mpa
  • Oscillation Frequency: 100cpm (1.7HZ)
  • Swing Angle: ≤±0.5°, ±1°
  • Curing Time Range: 2~300min (10 in 10s~5h)
  • Environment: 0~35°C, ≤80%RH
  • Dimensions: 600×700×1250mm
