KDZD5050 Three-Phase Programmable Precision Test Power Source
KDZD5050 Three-Phase Programmable Precision Test Power Source

KDZD5050 Three-Phase Programmable Precision Test Power Source

Applications:

Used for electrical energy metering, electrical lab testing, and related industries to calibrate meters and test electrical equipment. Delivers precise, stable AC/DC power with adjustable voltage, current, frequency, and phase.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

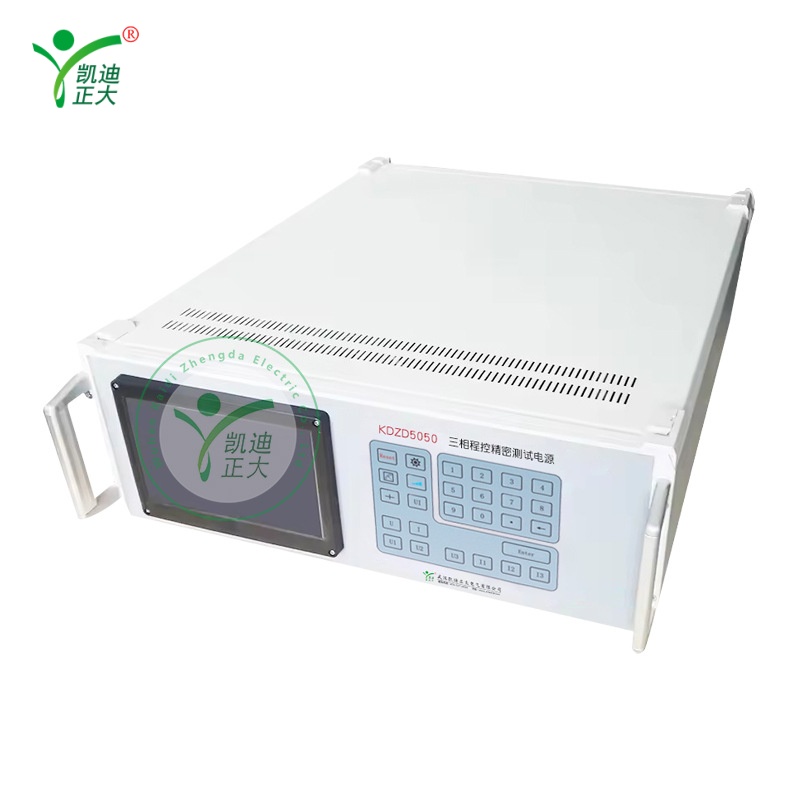

The KDZD5050 is an integrated three-phase programmable precision test power source, featuring an embedded system and large TFT touchscreen for intuitive operation. It combines high-precision A/D and D/A converters to deliver stable, accurate output with low distortion. Designed for portability, it supports multiple protection functions (overcurrent, overvoltage, etc.) and RS232 communication for computer control. It’s ideal for energy metrology labs and electrical testing departments.

Features:

  • Large TFT touchscreen interface for intuitive operation and data display
  • Built-in simulated energy meter to show voltage, current, power, and phase parameters
  • Comprehensive protection: overcurrent, overvoltage, power failure, and open circuit protection
  • Intelligent gear positioning for easy setting of rated voltage and current values
  • Rich test points for voltage, current, and phase verification
  • RS232 serial port for computer control and software upgrades

Parameter:

  • Output Voltage: 10~450V (internal gears: 57.7V, 100V, 220V, 380V), max 20VA
  • Output Current: 0.001~50A (internal gears: 0.2A, 1A, 5A, 20A, 50A), 20VA/50A, 40VA/50A
  • Output Frequency: 45~65Hz
  • Output Phase: 0~359.99°
  • Stability: ±0.02% (voltage/current, 2min)
  • Distortion: ≤0.5% (non-capacitive load)
  • Accuracy:
    • Voltage/Current/Power Factor/Active/Apparent Power: 0.5%
    • Frequency: 0.02Hz
    • Phase: 0.5°
    • Reactive Power: 1%
  • Power Supply: Single-phase AC 120~262V, 50/60Hz
  • Dimensions: 440×440×160mm
  • Weight: 25kg
