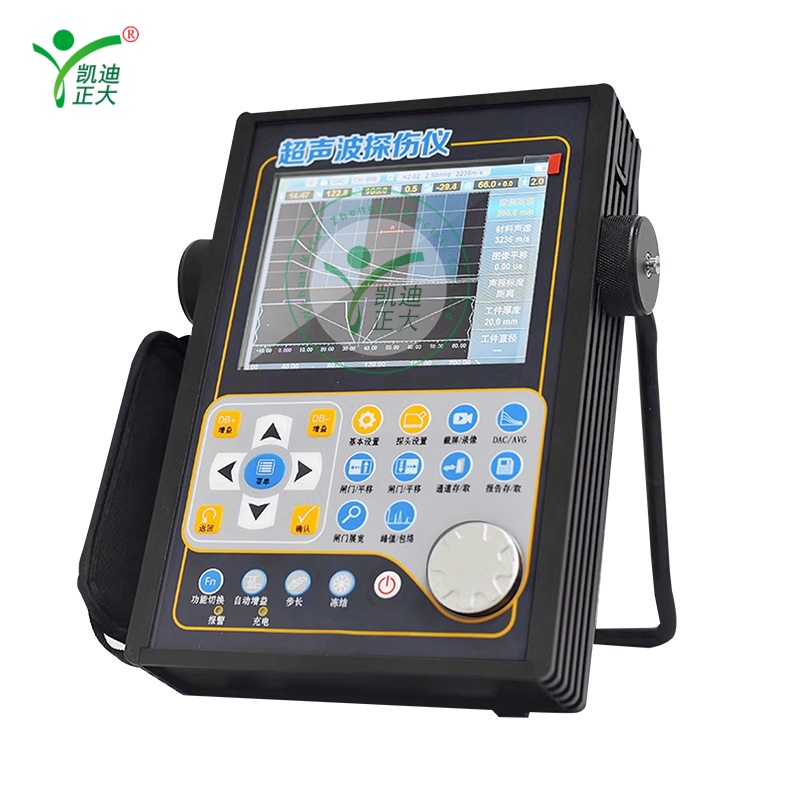

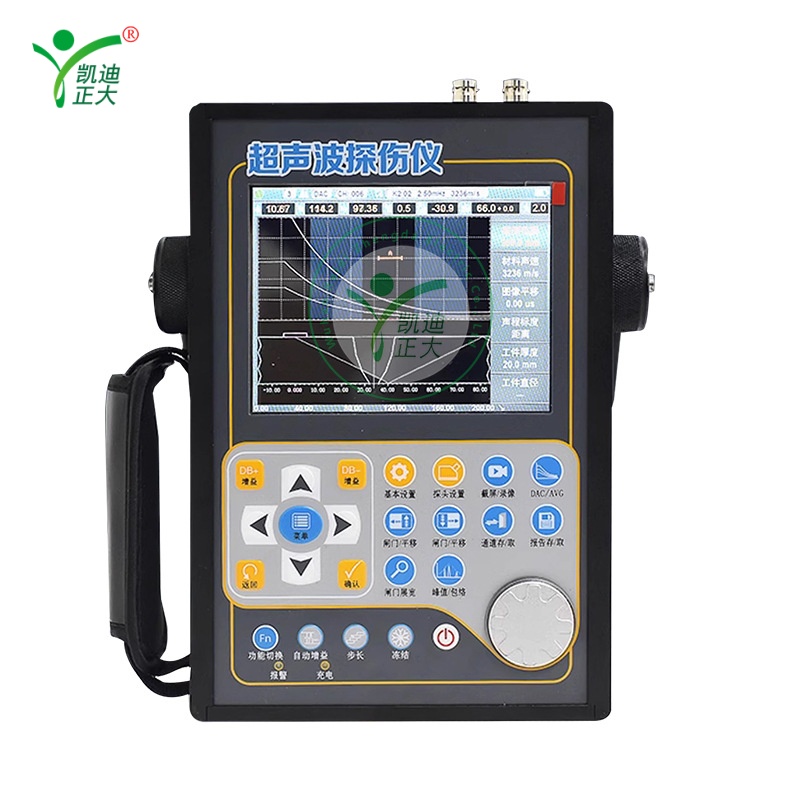

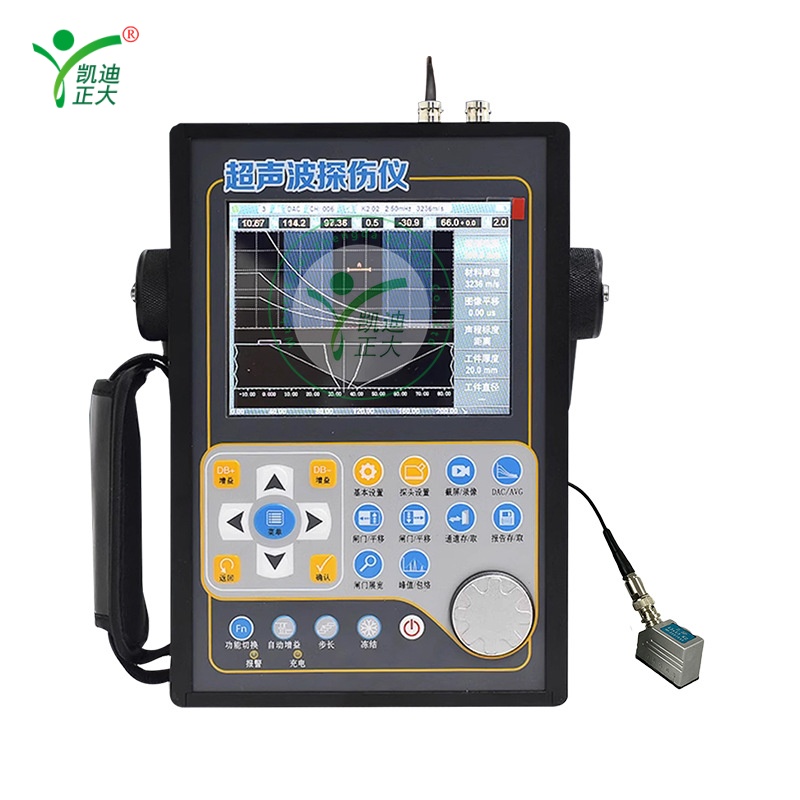

Profile:
Real-time recording waveform, storage, playback
Supports 500 groups of flaw detection parameter channels and 1000 groups of flaw detection reports
USB2.0 high-speed communication transmission interface
Features:
Screenshots and PDF inspection reports
Real-time screenshot of all pages and inspection report, and save as BMP picture to the USB flash drive, can be set as color or grayscale picture, the inspection report exported as PDF file saved to the USB flash drive, convenient archiving and printing
Detection range
Zero interface incidence: 0~15000mm(steel medium and longitudinal wave), can be adjusted continuously
Transmitting pulse
Pulse amplitude: 100V, 200V, 250V, 300V, 350V, 400V, 450V, 500V classification selection, suitable for a wide range of probes
Pulse width: Continuously adjusted in the range of (0.0. to 0.510)µs to match probes of different frequencies
Probe damping: 50Ω, 150Ω, 250Ω, 500Ω optional, to meet the sensitivity and resolution of different working requirements
Working mode: single crystal straight probe, single crystal oblique probe, double crystal straight probe, double crystal oblique probe, penetration detection
Amplified reception
Hardware real-time sampling: high resolution 16-bit AD sampling, sampling speed 320MHz, waveform high fidelity
Detection mode: positive half wave, negative half wave, full wave, radio frequency detection
Filter frequency band (0.2~20) MHz, automatically matching according to the probe frequency, no manual setting
Increment: Total increment 110dB, set 0, 0.1dB, 1dB, 2dB, 6dB step values
Gate: Gate A and gate B, you can choose to set the wave alarm or wave alarm
Parameter:
Detection range: (0~15000)mm
Operating frequency: 0.5MHz ~ 15MHz
Sound speed range: (100~20000)m/s
Repetition frequency: (20~3000)Hz
Dynamic range: ≥38dB
Vertical linear error: ≤2.5%
Horizontal linear error: ≤0.2%
Resolution: >40dB(5P14)
Sensitivity margin: >65dB(200mm deep with 2 flat holes)
Digital suppression: (0~80)%, does not affect linearity and gain
Electrical noise level: ≤10%
Probe type: straight probe, oblique probe, twin probe, penetrating probe
Weld software: regular form
Gate: incoming gate, lost gate; Single gate reading, double gate reading
Power supply: DC (DC) 9V; The lithium battery works continuously for more than 8 hours
Alarm: buzzer alarm, LED light alarm
Size: 263×170×61(mm)
Weight: 1.92kg
