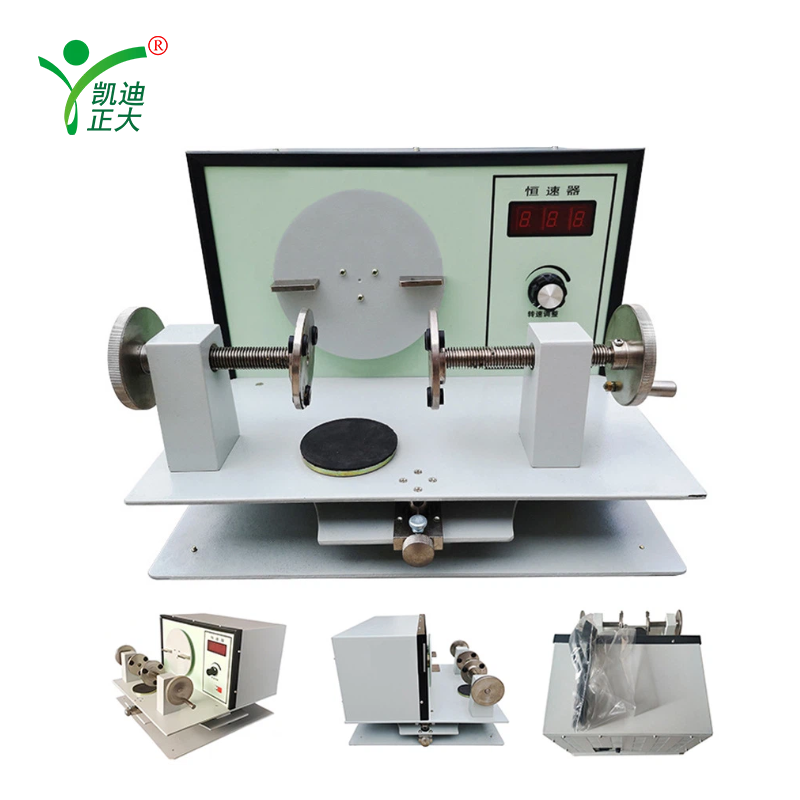

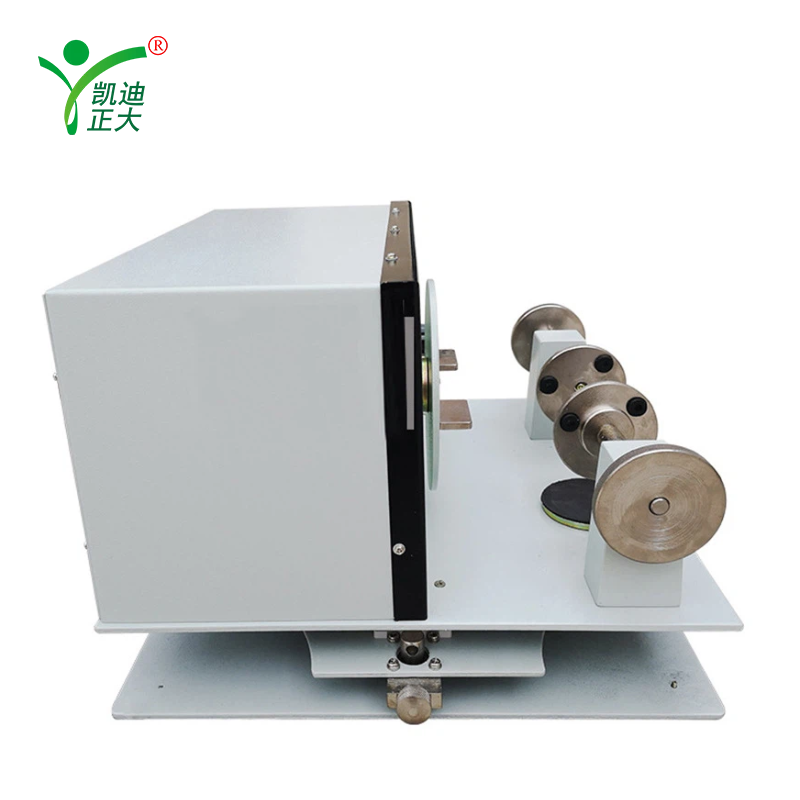

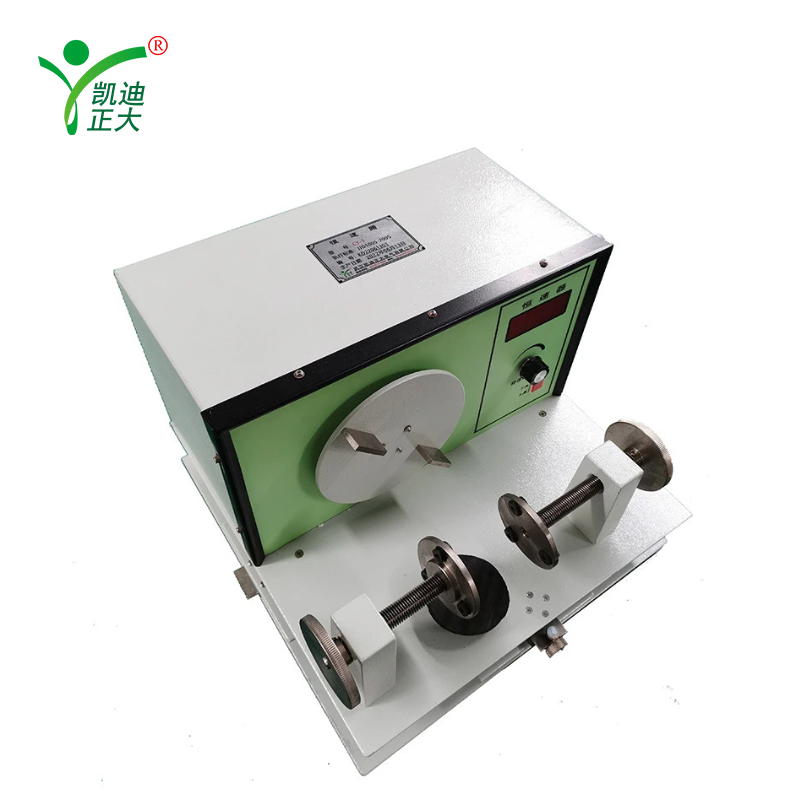

KDCY3 Constant Speed Driver
KDCY3 Constant Speed Driver

KDCY3 Constant Speed Driver

Applications:

Designed in compliance with JJG622-97, it is a supporting device for verifying insulation resistance meters. It drives insulation resistance meters to rotate and enables verification with ±5° tilt (front/back/left/right), ensuring accurate and reliable calibration.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

A constant speed driver powered by a DC permanent magnet motor, featuring stepless speed regulation via voltage adjustment. Equipped with a digital tachometer for precise speed measurement, it is compact and easy to operate for insulation resistance meter verification.

Features:

  1. Complies with JJG622-97 "Verification Regulation of Insulation Resistance Meters" for standard calibration.
  2. DC permanent magnet motor drive realizes stepless speed regulation with convenient adjustment.
  3. Digital tachometer ensures accurate and reliable measurement of drive disk speed.
  4. Supports 5° tilt verification (front, back, left, right) while driving insulation resistance meters.
  5. Compact structure and simple operation, ideal for matching insulation resistance meter verification.

Parameter:

  1. Speed regulation range: 0~≥200r/min (no-load), continuously adjustable
  2. Speed accuracy: ±1r/min
  3. Power supply: AC 220V(1+10%), 50Hz
  4. Power consumption: ＜50VA
  5. Dimensions: 390mm×390mm×320mm
