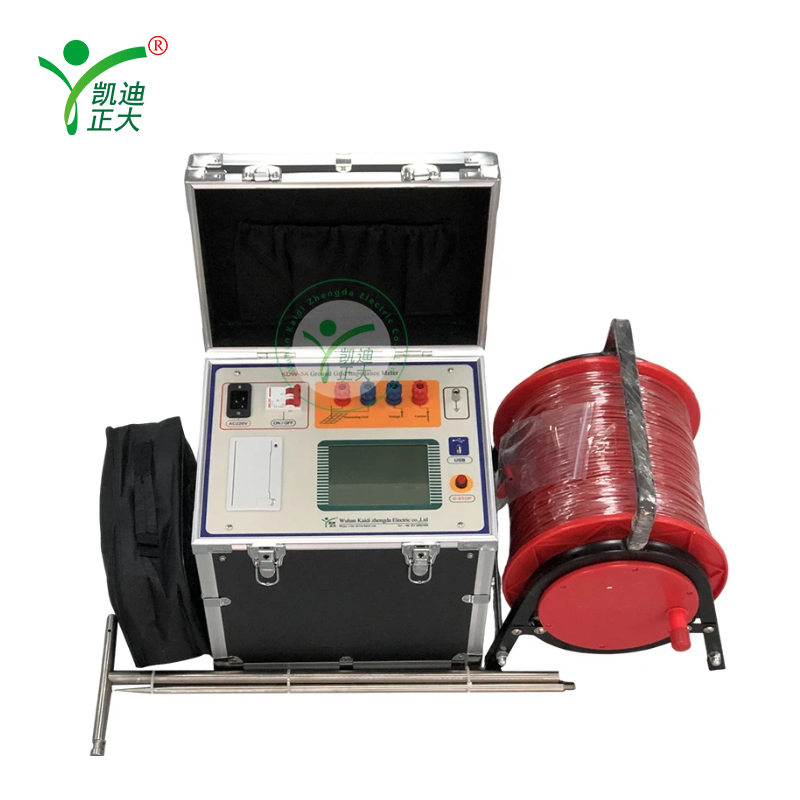

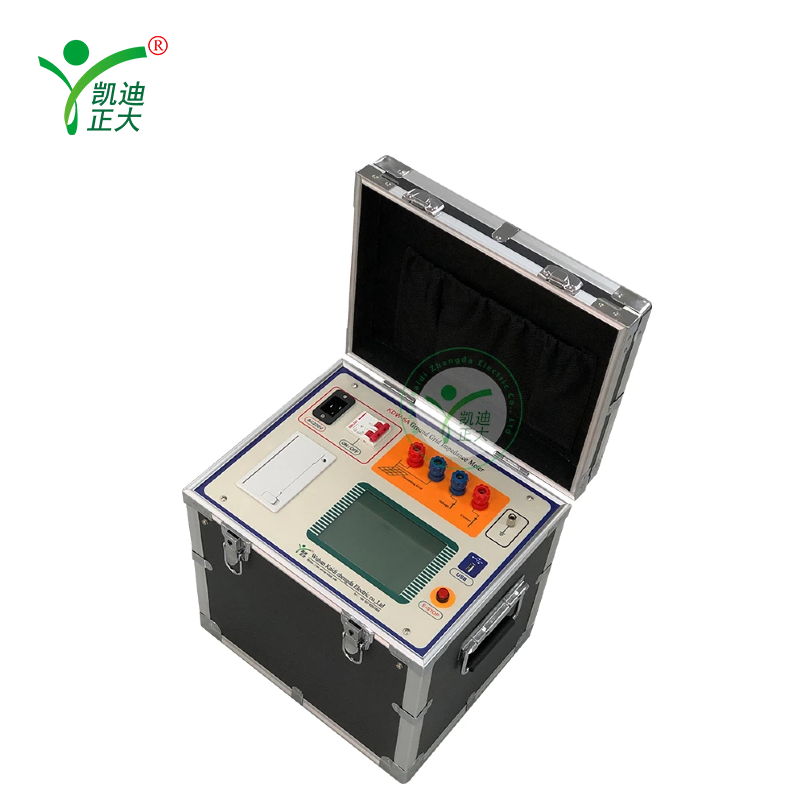

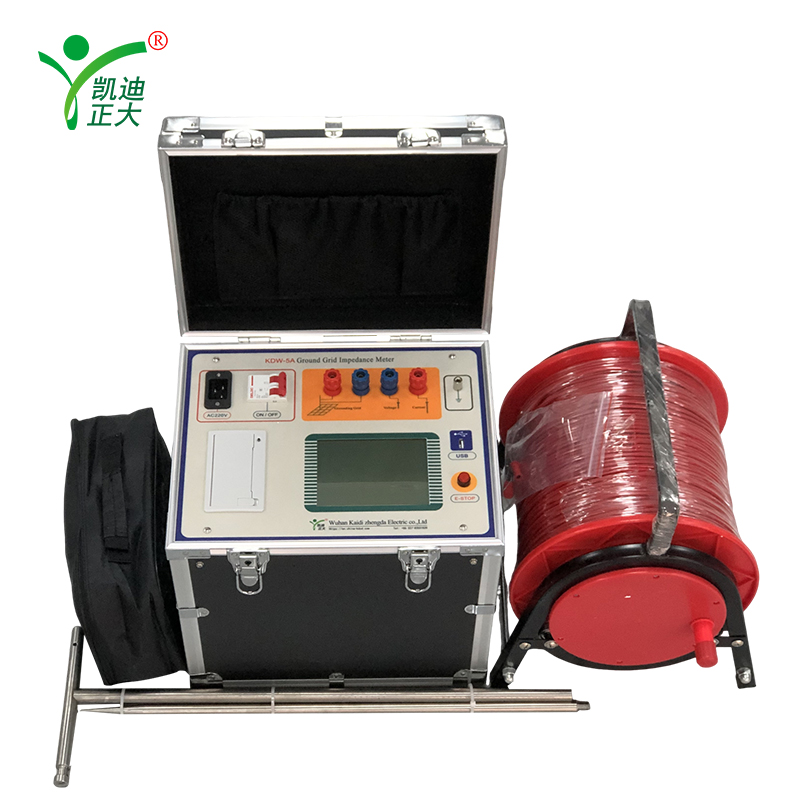

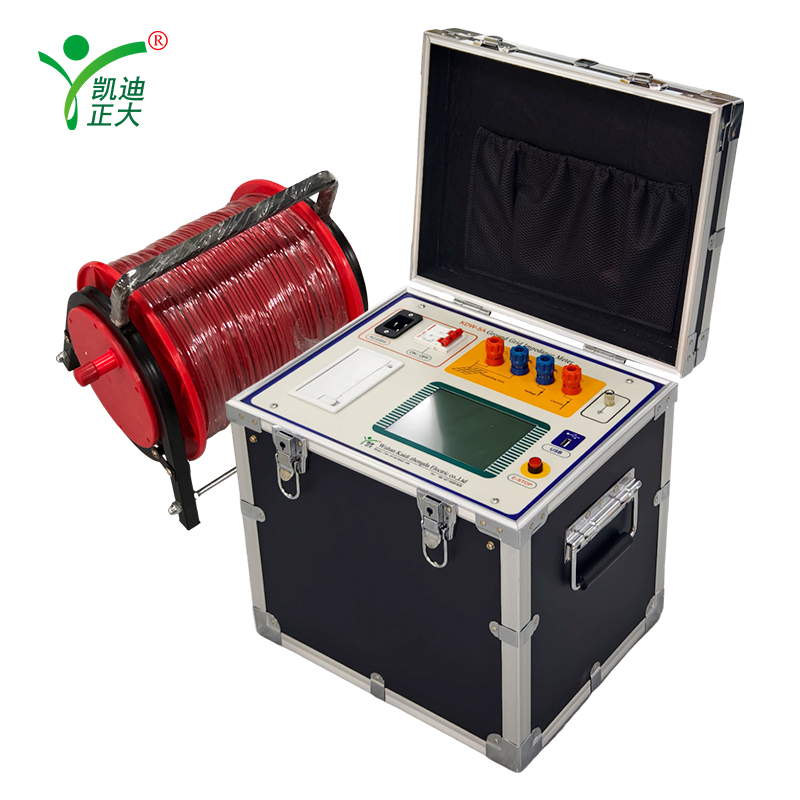

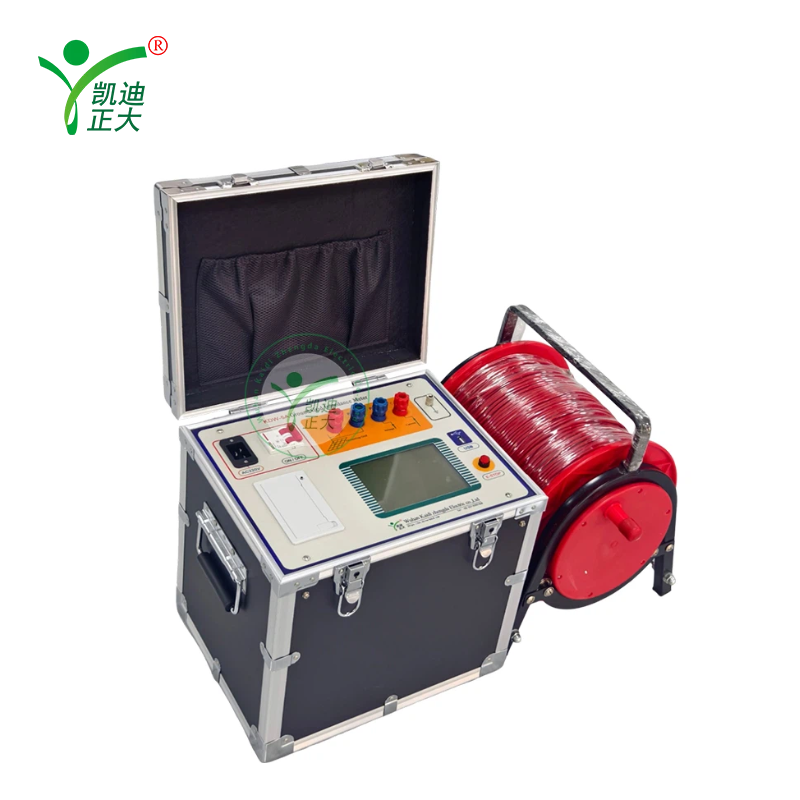

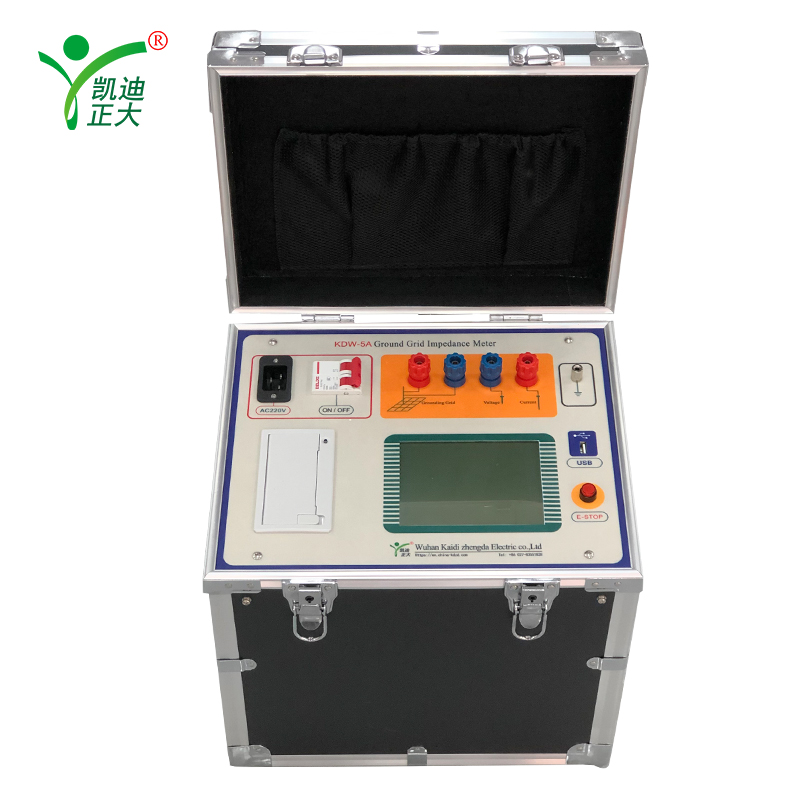

KDW-5A Ground Grid Impedance Tester
KDW-5A Ground Grid Impedance Tester

KDW-5A Ground Grid Impedance Tester

Applications:

This device is widely used in substations and similar fields for measuring ground resistance and related parameters of large and medium-sized ground grids. Ideal for harsh electromagnetic environments, it delivers accurate, stable results with strong anti-interference ability.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

A high-precision, portable integrated tester with a built-in variable-frequency power module and DSP processor. It uses frequency conversion and digital filtering to avoid power frequency interference, supporting intelligent measurement and data export.

Features:

  1. Large full-touch LCD with graphical interface, enabling one-key operation and no extra professional training required.
  2. Variable frequency technology (45Hz/55Hz etc.) and digital filtering ensure strong anti-interference performance in harsh environments.
  3. Professional DSP high-speed processor enhances computing capacity for fast and accurate measurements.
  4. Full-process intelligent monitoring: automatically adjusts output current, completes testing without manual intervention, measuring Z, R and X.
  5. Mass data storage: saves 100 groups of results with time stamps, supporting review, printing and USB flash drive export.
  6. PC data processing: exported data can be queried and managed on PC for convenient analysis.

Parameter:

  1. Operating conditions: Temperature -10℃～40℃; Relative humidity <80%
  2. Anti-interference principle: Frequency conversion method
  3. Power supply: AC 220V±10%, generator compatible
  4. Measurement output current: 1A～5A (adjustable)
  5. Measurement output voltage: 0V～400V
  6. Test power frequency: Single frequency (50Hz, 60Hz); Automatic dual frequencies (45/55Hz, 55/65Hz, 47.5/52.5Hz, 57.5/62.5Hz)
  7. Rated output power: 2000W
  8. Resolution: Ground impedance 0.0001Ω; Impedance angle 0.0001°
  9. Accuracy: Ground impedance ±(reading×1% + 0.002Ω); Impedance angle ±(reading×1% + 0.02°)
  10. Resistance measurement range: 0.001Ω～5kΩ
  11. Dimensions (L×W×H): 370mm×295mm×358mm
  12. Storage capacity: 100 groups, supporting USB flash drive data storage
  13. Weight: Main unit 22kg; Grounding stakes 7kg
