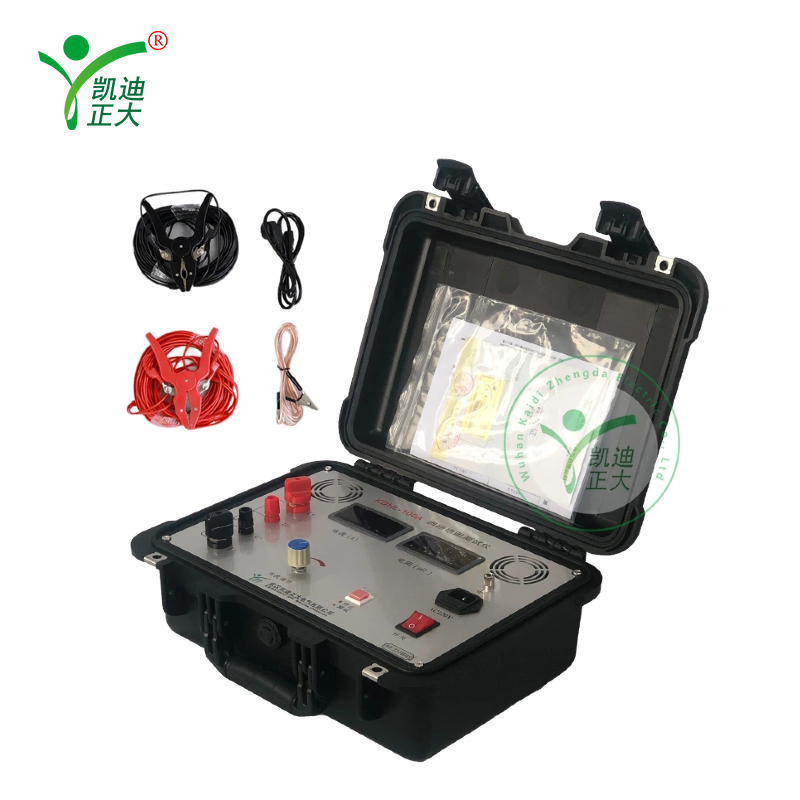

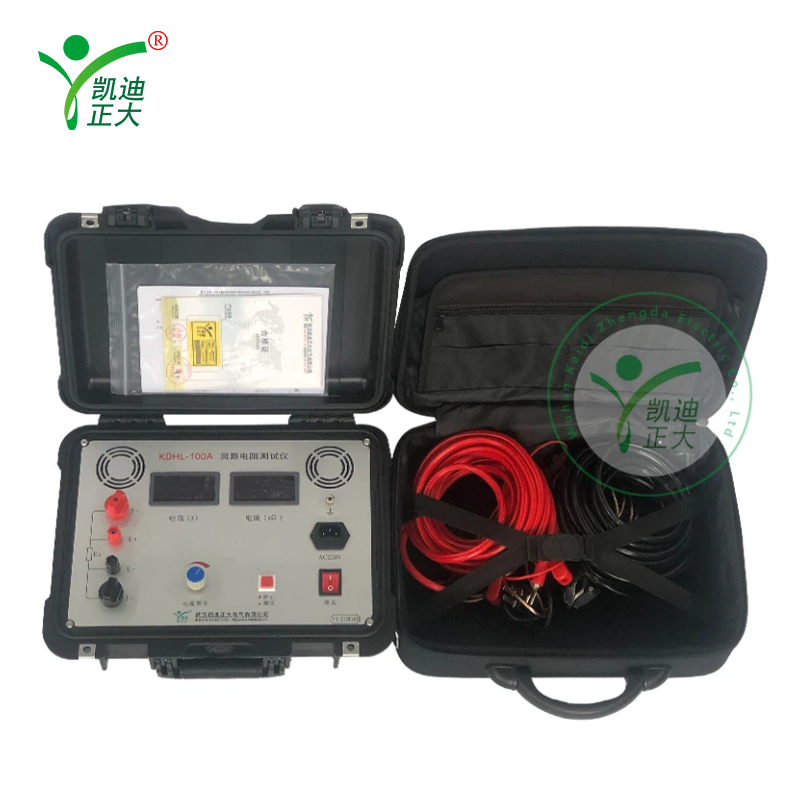

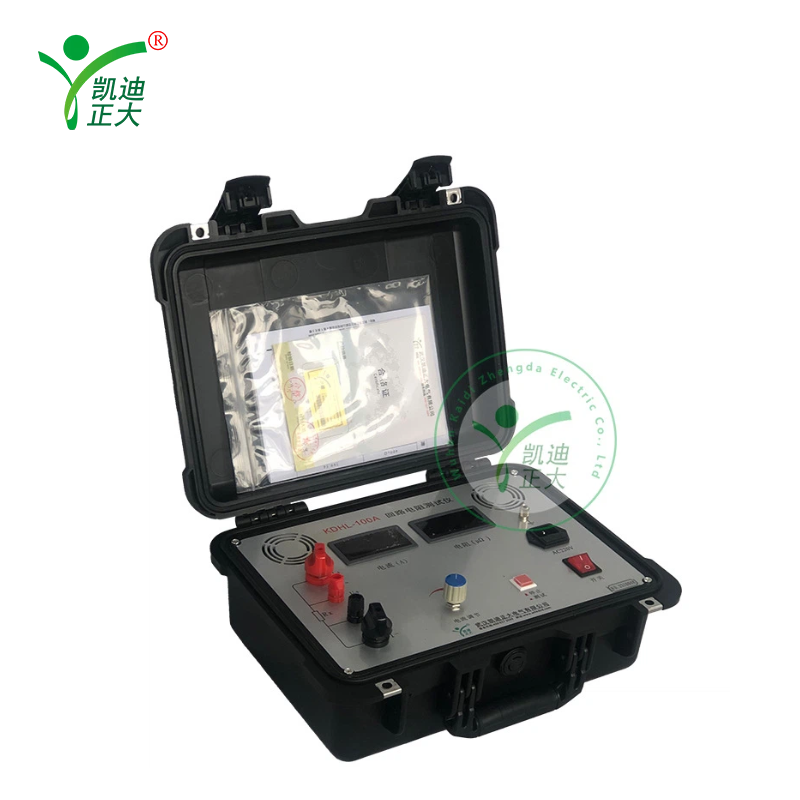

KDHL-100A High-Precision Loop Resistance Tester
KDHL-100A High-Precision Loop Resistance Tester

KDHL-100A High-Precision Loop Resistance Tester

Applications:

Complies with DL/T845.4—2004, JJG1052—2009 and other standards. Ideal for high-precision measurement of contact/loop resistance in high-voltage switches, and applicable to other scenarios requiring large-current and micro-resistance testing for power departments and switch manufacturers.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

A human-centric designed tester with high-frequency switching power supply and digital circuit tech. It outputs DC 50A/100A, offers 0.01μΩ stable resolution, and features data storage, printing, U-disk transfer, outperforming imported micro-ohmmeters.

Features:

  1. Large continuous current output (50A/100A) effectively breaks through contact oxide films, avoiding drawbacks of pulsed power.
  2. High stability: Last digit of display stabilizes within ±1 word under severe interference, ensuring repeatable readings.
  3. Ultra-high precision: Dual 16-bit Σ-Δ AD sampling and digital signal processing, achieving 0.01μΩ stable resolution.
  4. Intelligent: Imported high-performance CPU with auto-range switching and over-temperature protection for safe operation.
  5. Premium quality: Imported key components, temperature compensation circuit, and military-grade connectors for vibration resistance.
  6. Flexible settings: Selectable current gears and customizable test time (5s~599s) exceeding standard 60s requirement.
  7. User-friendly: Rotary mouse input, date/time setting, real-time data storage, and instant printing.
  8. U-disk transfer: Export data via USB for further analysis with upper computer software.
  9. Portable: Compact size and lightweight design for easy on-site carrying and use.

Parameter:

  1. Measurement range: 0～2999.9μΩ
  2. Resolution: 0~99.99μΩ (0.01μΩ); 100.0~2999.9μΩ (0.1μΩ)
  3. Test current: DC 50A, 100A (fixed output)
  4. Measurement accuracy: ±(0.5% rd + 2d)
  5. Continuous working time: 5s~599s
  6. Display: Large-screen Chinese LCD
  7. Communication method: U-disk data transfer
  8. Power supply: AC 220V±10%, 50Hz
  9. Total power: 1200W
  10. Maximum storage records: 200 entries
  11. Operating conditions: Temperature -10℃～40℃; Humidity ≤80%RH
  12. Dimensions (L×W×H): 380mm×300mm×260mm
