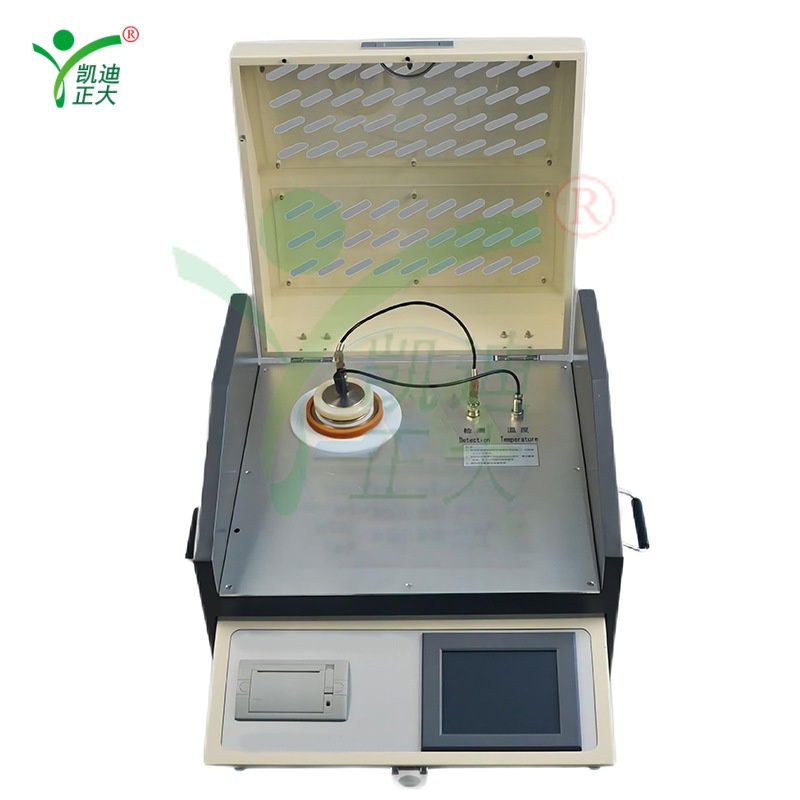

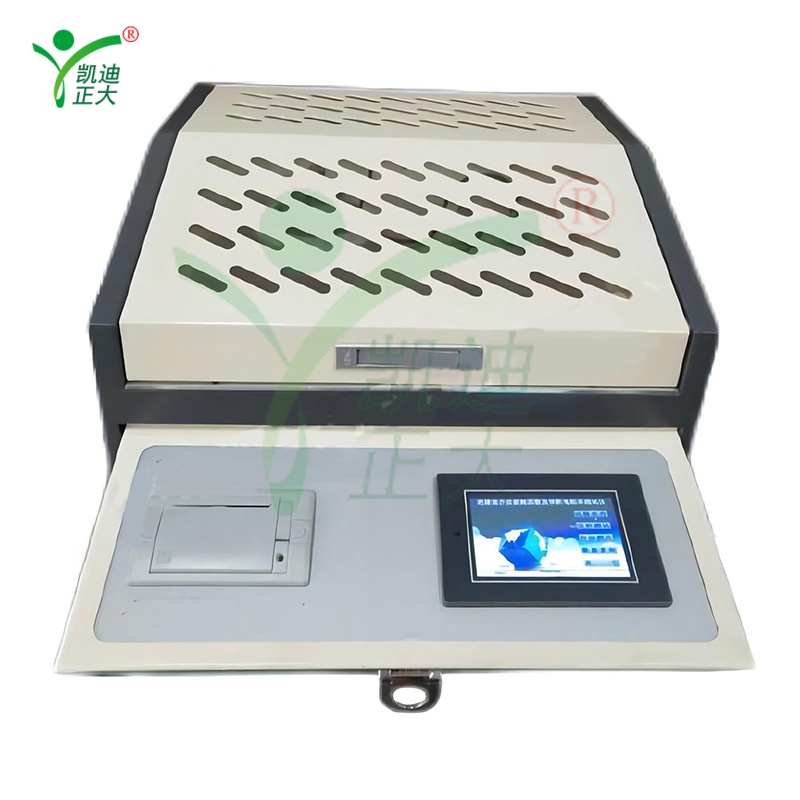

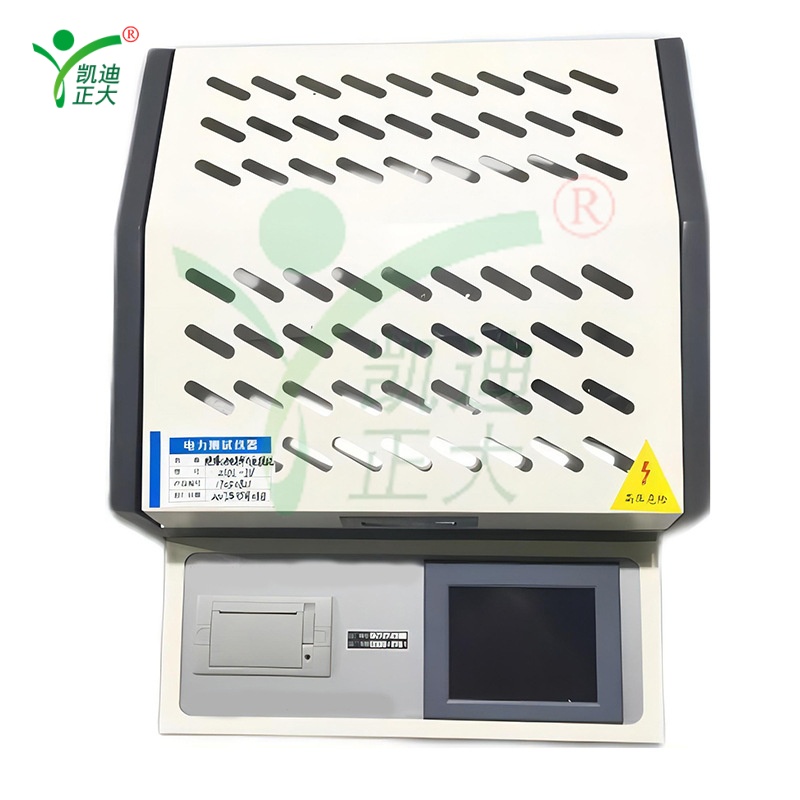

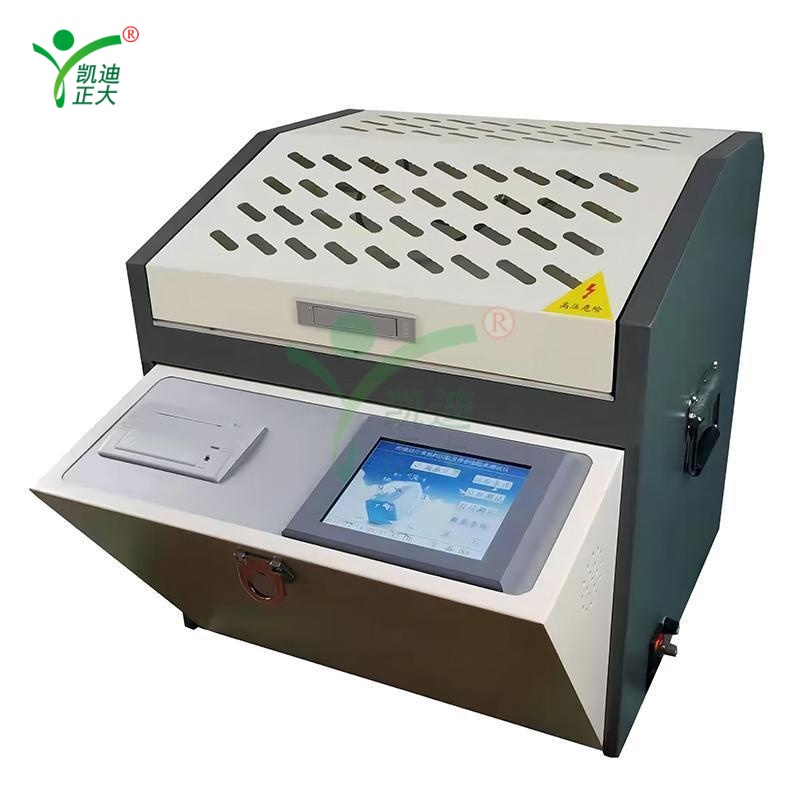

The internal integrated dielectric loss oil cup, temperature controller, temperature sensor, dielectric loss test bridge, AC test power supply, standard capacitor, high resistance meter, DC high voltage source and other main components. The instrument applies advanced measurement and control technology to fully automatic heating, temperature control, high-speed data sampling, calculation, display, printing and storage processes. Advanced measurement principles and highly digital technology make your work easier and more convenient.

1, highly automated, temperature rise, measurement of dielectric loss can be completed at one time;
2, the oil cup adopts the three-electrode structure in line with the national standard GB/T5654-2007, the electrode spacing is 2mm, which can eliminate the influence of stray capacitance and leakage on the dielectric loss test results;
3, the instrument adopts medium frequency induction heating, PID temperature control algorithm. The heating method has the advantages of non-contact between the oil cup and the heating body, uniform heating, fast speed, convenient control, etc., so that the temperature is strictly controlled within the preset temperature error range.
4. Adopt advanced DSP and FFT technology to ensure data stability, accuracy and reliability.
5, the internal standard capacitor is SF6 inflatable three-pole capacitor, the dielectric loss and capacitance of the capacitor are not affected by ambient temperature, humidity, etc., so that the accuracy of the instrument is still guaranteed after a long time.
6, large screen color touch screen, simple and clear operation, at a glance.
7, with cover break high pressure, oil cup high and low electrode short circuit and other warm tips, eliminate safety risks, to ensure the operator's personal safety and normal operation of equipment.
8, with real-time clock, test date, time can be saved with the test results, display, print; The device can display the ambient temperature and detect the test environment in real time.
9, automatic storage of measurement data, can store 100 groups of measurement data.
10. Empty electrode cup calibration function. Measure the capacitance and dielectric loss factor of the empty electrode cup to judge the cleaning and assembly condition of the empty electrode cup. Calibration data is automatically saved to facilitate accurate calculation of relative permittivity.

Measuring range: Capacitance 5pF ~ 200pF
Relative permittivity 1.000 ~ 30.000
Dielectric loss factor 0.00001 ~ 100
Measurement precision: Capacitance ±(0.5% reading +1pF)
Relative permittivity ±1% reading
Dielectric loss factor ±(1% reading +0.0001)
Resolution: Capacitance 0.01pF
Relative permittivity 0.001
Dielectric loss factor 0.00001
Temperature range: 0 ~ 125℃
Temperature measurement error: ±0.5℃
Ac test voltage: 500 ~ 2200V continuously adjustable, frequency 50Hz
Power consumption: 100W
External size: 420mm*380mm*385mm
Total weight: 21Kg
Conditions of use
1. The ambient temperature ranges from 0 to 40 ° C
2. Relative humidity ≤80%
3. Working power AC 220V (1 ± 10%)
4. Power frequency 50 Hz (1 ± 10%)
5. Power consumption < 200 W
