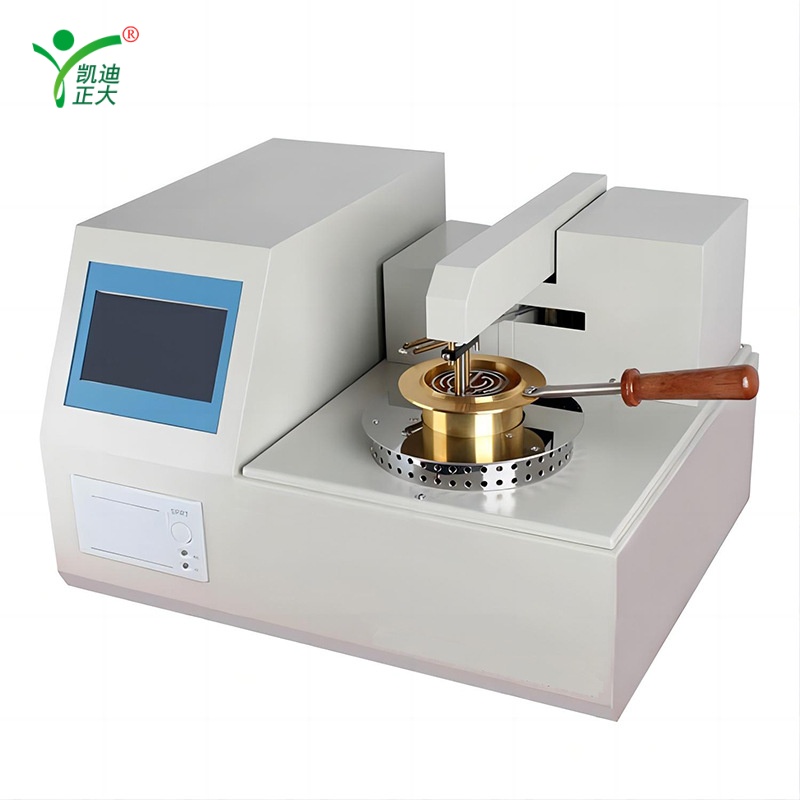

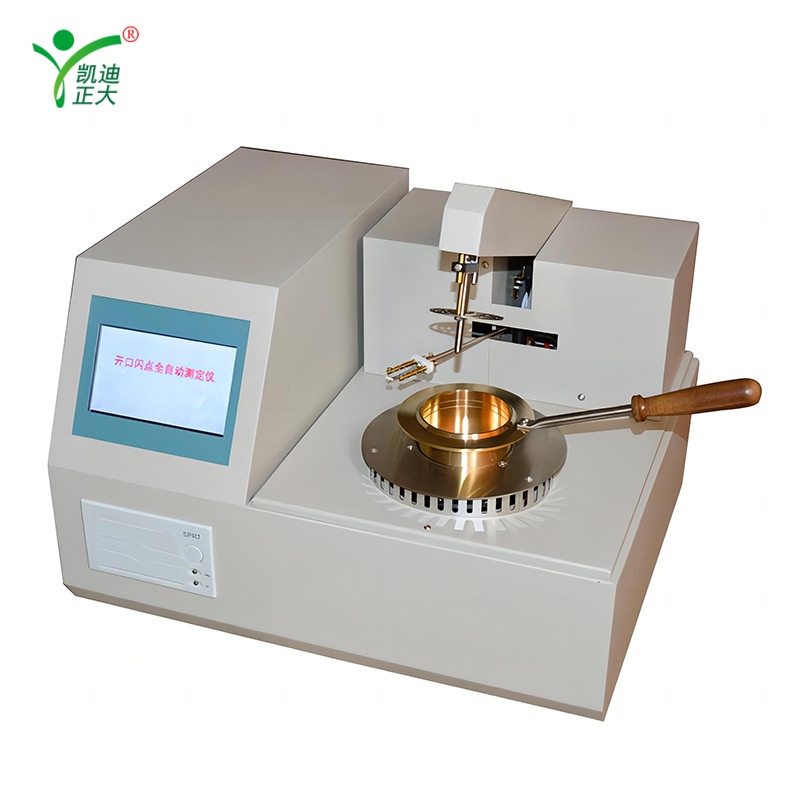

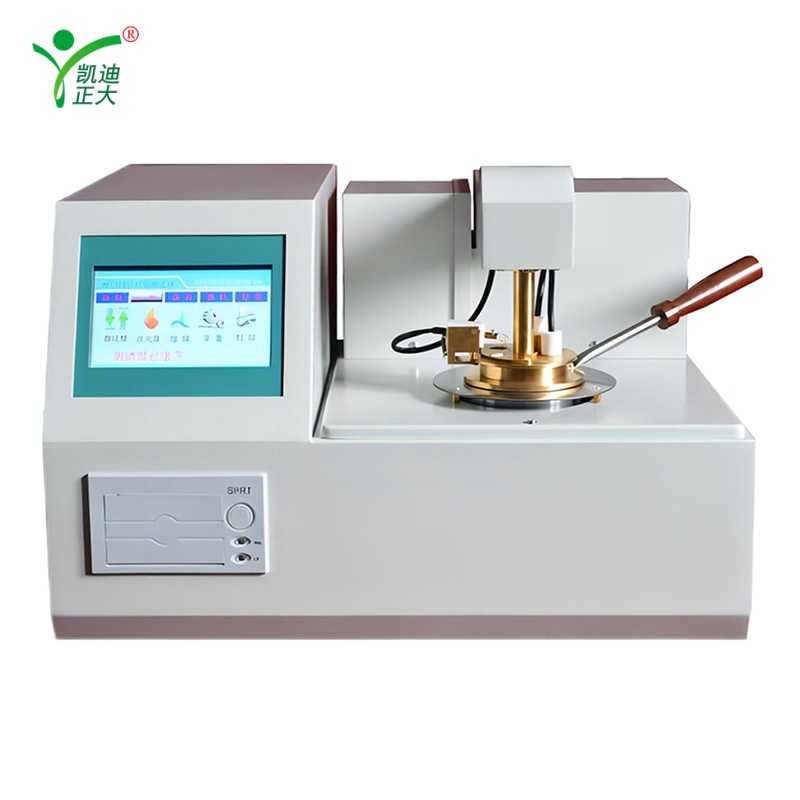

KDKS-303A open flash point automatic tester
KDKS-303A open flash point automatic tester

KDKS-303A open flash point automatic tester

Applications:

Used to measure the flash point and fire point of petroleum products, lubricating oils, and other flammable liquids, suitable for petroleum, power, chemical, and safety industries to evaluate flammability and safety performance.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

The KDKS-303A Automatic Open Cup Flash Point Tester is a precision instrument designed to determine the flash point and fire point of liquid samples. It adopts closed-loop control for precise temperature regulation and forced air cooling for fast cooling. With a 7-inch color touchscreen, automatic atmospheric pressure correction, and dual ignition options (electric/gas), it delivers high sensitivity and reliable results. The large data storage (1000 records) and built-in printer make it ideal for laboratory testing and quality control.

Features:

  • Dual function measurement: Tests both flash point and fire point in one instrument
  • High sensitivity detection: Improved detection method for accurate results
  • Automatic correction: Corrects atmospheric pressure and sample flash point automatically
  • Fast temperature control: Rapid heating and cooling (efficiency improved by 40%)
  • 7-inch color touchscreen: Intuitive interface with capacitive touch
  • Flexible ignition: Choice of electric or gas ignition, with long-life platinum igniter
  • Large data storage: Stores up to 1000 test records with power-off protection
  • Self-check function: Monitors test head, rod, fan, and igniter for equipment health
  • Adaptive software: Automatically adjusts heating rate based on ambient temperature

Parameter:

  • Model: KDKS-303A
  • Temperature Range: Ambient ~400°C
  • Temperature Sensor: Platinum resistance (Class A)
  • Accuracy: ±2°C
  • Resolution: 0.1°C
  • Repeatability: 3°C
  • Reproducibility: ≤5°C
  • Display: 7-inch smart color LCD (capacitive touch)
  • Data Capacity: 1G (stores 1000 records)
  • Ignition Mode: Electric or gas ignition (optional)
  • Cooling Method: Forced air cooling
  • Power Supply: AC220V±10%, 50Hz±5%
  • Power Consumption: 550W
  • Operating Environment: 5°C~40°C, humidity ≤85%

Contact Us

Kaidi Zhengda Electric
Kaidi Zhengda

Oversea Sales Manager

Send Inquiry

Related Products

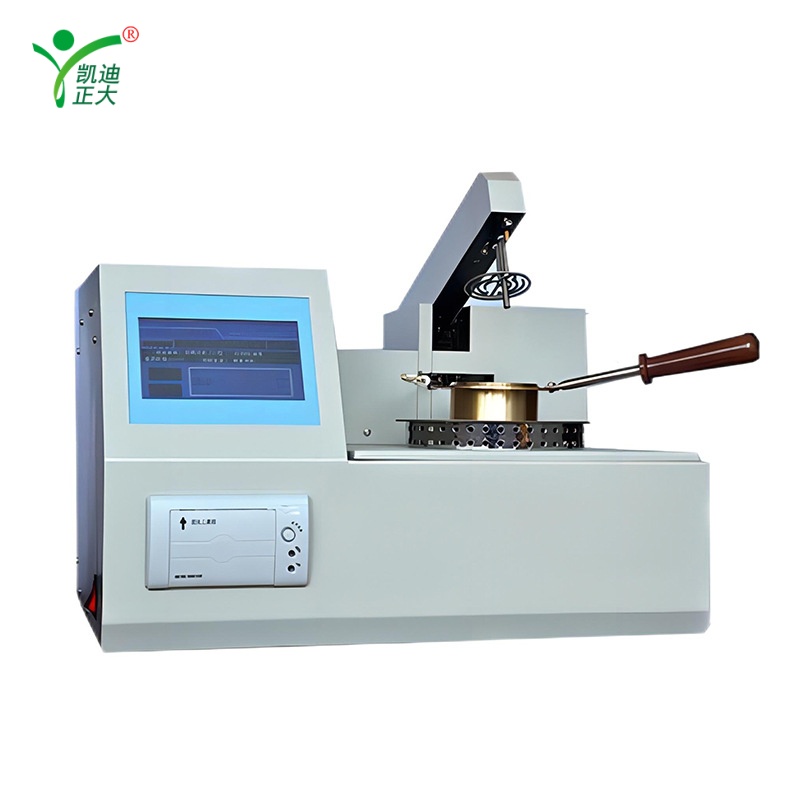

KDKS-303A open flash point automatic tester
KDKS-303A open flash point automatic tester
KDRH-303A Automatic Demulsibility Performance Tester for Petroleum Products
KDRH-303A Automatic Demulsibility Performance Tester for Petroleum Products

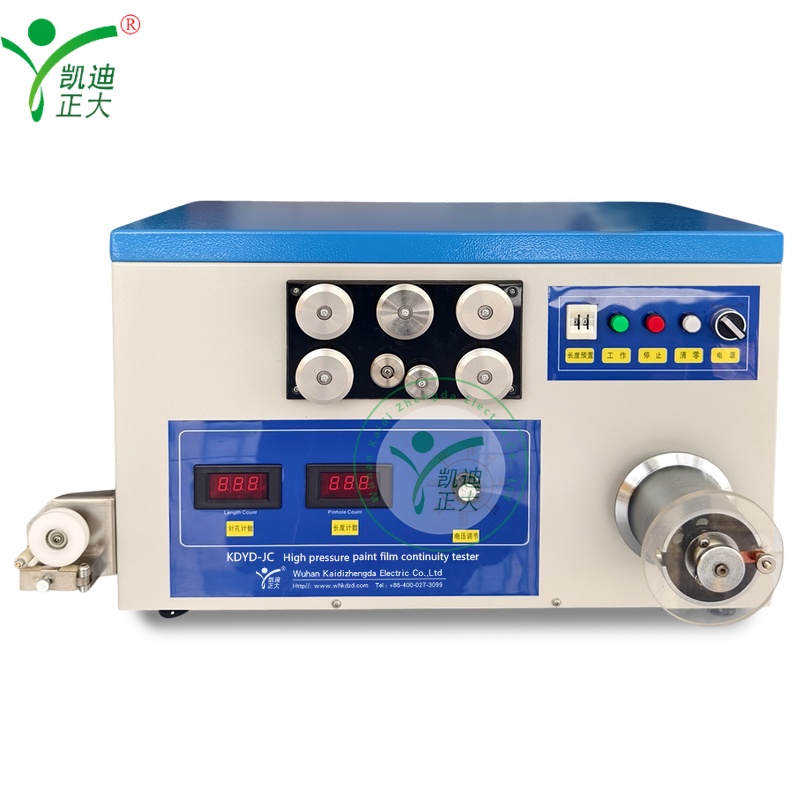

KDYD‑JC High‑Voltage Enameled Film Continuity Tester
KDYD‑JC High‑Voltage Enameled Film Continuity Tester

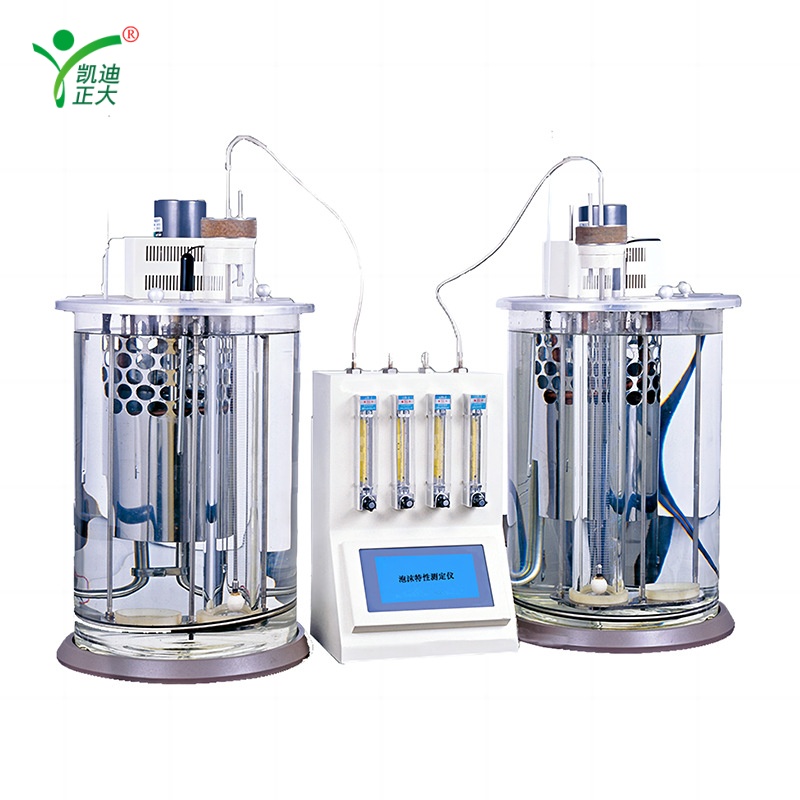

KDPM-303A Lubricating Oil Foam Characteristics Tester
