In the field of high voltage, ultra-high voltage, and ultra-high voltage switches, SF6 gas is used as an insulation and arc extinguishing medium. However, SF6 high voltage switches are mostly installed indoors, and the air flow is relatively slow. Once SF6 gas leaks, it is easy to cause local oxygen deficiency, resulting in suffocation of workers due to oxygen deficiency and posing a safety hazard to their lives. At the same time, it also reduces the arc extinguishing effect of high-voltage circuit breakers and causes damage to the circuit breaker body. Therefore, once SF6 gas leakage is discovered, corresponding measures must be taken to accurately locate the leakage point, repair the leakage point, and promptly eliminate the safety hazards of high-voltage circuit breakers.

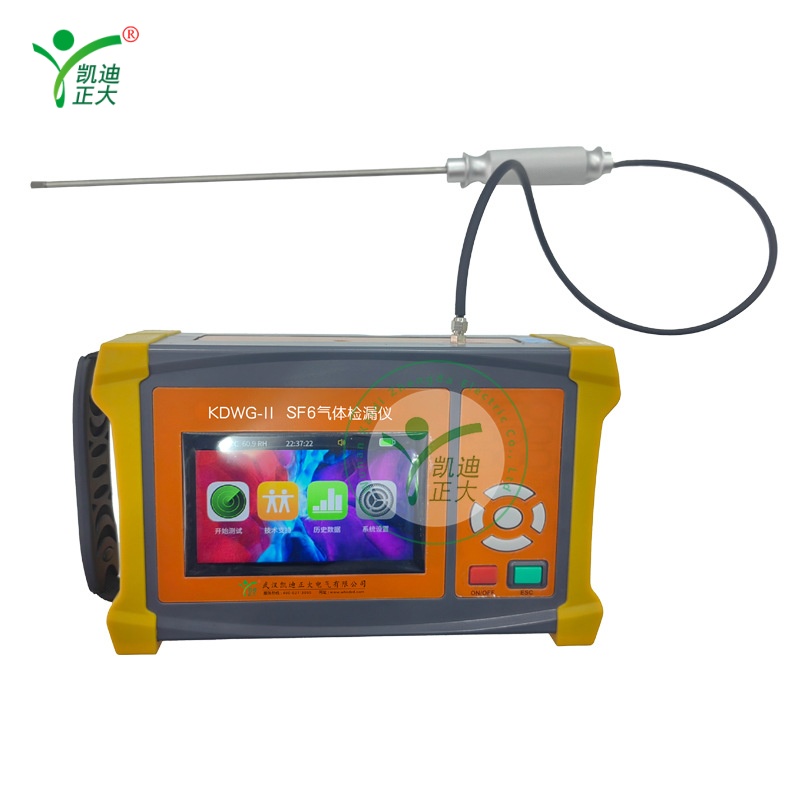

The high-precision handheld SF6 gas leak detector accurately searches for SF6 gas leakage points through various methods such as detecting SF6 gas concentration values, providing sound and light alarms based on user set concentration thresholds, and detecting data trend charts, which brings convenience to SF6 equipment maintenance.

Adopting pump suction and NDIR single beam dual wavelength infrared measurement technology, the detection sensitivity is high, accurate and stable;
Adopting high-precision digital processing technology, as well as drift control and temperature compensation circuits, with strong anti-interference ability;
It has self checking functions such as low battery, sensor failure, and exceeding the range during the detection process;

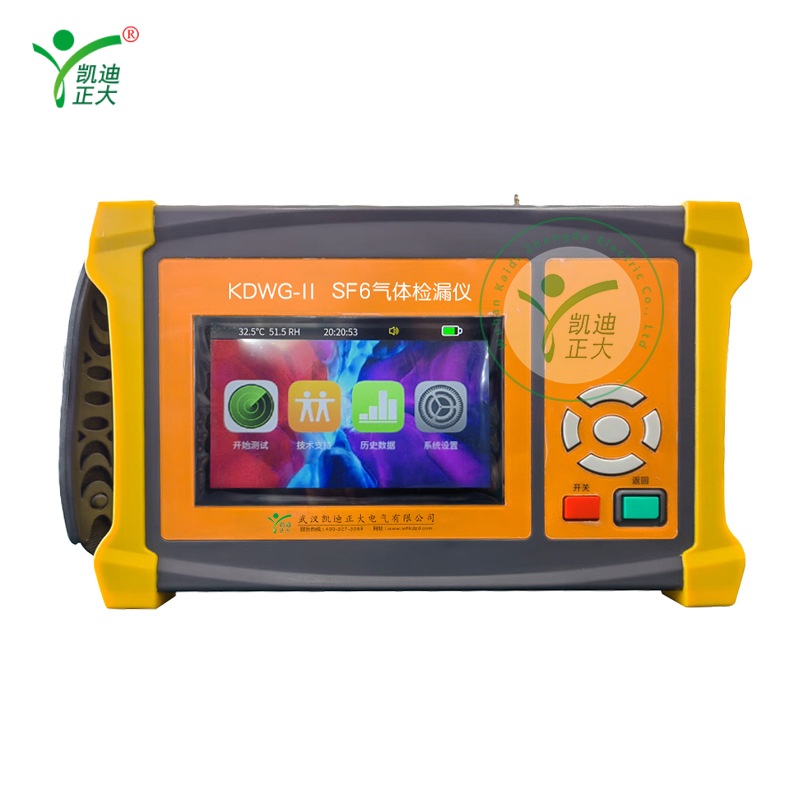

Adopting a color large screen dot matrix LCD display and menu style function management;
Real time display of detection data during the detection process, along with dynamic waveform curve analysis charts;
The screen displays alarm values and curves, using a buzzer alarm method;
Equipped with self calibration function;
Large capacity rechargeable lithium battery with a continuous working time of more than 5 hours;
Clock perpetual calendar function;
Compact size, convenient for handheld measurement;
Capable of storing 20000 pieces of data and waveforms, as well as browsing and querying functions.

Measurement method: NDIR single beam dual wavelength infrared measurement technology
Monitoring gas: Sulfur hexafluoride gas
Measurement range: 0-12000ppm
Resolution: 1ppm
Accuracy: ± (1.5%+5d)
Repetitive performance: 1%
Pump extraction speed: ≥ 800ml/min
Continuous working time: not less than 5 hours
Instrument start-up preheating time: ≤ 10 seconds
Corresponding time: less than 3 seconds
Recovery time: less than 3 seconds
Charging adapter specification: DC5V/1A
Surge (impact) immunity: ± 1.2kV
Environmental temperature: -20 ℃ to+50 ℃
Environmental humidity: Relative humidity of 5-95% (without condensation)
Atmospheric pressure: 50kPa~110kPa
Protection level: IP33, double insulation, CAT II standard
Dimensions: 250mm in length, 160mm in width, and 70mm in height
Host weight: 1KG
