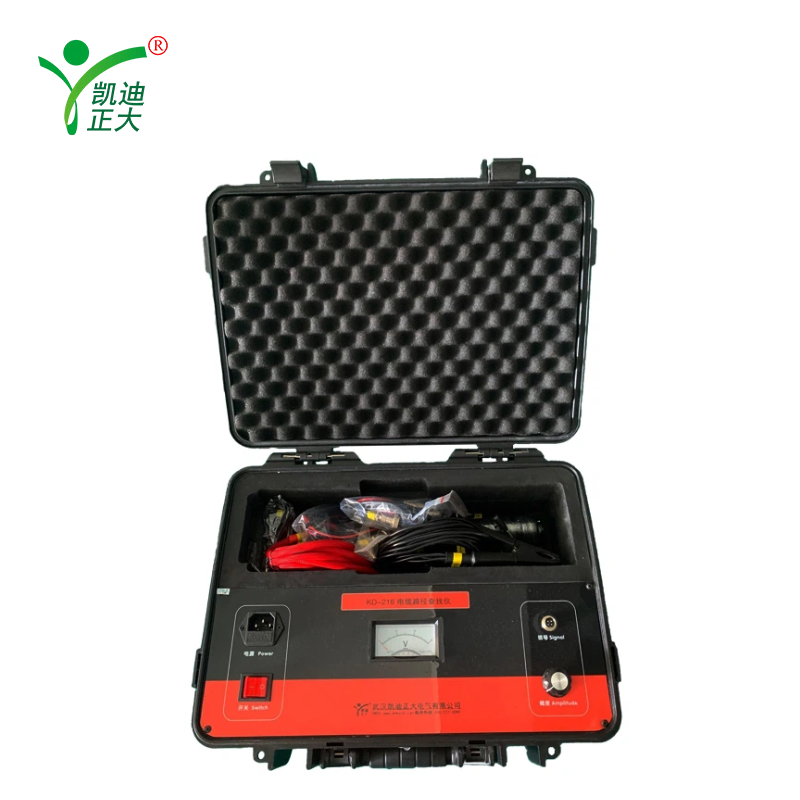

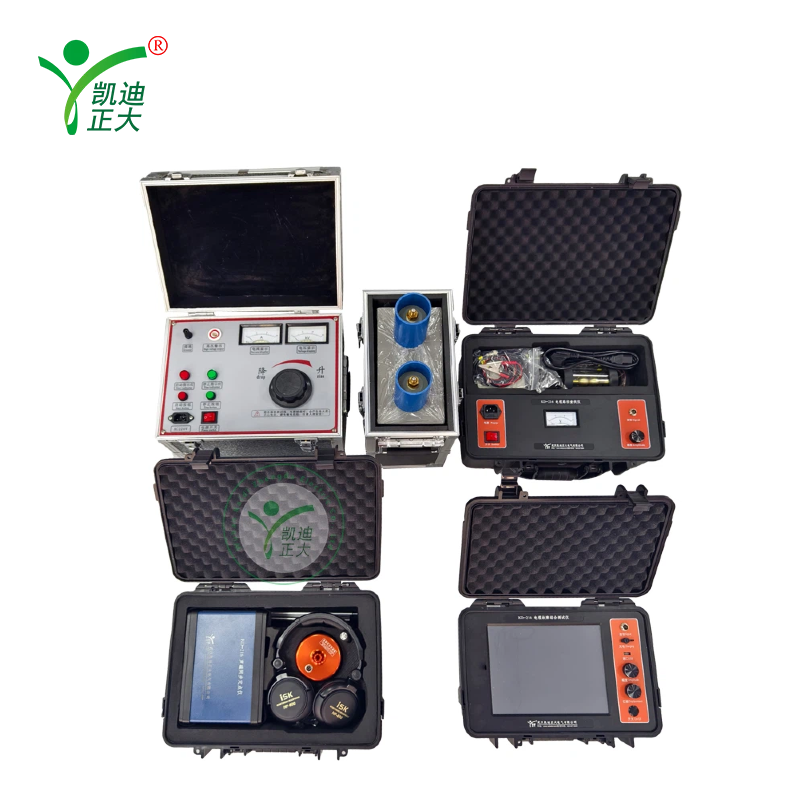

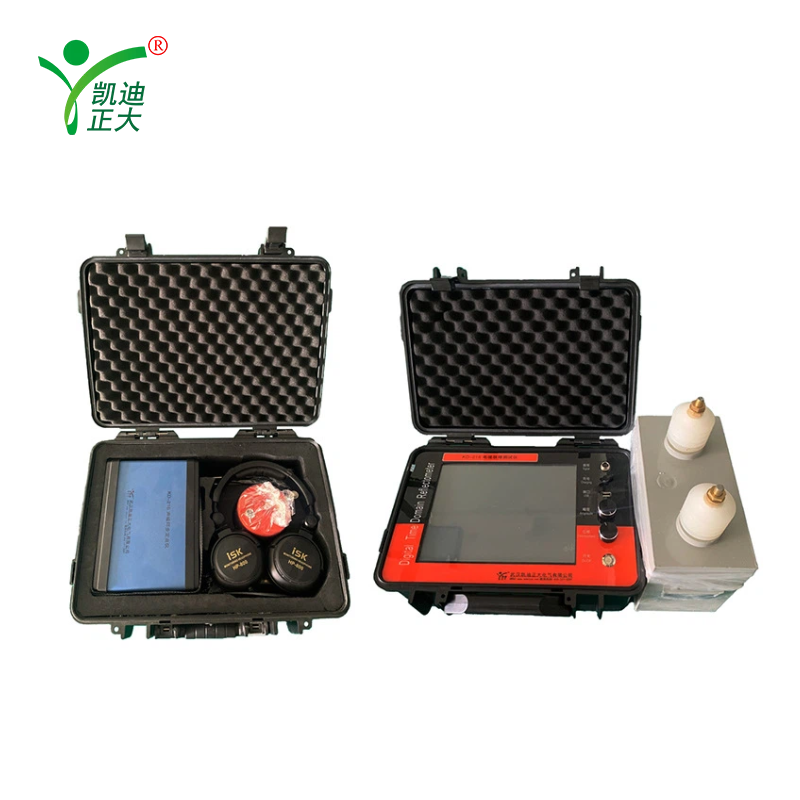

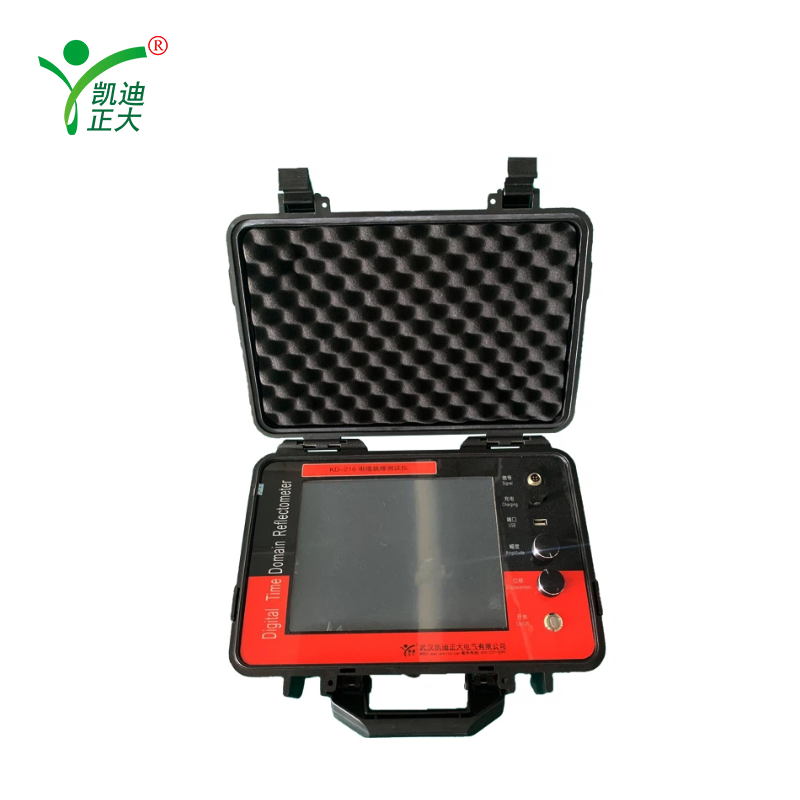

KD-216 cable Fault Tester
KD-216 cable Fault Tester

KD-216 cable Fault Tester

Applications:

This integrated system tests all faults of ≤35kV power cables, locates buried cable routes/depths and pinpoints insulation fault points accurately. It also measures cable length/wave velocity, establishes cable archives, and applies to power/communication cable construction and maintenance.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KD-216 is a professional cable fault testing system with TDR technology, including fault tester, route finder and acoustic-magnetic locator. It features IP67 protection, intuitive touch operation, anti-interference design and high testing accuracy for field use.

Features:

  1. A specially designed acoustic vibration sensor and low-noise components enable pre-amplification, boosting sensitivity for fault location and cable route detection; digital distance display eliminates blind spot in fixed-point testing.
  2. Accurate fault distance and direction can be quickly shown by simply placing the sensor probe on the faulty or adjacent cable, realizing effortless and fast fault positioning.
  3. Power frequency adaptive cancellation and high-performance notch filter enhance 50Hz signal suppression and anti-interference in strong electric fields, narrowing blind zones. Acoustic-electric synchronous display defeats environmental noise; digital distance display skips complex waveform analysis, replacing flash tester’s rough measurement for efficient fixed-point testing of hundreds-of-meters faulty cables without prior rough detection. 15kHz amplitude-modulated electromagnetic wave technology avoids TV line frequency interference in route and depth detection.
  4. The instrument is easy to operate with just a power switch (no gear shifting/function selection), and features a compact, modular structure for easy carrying and maintenance with powerful performance.

Parameter:

  1. Sampling method: Low-voltage pulse method, impulse flashover method, velocity measurement method (triple pulse method and multiple pulse method expandable)
  2. Sampling rate: 200 MHz, 100 MHz, 80 MHz, 40 MHz, 20 MHz, 10 MHz
  3. Pulse width: 0.05μs, 0.1μs, 0.2μs, 0.5μs, 1μs, 2μs, 8μs
  4. Wave velocity setting: Pre-set for XLPE, PVC, oil-immersed paper, non-dripping oil; customizable for unknown types
  5. Impulse high voltage: ≤40kV
  6. Testing distance: ＜60km
  7. Resolution: 1m
  8. Testing accuracy: 1m
  9. Display: Industrial 10.4-inch color touch LCD screen
  10. Operation mode: Touch screen + physical knob operation
  11. Analysis functions: Scrolling, zooming, saving, retrieving, wave shifting, etc.
  12. Power supply: Built-in battery power supply; coupling unit works passively
  13. Continuous operation: ＞4h (external power supply optional)
  14. Storage function: Supports mass on-site waveform and data storage, with real-time retrieval
  15. Waveform analysis: High-resistance fault waveforms show only short-circuit characteristics of low-voltage pulse method for easy positioning
  16. Waveform processing: Simultaneous on-screen and overlay comparison of fault point waveform and full-length open-circuit waveform of normal phase; automatic fault distance judgment
  17. Packaging: Industrial black safety protective case, IP67 protection grade
  18. Dimensions: 365mm(L) × 269mm(W) × 169mm(H)
  19. Weight: 3.8kg
